M Thread Pg Thread Plastic Blind Screw Plug For Cable Gland
Product Description

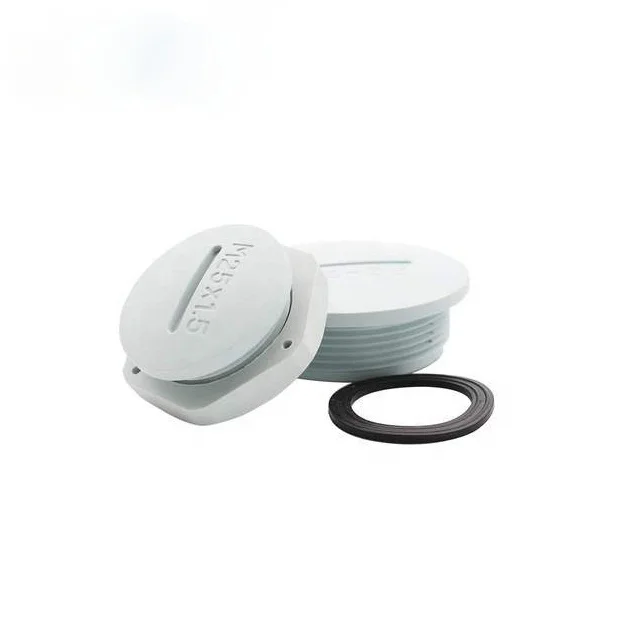

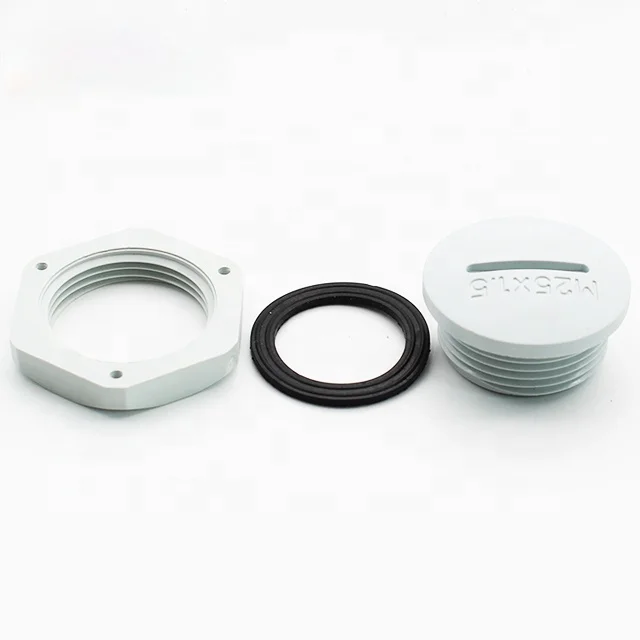

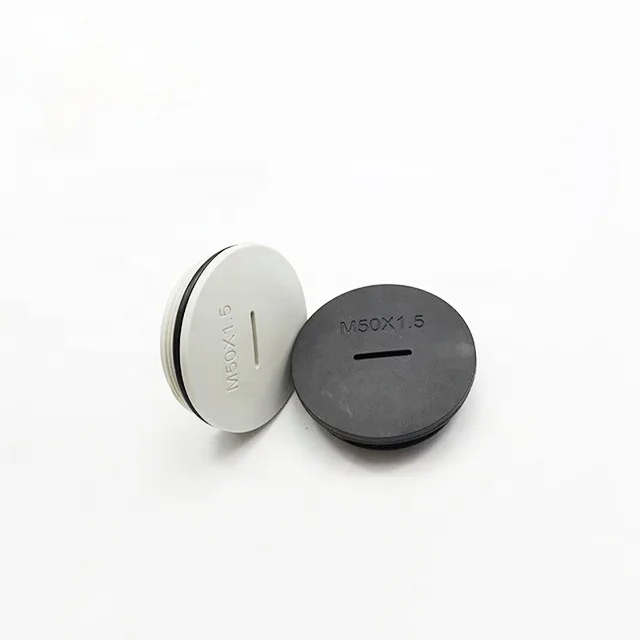

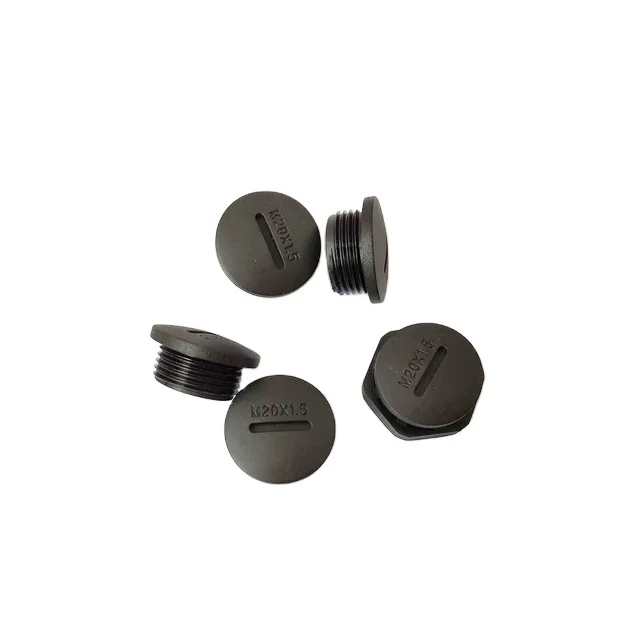

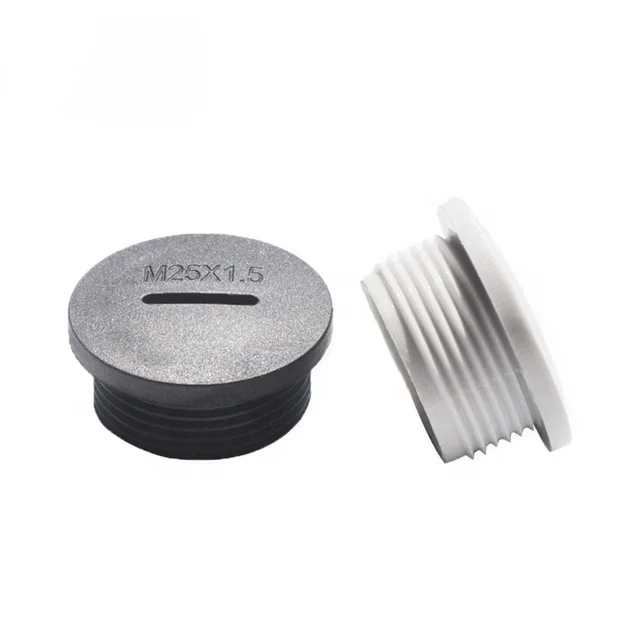

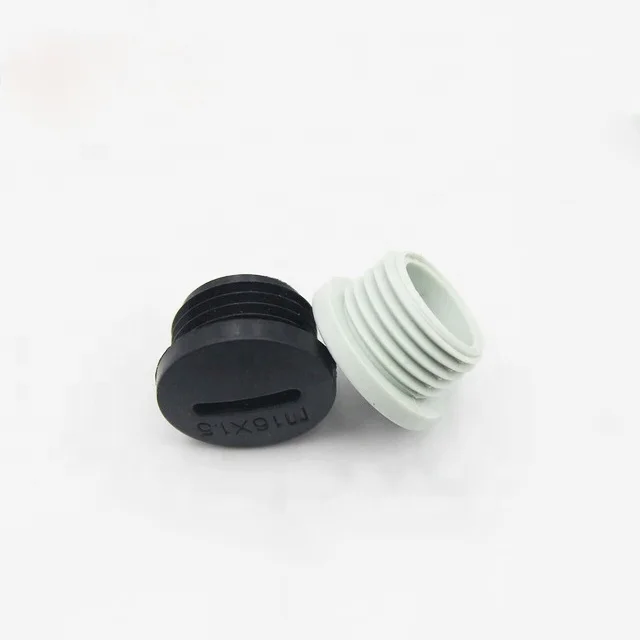

M thread PG thread plastic blind screw plug for cable gland
Product Usage: It blocks the extra holes in machinery and equipment and has the functions of waterproof and dustproof.
Specification:
1.Material: Nylon (PA66)
2.Protection grade: with waterproof gasket can reach IP68
3.Product certification: CE
4.Ambient temperature: -40C ° to 100C °
5.Color:white, black
Model and Size
| Type | Thread O.D(mm) | Thread Length(mm) | Blind Plug O.D(mm) |
| PG7 | 12.5 | 9.5 | 16.5 |
| PG9 | 15.2 | 9.5 | 19.2 |
| PG11 | 18.6 | 10 | 22.6 |
| PG13.5 | 20.4 | 11 | 24.4 |
| PG16 | 22.5 | 11 | 26.5 |
| PG21 | 28.3 | 11 | 32.3 |
| PG29 | 37 | 12 | 33 |
| PG36 | 47 | 12 | 33 |
| PG42 | 54 | 12 | 60 |
| PG48 | 59.3 | 12 | 65.3 |
| Type | Thread O.D(mm) | Thread Length(mm) | Blind Plug O.D(mm) |
| M10*1.5 | 10 | 9.5 | 16 |
| M12*1.5 | 12 | 9.5 | 16 |
| M16*1.5 | 16 | 10 | 20 |
| M18*1.5 | 18 | 11 | 22 |
| M20*1.5 | 20 | 11 | 24 |
| M22*1.5 | 22 | 11 | 26 |
| M25*1.5 | 25 | 11 | 29 |
| M27*1.5 | 27 | 11 | 33 |
| M32*1.5 | 32 | 11 | 38 |
| M40*1.5 | 40 | 12 | 46 |
| M50*1.5 | 50 | 12 | 56 |
| M63*1.5 | 63 | 12 | 69 |
Details Images
