High Quality Manufacturer Sale Two Pin Nylon Cable Gland Ip68 Side Connect
- Категории: >>>
- Поставщик: Shenzhen,Eleteck,Commerce,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

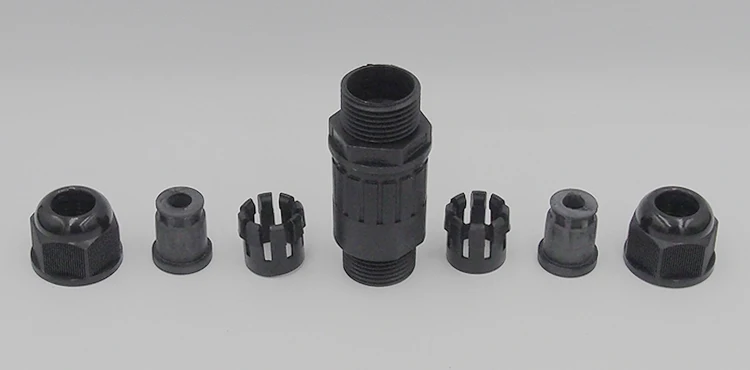

High Quality Manufacturer Sale Two Pin Nylon Cable Gland Ip68 Two Side Connect Nylon Cable Connectors
| Brand Name | Eleteck/OEM |
| Origin | CN(Origin) |
| Certification | ISO9001,ISO14000,ROHS,REACH,CSA,TS16949 |
| Material | Nylon, Steel,Brass, Steel, Metal, Copper, Aluminum, Nickle, Iron, alloy (contact us if your required material is not listed above) |
| is_customized | Yes |
| Packaging Details | Plastic bag, then carton box |
| Sample Service | Available, customer pay freight charge |
| Delivery | Stocks products in 3 working days Customized products around 7 working days |
Screw specifications: internal thread metric (Metric)
Product material: PA66 (fire rated UL94V-2)
The rubber part is made of EPDM weathering rubber. (Can be customized cold and high temperature resistant rubber; high acid and alkali resistant, chemical and corrosion resistant rubber).
Protection level: IP68
Product features: This section can make a reasonable space in the middle of the line, even if the pipeline is pulled
Color types: black, gray, other colors can be customized.

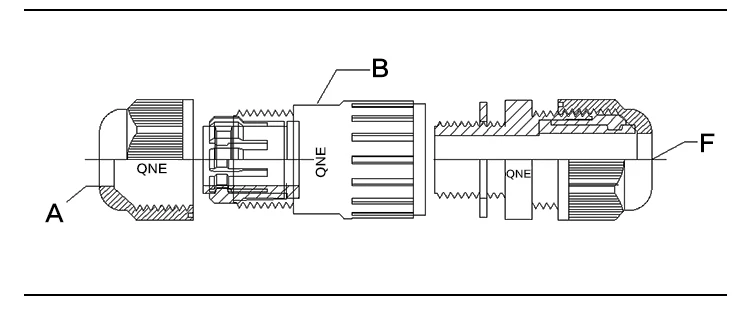

| Item.No. | Cable Range | Cable Range | Spanner Size | Std.Pkg |
| (mm)A | (mm)F | A&F&B(mm) | (pcs) | |
| M20-7-7 | 3-7 | 3-7 (NCG-M20M -7) | 22/22/23 | 50 |
| M20-7-7 | 3-7 | 6-10 (NCG-M20M -10) | 22/22/23 | 50 |
| M20-7-9 | 3-7 | 5-9 (NCG-M20S -9) | 22/24/23 | 50 |
| M20-7-9 | 3-7 | 8-12.5(NCG-M20S -12.5) | 22/44/23 | 50 |
| M20-7-11 | 3-7 | 5-11 (NCG-M20 -11) | 22/27/23 | 50 |
| M20-7-14 | 3-7 | 9-13.5 (NCG-M20 -13.5) | 22/27/23 | 50 |
| M20-10-10 | 5-10 | 6-10 (NCG-M20M -10) | 22/22/23 | 50 |
| M20-10-9 | 5-10 | 5-9 (NCG-M20S -9) | 22/24/23 | 50 |
| M20-10-9 | 5-10 | 8-12.5(NCG-M20S -12.5) | 22/24/23 | 50 |
| M20-7-11 | 5-10 | 5-11 (NCG-M20 -11) | 22/27/23 | 50 |
| M20-7-14 | 5-10 | 9-14 (NCG-M20 -12.5) | 22/27/23 | 50 |
| M25-11-9 | 5-11 | 5-9 (NCG-M25M-9) | 27/24/23 | 50 |
| M25-11-12.5 | 5-11 | 6-12.5 (NCG-M25M-12.5) | 27/24/23 | 50 |
| M25-11-11 | 5-11 | 5-11 (NCG-M25S -11) | 27/27/27 | 50 |
| M25-11-14 | 5-11 | 8.5-14 (NCG-M25S -14 | 27/27/27 | 50 |
| M25-11-13 | 5-11 | 7-13 (NCG-M25 -13) | 27/33/27 | 50 |
| M25-11-17.5 | 5-11 | 12.5-18(NCG-M25 -17.5) | 27/33/27 | 50 |
| M25-14-9 | 5-11 | 5-9 (NCG-M25M-9) | 27/24/27 | 50 |
| M25-14-12.5 | 5-11 | 6-12.5 (NCG-M25M-12.5) | 27/24/27 | 50 |
| M25-14-11 | 5-11 | 5-11 (NCG-M25S -11) | 27/27/27 | 50 |
| M25-14-14 | 5-11 | 8.5-14 (NCG-M25S -14 | 27/27/27 | 50 |
| M25-14-13 | 5-11 | 7-13 (NCG-M25 -13) | 27/33/27 | 50 |
| M25-14-17.5 | 5-11 | 12.5-18(NCG-M25 -17.5) | 27/33/27 | 50 |
Packaging & Shipping

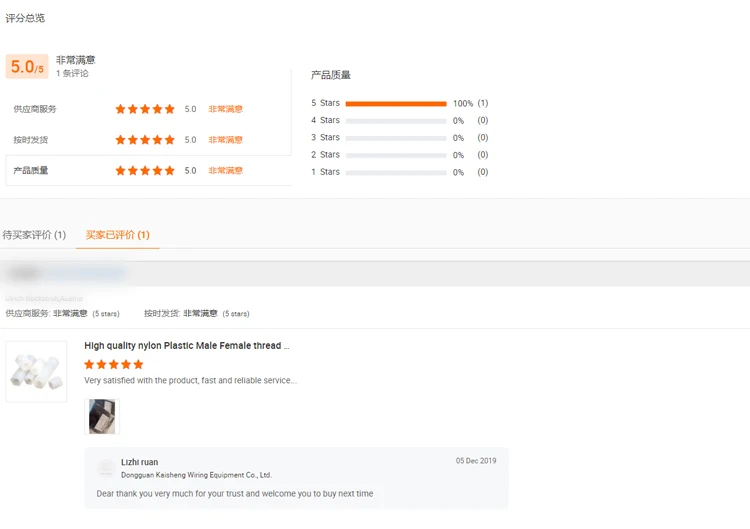

our service client feedback
FAQ
1. Q: Do you have your own factory?
A: Yes, we’re manufacturer in China for over 6 years, located in Zhangmutou Town, Dongguan city.
2. Q: How can I visit your factory?
A: Pls kindly let us know in advance if you planing to visit. we can show you the way or pick you up at the satation or airport.
3. Q: Do you provide free sample?
A: That's no problem, we can send the free sample for reference.
4. Q: Could you print our company logo on nameplate and package?
A: Yes, we can accept it. the best support could be offered to our clients.
5. Q: Do you accept custom design on size?
A: Yes, we always make customized goods for our customer.
6. Q: What’s your delivery time?
A: We’re factory, and we know time is money for clients. we always promise the fast delivery . normal 5-7 days after received the payment. (special for large quantity)
7. Q: What’s your MOQ?
A: No limit
