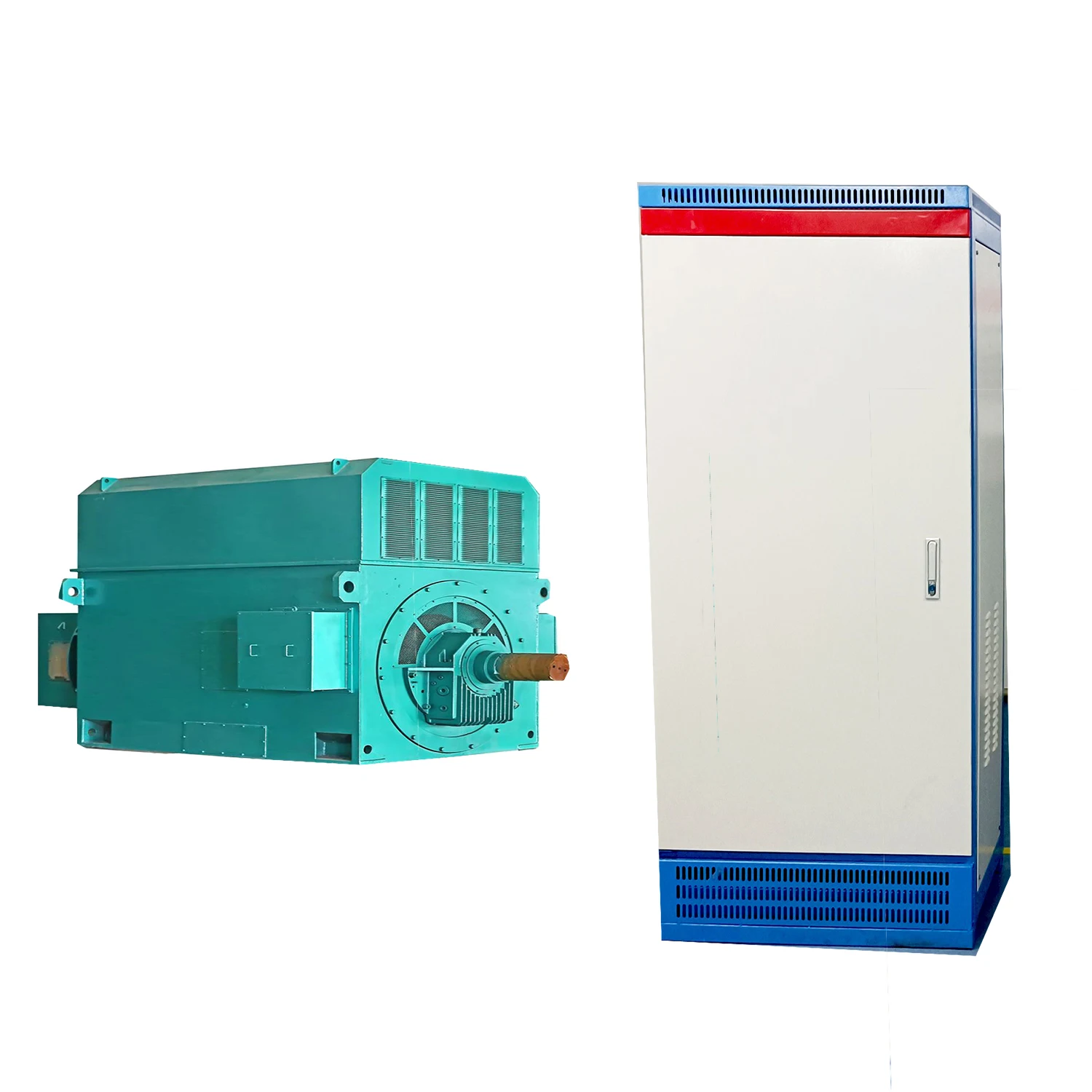

Electrical booster Motor Test Testing Equipment For High Voltage Running 10KV 6KW high power
Electrical booster Motor Test Testing Equipment For High Voltage Running 10KV 6KW high power
Electrical booster Motor Test Testing Equipment For High Voltage Running 10KV 6KW high power
Electrical booster Motor Test Testing Equipment For High Voltage Running 10KV 6KW high power
Electrical booster Motor Test Testing Equipment For High Voltage Running 10KV 6KW high power
Electrical booster Motor Test Testing Equipment For High Voltage Running 10KV 6KW high power

Electrical booster Motor Test Testing Equipment For High Voltage Running 10KV 6KW high power


Поделиться:

Цена:12 000,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





After the motor is repaired, the voltage level of the motor is often inconsistent and the capacity is too large. However, because the voltage level of the site is too low, the 6kV and 10KV high-voltage motor cannot be started. The motor test platform is specially designed for large and medium-sized motor manufacturing and maintenance enterprises. It carries out operation test on 6KV and 10KV motors with capacity range of 0-10000kW and voltage grade.


The testing content of this platform for motor after production or maintenance:
1、the motor circuit winding connection is correct;
2、When the motor is running, check whether the bearing vibration is within the normal range;
3、Heating condition of bearings after long operation.


Advantages
1. Portable, electronic pressure boost;
2. High power, can directly start the power of 10000KW, 6KV and 10KV motors;
3.Customized multi-voltage level program according to user needs, multi-purpose for one machine.
Operation instructions
1.Touch screen control, English interface, easy to operate.
2. Set the series and power according to the motor nameplate, and then start the operation with one key.


MODEL
ZYD-HVMTH-03
Function
Drive 10000KW AC Motor of 6KV/10KV at the site voltage 360-420V to do no-load test
Motor Model
AC Motor power below 10000KW
Household capacity
≥160KVA
Customize
Test cabinet，operation cabinet,and voltage level can be customized




1. Input power requirements: user access capacity 100KVA above, voltage 380V±5%.
2. The indoor temperature is -2℃-42℃, and the air humidity does not exceed 80%;
3. away from electromagnetic interference and vibration;
4. avoid corrosion of corrosive gas, avoid contact with explosive gas;
5. away from dust, water vapor, salts and other items;
6. The elevation of installation shall not exceed 1000m.




Q1: What is the delivery time ?
A1: It usually is needed 7-15 days based on your request and the configuration.

Q2: Do you support OEM service ?
A2: Yes, we fully support OEM services and welcome you to customize our products.

Q3: What is the warranty?
A3: One year warranty under normal use. During the warranty period, if there is a fault caused by product quality, the equipment shall be returned to the factory for maintenance, the company will repair it free of charge.For maintenance services after the warranty period, our company will only charge for components

Q4: Can I get a cheaper price?
A4: Of course, please contact us, we can give you a cheaper price.

Q5: Can I customize the product?
A5: Yes, According to your needs, configure different test motor's voltage level, motor power, operation interface function keys, console,Logo,etc.
