MD Series Digital Linear Heat Detectors :

This kind of Digital Linear Heat Detector provides a very-early alarm detecting function to the protected environment. The detector can be known as an intelligent “switch” type detector. The polymers between the two conductors will break down at specific fixed temperature allowing the conductors contact, the short circuit will intimate the alarm. The detector has a continuous sensitivity. The sensitivity of linear heat detector will not be influenced by the environment temperature changing and the length of detection cable using. It does not need to be adjusted and compensation. The detector can transfer both alarm and fault signals to control panels normally with DC24V.

The polymers between the two conductors will break down at specific fixed temperature allowing the conductors contact, the short circuit will intimate the alarm.

Industrial safety design

 Electrical interface with low power consumption design

 Real-time monitoring

 Fast response time

 No alarm temperature compensation needed

 Compatible to any kind of fire alarm system

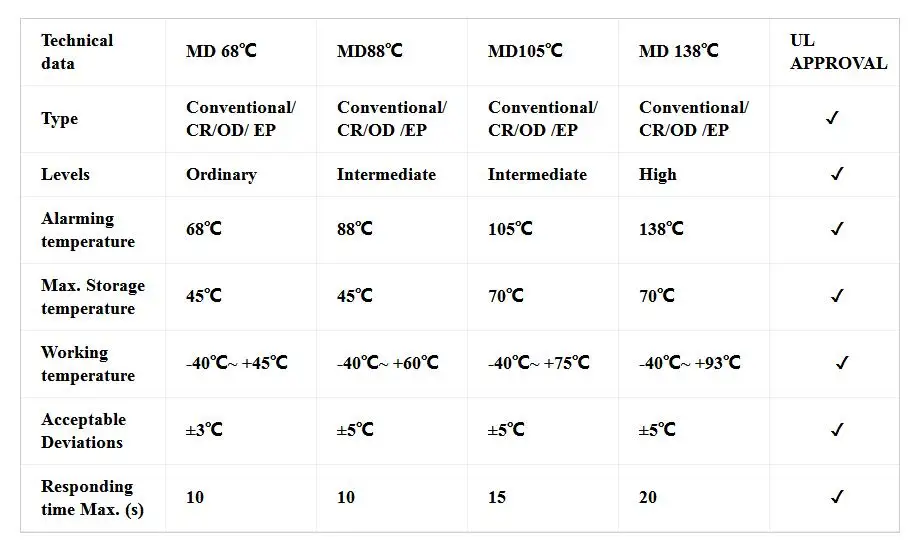

 Alarm temperatures: 68℃, 88℃, 105℃, 138℃ .

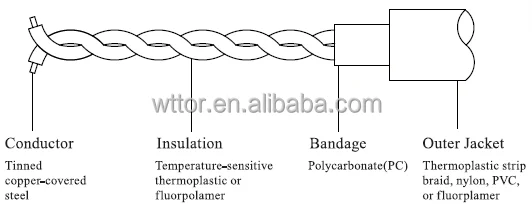

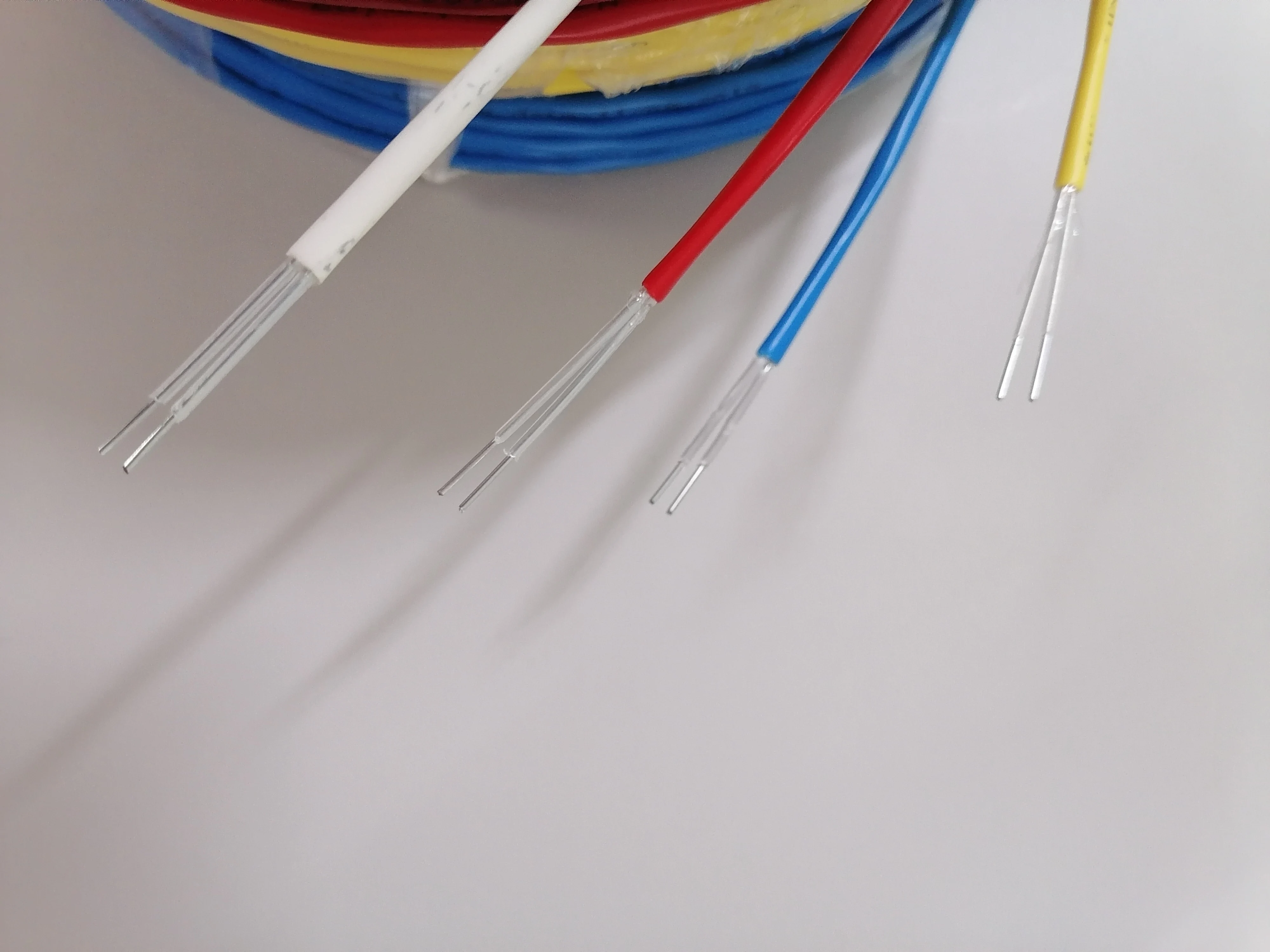

Intertwisting two rigid metallic conductors which are covered by NTC heat sensitive material, with insulative bandage and outer jacket, here comes the digital type LHD Cable, and the different models depend on the variety of materials of outer jackets to meet different special environments.

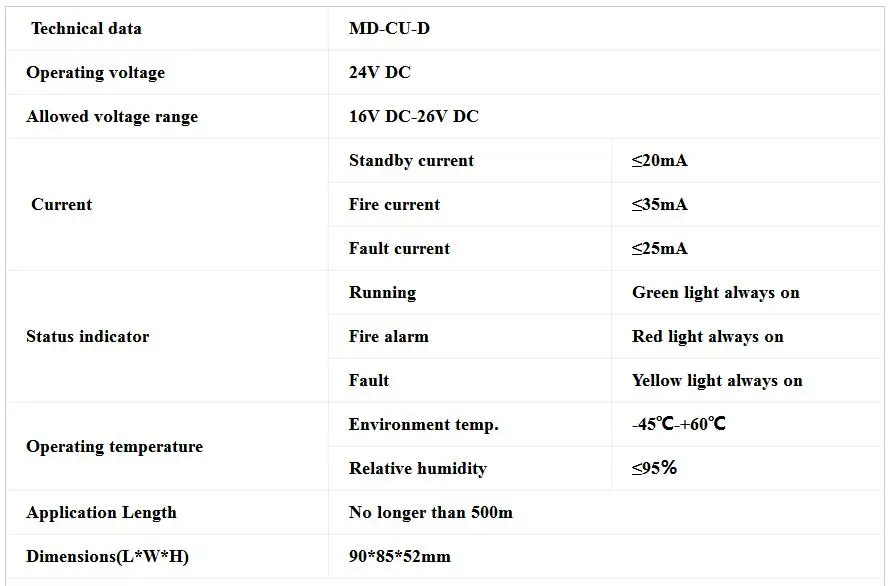

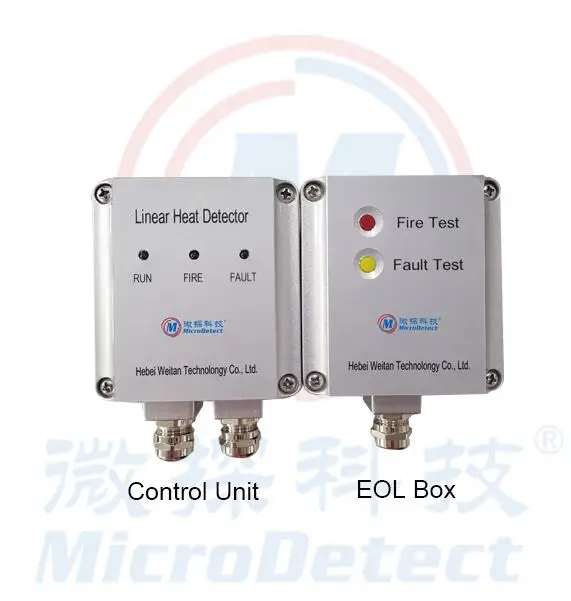

Control Unit MD-CU-D is used for MD series digital type Linear Heat Detection Cable. (the Explosion-proof tank and Safety barrier med to come with MD-CU-D for EP type). The function is to monitor the signal changes of Linear Heat Detection Cable and it can be connected to the Fire Alarm Control Panel.

EOL Box is used for MS1000, MS1000 CR/OD and MS1000 EP digital Linear Heat Detection Cable. The function is to balance the signal of Linear Heat Detection Cable.

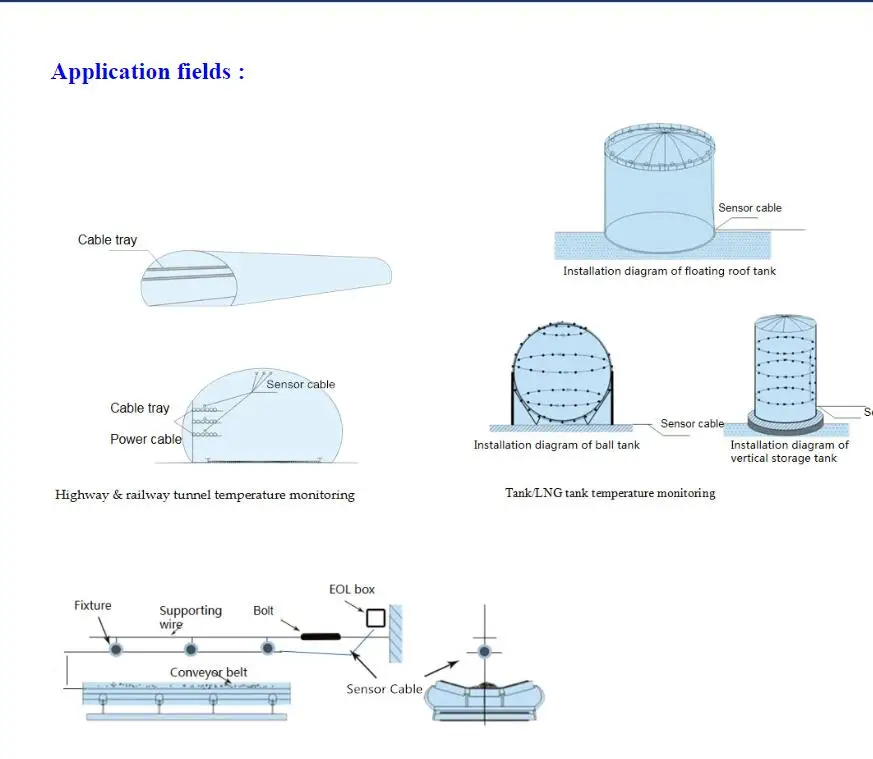

Cable tray, Cable tunnel, Cable trench, High-voltage cable.

Highway tunnel, Subway tunnel, Dam.

Rail tunnel, Utility tunnel.

Convey belt, Coal conveyor, Coal storage yard.

Oil tank, Gas tank, Oil convey pipeline, Gas pipeline.

Warehouse, etc.
