Новый продукт, переносные пилорезы
US $1500-$2000
MJ200 деревообрабатывающие лесопильные станки пильные фрезеровочные многофункциональные лезвия режущий пильный
- Категории: Wood Saw Machines >>>
- Поставщик: Foshan,Yowing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features
multi-blade saw machine can be upper lifting , regardless of what kind of cutting specifications,
saw blade can be kept with the vertical wood sawing,the wood saw surface smooth, easy to operate，uniform thicknesscan be installed more thin saw blade, reduce saw loss, effectively increase the
rate of out.
saw blade can be kept with the vertical wood sawing,the wood saw surface smooth, easy to operate，uniform thicknesscan be installed more thin saw blade, reduce saw loss, effectively increase the
rate of out.
1,Economic frame.
2,more sizes for option, can be with automatic loading unit
3,Pressing roller could lift automatically

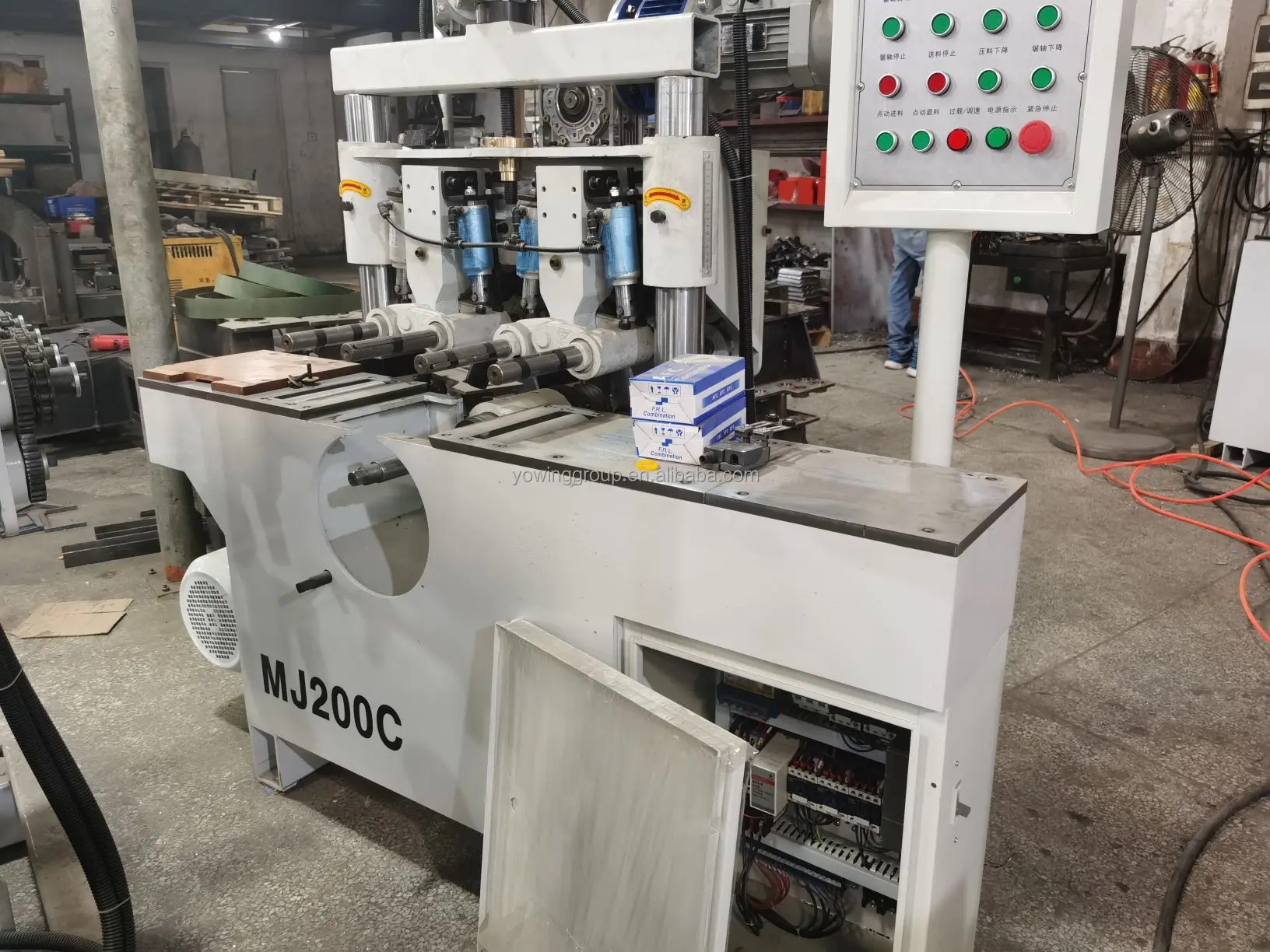

Machine Details

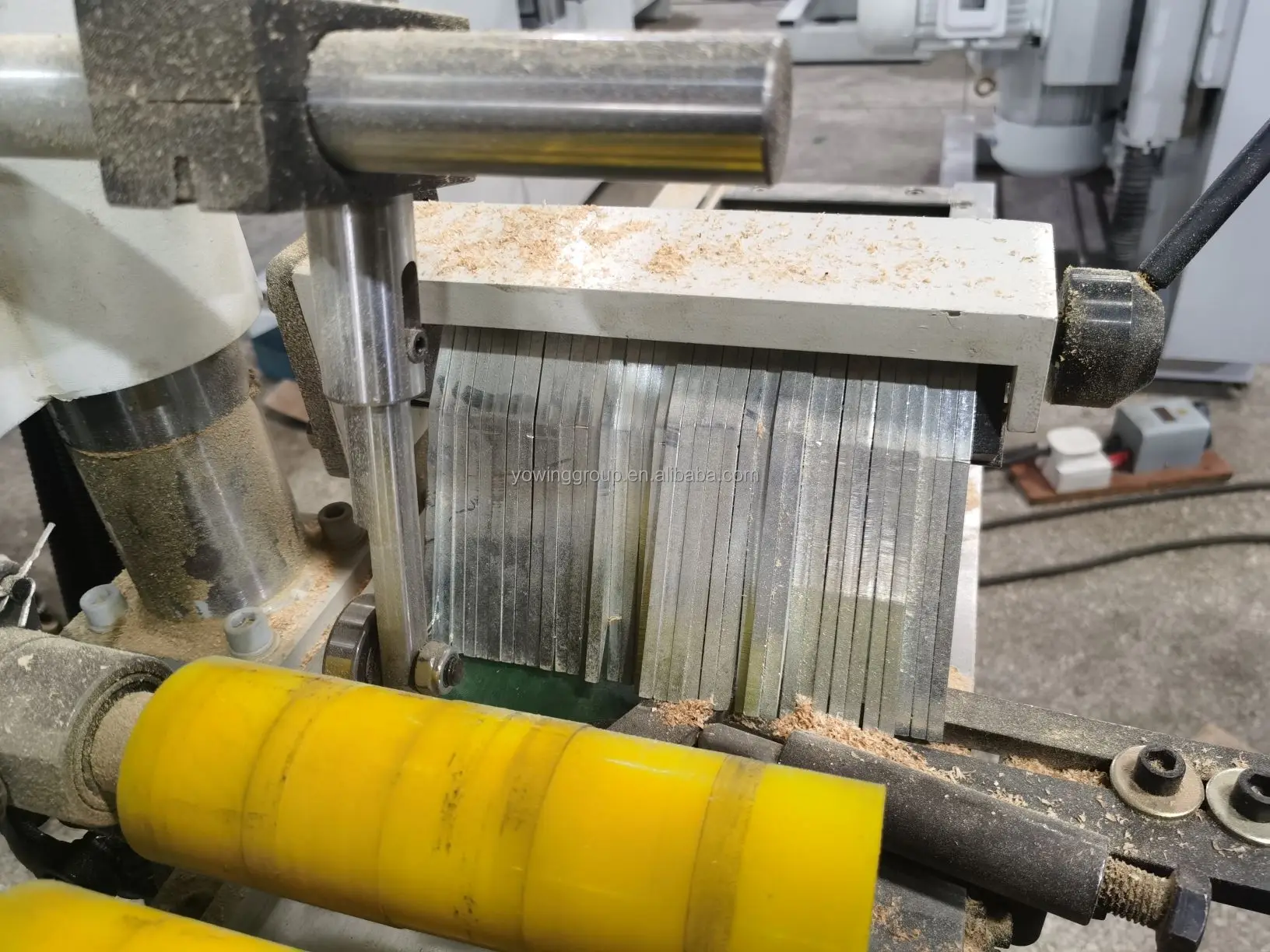

Saw spindle structure
upper press beam lifting,saw blades lower,aw blade can be kept with the Center vertically wood sawing, the wood saw surface
smooth, reduce saw loss, effectively increase the rate of out
smooth, reduce saw loss, effectively increase the rate of out
Machine frame
Machine bench is iron plate welding, to ensure
long term life span and keep stable when working.
Front shellproof
The front feed ports are equipped with double anti-bouncing device, rebound device effectively prevent the rebound of wood injury
which is safe and reliable
which is safe and reliable

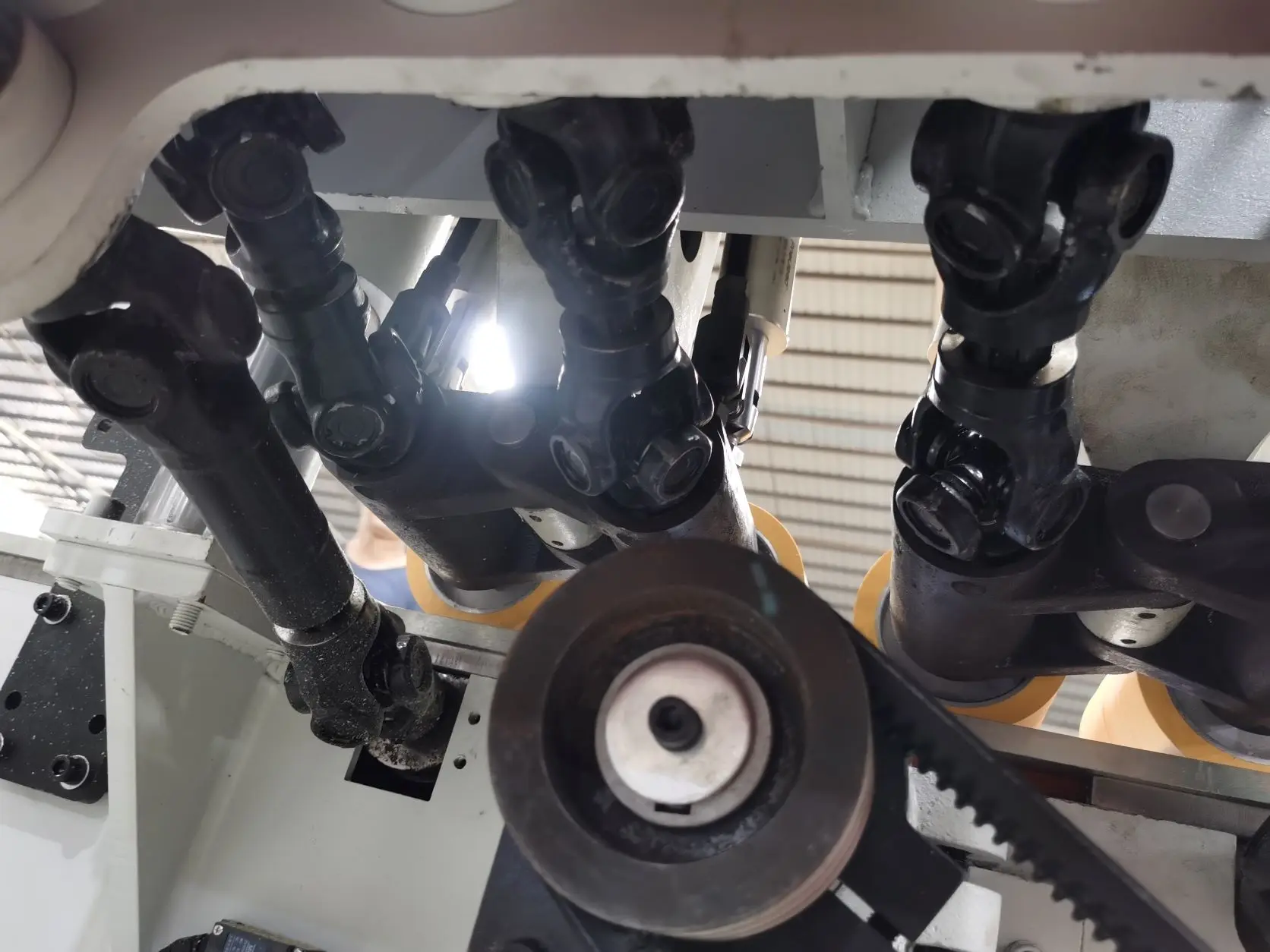

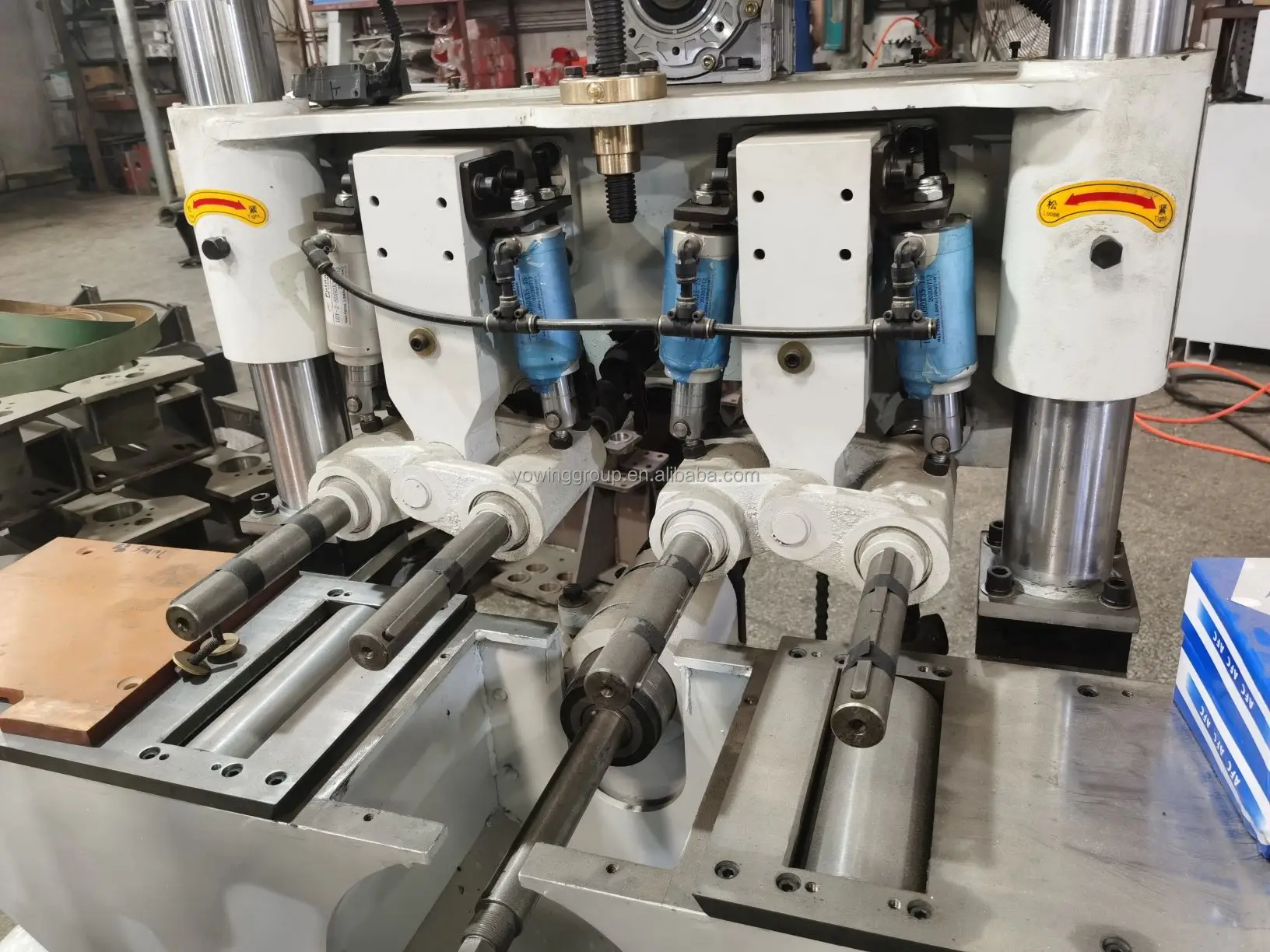

Electric press beam lifting system
These are connected with press rollers, total 4 rows pressing rollers to ensure press tightly and keep safe to workers

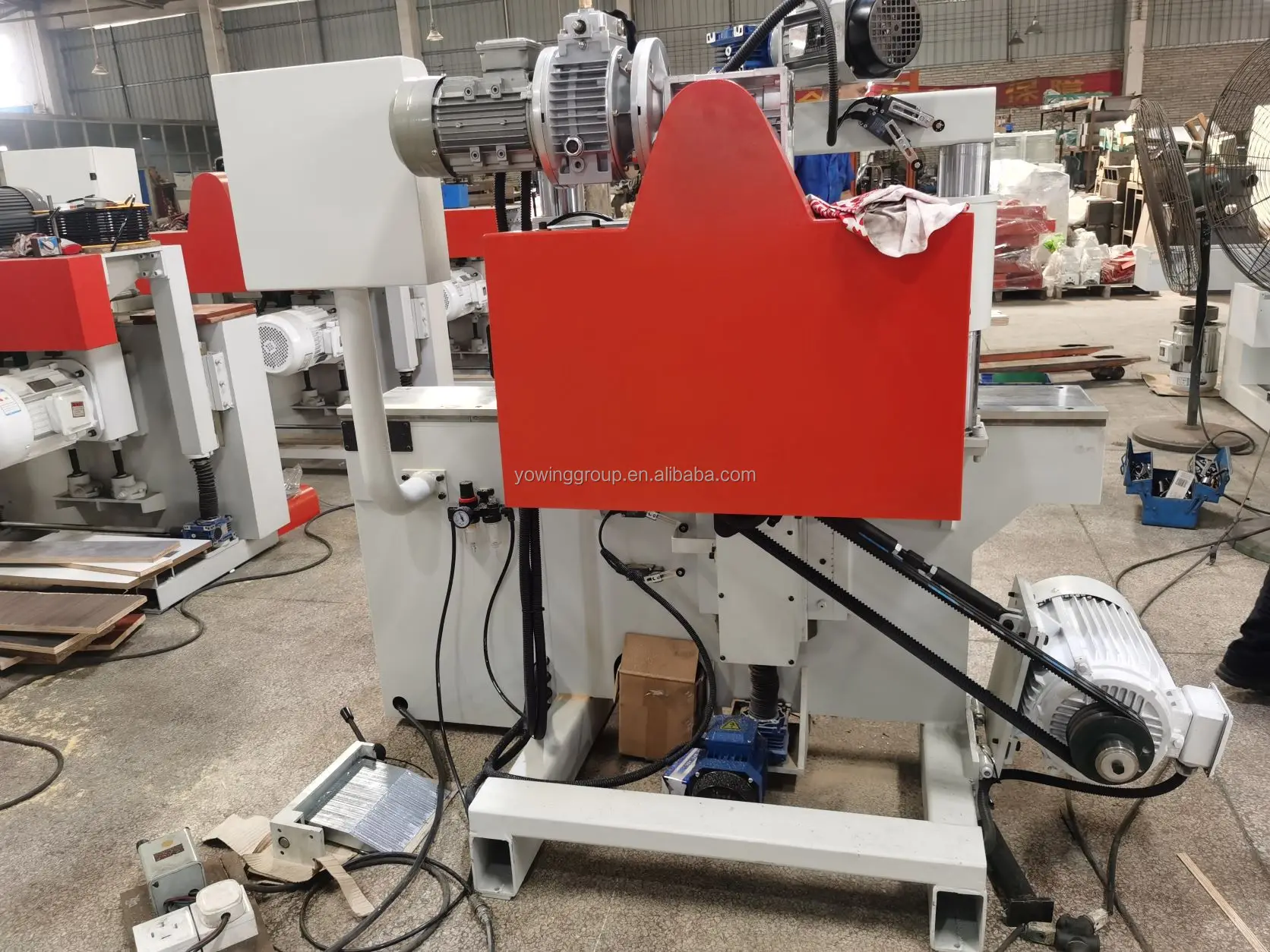

Back view
This machine is with 4 motors: 1 for cutting, 1 for lifting, 1 for pressing, 1 for feeding to ensure more automatic.
Specification
Model | MJ200 | MB200B | MJ143A |
Working length | >300mm | >300mm | >400mm |
Spindle Diameter(mm) | 35mm | 35mm | 50mm |
Working Thickness(mm) | 5-60mm | 5-60mm | 5-110mm |
Dimension(L*W*H) | 1460*900*1500 | 1460*900*1500 | 3200*1200*1600 |
Working width | 10-200mm | 10-200mm | 10-320mm |
Feeding motor | 0.75kw | 0.75kw | 4kw |
Feeding speed | 4-20m/min | 4-20m/min | 5-21m/min |
Lifting motor | 0.37kw | 0.37kw | 0.55kw |
Cutting motor | 7.5kw | 11kw | 37kw |
Total power | 8.62kw | 12.12kw | 42.3kw |

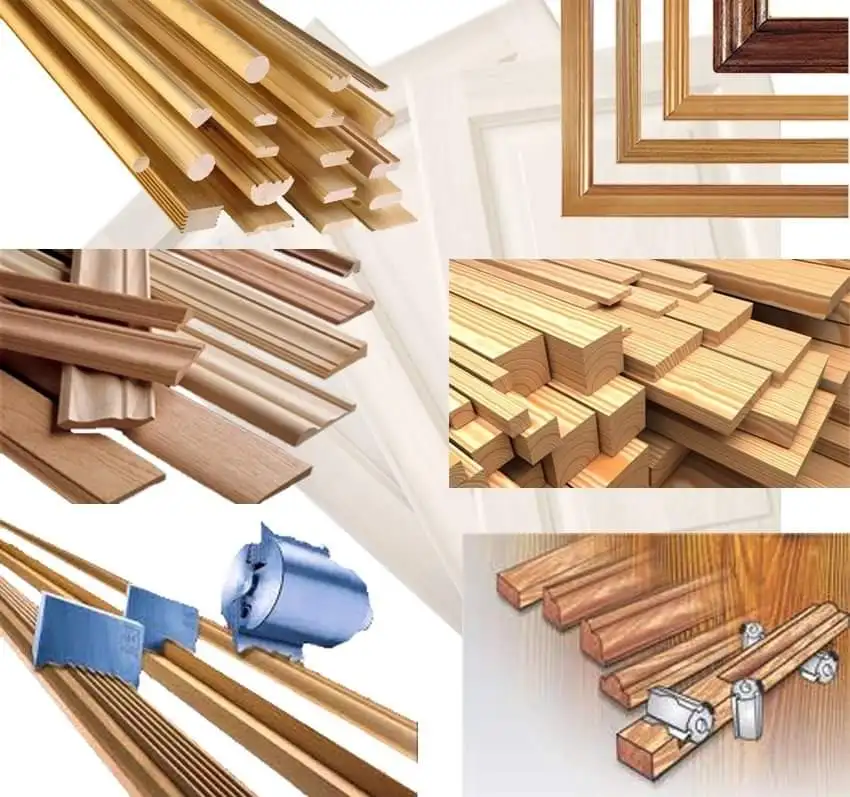

Application of Scope
Related Products
Four sides sanding machine.
This machine is profile sanding machine for four sides, or 3 sides, for flat and profile surface.
Spindle moulder with multiple saw
This one is combined with multiple saw , after moulding 4 sides, saw will spit into several small pieces.
Round rod making machine
This machine is to make wood square to round, for round rod, mop, brushes.

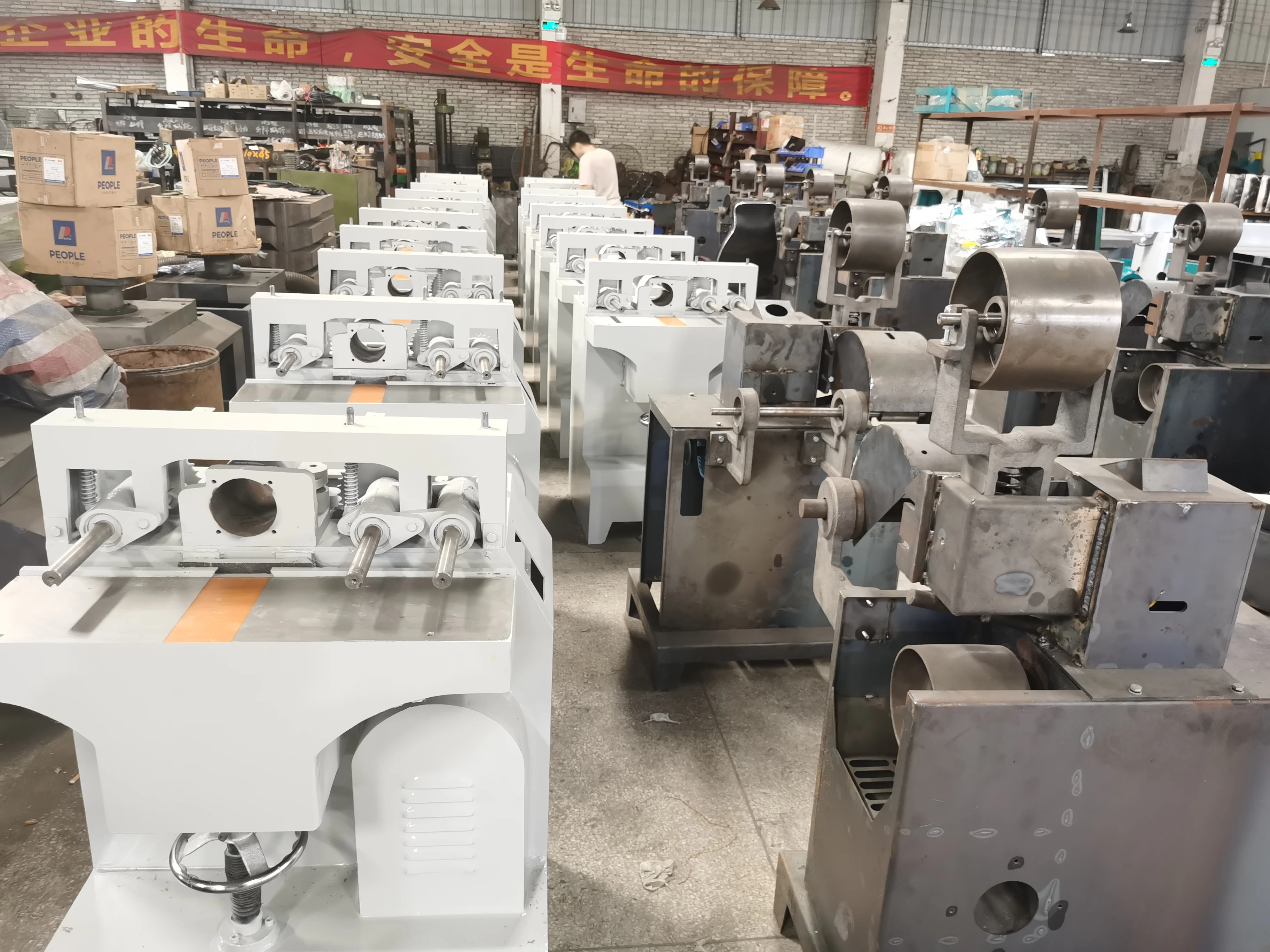

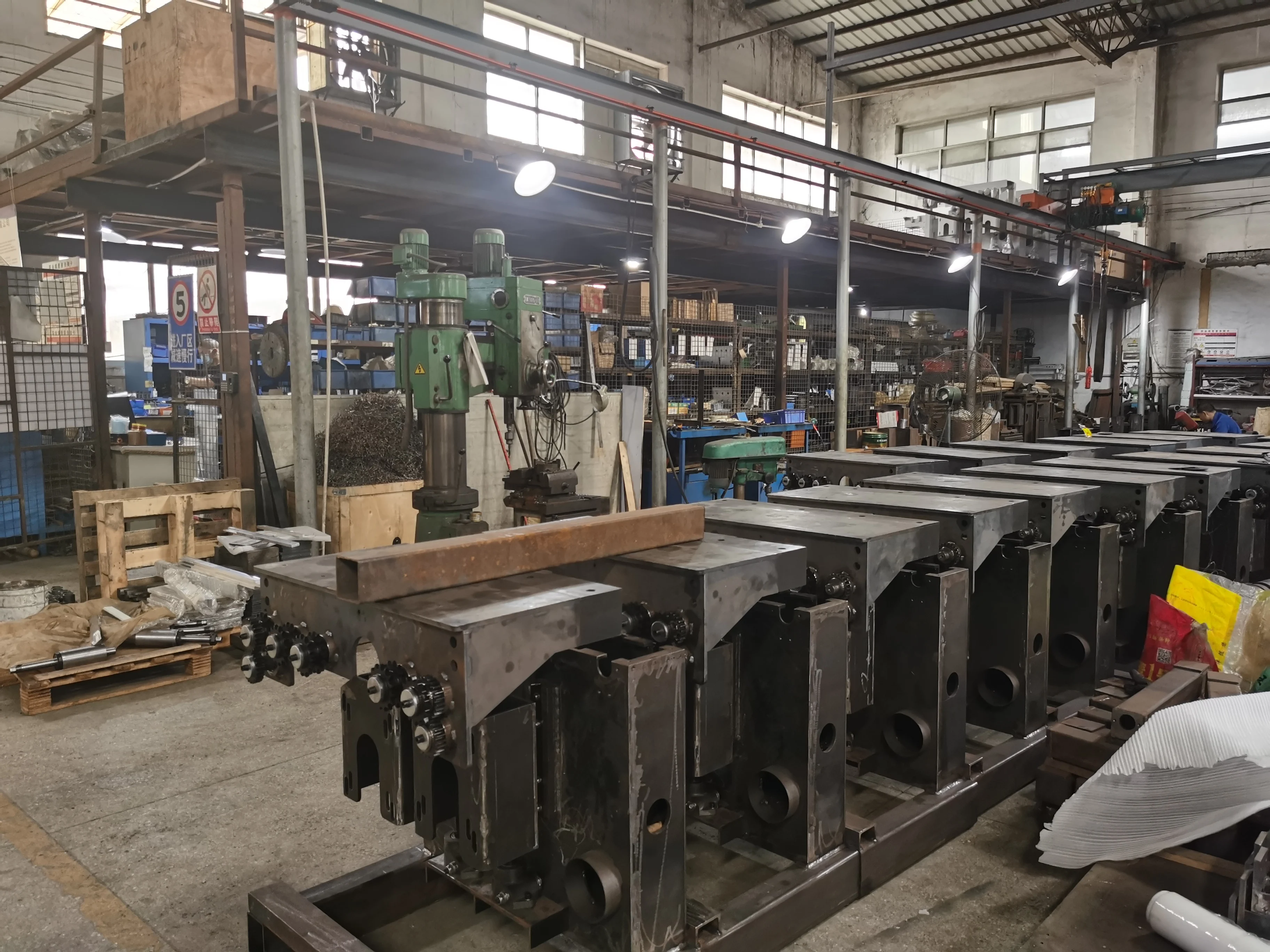

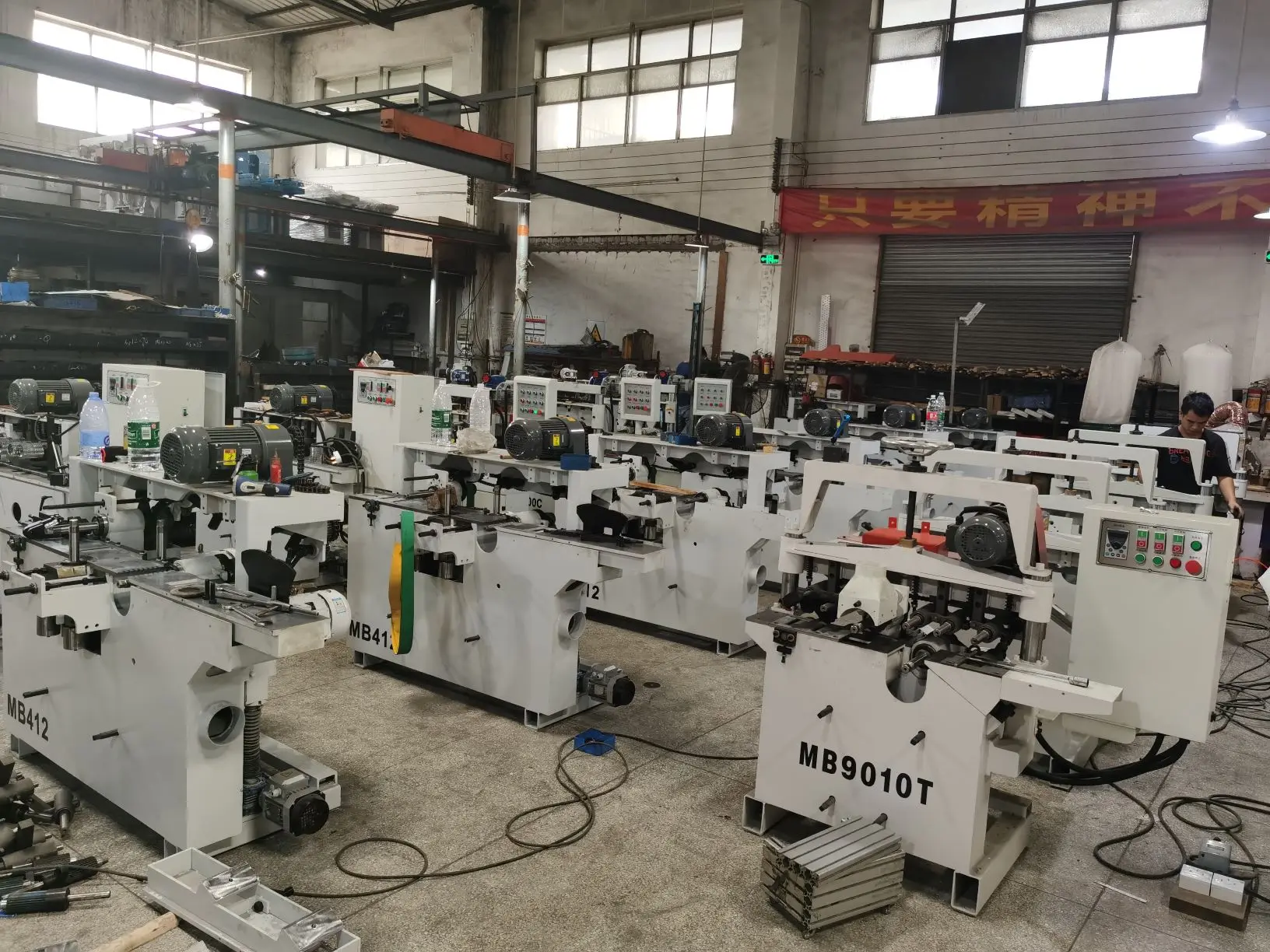

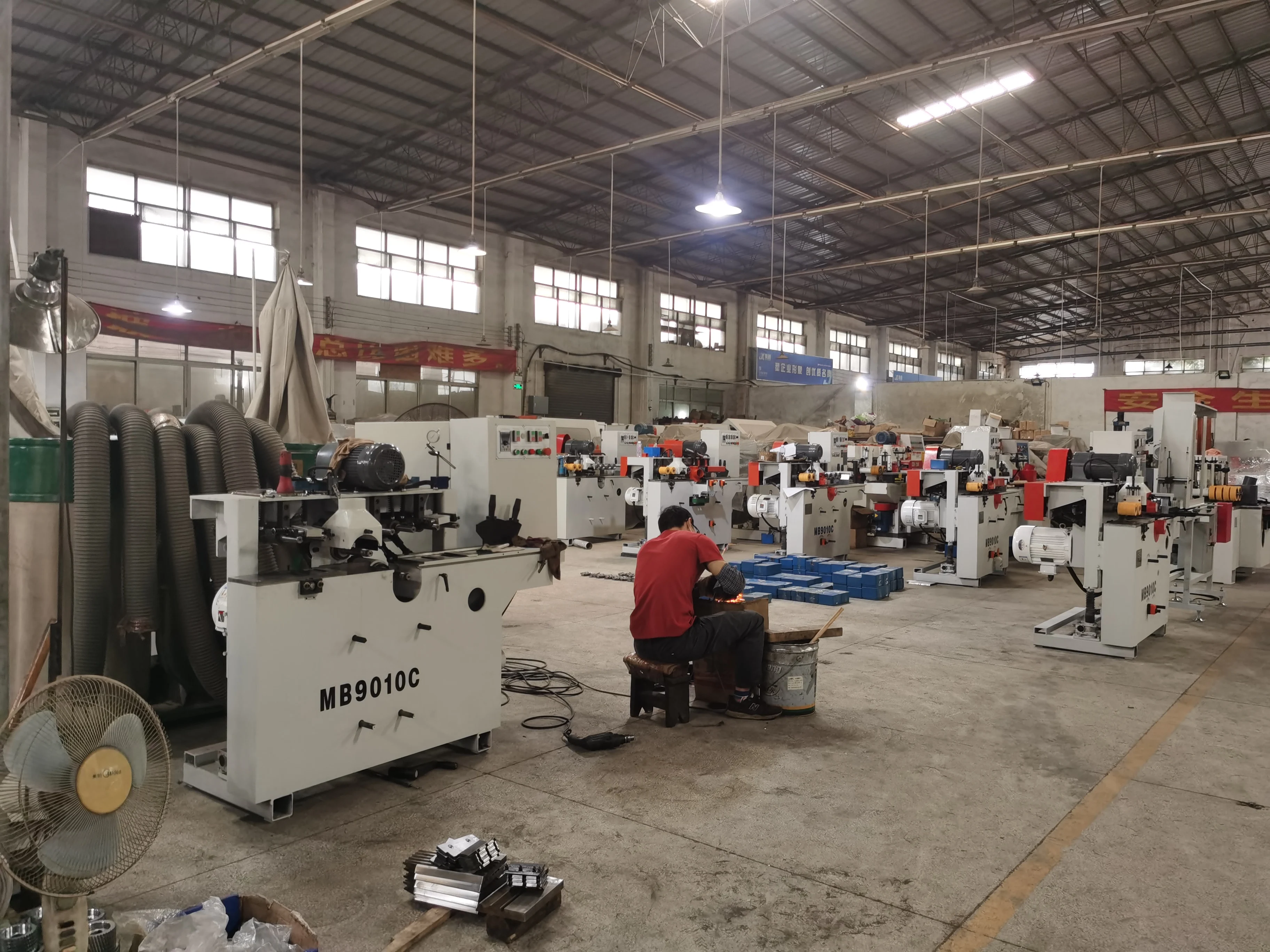

Company Profie
"YOWING MACHINERY,Located in China woodworking machinery important town: Lunjiao, Focusing on the development of full range of furniture and wooden door machinery equipment,providing furniture and wood door companies with solutions for whole factory planning and automatical production lines,presenting our customers with excellent quality,efficient and stable products and high-quality service.
Yowing machinery, under all colleagues hardworking,our machines sold very well domestic and abroad,our services has been to almost 20 countries including asia, Russia, Brasil and Mexico,ETC.In 2018,We built up a service office in Binh Duong, Vietnam, and created a professional service team, to make sure can prove immediate service for our domestic and abroad customers.
2019，Yowing machinery, in order to help solve sanding difficulties, we start import and sell Origin of Italy Profile sand, provide more proper sanding materials for wood sanding, and metal sanding.2020, we will continue searching high quality overseas sanding materials, matching chinese machines and equipments, give one more option to our customers!"
Yowing machinery, under all colleagues hardworking,our machines sold very well domestic and abroad,our services has been to almost 20 countries including asia, Russia, Brasil and Mexico,ETC.In 2018,We built up a service office in Binh Duong, Vietnam, and created a professional service team, to make sure can prove immediate service for our domestic and abroad customers.
2019，Yowing machinery, in order to help solve sanding difficulties, we start import and sell Origin of Italy Profile sand, provide more proper sanding materials for wood sanding, and metal sanding.2020, we will continue searching high quality overseas sanding materials, matching chinese machines and equipments, give one more option to our customers!"
Packing & Delivery
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
3.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
4.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
3.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
4.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
5.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
