Япония THK шпильковый тип подшипник толкателя клапана CF6 CF6UU
- Категории: Other Bearings >>>
- Поставщик: Shandong,XRT,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Japan THK Stud Type Cam Follower Bearing CF6 CF6UU CF6UU-A
Product Description
| Product name | Japan THK Stud Type Cam Follower Bearing CF6 CF6UU CF6UU-A |
| Brand | THK |
| Material | Carbon Steel |
| Stud Diameter d | 6mm |
| Outer Diameter D | 16mm |
| Outer Ring Width C | 11mm |
| Thread G | M6X1 |
| Weight | 0.019Kg |
| Dynamic Load Rating | 3.59KN |
| Static Load Rating | 3.58KN |
| Track Load Capacity | 3.43KN |
| Max Allowable Load | 2.11KN |

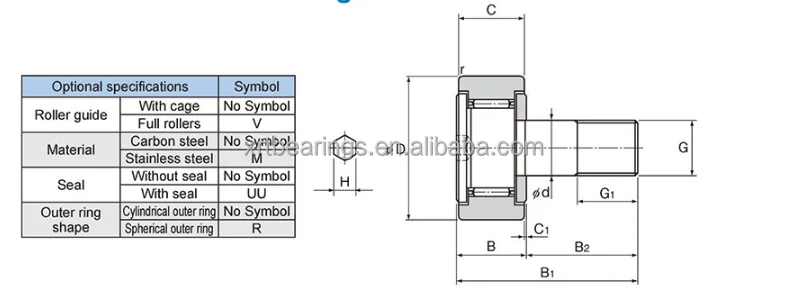

Stud diameter d | Model | Main dimensions | Basic load rating | Maximum permissible load F0 | Track load capacity | Rotational speed1 | Mass | ||||||||||||||||
Outer diameter D | Outer ring width C | Threaded G | G1 | B | Overall length B1 | B2 | C1 | H | rsmin | Shoulder height f(Min.) | With cage | Full rollers | Cylindrical outer ring | Spherical outer ring | With cage | Full rollers | With cage | Full rollers | |||||
| Dynamic C | Static C0 | Dynamic C | Static C0 | ||||||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kN | kN | kN | kN | kN | min-1 | min-1 | g | g | |
| 3 | CF3-A | 10 | 7 | M3×0.5 | 5 | 8 | 17 | 9 | 0.5 | 2 | 0.2 | 6.8 | 1.47 | 1.18 | — | — | 0.36 | 1.37 | 0.37 | 47000 | — | 4.5 | — |
| 4 | CF4-A | 12 | 8 | M4×0.7 | 6 | 9 | 20 | 11 | 0.5 | 2.5 | 0.3 | 8.6 | 2.06 | 2.05 | — | — | 0.78 | 1.76 | 0.47 | 37000 | — | 7.5 | — |
| 5 | CF5-A | 13 | 9 | M5×0.8 | 7.5 | 10 | 23 | 13 | 0.5 | 3 | 0.3 | 9.7 | 3.14 | 2.77 | — | — | 1.42 | 2.25 | 0.53 | 29000 | — | 10.5 | — |
| 6 | CF6-A | 16 | 11 | M6×1 | 8 | 12 | 28 | 16 | 0.6 | 3 | 0.3 | 11 | 3.59 | 3.58 | 6.94 | 8.5 | 2.11 | 3.43 | 1.08 | 25000 | 11000 | 18.5 | 19 |
| 8 | CF8-A | 19 | 11 | M8×1.25 | 10 | 12 | 32 | 20 | 0.6 | 4 | 0.3 | 13 | 4.17 | 4.65 | 8.13 | 11.2 | 4.73 | 4.02 | 1.37 | 20000 | 8700 | 28.5 | 29 |
| 10 | CF10-A | 22 | 12 | M10×1.25 | 12 | 13 | 36 | 23 | 0.6 | 5 | 0.3 | 15 | 5.33 | 6.78 | 9.42 | 14.3 | 5.81 | 4.7 | 1.67 | 17000 | 7200 | 45 | 46 |
| 10 | CF10-1-A | 26 | 12 | M10×1.25 | 12 | 13 | 36 | 23 | 0.6 | 5 | 0.3 | 15 | 5.33 | 6.78 | 9.42 | 14.3 | 5.81 | 5.49 | 2.06 | 17000 | 7200 | 60 | 61 |

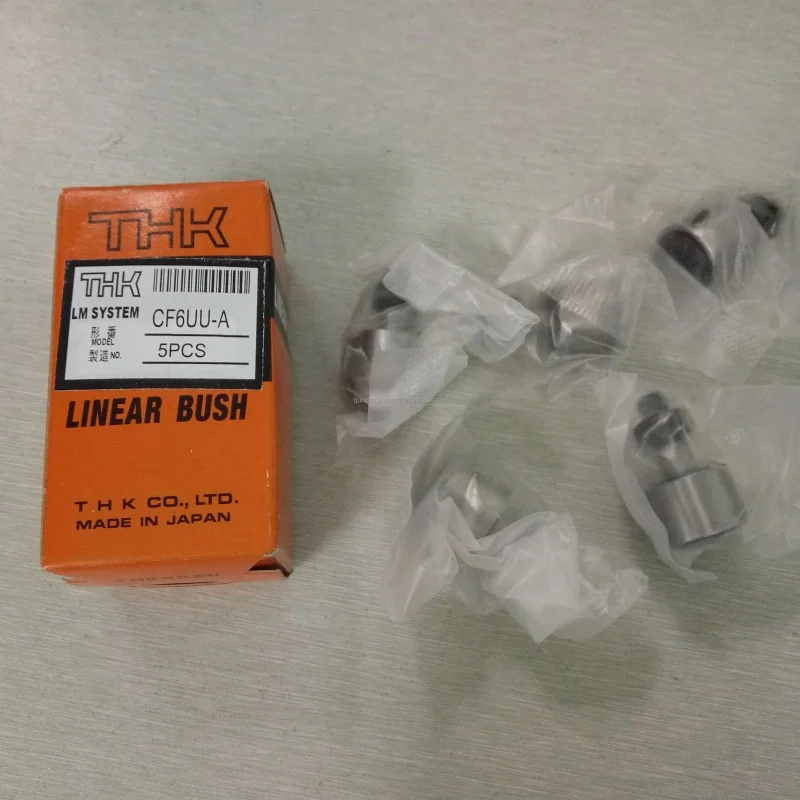

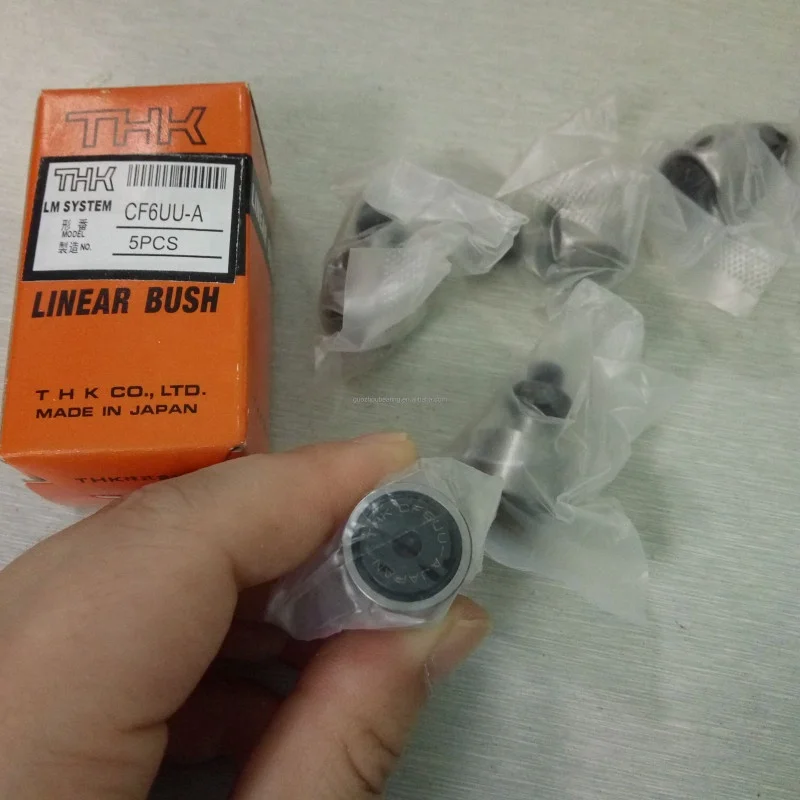

Japan THK Stud Type Cam Follower Bearing CF6 CF6UU CF6UU-A Show
Other types bearings

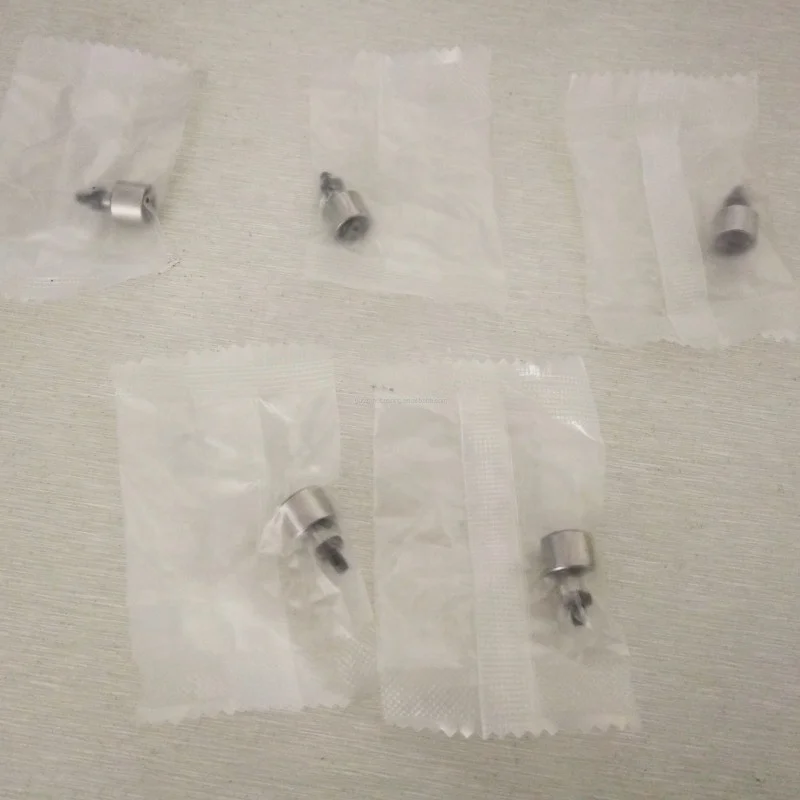

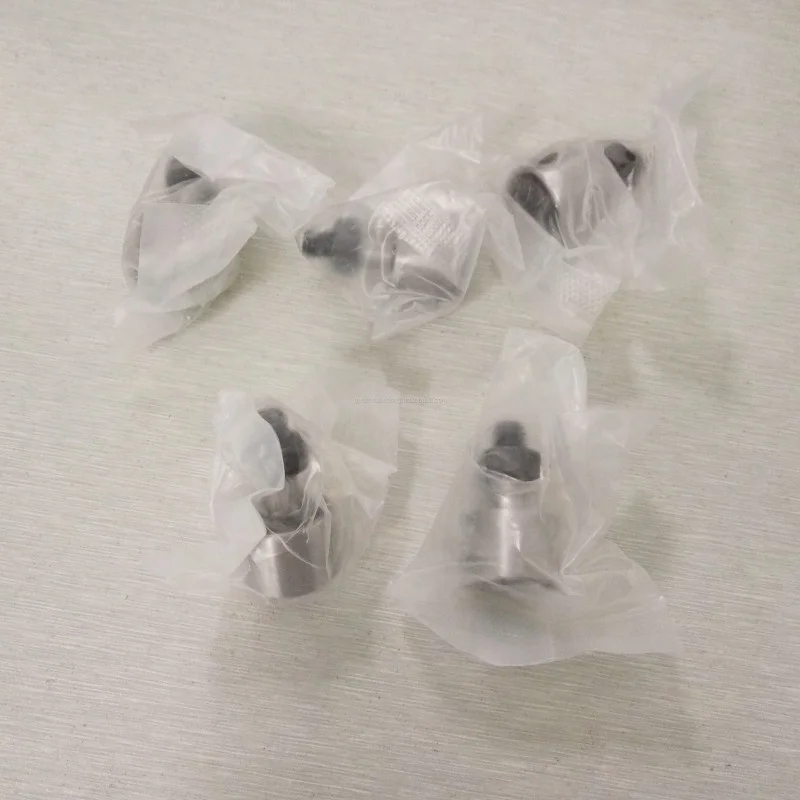

Packaging & Shipping
| Package | 1. Laser mark on the bearing; 2. Bearing wrapped by vacuum packaging ; 3. Outer color polybag + box + carton, industrial standard packaging; 4. According to your requirements. |
| Delivery | 1-3 days after payment received |
| Shipping port | Qingdao,Guangzhou,Shanghai |
| Payment | 1.100%TT; 2.30% T/T in advance,70% against copy of B/L; 3.Paypal. |
Our Services
1.Professional bearing manufacturer and exporter for more than 10 years;
2.The lowest cost price from our factory with high quality;
3.OEM brand available and customized;
4.Good after-sale service with professional technical engineers.
