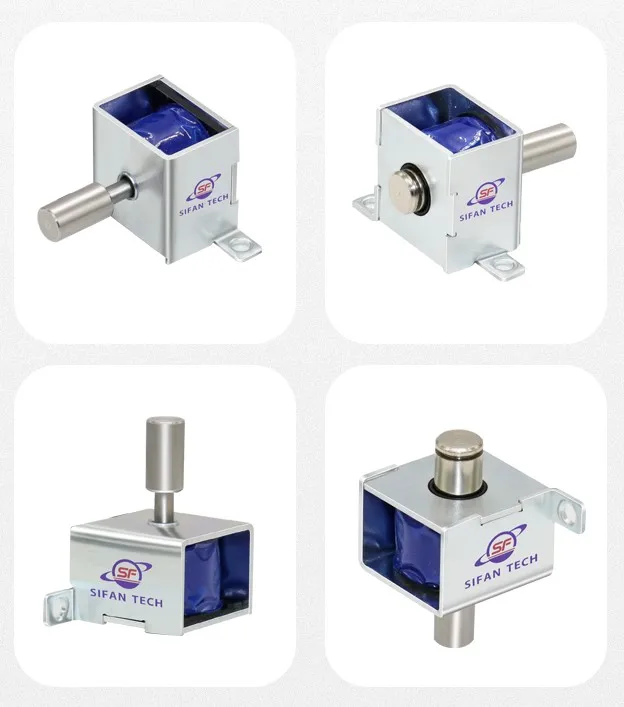

Product Description
Insulaiton level |
CLASS B(130°) |
Insulation resistance |
50MΩ MIN, DC500V |
Resistance |
At20℃ 4.8Ω±10% |
Current |
2.5A (REF) |
Rated voltage
|
DC12V
|
Temperature range
|
-10℃-45℃
|
|
20%-85%
|
Working voltage
|
DC12V ±10%
|

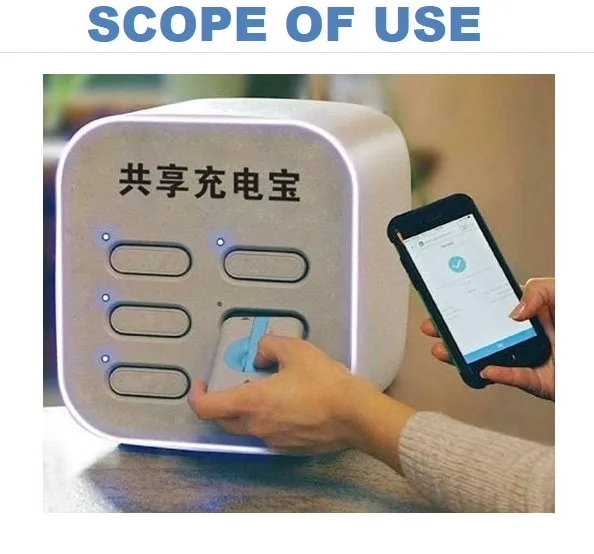

Scope of application
|
shared power bank, cash register equipment
|
Spring
|
4.5mm stroke spring thrust is not less than 25gf
|
Biometry
|
More than 50,000 times
|
Materials
High quality pure iron house, residual magnetism
High standard copper wire, heating stability, good insulation, efficient conductivity
Structure
Simple structure design, durable and reliable
Buckle and rubber sleeve parts reduce abrasion, extend service life
