Product Description
Air Powered Hydraulic Foot Pump
Specification
It is a kind of plunger pump. Its working principle is to rely on the reciprocating movement of the plunger in the cylinder to change the volume of the sealed working chamber to achieve oil absorption and pressure. Plunger pump has the advantages of high rated pressure, compact structure and high efficiency. The power source of the pedal pump is pneumatic, and the rated pressure is 70mpa.
Name | Air Powered Hydraulic Foot Pump |
Model | LT-AP03 |
Reservoir type | Polyethylene reservoir |
Oil tank capacity | 2.3L |
Rated pressure | 70 Mpa |
Liquid level display | Aluminum alloy oil mirror |
Output flow | 0.7-0.9L/min |
Air inlet threead | 1/4''NPT |
Oil outlet theread | 3/8''NPT |
Hydraulic oil | No. 32 anti-wear hydraulic oil |
Drive mode | Pneumatic |
Operation method | Foot-operated |
Dimension | 318x175x205 mm |
Weight | 7 kg |
* Widely Applicable
Use able oil 98 cubic inches, suitable for all 10 ton rams, frame and body work.
* Built In Safety
3/8 NPT oil output, safely builds to 10,000 pounds and has a built in safety overload pump saver.
* Standard 3/8 NPT
All threads on all components in set are standard 3/8 NPT.
* Multiple Functions
Apply pressure, hold pressure, release pressure.
* Release Easily
Can release and remove foot as release / return takes effect by release lock plate.
* Long Lasting Seal
Designed to absorb the high pressure from pump with a Teflon back up for long lasting seal performance.
Use able oil 98 cubic inches, suitable for all 10 ton rams, frame and body work.
* Built In Safety
3/8 NPT oil output, safely builds to 10,000 pounds and has a built in safety overload pump saver.
* Standard 3/8 NPT
All threads on all components in set are standard 3/8 NPT.
* Multiple Functions
Apply pressure, hold pressure, release pressure.
* Release Easily
Can release and remove foot as release / return takes effect by release lock plate.
* Long Lasting Seal
Designed to absorb the high pressure from pump with a Teflon back up for long lasting seal performance.

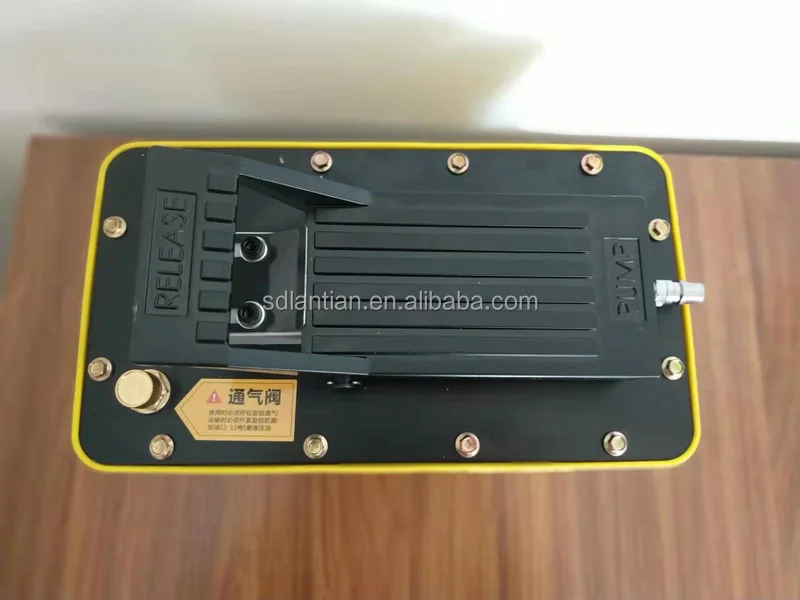

Details Images
Maintenance
1. Before using, the vent valve should be loosened firstly.
2. Change 32# anti-wear hydraulic oil after using more than 350 hours, clean the oil tank and suction port when changing the oil.
3. It is recommended that the air source be connected to the oil-water separator to reduce the condensate in the compressed air from entering the hydraulic pump and prolong the service life of the hydraulic pump.
4. Wrap PTFE Thread Seal Tape around the oil circuit connection and tighten it firmly to prevent oil from leaking out.
2. Change 32# anti-wear hydraulic oil after using more than 350 hours, clean the oil tank and suction port when changing the oil.
3. It is recommended that the air source be connected to the oil-water separator to reduce the condensate in the compressed air from entering the hydraulic pump and prolong the service life of the hydraulic pump.
4. Wrap PTFE Thread Seal Tape around the oil circuit connection and tighten it firmly to prevent oil from leaking out.

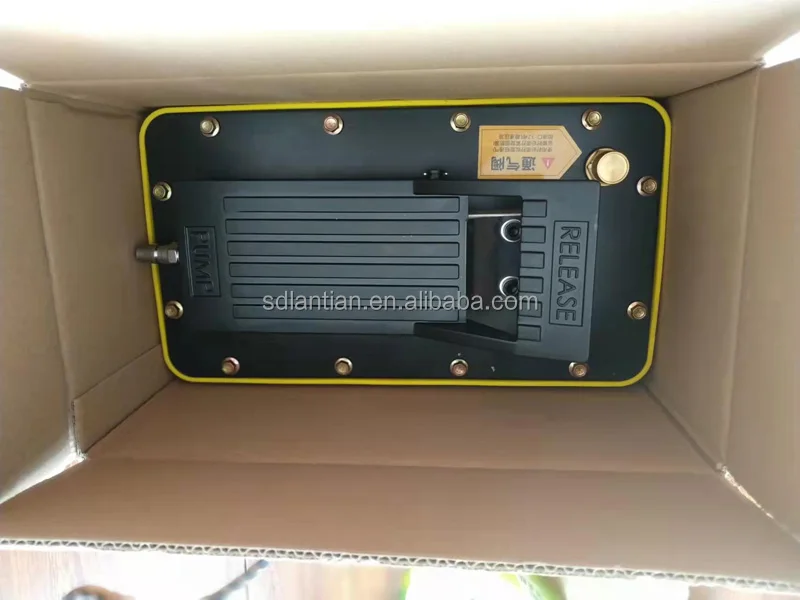

Packing & Delivery
Comparasion
LT-AP01
LT-AP02
LT-AP03
Model | Reservoir type | Working Pressure | Hydraulic Oil | Oil tank capacity | Air Input thread | Oil outlet thread | Weight |
LT-AP01 | Polyethylene reservoir | ≤70 Mpa | 32# | 1.6L | NPT1/4'' | NPT3/8'' | 6KG |
LT-AP02 | Aluminum reservoir | ≤70 Mpa | 32# | 1.6L | NPT1/4'' | NPT3/8'' | 7KG |
LT-AP03 | Polyethylene reservoir | ≤70 Mpa | 32# | 2.3L | NPT1/4'' | NPT3/8'' | 7KG |
FAQ
1. Are you manufacturer or trading company?
We are leading manufacturer of hydraulic tools for over 15 years in China.
2. Do you accept customer Logo and customization?
Yes. We can do OEM & ODM.
3. What’s your delivery lead time?
For stock items, delivery lead time is within 5 days. For items without stock, delivery lead time is usually within 7-30 days.
4. What’s your warranty?
Normal warranty is 1 year, but artificial damage and incorrect use is not included. We also offer life-long maintenance.
5, How to make payment?
Once order confirmed, we will prepare proforma invoice with our banking details.
We are leading manufacturer of hydraulic tools for over 15 years in China.
2. Do you accept customer Logo and customization?
Yes. We can do OEM & ODM.
3. What’s your delivery lead time?
For stock items, delivery lead time is within 5 days. For items without stock, delivery lead time is usually within 7-30 days.
4. What’s your warranty?
Normal warranty is 1 year, but artificial damage and incorrect use is not included. We also offer life-long maintenance.
5, How to make payment?
Once order confirmed, we will prepare proforma invoice with our banking details.
