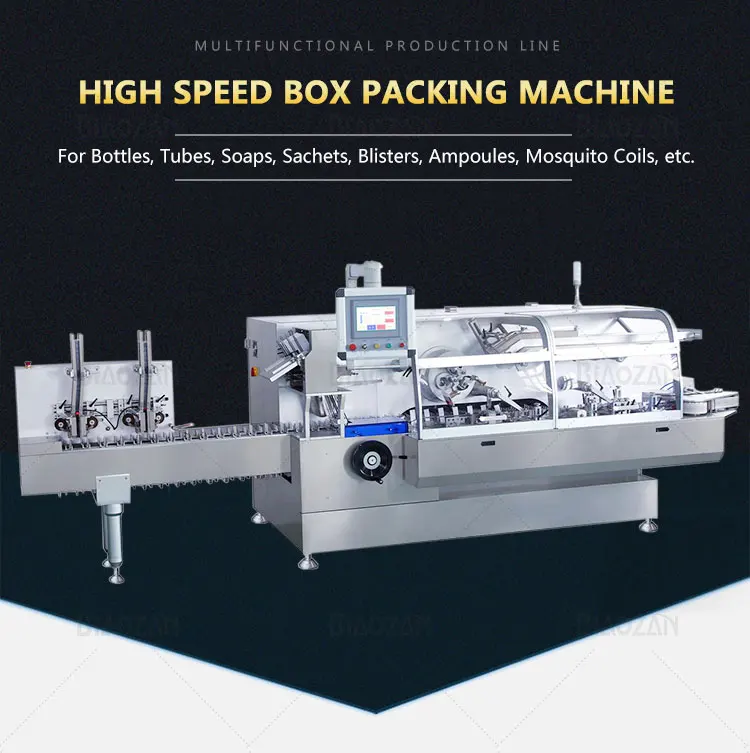

HTZH-200 High Speed Fully Automatic Boxing Machine for Bottle


High-speed HTZH-200 box cartoning machine is a new model which innovation design base on bringing in foreign advanced technology, also strictly according to the pharmaceutical industry "GMP" standard to manufacture. With high efficiency, high-performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure, and related technology all reach Europe and USA standards. Simple design and posterior continuous pushing structure make operation and maintenance more convenient. This model is an automatic high-speed continuous cartoning machine which is a high-performance product that incorporates pneumatic-photo-electro-mechanic. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips, and pouch into carton, also can link to matching machine to form a production line.


Please don't be hesitate! Contact us and get more Boxing Machine for Bottle details!

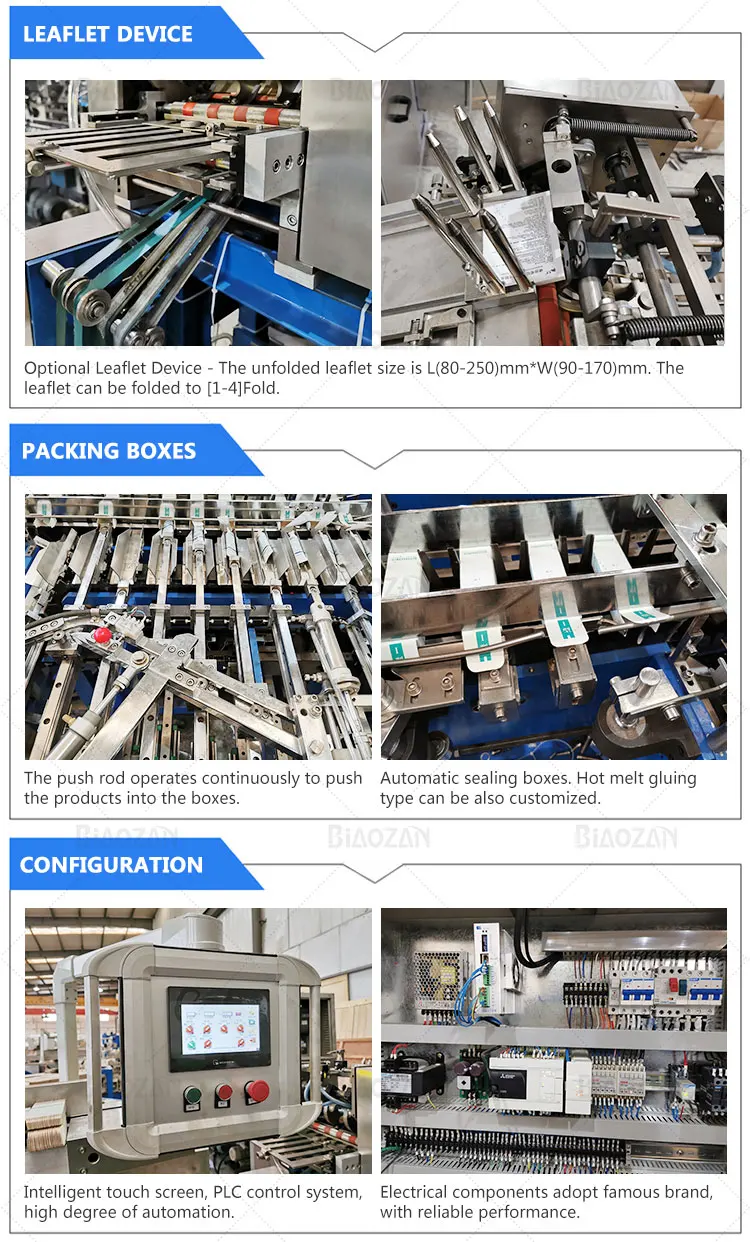

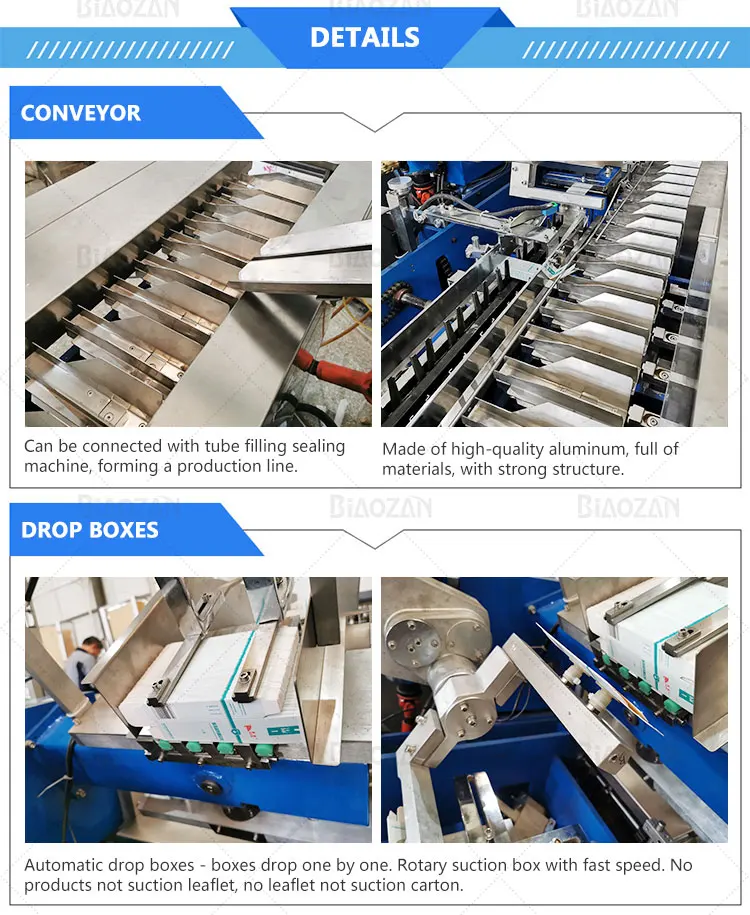

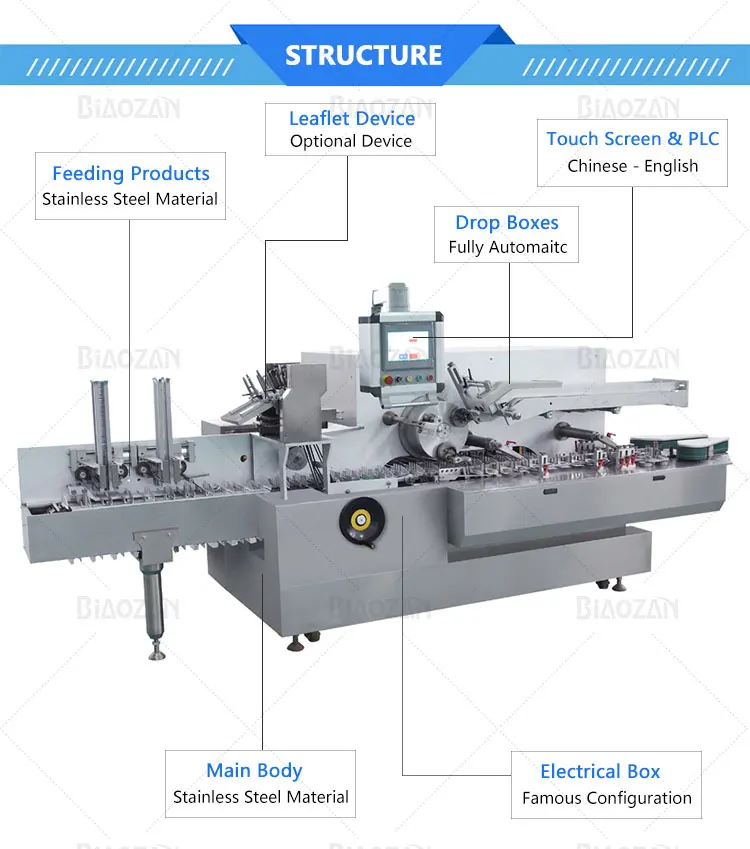

Product Overviews


Boxing Machine for BottleBoxing Machine for BottleBoxing Machine for BottleBoxing Machine for BottleBoxing Machine for BottleBoxing Machine for Bottle





Technology

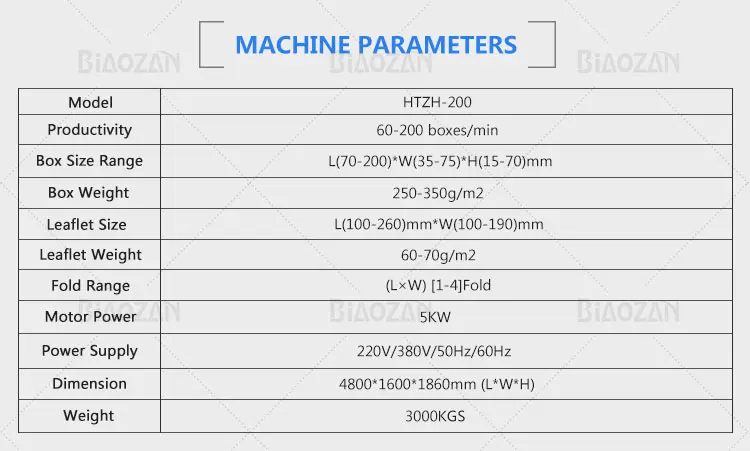

Box Packing Machine Technical Parameters:
Material TypeNumber Reference
Productivity60-200 boxes/min
Box Size RangeL(70-200)*W(35-75)*H(15-70)mm
Box Quality Requirement250-350g/m2
Unfolded Leaflet SpecificationL(80-250)mm*W(90-170)mm
Leaflet Quality Requirement60-70g/m2
Fold Range(L×W) [1-4]Fold
Compressed Air Pressure≥0.6MPa
Air Consumption120-160L/min
Voltage380V/50Hz
Main Motor Power5KW
Machine Size4800*1600*1860mm
Weight3000KG

Features:



  • International famous brand of electrical component such as PLC touch screen, frequency inverters.

  • Adopt human-machine operation system.

  • Automatically displaying device for trouble, speed and finished products counting.

  • Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

  • No products not suction leaflet, no leaflet not suction carton.

  • Automatic detection and rejection device for lacking blister goods and leaflets.

  • Protecting automatically for overloading.

  • stable performance , operation is easy.






Applications


Boxing Machine for Bottle





Production Process


Boxing Machine for Bottle

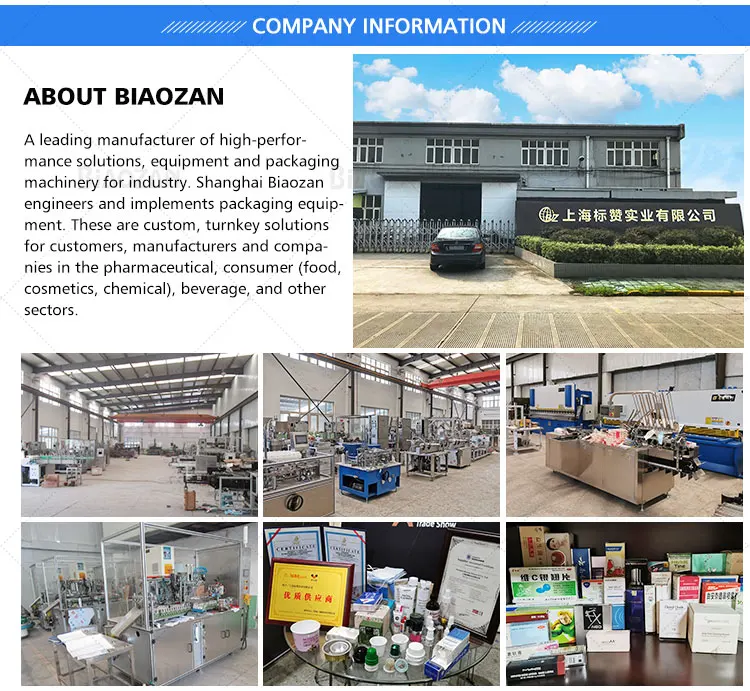

Company Information


Our Advantages:




    1. 20 years experience in Packaging Machinery manufacturing.

    2. 17 years of experience in international trade, serving customers with more than 100 countries and regions.

    3. Strong technical strength, can quickly resolve customer problems.

    4. Also, OEM/ODM services are available.



After-Sales Service:

After-sales service, our engineer is available to supply door-to-door service for our customers and also they will tell our customer how to operate the machine. And also all of our engineers is ready for the service of the customer for 24 hours per day. We have sufficient spare parts stock and can meet your needs in time.

Boxing Machine for BottleBoxing Machine for Bottle
