Product Description

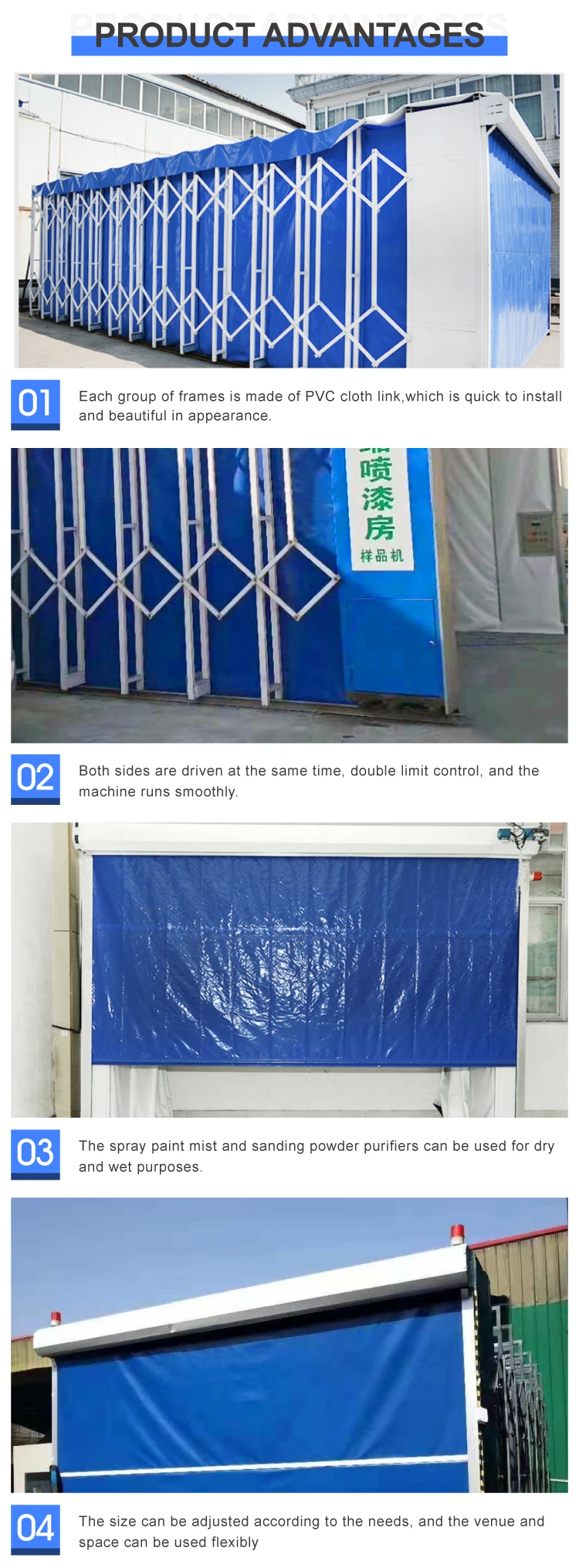

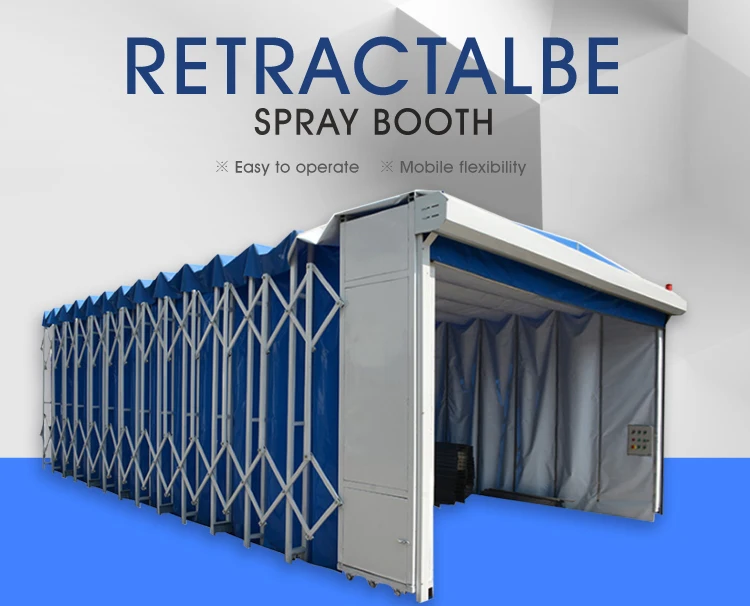

The telescopic mobile spray booth is a kind of environmentally-friendly spray booth that can be automatically opened to form a closed or semi-closed environment when it is used. It is a special environmentally-friendly spray booth equipment that shrinks and closes when not in use. He is the design concept and technology of advanced paint room.
The integration makes it a very wide range of applications. The telescopic mobile spray booth is specially designed to solve the difficult problem of moving and transporting large workpieces. It can be adjusted according to the size of use and make full use of the production site and operation space! It greatly simplifies the process of continuously lifting large and bulky workpieces to and from the crane by means of cranes; no special transportation tools are required;
the unfolding length can be anywhere.

Use range:
(1) Closed or semi-closed spray booth and spray paint drying spray booth
(2) Polishing room
(3) Clean assembly room
(4) Clean spray booth
(5) Vehicle and equipment maintenance room
(6) drying room, telescopic mobile roof
(7) Treasury (goods, vehicles, aircraft, etc.)
(8) Other workplaces that require temporary closure or semi-enclosure, such as rainproof work rooms
(9) Auxiliary configuration includes: lighting fixtures, emergency exits, warning safety devices, exhaust devices, dust exhaust gas purification devices, hot and cold air supply devices, air conditioning devices, and the like.

Applications for telescopic mobile paint booths include machinery, electronics, ceramics, furniture, construction, marine, aerospace, military and more.




Size
8500*4000*4000mm(L*W*H)OR Customized
Cabin Structure
Retractable gantry structure,each gantry structure has 2 pieces of mecanum wheels.
Fireproof PVC soft curtain on 2 sides,rear side and ceiling of cabin.

With air extraction box at the rear.

Special guide rails on both sides for the retractable steel structureto move,both sides are driven together and they are
interiocked,with safety l imit control ar the front and the back.
Entrance door
Electric roller shutter
Filtration system
Optional.
Exhaust filter
Optional
Lighting system
LED lights.
Intake system
Nature air intake.
Exhaust system
Optional.
Power & motor description
7.5KW.970rpm,380V,50hz
Empty loaded air speed
0.3m/s
Noise
<86db
Ductwork
With 5 pieces of straight ducting
Control System
Standard




Application






Company Profile




Packing & Shipping




Certifications




FAQ


Q. How do you control your quality?
A. Our factory is ISO/ CE certified. We have our own QA and QC team. They will check on site and finished products to ensure all details to meet our highest standard and the customer’s requirements.

Q: May I know the Lead time?
A:The lead time of our machine is 7-15 days. When you order more, we need to check the production schedule.

Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.

Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.

Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
