UR32 Промышленный маршрутизатор 4g 300
UR32 Промышленный маршрутизатор 4g 300
UR32 Промышленный маршрутизатор 4g 300
UR32 Промышленный маршрутизатор 4g 300
UR32 Промышленный маршрутизатор 4g 300

UR32 Промышленный маршрутизатор 4g 300


Поделиться:

Цена:260,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description

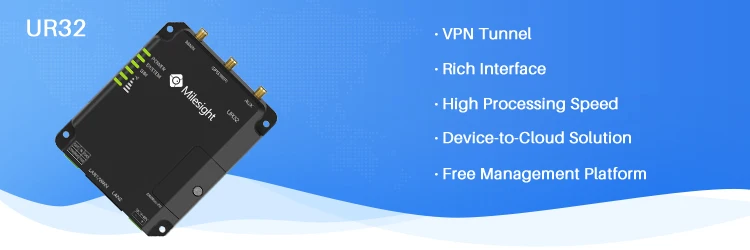

UR32 Industrial Cellular Router

With a brand new look and compact size, UR32 is specially designed to be LOW-COST and HIGHLY-EFFICIENT. The pocket-sized design allows it to easily fit into small cabinets or machines when space is extremely limited.






Always Online

Ursalink UR32 industrial router ensures internet continuity with link back up feature. The backhaul connectivity helps users connect with peace of mind.






Flexible Design


Ursalink industrial router has certified with Microsoft Azure and features python SDK for second development.







Meet Mission Critical

The UR32 industrial router is designed from the ground up to provide peerless speed and connection. With wide working temp, the UR32 functions properly in most harsh environment.






Get Everything under Control

Ursalink DeviceHub is a FREE device management platform. Add up to UrsalinkVPN, an encryption tunnel for data transmission, users can scale up their IoT deployment easily and accelerate time to market.







Specifications


UR32
UR35




Capabilities
CPU
528 MHz, 32-bit ARM Cortex-A7
Flash
128 MB
Memory
128 MB DDR3
Built-in
Watchdog
GPS (optional)
GPS + GLONASS
Micro SD
Supports micro SD card up to 128 GB





Interfaces
SIM Slots
2
Ethernet Ports (Mbps)
2 x 10/100

5 x 10/100
Serial Ports
1 x RS232
1 x RS232 + 1 x RS485

Digital (I/O)
1 x DI + 1 x DO
Antenna Connectors
2 x Cellular Connectors
1 x Wi-Fi/GPS Connector
2 x Cellular Connectors
1 x WiFi Connector
1 x GPS Connector







Network
Network Protocols
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAA
Radius, TACACS+, LDAP, Local Authentication
Firewall
ACL/DMZ/Port Mapping/MAC Binding
Wi-Fi (optional)
IEEE 802.11b/g/n
Serial Port
Transparent ( TCP Client/Server, UDP), Modbus Master, Modbus Gateway (Modbus RTU to Modbus TCP)
VPN
DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE
Reliability
VRRP, WAN Failover, Dual SIM Backup
Maintenance
Management
Web, CLI, SMS, Watchdog, On-Demand Dial up
Multilevel Authority
Multiple Levels of User Authority







Hardware
Power Input
9-48 VDC
Power Output
2 x 802.3af/at PoE PSE
4 x 802.3af/at PoE PSE
Ingress Protection
IP30
Housing & Weight

Metal 271g (0.60 lb)
Metal 481 g (1.06lb)
Dimensions
108 x 90 x 26 mm
(4.25 x 3.54 x 1.02 in)
135 x 100 x 45 mm
(5.31 x 3.94 x 1.77 in)
Mounting
Desktop, Wall or DIN Rail Mounting






Others
Operating Temperature
-40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance above 60°C
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Relative Humidity
0% to 95% (Non-Condensing) at 25°C/77℉
Certifications
RoHS, CE, FCC
EMC
IEC 61000-4-2 Level 3
IEC 61000-4-3 Level 3
IEC 61000-4-4 Level 4
IEC 61000-4-5 Level 4
IEC 61000-4-6 Level 3
IEC 61000-4-8 Level 4

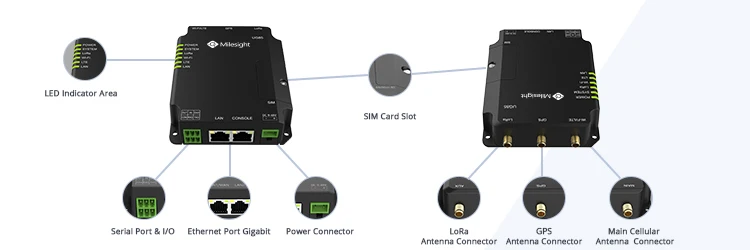

Detailed Images




Partners




Certifications




Application Example


Idea for Connecting...





Meet Us Worldwide




Company Information


About Milesight IoT

Milesight IoT– We Connect Things to Cloud

At Milesight IoT we are passionate about the connectivity of "things" to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion. We believe that the complexity of data collection, storage and retrieval can be simplified into the Cloud-intelligence. Our development and distribution of these appliances and services demonstrates our commitment to the digital transformation and continues to deliver compelling connectivity for IoT world.



Factory

We spare no efforts in quality control and product innovation. The strong R&D capability empowers Ursalink to provide remarkable reliability and usability for the global marketplace. With future in mind, Ursalink designs, deploys and delivers custom-tailored services with an emphasis on the most minor details that enhance our products longevity.
