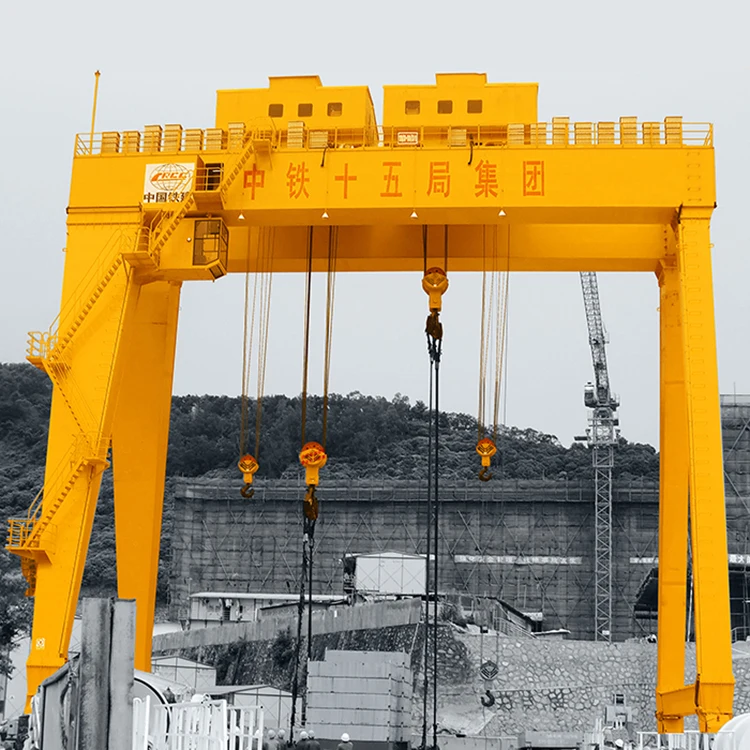

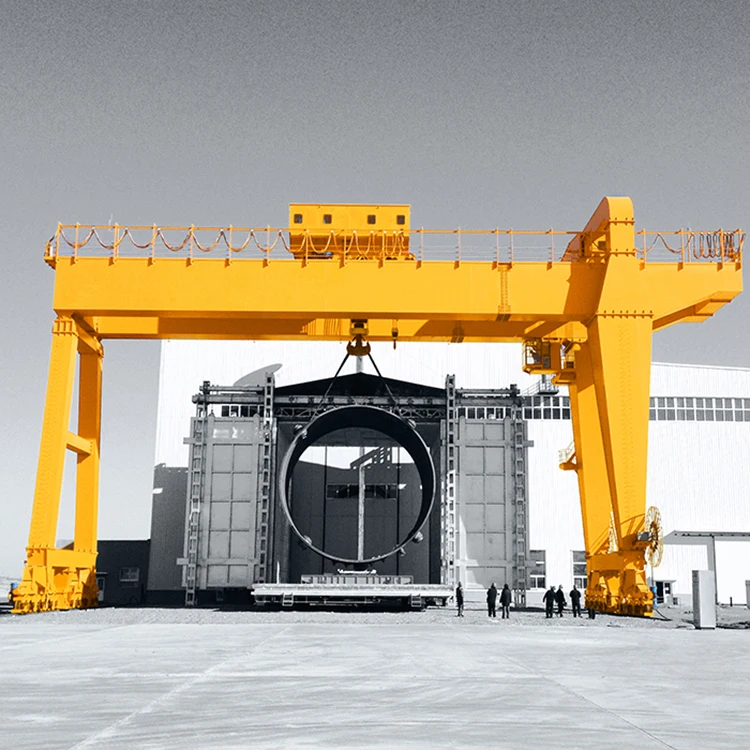

The Heavy Duty Cabin Control Double Girders or Beams Electric Rail Travelling Goliath or Frame Gantry Crane  also can designed as A-frame and U frame type double beam gantry crane, this type gantry crane is stronger than small gantry crane,durable than rubber tyre gantry crane, price is even lower than used gantry crane, very widely using for outdoor and shipyard.



Double girder portable gantry crane is applied outside warehouse or yard to do common lifting and unloading works, this kind of gantry crane is composed of gantry crane beam bridge, gantry crane support legs, gantry crane traveling organ, gantry crane trolley, gantry crane electric equipment and gantry crane strong lifting winch, the frame adopts box-type welding mechanism, gantry crane traveling mechanisms are operated in the driver cabin or remote control, Power is supplied by cable or slide wire, there are different capacity gantry crane for your choice according to your different use.

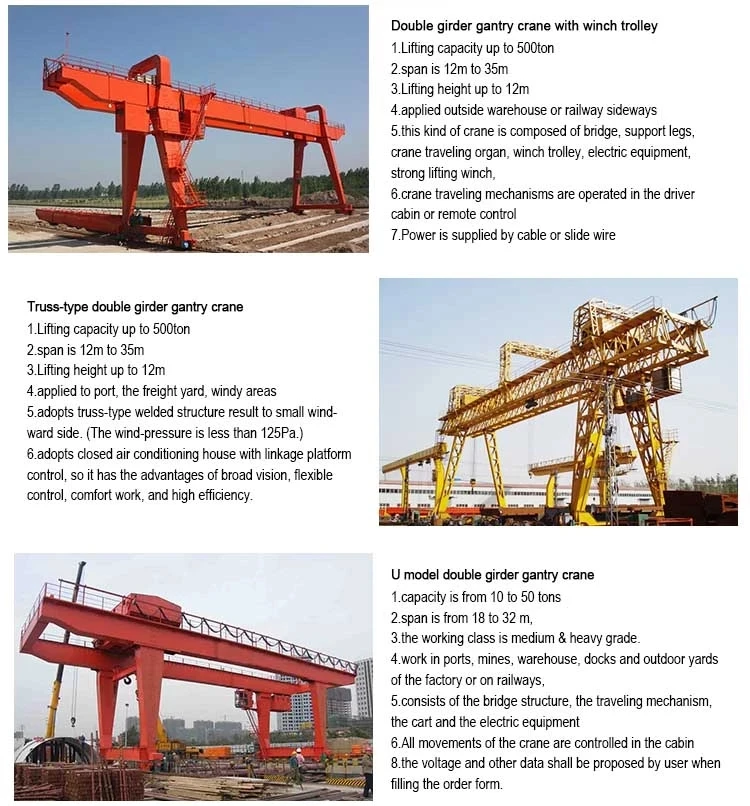

Trussed type gantry crane(A)

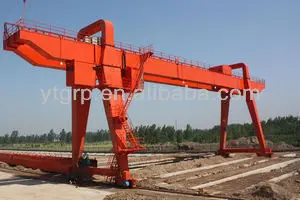

Boxed type gantry crane(U)

1.   Double Girder Potable Gantry Crane applied outside warehouse or railway sideways to do common lifting and unloading works. 2. Double Girder Container Goliath Crane composed of bridge, support legs, crane traveling organ, winch trolley, electric equipment, strong lifting winch, the frame adopts box-type welding mechanism. 3. Operational methods: cabin or remote control. 4. Power is supplied by cable or slide wire. 5. We offer different capacity according to your requirement.

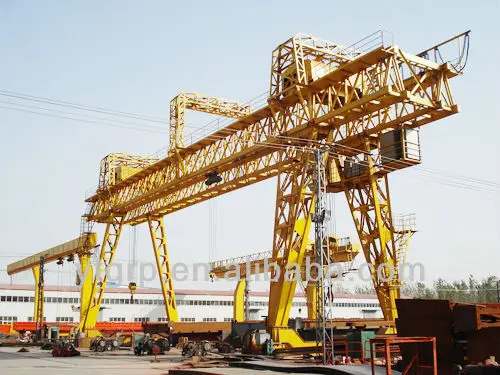

1. Double Girder Potable Gantry Crane  is mainly applied to port, the freight yard, windy areas and other outwork places for material handling. 2. The Double Girder Container Goliath Crane adopts truss-type welded structure, this result to small windward side.(The wind-pressure is less than 125Pa.) 3. Electric equipment for the trolley adopts soft conductive cable, large carts adopt sliding contact line, and cable reel-type is available.









1. the capacity is    ton

A.5    B.10    C.16    D.20

2. the span is      m

A.10  B.12    C.20    D.30

3. the lifting height is     m

A.6    B.10    C.12    D.18

4. Industrial voltage _____V, _____HZ, 3Phases

A.380V/50HZ     B.380V 60HZ

5. About the crane working duty:

1) How many hours will this crane work per day?

2) How many times does the crane lift the goods per hour?

3) Always full load lift?

6.What material to be lifted?

7.Do you need cantilever?

1) Cantilever length of the left side ____m
2) Cantilever length of the right side ____m

 To get the latest quotation,please copy the above options and click here to select your specific requirements.
