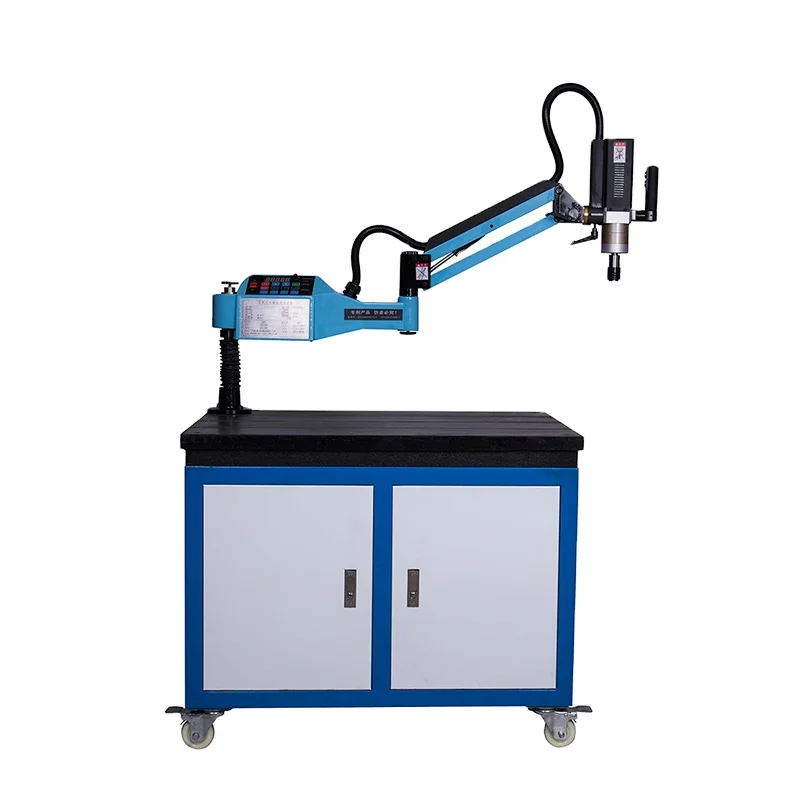

Высокоэффективный прочный сверлильный станок с ЧПУ автоматический изготовленный


Поделиться:

Цена:4 199,00 $ - 4 499,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description




Specification


item
value
Condition
New
type
Drilling & Milling Machine
Max. Drilling Dia. (mm)
30
Range of Spindle Speed(r.p.m)
1r.p.m - 2500r.p.m
CNC or Not
CNC
Place of Origin
Ningbo
Brand Name
DINGKE
Model Number
DSZG-20
Voltage
380V
Dimension(L*W*H)
880*610*1060mm/880*610*1880mm
Power (kW)
1.8kw/4N.m
Weight (KG)
250KG
Warranty
1 Year
Key Selling Points
Automatic
Showroom Location
None
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Marketing Type
Hot Product 2019
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing, Pump, Motor, PLC, Pressure vessel, Engine
Model
DSZG-20
Drilling Tapping capacity
20mm/M16
Spindle travel
120mm
taper
MT.2
Spindle speed
0-2500r/min
Main spindle to working table
510mm
Column diameter
95mm
Motor
1.8kw/4N.m
Weight
175kg/250kg
Volume
880*610*1060mm/880*610*1880mm


Packing & Delivery




Each piece is wrapped with stretch film or packed in a wooden case.


RELATED PRODUCTS




Company Profile








DingKe Machinery & Equipment Co.,Ltd. was established in 1996, the company manufacturing base is located in Ningbo City, Zhejiang Province,Is a professional engaged in CDK brand design and manufacture of precision automatic drilling machine, precision automatic tapping machine, precision multi axis drilling / tapping teeth, high precision power main shaft and nut tapping machine, all kinds of automatic drilling / attack teeth of various special machine and automatic assembly machine and other products R & D, design, production, manufacture and sales service in one of the well-known brand enterprises.
The company has the domestic first-class R & D and survival of technical personnel and management team, production and processing equipment and advanced testing equipment complete reliability.
Since 2008, in order to improve the company's management level and strengthen the protection of product knowledge, application and through the ISO9001 quality system certification and CE safety certification, apply "CDK" logo is a registered trademark of the company, and also apply for a dozen of utility model and appearance of the patent protection and number therein, English company domain name in order to improve the company's image and marketing category.
To better meet customer demand in supporting, operating at the same time, Japan YAMWA, OSG, YG brand silk attack, drills, die, CNC cutting tools, such as and well-known brands in Taiwan special drilling, tapping teeth, NC machining precision collet chuck, chuck and other series products. At the same time, according to customer demand for customized non-standard tools and ancillary equipment, welcome to inquire!


FAQ


1. who are we?
We are based in Zhejiang, China, start from 2011,sell to Domestic Market(60.00%),North America(12.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),South Asia(5.00%),South America(3.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Southern Europe(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Mechanical Equipment

4. why should you buy from us not from other suppliers?
1) More than 20 years experience on multi-spindle drilling and tapping machine manufacturing;
2) Professional technology and sales team for customized solution and ensure high quality;
3) Our main market is South-East Asia;

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Currency:USD,EUR,CAD;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
