Hot Selling Constant Power Sound Small Ultrasound System PCB Kit LED Frequency Ultrasonic Signal Generator
Product Description
High power ultrasonic generator
Ultrasonic Signal Generator
JYD-1000EG and JYD-1000G Ultrasonic Signal Generator are high frequency type, which furnished with globe-leading digital pulse driving, and is acceptable to experts with its various advantageous features - smaller size, lighter weight and more powerful output capacity than traditional self-excited control, reliable operation, continuously adjustable power and flexible control. Frequency scanning ensures the unit is always operating in the best condition to maximize potential power of ultrasonic transducer. This unit is also complete with sound protection - over-current protection, and output short circuiting protection.
Ultrasonic Signal Generator
JYD-1000EG and JYD-1000G Ultrasonic Signal Generator are high frequency type, which furnished with globe-leading digital pulse driving, and is acceptable to experts with its various advantageous features - smaller size, lighter weight and more powerful output capacity than traditional self-excited control, reliable operation, continuously adjustable power and flexible control. Frequency scanning ensures the unit is always operating in the best condition to maximize potential power of ultrasonic transducer. This unit is also complete with sound protection - over-current protection, and output short circuiting protection.
Main features:
◈ Display mode: LED digital display frequency and current;
◈ Cleaning time: 0-59 minutes 59 seconds timing adjustment;
◈ Control method: PLC or RS485 communication interface;
◈ Abnormal protection: soft start, short circuit protection, leakage protection and overload protection function;
◈ Frequency control: The frequency can be automatically or manually switched according to different cleaning requirements;
◈ Power control: The ultrasonic power can be adjusted accurately from 0-100% to meet different cleaning requirements;
◈ Sweep frequency drive: MCU-SWEEP sweep frequency technology is adopted to ensure the stable output of each frequency and make the ultrasonic cleaning effect more uniform and strong.
It is integrated with digital ampere meter, frequency and timing control, remote PLC control, and current overload alarm. Frequency range from 68khz to 200khz available.
◈ Display mode: LED digital display frequency and current;
◈ Cleaning time: 0-59 minutes 59 seconds timing adjustment;
◈ Control method: PLC or RS485 communication interface;
◈ Abnormal protection: soft start, short circuit protection, leakage protection and overload protection function;
◈ Frequency control: The frequency can be automatically or manually switched according to different cleaning requirements;
◈ Power control: The ultrasonic power can be adjusted accurately from 0-100% to meet different cleaning requirements;
◈ Sweep frequency drive: MCU-SWEEP sweep frequency technology is adopted to ensure the stable output of each frequency and make the ultrasonic cleaning effect more uniform and strong.
It is integrated with digital ampere meter, frequency and timing control, remote PLC control, and current overload alarm. Frequency range from 68khz to 200khz available.
Product Model | JYD-1000EG | JYD-1000EG | JYD-1000G | JYD-1000G |
Driving Capacity | 600W-1200W | 600W-1200W | 600W-1200W | 600W-900W |
Power Control | 0-100% | 0-100% | 0-100% | 0-100% |
Operating Frequency | 68KHz | 80KHz | 100KHz-135KHz | 135KHz-200KHz |
Operating Voltage | 220V±10% 50Hz/60Hz | 220V±10% 50Hz/60Hz | 220V±10% 50Hz/60Hz | 220V±10% 50Hz/60Hz |
Max. Output Current | 5A | 4A | 3A | 3A |
Ambient Temperature | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ |
Net Weight | 12KG | 12KG | 12KG | 12KG |
Overall Dimensions | 370×420×140mm | 370×420×140mm | 370×420×140mm | 370×420×140mm |

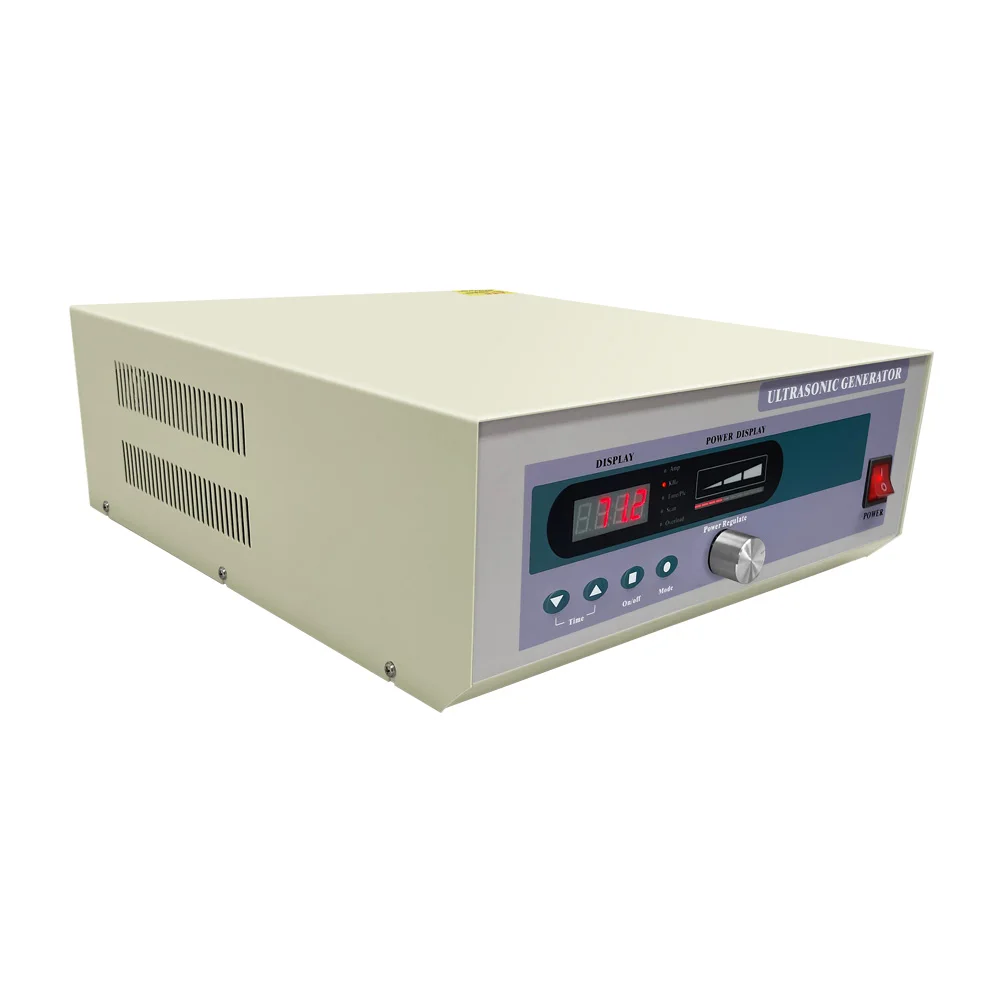

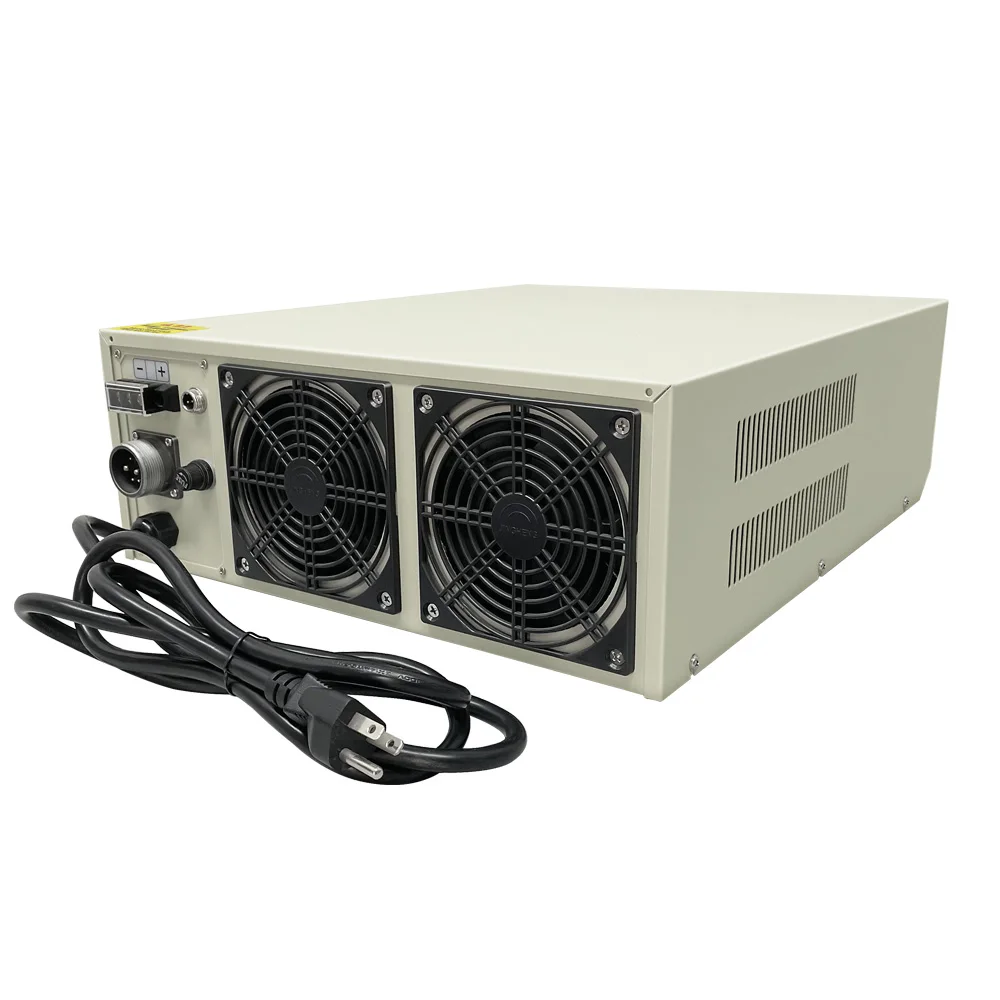

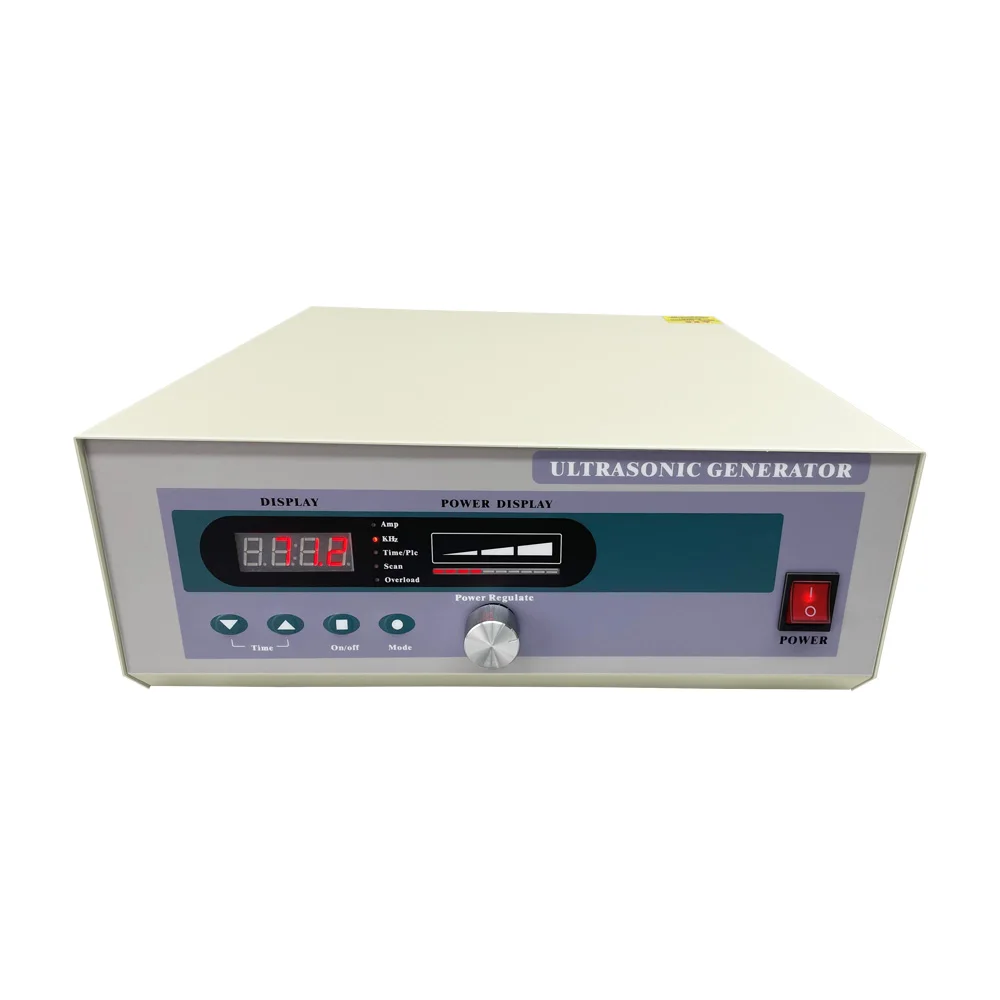

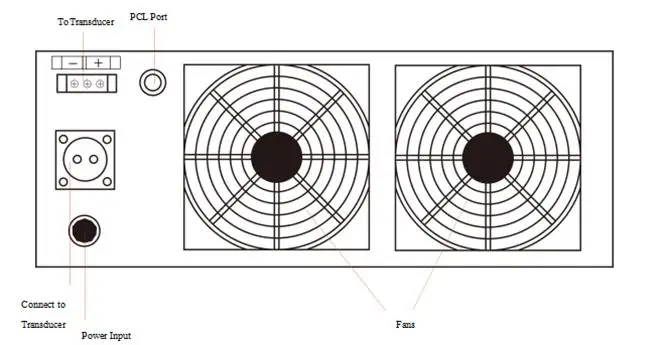

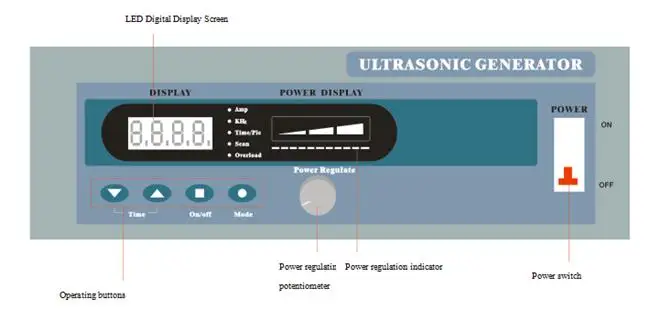

Front display and back side ports as below:
Payment and Shipment:
For payment, we accept T/T, Western Union, Paypal, etc. Delivery time is 2-3working days for standard products, 5-15working days for customized products.
For payment, we accept T/T, Western Union, Paypal, etc. Delivery time is 2-3working days for standard products, 5-15working days for customized products.
Recommend Products
Packing & Delivery
15KHz 2600W 3000W 3200 Watt High Power Double Booster Wave Circuit Board Ultrasonic Cleaning Generator
1Pcs / polybag+EPE Foam +color paper box 1pcs in a master carton
1Pcs / polybag+EPE Foam +color paper box 1pcs in a master carton
