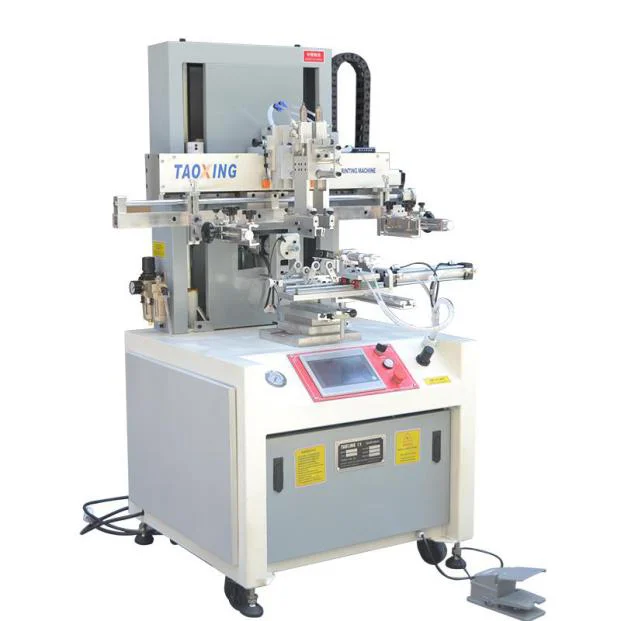

Серви мотор полуавтоматическая стеклянная чашка трафаретная печатная
- Категории: Screen Printers >>>
- Поставщик: Hangzhou,Taoxing,Printing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Application
Our cylindrical screen printing machine are also known as circular or cylindrical screen printing machine. Which are well designed for round, oval, square and other special shape containers curved surface printing, available to print on plastic, glass and metal bottles.
The cylindrical screen printing machines are widely used for industries of daily chemical, food, beverage, pharmaceutical, chemical, personalized water bottles business, cosmetic bottles manufacture, etc.
Advanced servo motors and optical color sensor are used for color registration with accuracy.
The cylindrical screen printing machines are widely used for industries of daily chemical, food, beverage, pharmaceutical, chemical, personalized water bottles business, cosmetic bottles manufacture, etc.
Advanced servo motors and optical color sensor are used for color registration with accuracy.
Main Features
1. PLC programming, touching screen, simple to operate, easy to use
2. Built in digital counts for production output
3. Facilitate to placement of the product benefit from special design famous air cylinders
4. Servo motor drive rotating and printing head ensure high precision
5. Self-balance scraper technology and ink cover blade
6. Printing Stroke and rotation by digital adjustments, printing speed controllable.
7. Convenient operating the height of the printing beam by hand wheel.
8. Easy to disassemble and cleaning the screen plate due to the independent design of lifting printing head including scraper and squeegee;
9. Quality photoelectricity sensor and perfect fault self-detect system.
2. Built in digital counts for production output
3. Facilitate to placement of the product benefit from special design famous air cylinders
4. Servo motor drive rotating and printing head ensure high precision
5. Self-balance scraper technology and ink cover blade
6. Printing Stroke and rotation by digital adjustments, printing speed controllable.
7. Convenient operating the height of the printing beam by hand wheel.
8. Easy to disassemble and cleaning the screen plate due to the independent design of lifting printing head including scraper and squeegee;
9. Quality photoelectricity sensor and perfect fault self-detect system.
10.Metal structure，running steady, foot switch for starter.
Specification of TX-500SS Servo Motor Screen Printing Machine | ||
Model | TX-500SS Double servo | |
Cylinder diameter | ≤160mm | |
Max. Frame size | 700×350mm | |
Printing length | ≤300mm | |
Printing area | 500*200mm | |
Printing speed | 800pcs/hour | |
Air-pressure | 4-6kgf/cm2 | |
Voltage | 220V,50/60/Hz/100W | |
Machine size | L1040×W990×H1700mm | |
Weight | 272kg | |
Machine Details
--PLC touch screen--
PLC and touch screen control, easy to operate.
--Control board--
Adjust and manage the the status of machine.
--PLC touch screen--
PLC and touch screen control, easy to operate.
--Control board--
Adjust and manage the the status of machine.
--Printing head--
The worktable and the screen frame can be fine-tuned back and forth, left and right, up and down, high printing accuracy, easy and fast adjustment.
--Fixture(jig)--
Customized fixture(jig) available, realize printing different size and material of substrate by just changing the fixture(jig).
--Air cylinder--
AirTAC cylinder, smoothly running ensures the well printing.
--Guide rail--
HIWIN guide rail, stable movement
--Air pressure display--
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
--Foot switch--
Simpler and more convenient start of the printing process.
Printing Sample
Milk bottle printing
Disposable cup/bow
Perfume bottle
Cosmetics bottles
Glass silica gel bottle
Blow molding bottle
Packing&Delivery
★ Packing & Delivery
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3-35 business days after received the payment.
4. Delivery means: By sea from Shanghai or Ningbo Port
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 18 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
Our Company
Hangzhou Taoxing Printing Machiner Co.,ltd is a High-tech lead company, integrated with science, industry and trade. We have strong technical support, advanced production equipment and professional staff who dedicate to products research,
development,manufacture, installation, test and maintenance.
development,manufacture, installation, test and maintenance.
Factory Tour
company team
Cetefications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*custom contact us
After-Sales Service
*1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Exhibition
