Gate Valves
Фланцевое соединение сварочный клапан высокого

Фланцевое соединение сварочный клапан высокого

Категории: Gate Valves >>>
Поставщик: Shanxi,Goodwill,Industrial,And,Trading,Co.,Ltd.

Цена:145,00 $ - 150,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

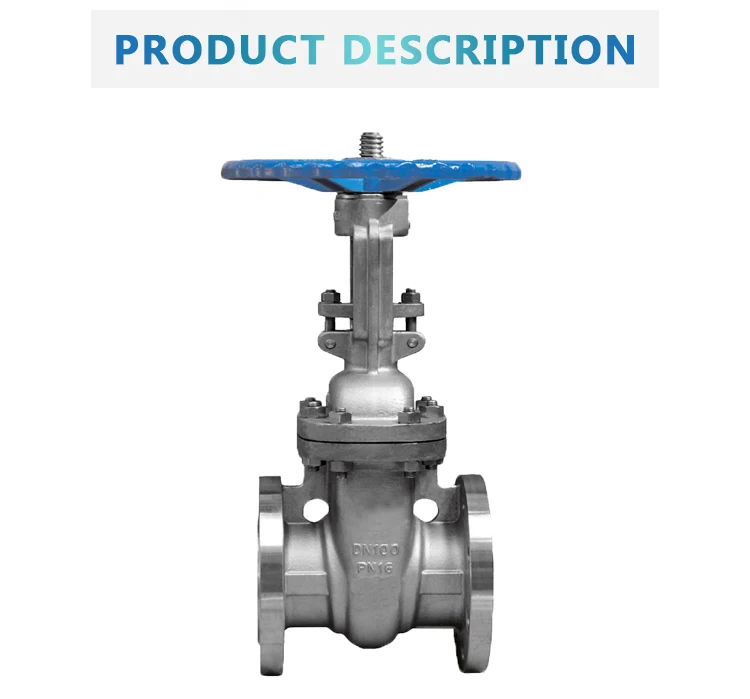

Products Description

Product Paramenters

CAST IRON GATE VALVES
Material Specification
Part	Material	EN Spec.
Body	Cast Iron	A126 Class B
Body		Ductile Iron	A536 Gr.65-45-12
Disc	Ductile Iron	A536 Gr.65-45-12
		Bronze	B148 C95400
		Stainless Steel 304	A351 CF-8
		Stainless Steel 316	A351 CF-8M
Shaft	Stainless Steel 410	A276 S410 00
Shaft		Stainless Steel 431	A276 S431 00
Seat Ring	EPDM /NBR
O-Ring	EPDM /NBR
Bushing	PTFE
Bushing		Bronze	B62 C83600
Valve Standard
ISO 5752/BS5155/BS EN 593/MSS SP-67/API 609
Pressure Temprature and Rating
Working Pressure	16bar/27.5bar
Testing pressure	Shell: 24bar/37.5bar
Testing pressure		Seal: 17.6bar/27.5bar
Working Temperature	-20°C to 110°C EPDM Seat
Working Temperature		-10°C to 80°C NBR Seat
Suitable Media	Water, Oil& Gas
Description Products
Size	DN40-DN1200
End flange	ANSI B 16.1, EN 1092, AS 2129
Face to face	ANSI B 16.10; EN 558-1 Series 20
Top flange	ISO 5211
Certificate	BSI, ISO9001:2008,FM
Applications	Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Buyer’s drawings or designs are available.
Package	1. Cartons without pallets.
		2. Cartons with pallets.
		Or as buyer’s requirements.
Delivery detail
According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.

Recommend Products

Company Profile

Established in 1991 and as one leading professional manufacturer of malleable iron pipe fittings, we, Shanxi Goodwill Industrial & Trading Co., Ltd. have been producing and exporting 100% of our products to worldwide markets. Our business range and activities as follows: Our factory produce 1) valves and fittings: a) Models: beaded / beaded with ribs, banded / banded with ribs b) Types: galvanized (hot dipped), normal black, shining black c) Grades: heavy series, standard series, light seriesd) Standards: i) DIN (Germany) standard, DIN 2950/1692/2999ii) BS (British) standard, ISO49 / ISO5922 / ISO7/1iii) ANSI standard, ASTM B16.3 B16.14 B16.39 / B1.20.12) Malleable casting products: produce according to supplied samples or drawings We supply and export various kinds of flanges, steel couplings / nipples, heaters / radiators, SS fittings, brass / copper fittings from our sister factories or partnership manufacturers Our advantages and guarantee are S-G-W: 1) Satisfied quality 2) Great cooperation3) Workable prices We sincerely hope to establish long term and mutual beneficial cooperation with any buyer and friend all over the world, please feel free to contact us at your convenient time.

Production Process

Certifications

FAQ

Q1:Are you a factory or trading company?
A: Yes,we have own factory
Q2:Can I get some samples?
A: Yes,free samples are available for you.
Q3: How To Order quickly
A: 1. Specify English, American or German.
2. Specify cast iron or stainless steel, etc.
3. Specify butterfly valve, gate valve or brass ball valve, etc.
4. Specify the valve model or other size and quantity.
Q4:what certificates do you have?
A:FM,ISO 9001 ...
Q5:How does your factory do regarding quality control?
A: Quality Assurance at Shanxi Goodwill starts with understanding the Customers Requirement and continues till the customer is completely satisfied with the delivery of products and services. Quality Control procedures are well defined and thoroughly
implemented.
Q6: After sales service.
A: Quality are promised. We have a dedicated after-sales department to be responsible for all subsequent work after delivery

Our Advantages
