Products Description

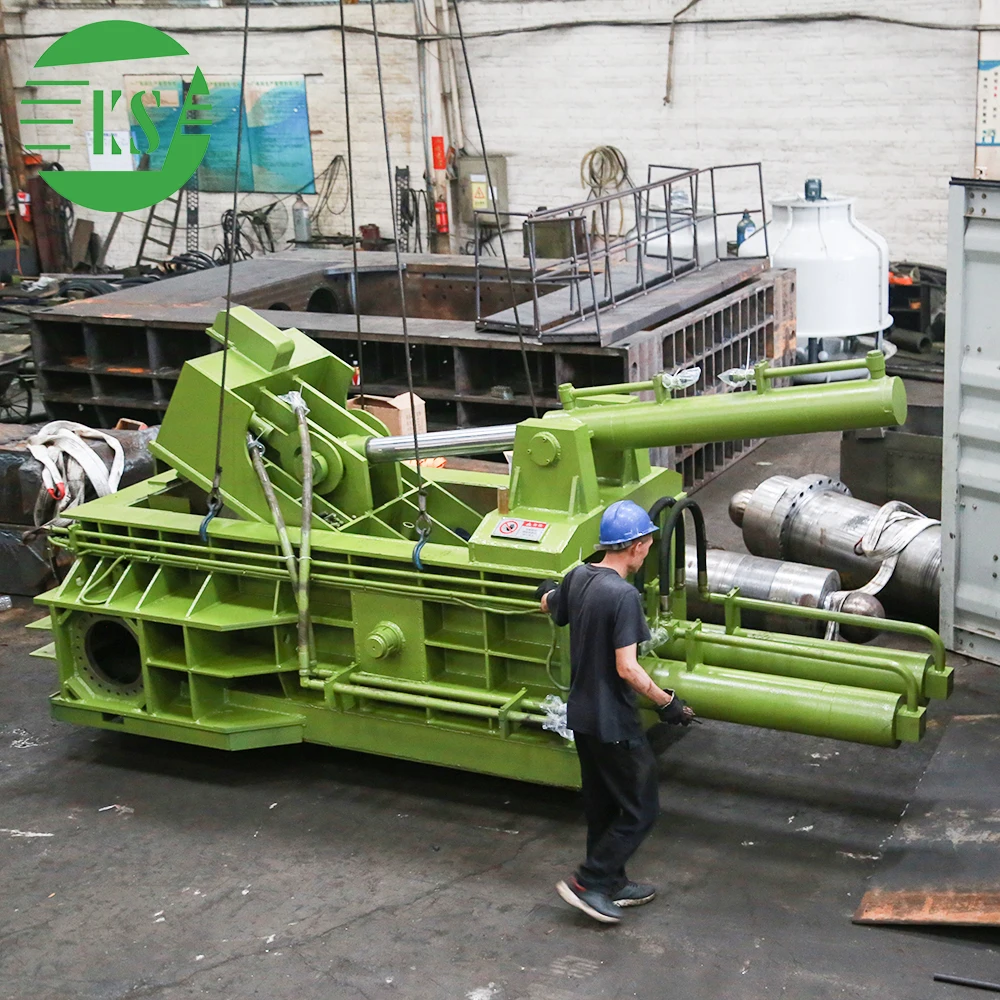

Horizontal hydraulic scrap metal pressing machine scrap metal baler Y81-160
1) All types adopt hydraulic driving system, manual or PLC automatic operation.
2) Discharging methods: Turn-out type, Forward-out type, Push-out type
3) Installation without foot screws, diesel engine can be available if there is no power.
4) Press force range from 63 tons to 600 tons, production efficiency from 4 tons -40 tons each shift.
5) Press box size and bale size could be designed and made according to the customers' requirements.
2) Discharging methods: Turn-out type, Forward-out type, Push-out type
3) Installation without foot screws, diesel engine can be available if there is no power.
4) Press force range from 63 tons to 600 tons, production efficiency from 4 tons -40 tons each shift.
5) Press box size and bale size could be designed and made according to the customers' requirements.
Main technical parameters | ||||||||
No. | Item | Unit | Y81-160 | |||||
1 | Nominal pressure | Main cylinder | KN | 1600 | ||||
Auxiliary cylinder | KN | 1300 | ||||||
2 | Maximum working pressure | Mpa | 25 | |||||
3 | Processing box size | Length | mm | 1600 | ||||
Width | mm | 950 | ||||||
Height | mm | 800 | ||||||
4 | Bale size | Length | mm | 750 | ||||
Width | mm | 400 | ||||||
Height | mm | 400 | ||||||
5 | Bale density | kg/m3 | Zron≥2200 | |||||
6 | Single-cycle time | S | ≈50 | |||||
7 | Motor power | KW | 15×2 | |||||
8 | Overall dimensions | Length | mm | 4200 | ||||
Width | mm | 3200 | ||||||
Height | mm | 2500 | ||||||
9 | Total weight | T | ≈11.5 | |||||
Details Images
Application
Main Product
Company Profile
Production Process
FAQ
1.What’s the capacity of the baler?
We have many different models, which have different baling capacity. Also we can suggest the suitable model according to your capacity requirements.
2.Voltage
Usually it requires 380V, 3 phase,50-60Hz.
We also can design different voltages according to your requirement, such as 220V,415V, 450V etc. You just need to tell us your voltage value before manufacturing.
3.How to Install ?
a.For vertical baler machines, no need to install. This kind of machine is exported by complete unit.
When you receive the machine, you only need to connect it with the power (usually 3 phase, 380V), and fill the hydraulic oil (HF#46or #68) as per user manual.
b.For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
4.What Payment terms we accept ?
We usually accept 30% deposit by TT as deposit for regular size machine, balance before shipment.
And 50% deposit by TT as deposit for customized machine, balance before shipment.
5.Services
a.We have our own brand, currently the sales region covers many countries and regions around the world.
All of our metal baling are quite popular and welcomed by the clients all over the world.
It will be our great honor if you become one of our dealers
b.We provide OEM/ODM services
We can do OEM lasers of your brand based on your special requirements.
c.Timely after-sale service
We have a professional technology supporting team for providing timely services.
If you have any problems, please contact us by telephone, email or Skype.
We have many different models, which have different baling capacity. Also we can suggest the suitable model according to your capacity requirements.
2.Voltage
Usually it requires 380V, 3 phase,50-60Hz.
We also can design different voltages according to your requirement, such as 220V,415V, 450V etc. You just need to tell us your voltage value before manufacturing.
3.How to Install ?
a.For vertical baler machines, no need to install. This kind of machine is exported by complete unit.
When you receive the machine, you only need to connect it with the power (usually 3 phase, 380V), and fill the hydraulic oil (HF#46or #68) as per user manual.
b.For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
4.What Payment terms we accept ?
We usually accept 30% deposit by TT as deposit for regular size machine, balance before shipment.
And 50% deposit by TT as deposit for customized machine, balance before shipment.
5.Services
a.We have our own brand, currently the sales region covers many countries and regions around the world.
All of our metal baling are quite popular and welcomed by the clients all over the world.
It will be our great honor if you become one of our dealers
b.We provide OEM/ODM services
We can do OEM lasers of your brand based on your special requirements.
c.Timely after-sale service
We have a professional technology supporting team for providing timely services.
If you have any problems, please contact us by telephone, email or Skype.
