Настенный программируемый углекислого газа CO2 контроллер для строительства зданий и

Описание и отзывы

Характеристики

01	Product Brief introduction

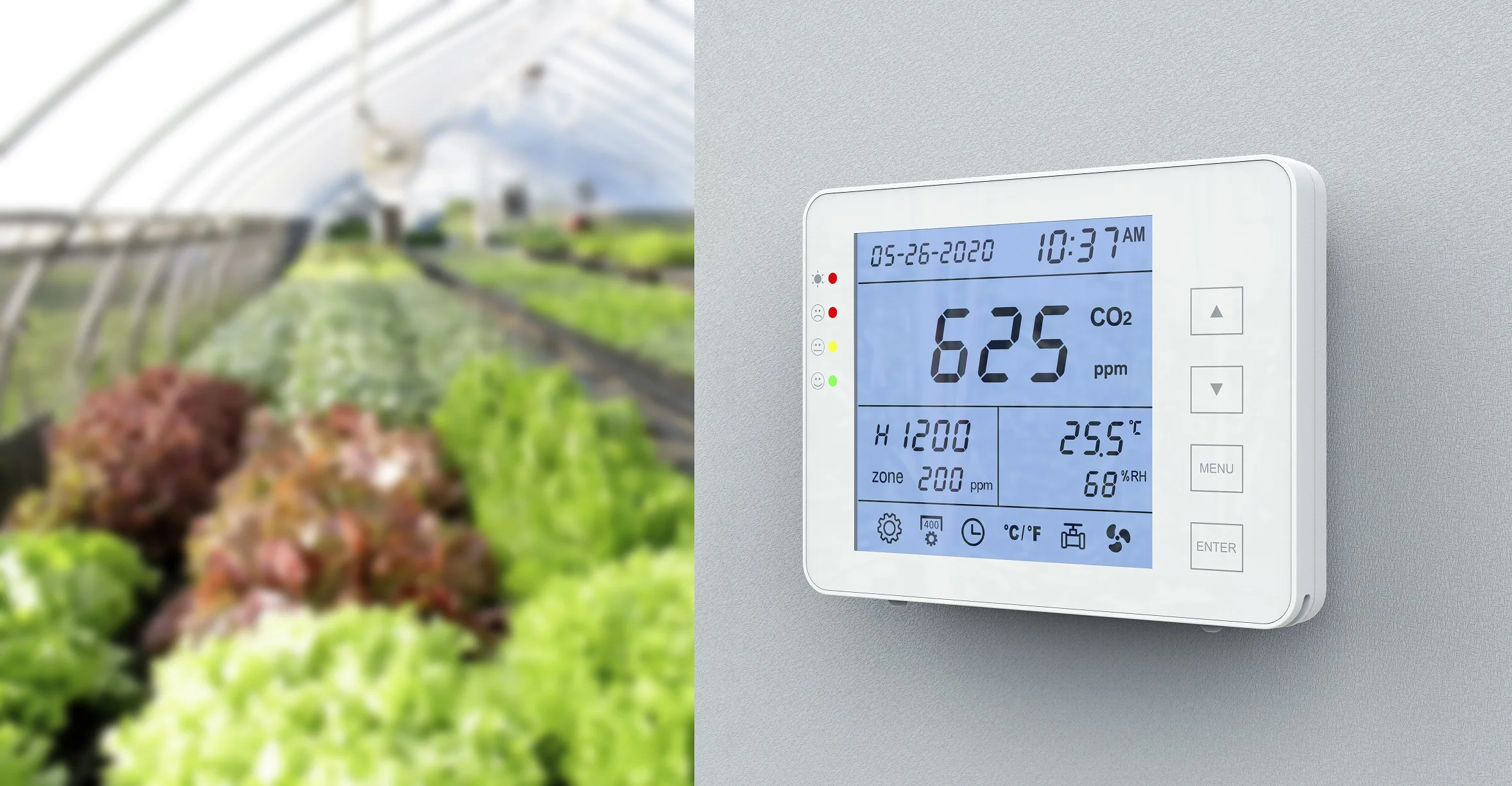

This is our New developed model SA1600W: a wall-mounted CO2 controller for industrial and agricultural production and building control, etc.

The carbon dioxide controller can detect the carbon dioxide concentration, temperature and humidity in the air and display these values on the large LCD screen. When the temperature is too high or the CO2 concentration is too high, it sends a signal to start the fan to work, so to reduce the CO2 concentration and temperature of the surrounding environment. When it reaches the set value, it will automatically turn off the fan. In short, the carbon dioxide monitor and controller can control the switch of the fan through its own induction to the surrounding environment, so as to control the temperature and carbon dioxide concentration.







02	Specification Parameter



Measurement	Specifications
Operating temperature	32°F to 122°F(0°C to 50°C)
Storage temperature	-4°F to 140°F(-20°C to 60°C)
Operating&storage humidity	0-95%(without condensation)
0~3000 ppm accuracy	± 50 ppm+3% reading
Over 3000 ppm accuracy	± 50 ppm+7% reading
Measurement range	(0-10000 ppm) optional
Display resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Sensor type	NDIR CO2 sensor
Response time	Diffusion-type about 1 minute (90% rising time)
Preheating time	30 seconds (cold start)@25°C



03	Main function



- Detect carbon dioxide concentration, temperature, and humidity.

- Control the fan according to carbon dioxide concentration and temperature.

- Show the maximum carbon dioxide value with power on.

- Different LED indicator light will be on according to CO2 value ranges

- Show different air quality level :  Good / Normal / Bad

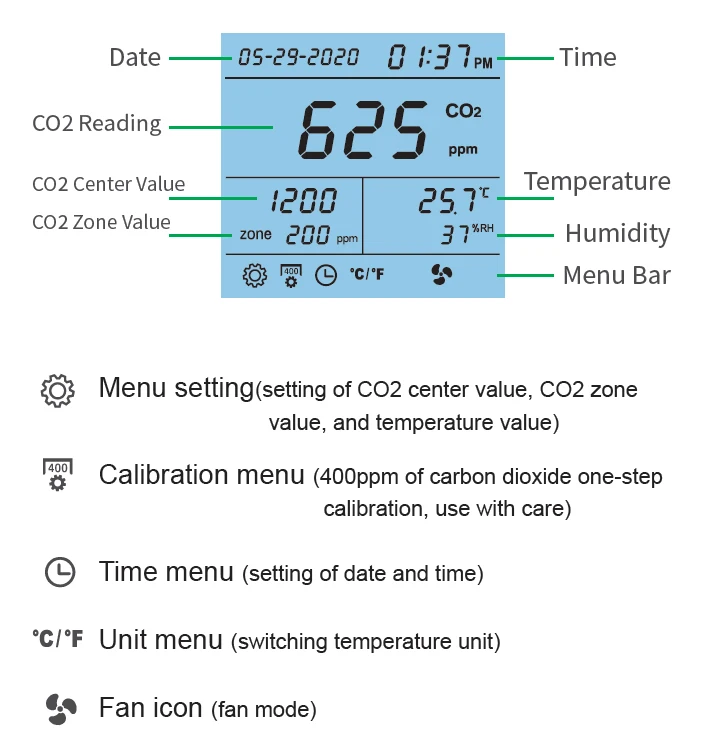

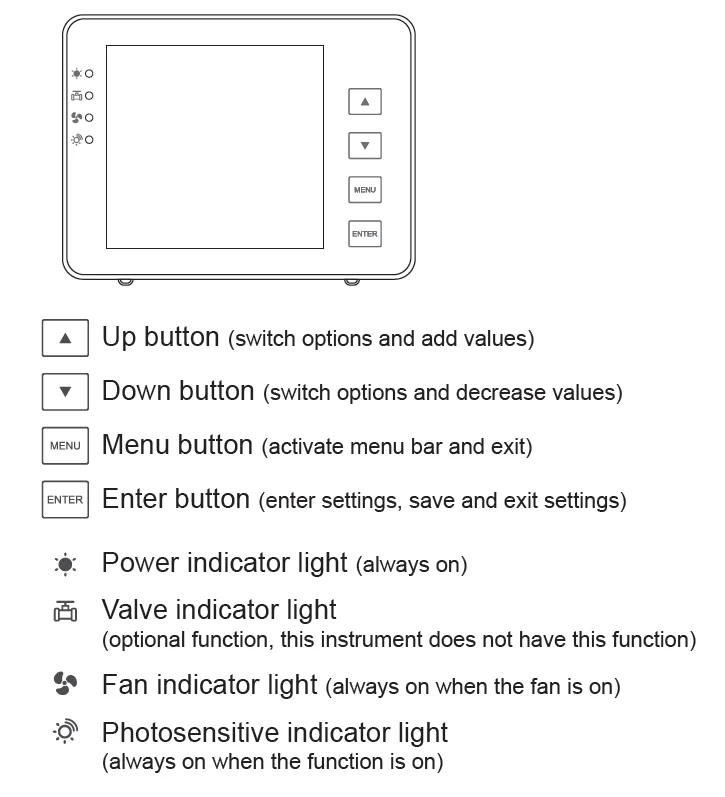

04	Instrument Panel

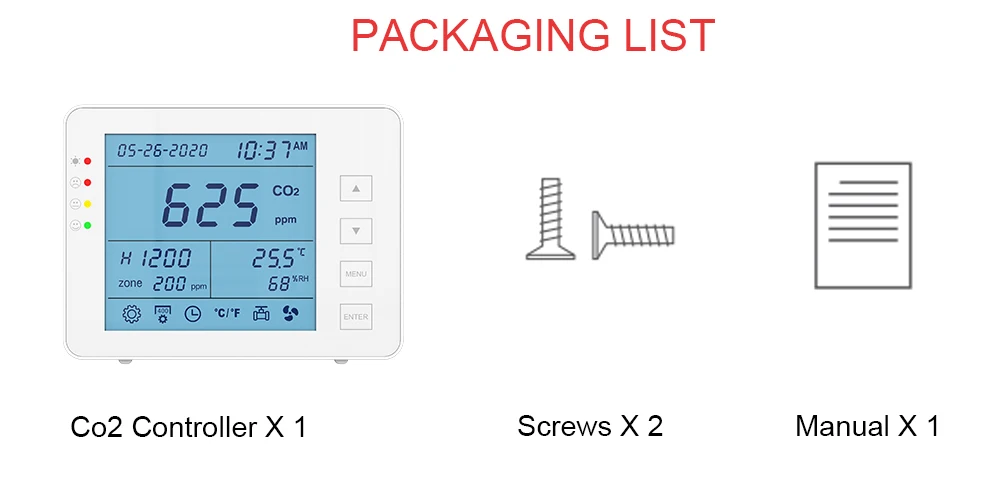

05	Product accessories

1.    CO2 Controller X 1

2.    Connecting screws X 2

3.    Manual X 1

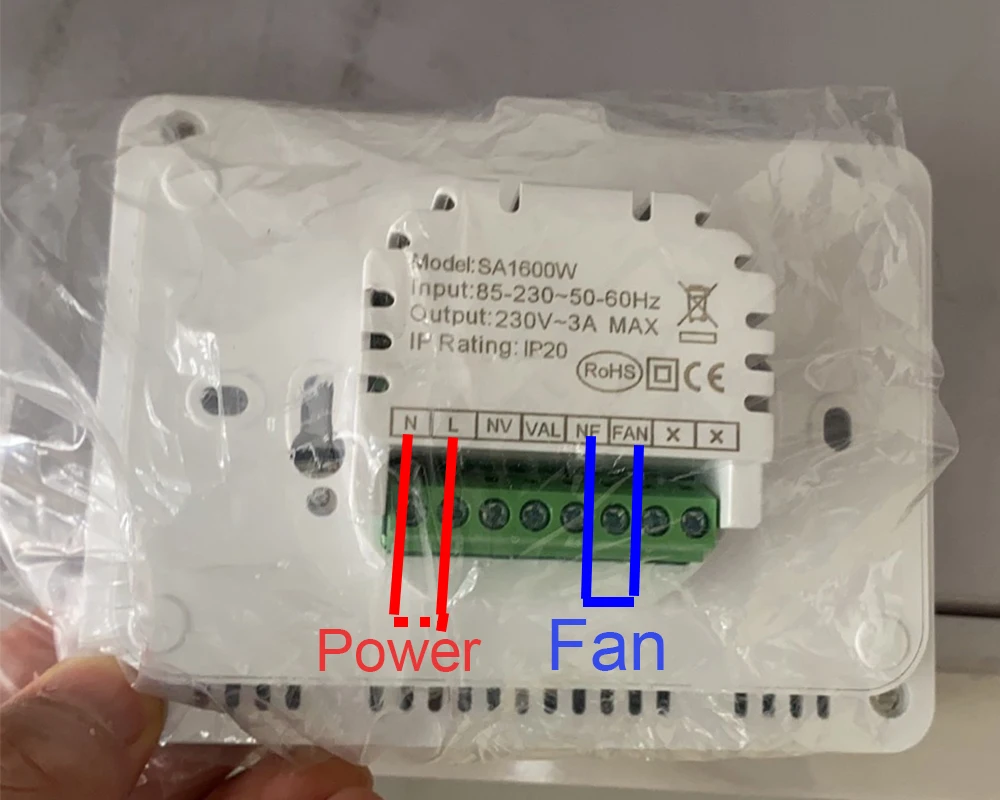

06	Wiring diagram (please power off before wiring)

Connect the external power supply to terminals L and N.

Connect external fan controller to terminal NF and FAN

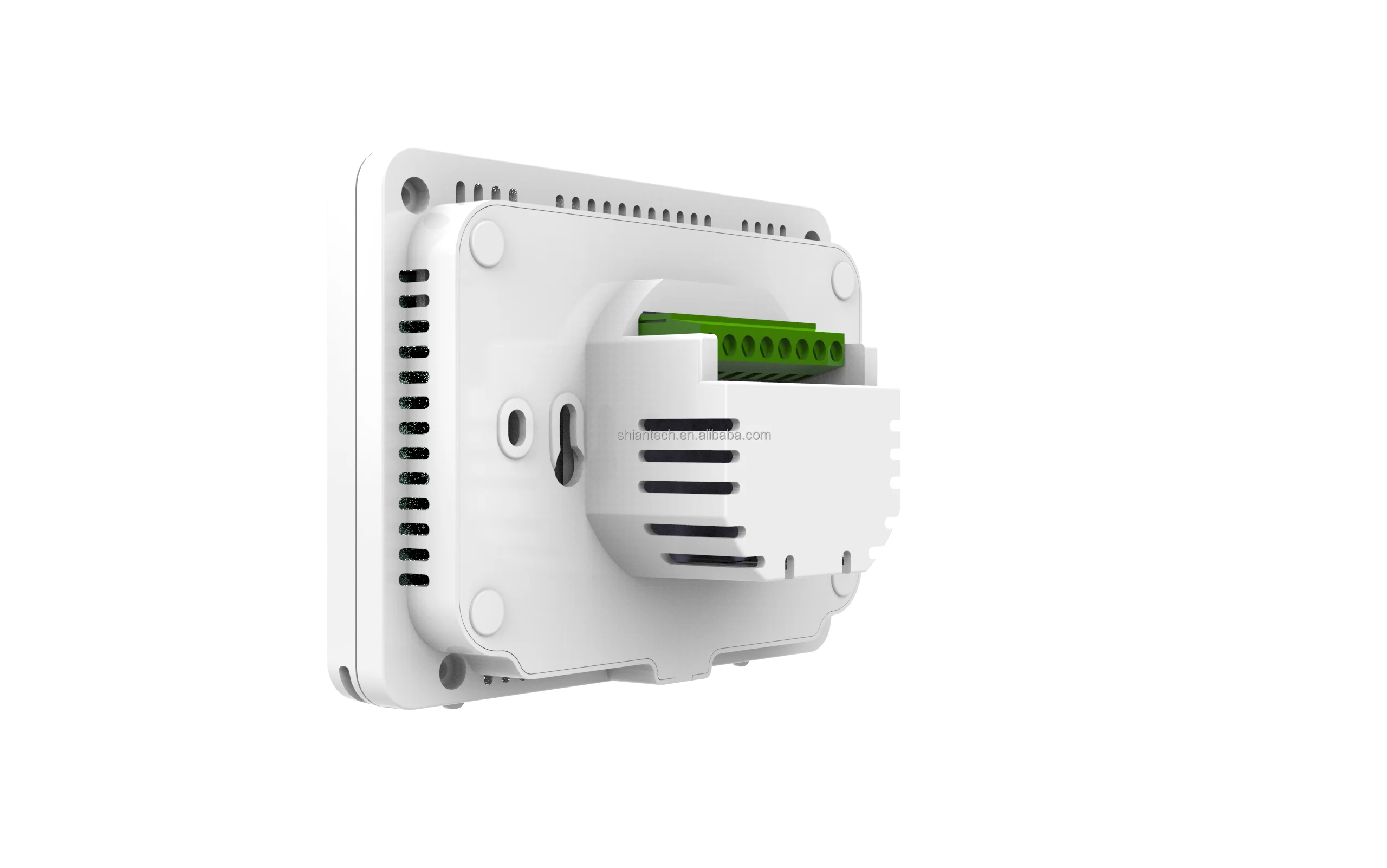

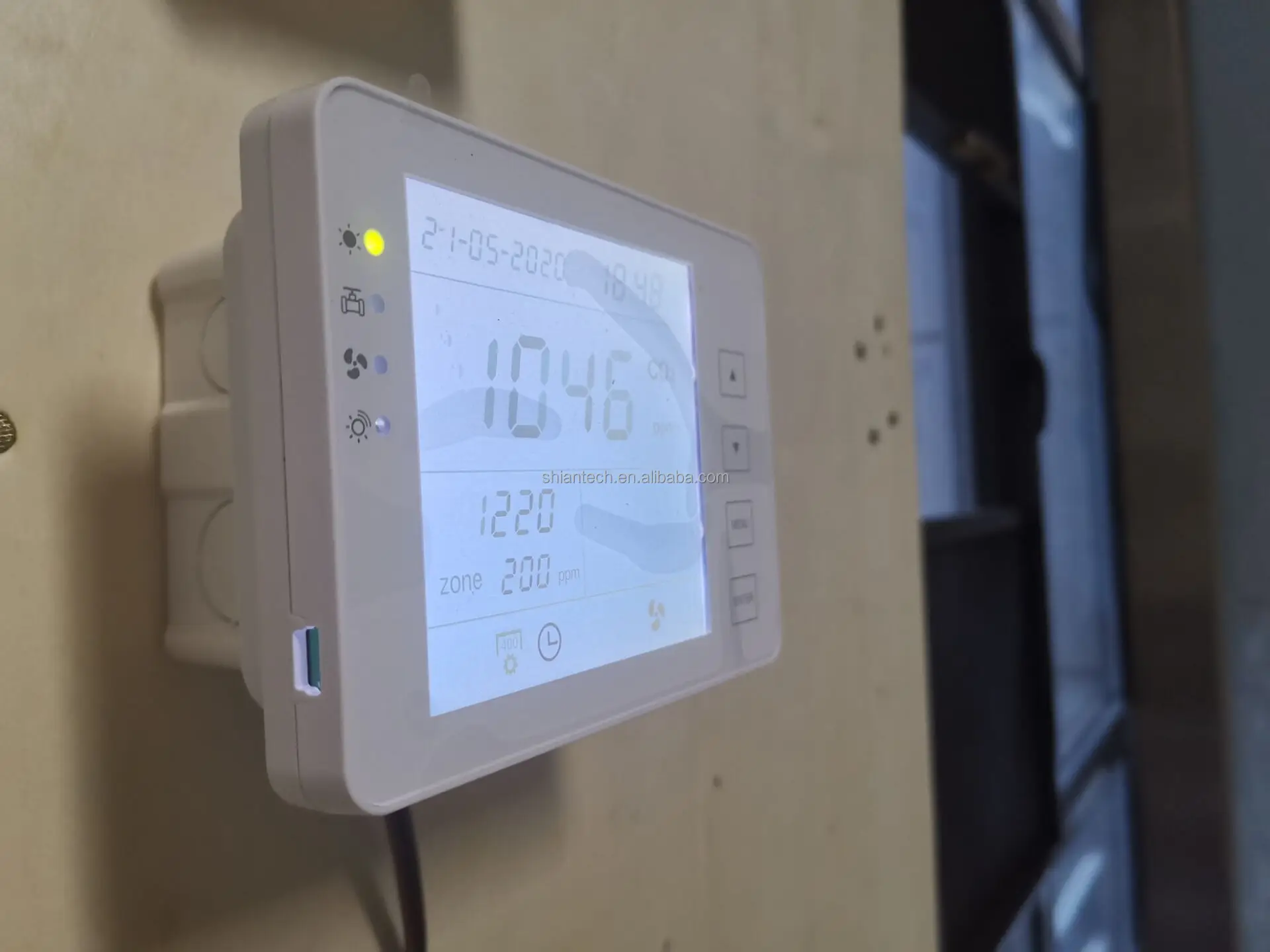

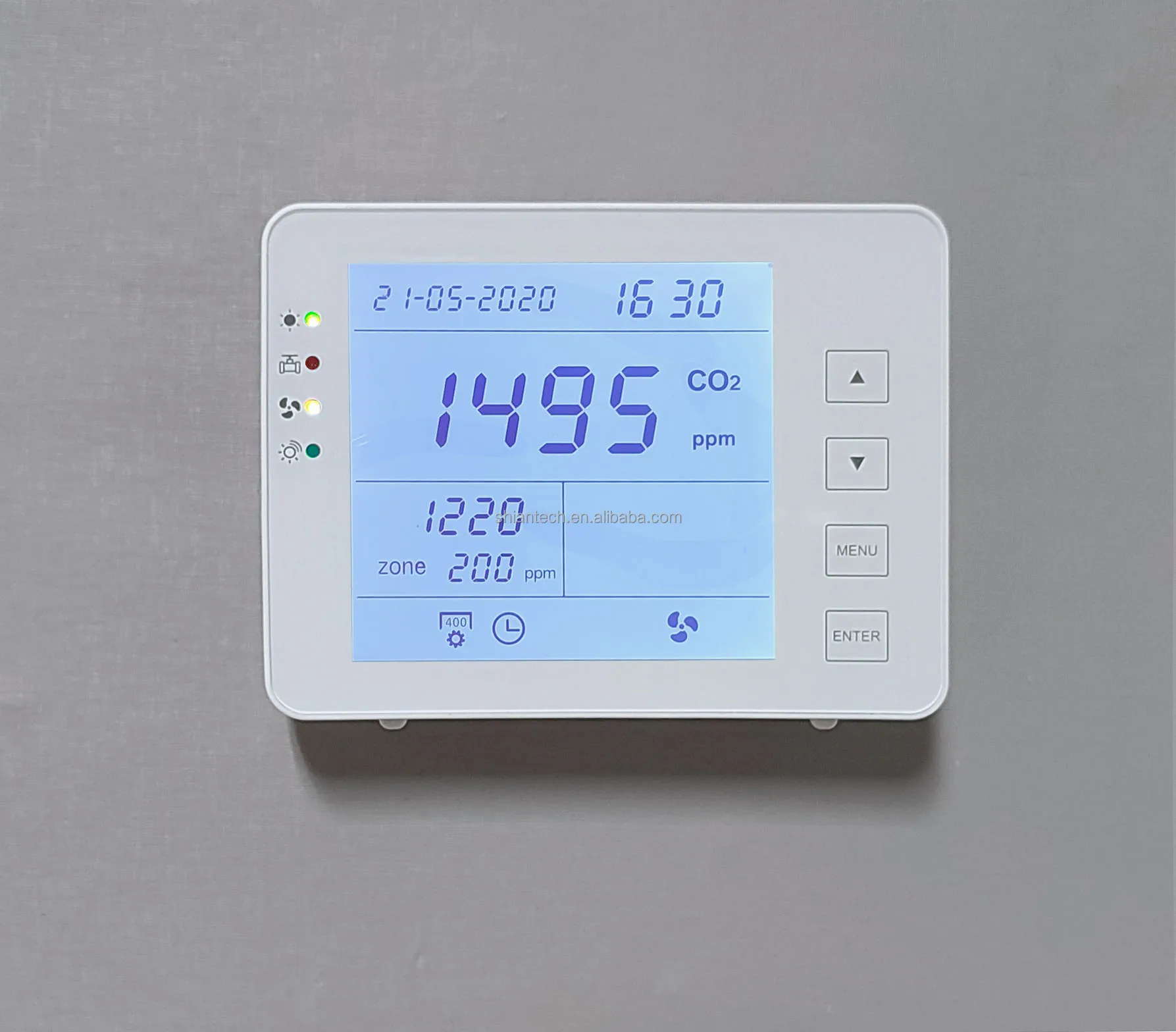

07	Product shows



This carbon dioxide co2 controller can be used in home, office buildings and many other smart control systems.
