Product Overview
Automatic FIBC Jumbo Container Woven Bag Cutting Machine for Big sack making machines
This Automatic Jumbo Bag Cutting Machine to help you work in the tightest applications. Its ability to makes it an excellent machine for cutting work.To automatically cut roll of woven fabric into woven fabric sheet.
FEATURES AT A GLANCE
Automatically cut roll of woven fabric into woven fabric sheet.
Performances and Features
1.The specially designed machine integrates the various main functions in jumbo bag cutting-punching like: automatic jumbo fabric
roll feeding, edge process control (EPC), Length counting, punching unit for “O”Hole, punching unit for “X”hole, Circle describing
linear-knife cutting, jumbo fabric feeding
2.PLC central control system, color man-machine interface, which make date setting, display, recording more clear and accurate,
easier operation
3. Hydraulic automatic jumbo fabric roll feed and EPC unit, stable, simple and easy in operation
4. Equipped import servo control system of precise and fast cutting
PRODUCT SPECIFICATIONS
No | Model | CZHJ-RQ2200 | ||
1 | Power | 5.5KW | ||
2 | Voltage | 380V | ||
3 | Total weight | 2800KG | ||
4 | Cutting Width | Max.2200mm | ||
5 | Cutting Length | 500—10000mm | ||
6 | “X”Hole | 200-500mm | ||
7 | “O”Hole | 300-600mm | ||
8 | Cutting precision | ±5mm |
PRODUCT CONFIGURATION

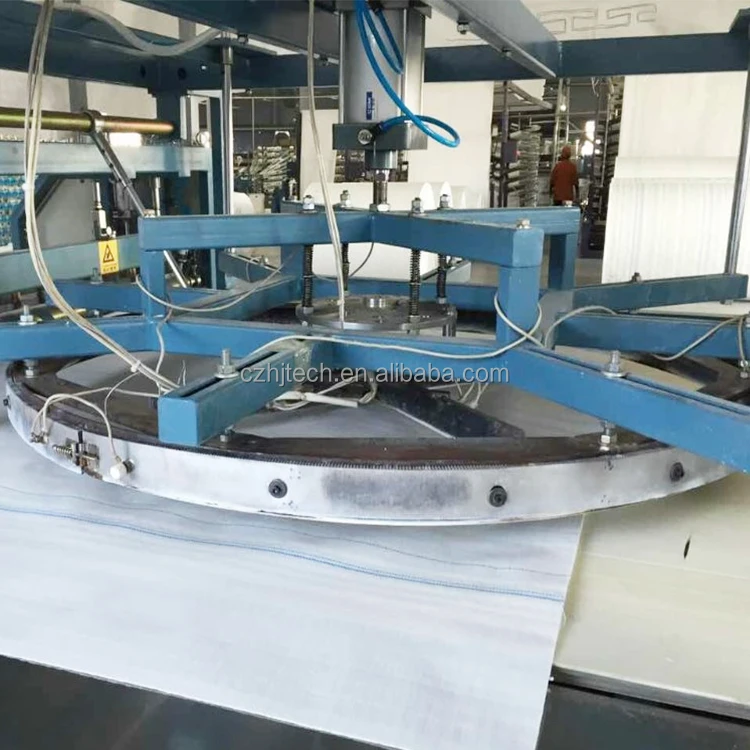

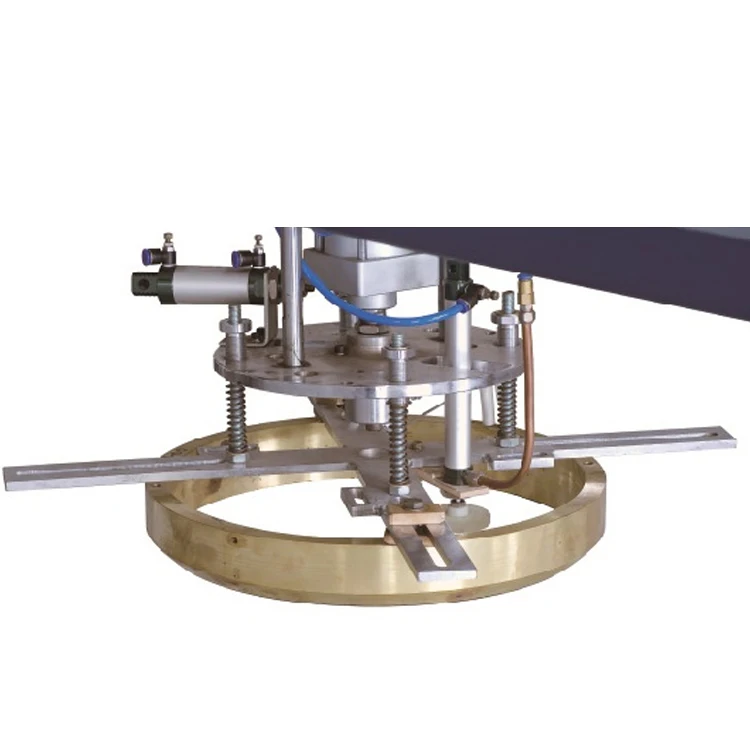

Cutting Knife
Whole Machine
Cutting Knife
