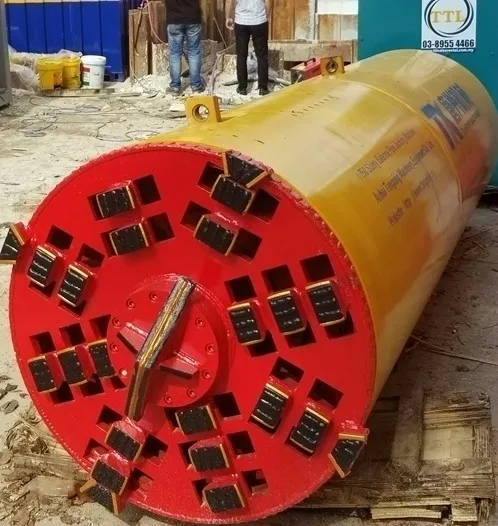

DG1200 микро-туннелирующая Расточная машина/машина для подъема труб, tmb.
US $120000-$600000
750 мм непрерывный подземный Суспензионный балансировочный станок tbm продажа туннельного Расточного
- Категории: Pipe Jacking Machines >>>
- Поставщик: Anhui,Tangxing,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Main Features
1) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
2) Eco-friendly, less disturbtion to eviroment;
3) Applied for normal soil condition.
Specifications
Dimensions | Pipe Jacking Machine OD | ￠920mm | |
Length | 3600mm | ||
Cutting Dia | ￠960mm | ||
Cutter Head | Cutter Head Motor Power | 1*22KW | |
Revolution Speed | 5.2 RPM | ||
Torque | 40 KN.m | ||
Steering System | Cylinder No. | 4 | |
Thrust | 38T*4 | ||
Max. Steering Angle | 2.5° | ||
Pump Station Max. Pressure | 31.5MPa | ||
Cylinder Stroke | 45mm | ||
Pump Station Motor Power | 2.2kw | ||
Slurry Pipe Diameter | 4 inch | ||
Total Weight | 5T | ||
Control | Remote PLC Control(Touch Screen) | ||
Soil | Normal soil, sand, clay | ||
Certifications
Our Service
Pre-Sales Service
* Detailed analysis for geological conditions of individual projects
*Each machine is designed and customed according to project parameters,soil investigation report & customer request
*Professional advice from industry experts over 30 years
of work experience
After-Sales Service
*Geo-technics advise and consultation
* Machine on-site installation and systems debugging
*On-site machine operation training guidance.
* Engineers of overseas service machinery is available .
*Local spare parts warehouse
After-sales service team in Thailand
After-sales service team in Malaysia
After-sales service team in Singapore
After-sales service team in Malaysia
After-sales service team in Singapore
After-sales service team in China
After-sales service team of Tangxing in construction site
Warranty service of pipe jacking machine
*One year repair for the main part of the power system at the normal use,excluding man-made damage
*Six months repair and replacement for hydraulic parts
*Six months replacement for electrical parts
*excluding vulnerable parts: displacement sensor, direct ball valve and cutter)
Training Institution
Anhui Tangxing Trenchless Technology Training Institution.
TANGXING is the only appointed trenchless technoloty training institution of China by China society for trenchless technology (CSTT), special conduct pipe jacking operator expert training .
Institution Overview
Professional theory & practice learning
Demo site practise learning
First semester operators graduate!
Second semester operators graduate!
Quotation Relevant
Good preparation saves work time.
"Please kindly offer below information before the quotation,
because the information is important for equip the suitable machine and effect the quotation."\t
1.The material of pipe:steel pipe? concrete pipe ? reinforced concrete pipe(RCP)? or Glass Fiber Reinforced Plastics pipe(GRP)? Or etc?
2.What's the dimention of pipe(Diameter *L)? What's the socket type of pipe? The drawing of pipe is best support if available.\t
3.The soil strata condition of project site.\t
4.The underground water level.\t
5.The length of single segment project,and the total length of project.\t
6.The dimention of working shaft ?
