3-ех фазовое питания качественный товар 75 Квар статический генератор реактивной мощности
3-ех фазовое питания качественный товар 75 Квар статический генератор реактивной мощности
3-ех фазовое питания качественный товар 75 Квар статический генератор реактивной мощности
3-ех фазовое питания качественный товар 75 Квар статический генератор реактивной мощности
3-ех фазовое питания качественный товар 75 Квар статический генератор реактивной мощности
3-ех фазовое питания качественный товар 75 Квар статический генератор реактивной мощности
3-ех фазовое питания качественный товар 75 Квар статический генератор реактивной мощности

3-ех фазовое питания качественный товар 75 Квар статический генератор реактивной мощности


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product structure

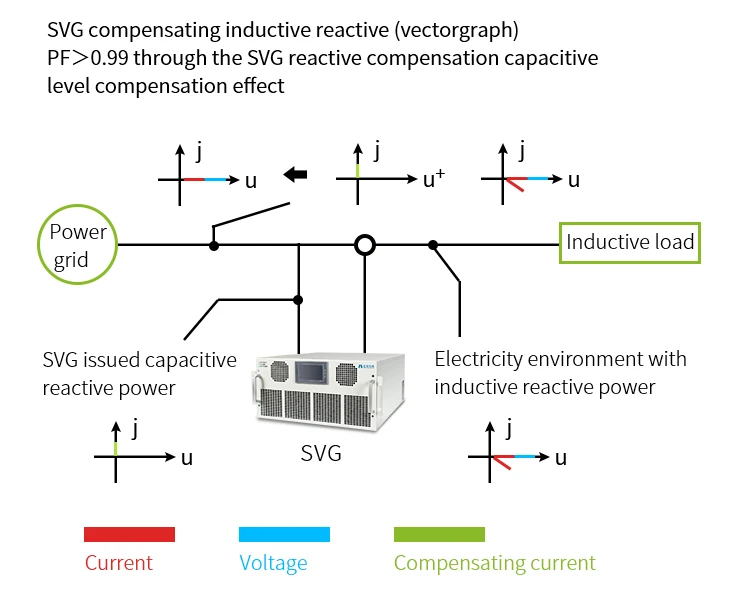

SVG Working principle


Norya series SVG through the external current transformer, monitoring the load current in real time, and through the internal DSP calculation to analyze the reactive content of load current. Then according to the set value to control the PWM signal, which sends control signal to the internal IGBT so that the inverter produces reactive power compensation current to meet the requirements to achieve the purpose of dynamic reactive power compensation.




Product features


▶  Improve three phase imbalance
▶ Improve power factor
▶ Efficiency: up to 97.5%
▶ Up to 8 modules in parallel operation max
▶ Easy to choose the model, only need to know the capacity of the transformer
▶ Response time <10ms
▶ Regular input voltage: 380V±20% Special input voltage such as 480V, 690V and etc can be customized
▶ OEM orders, distributors and agents are welcome.


Technical parameter


Item
Item description








Electrical
specifications
Input line voltage
380V±20%
Number of phases
Three-phase four-wire;
Three-phase three-wire
Frequency
50/60±5Hz(User set)
Compensation current
(per phase)
35~100kVar
Response time
< 10ms
Power factor correction
-1~+1
Current limitation
Rated output current
Multiple operation
Up to 8 modules in parallel
Efficiency
Up to 97.5%
CT ratio range
150:5~6000:5
Dry contacts
EPO/DI/DO

Communication
interface
Communication
RS232/RS485/Ethernet/GPRS
Usage areas
Indoor, without direct sunlight, no dust,
no corrosive and flammable gases,
no oil mist, no water vapor, no drip or salt etc..




Environmental
specifications
Working elevation
Below 1000 meters. Derate when higher than 1000 meters, derate 1% for every 100 meters increase.
Storage temperature
-20°C~+70°C
Working temperature
-10°C~+40°C
Humidity
Less than 95%RH, without water droplets condensation.
Vibration
Less than 5.9 m/s2(0.6g)



Structure
Degree of protection
IP20
Colour
7035 gray /7021 black (Customizable)
Net weight
20KG~50KG(Depending on the model)
Cooling method
Intelligent air cooling


Production scene


Production line
Product testing


Production site
Product warehouse


Company Profile


Foshan Noah Electrical Co., Ltd. is a high-tech manufacturing enterprise. While inheriting the main equipment and technology of the original Foshan Transformer Factory, it has been committed to the research and development of new technologies and new products for many years. Main products: transformer, box change, high and low voltage switchgear; active filter APF, reactive power compensator SVG, three-phase unbalance automatic control device SPC; magnetron sputtering power supply for vacuum coating: DC power supply, intermediate frequency power supply, Bias voltage power supply, multi-function coating power supply (suitable for group ion beam coating, multi-arc ion coating, DC sputtering coating, DC bias sputtering coating), high-power bidirectional controllable DC power supply, high-power programmable DC power supply, etc. Standard DC power supply, plasma sintering power supply, plasma nitriding surface treatment power supply.




Certifications
