 X(S)N-35L Dispersion Type Rubber Kneader Machine

                                 WECHAT / WHATS APP: 0086-13963993705



1.Type	X(S)N-35X30	X(S)N-55X30	X(S)N-75X30
2.Pinching total cubage(L)	75	125	175
3.Dense smelting total cubabe(L)	35	55	75
4.Main motor power(kw)	55	75	110
5.Overturn motor power(kw)	4.0	4.0	4.0
6.Overturn angle(degree)	140	140	140
7.Rotate speed of rotor axis(r/min)	30/24.5	30/24.5	30/24.5
8.Pressure of compression air(MPA)	0.6-0.8	0.6-0.8	0.6-0.8
9.Pressure of cooling water(MPA)	0.2-0.4	0.2-0.4	0.2-0.4
10.Pressure of heating water(MPA)	0.5-0.8	0.5-0.8	0.5-0.8
11.Overall dimension(L*W*H)(mm)	3200*1900*2900	3300*1900*2945	3760*2143*3135
12.Weight(kg)	6500	7800	10230



Application:

usable for rubber or plastic plasticzing and mixing or rubber and plastic blending,warmly welcome to visit our factory for more details.



Features:

1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled

2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about even distribution of the stock.

3. The rotor wings are built up by welding with the abrasion-proof carbide alloy to resist abrasion and corrosion.

4. All the parts of  rubber kneader machine in contact with stock are of the jacket design.

5. Stock is fed through the rear door of the framework (or another port) and discharged by the mixing chamber tilting forward by 140°.

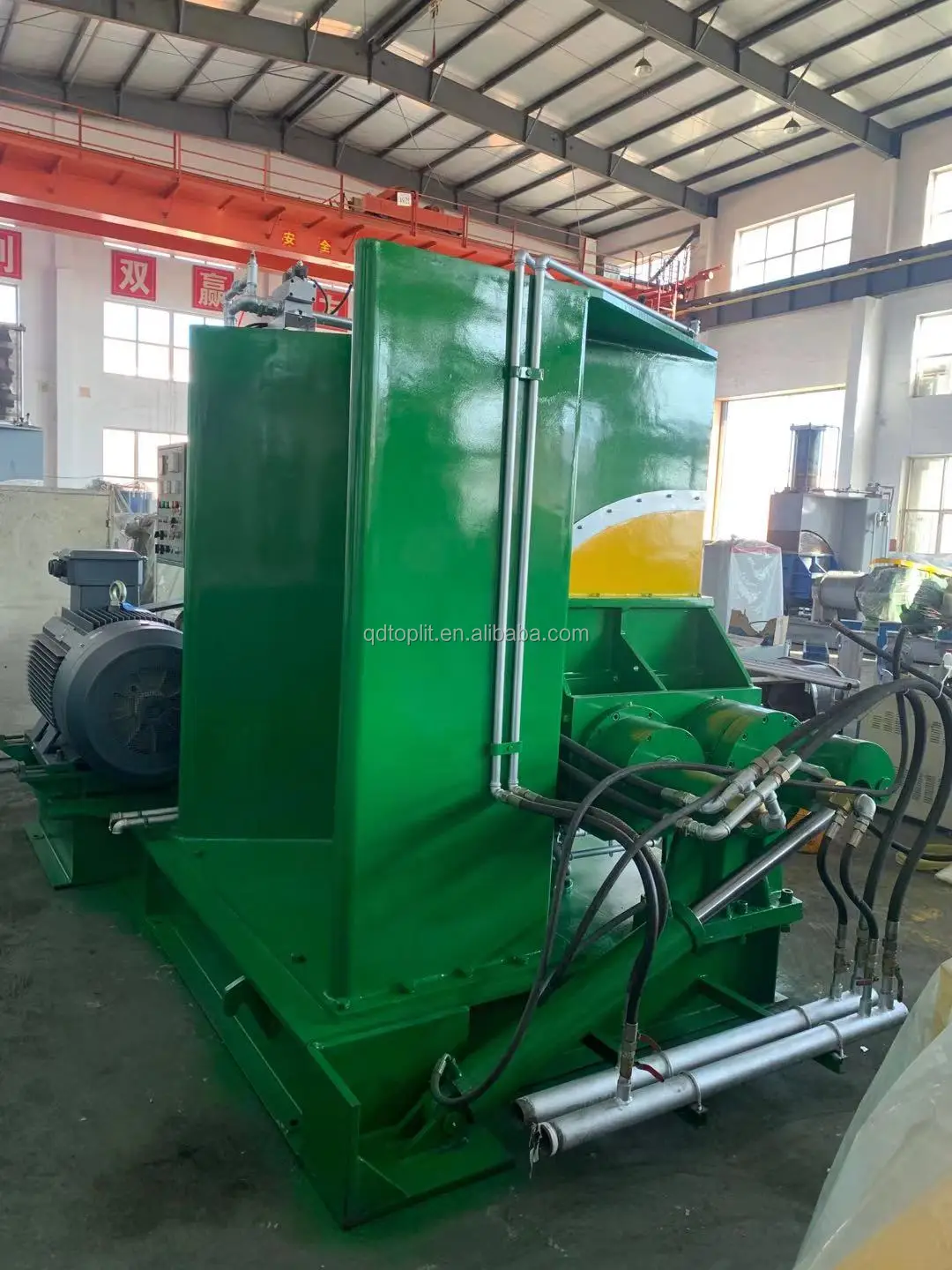

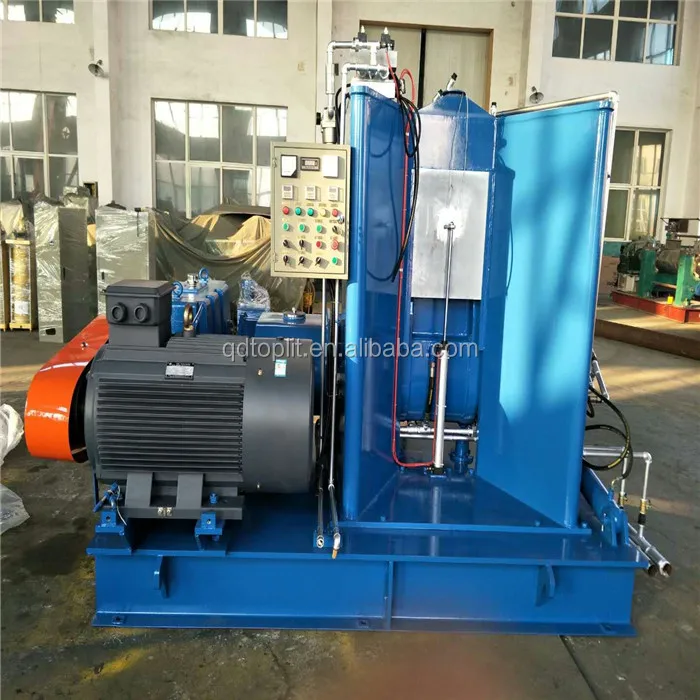

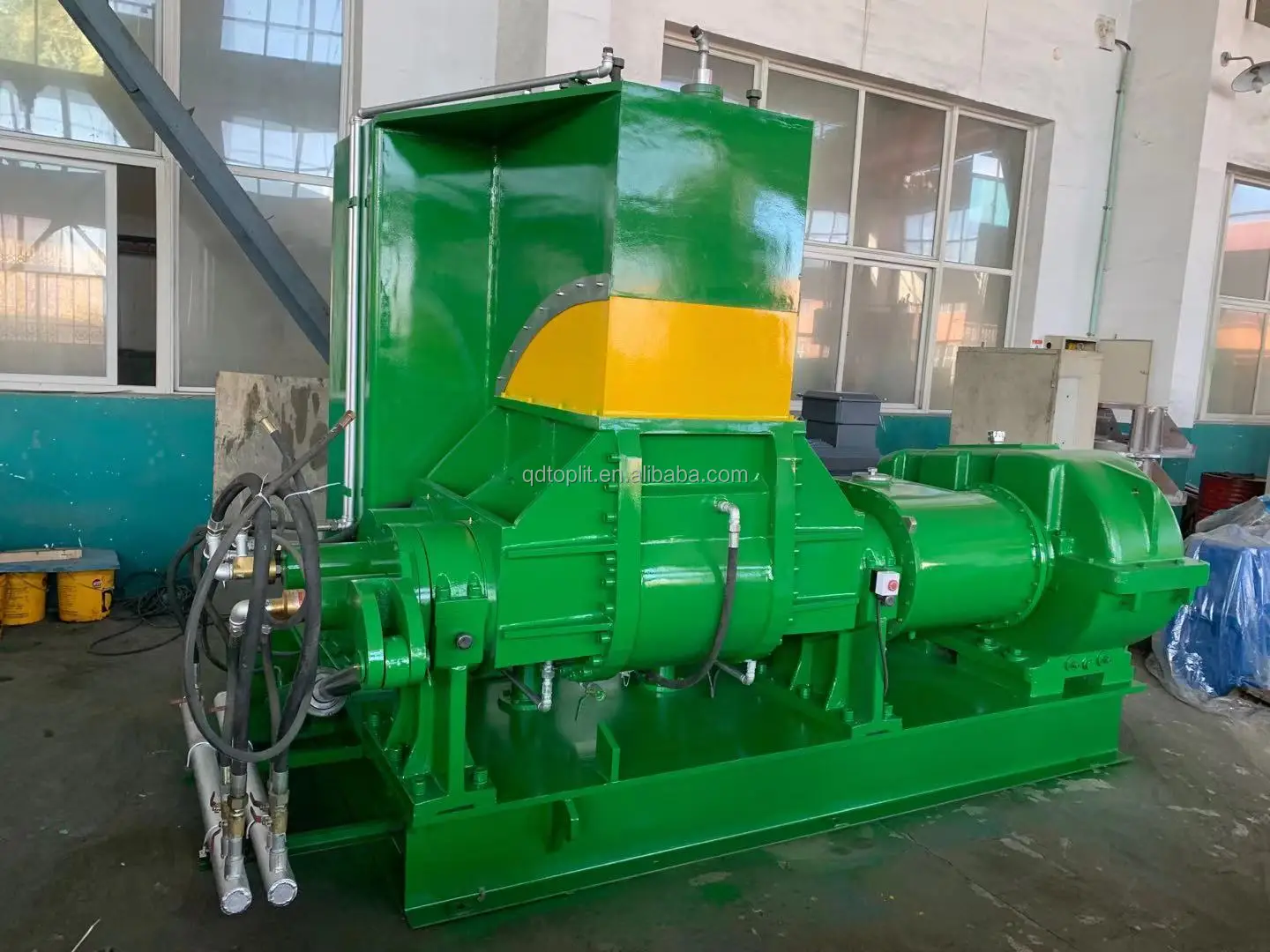

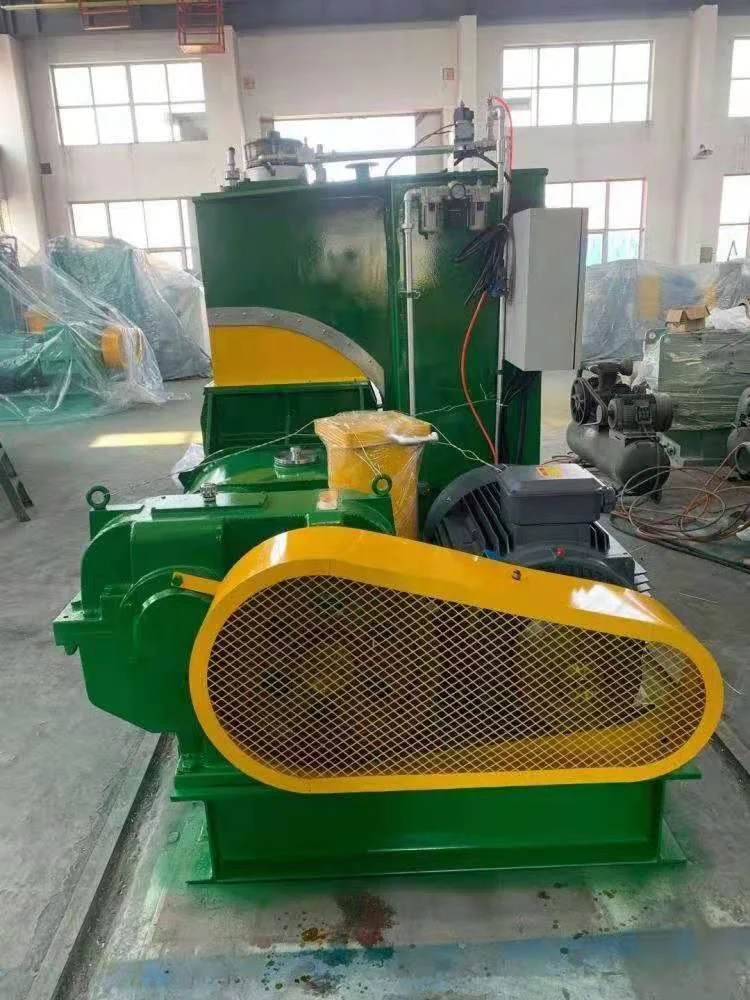

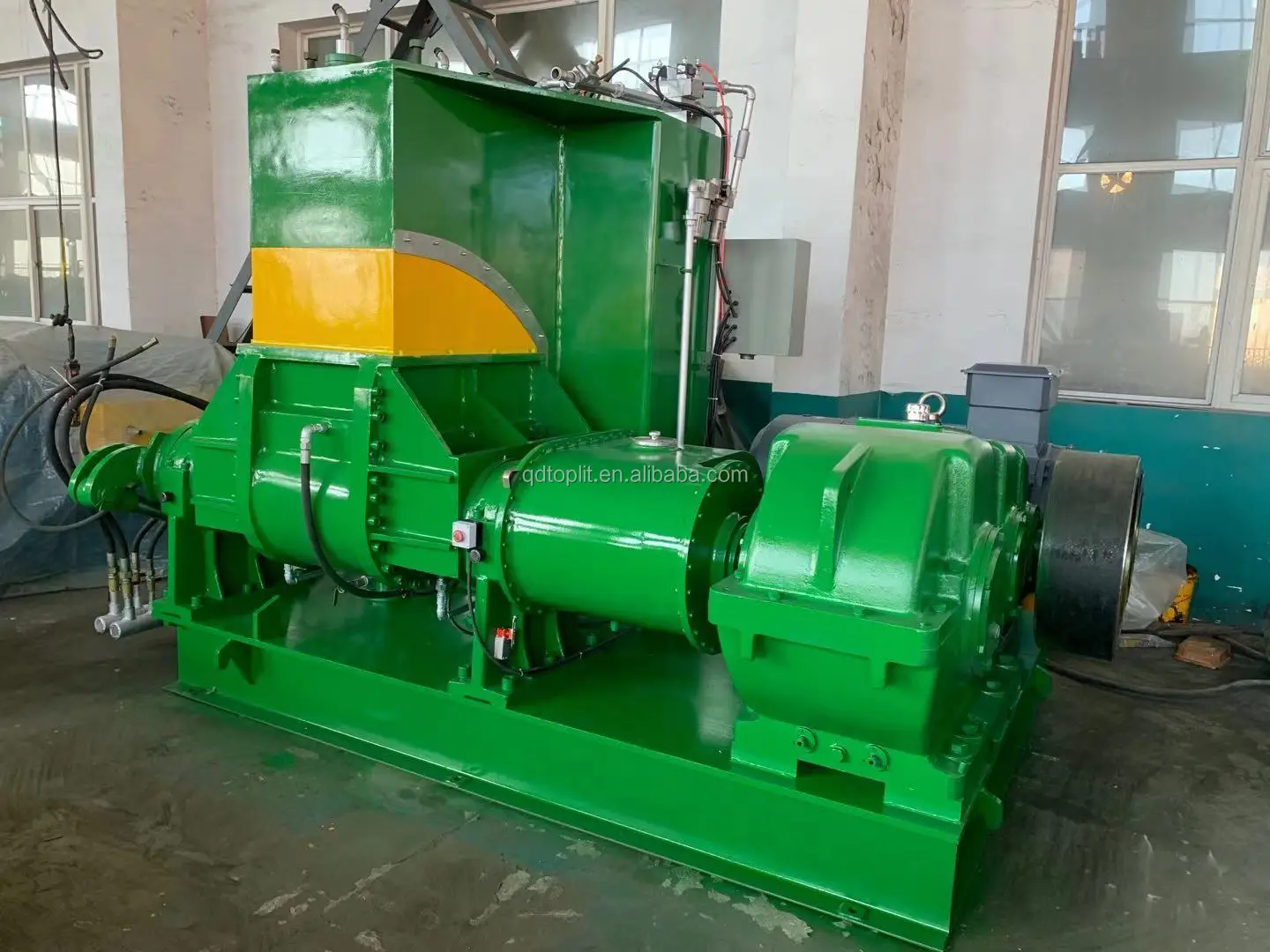

Reference photos:
