Product Description
The original touch screen which has 35% more working time and better color saturation.
CPU/256MB flash/ 32bit colour/vector font/Lan connecton and so on, and it has more powerful GUI design software and more functions, its control commands are more easy and humanization.So the usage experience is better for the customer and engineer.

RS232 / RS485 / RS422 / TTL portwill be supported in one screen.
More extensive voltage range: 5V - 42V
More storage space: 256MB - 1GB

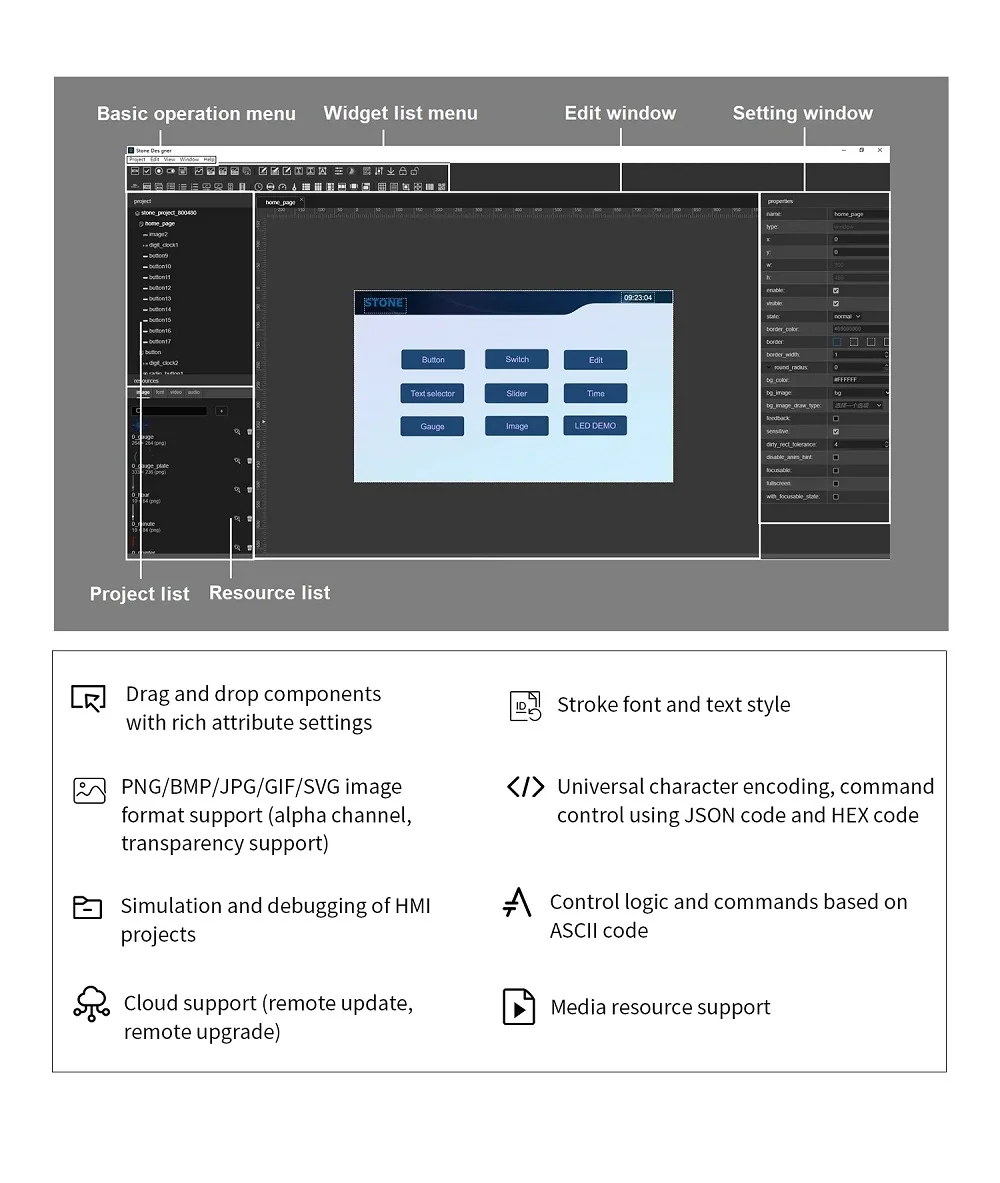

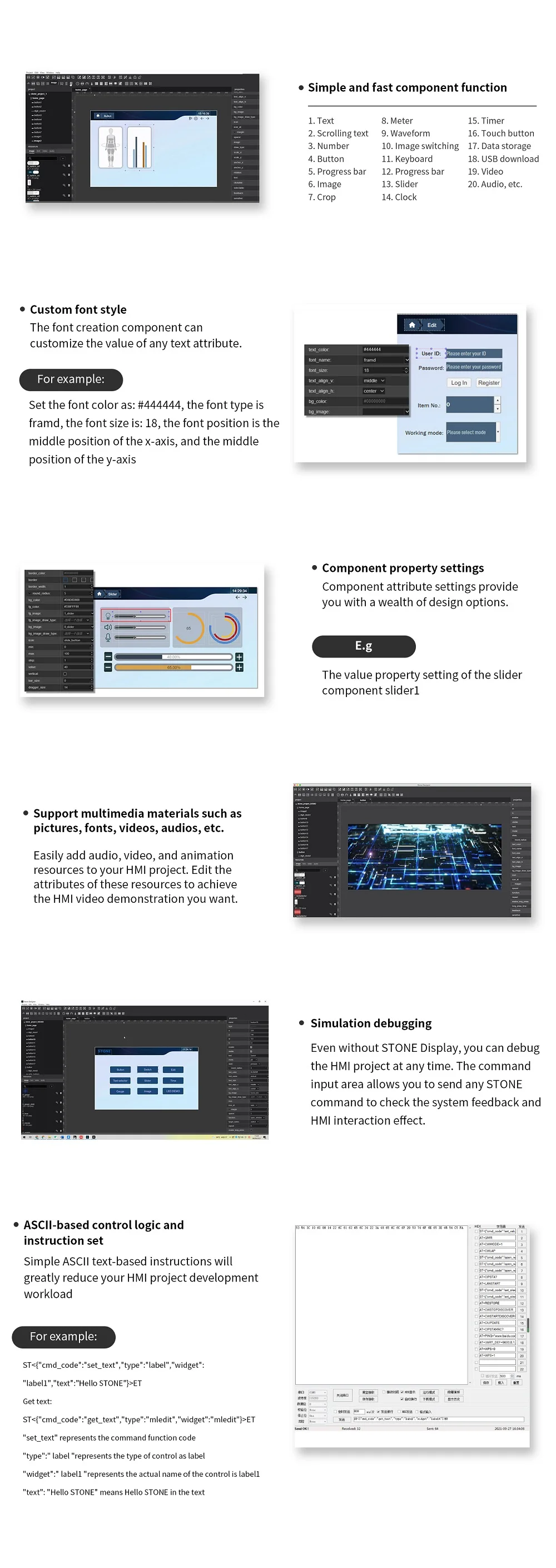

New GUI design software
More user-friendly
Vector font is available
Support GIF/SVG format images
Support PNG image format (alpha channel, transparency support)
Support Cloud (remote update, remote upgrade)
A whole new set of control logic and instructions
New control logic and instruction set
Hexadecimal string - ascii instructions
BEFOR: A5 5A 0C 82 01 00 56 49 45 57 31 32 33 FF FF
NOW: ST<{"cmd_code":"*command type*","widget":"*window name*"}>ET
More readable / Easy to develop



Technical Parameters




Physical Parameter
Size
7 inch
Resolution
800×RGB×480
Pixel Spacing
0.0642(W) × 0.1790(H) mm
Color
262,144 colors (18 bit)
Viewing Area
154.08(W) × 85.92(H) mm
Display Dimension
186.4mmx105.5mm
Overall Dimension
186.4mmx105.5mmx17.4mm
(Standard type)
186.4mmx105.5mmx23.8mm
(with Ethernet port)
Net Weight
300g


Display Parameters
Backlight Type
LED
Brightness
300cd/m2
(Brightness can be adjustable in 100 levels)
Contrast
500:1
Backlight life
300,000 hours
Viewing Angle
70°/70°/50°/70°(L/R/U/D)
TFT Panel
A Class Industry Panel
Touch Screen
4 Wire Resistance Touch /Capacitive Touch / Without Touch Screen
Screen Mode：
Digital

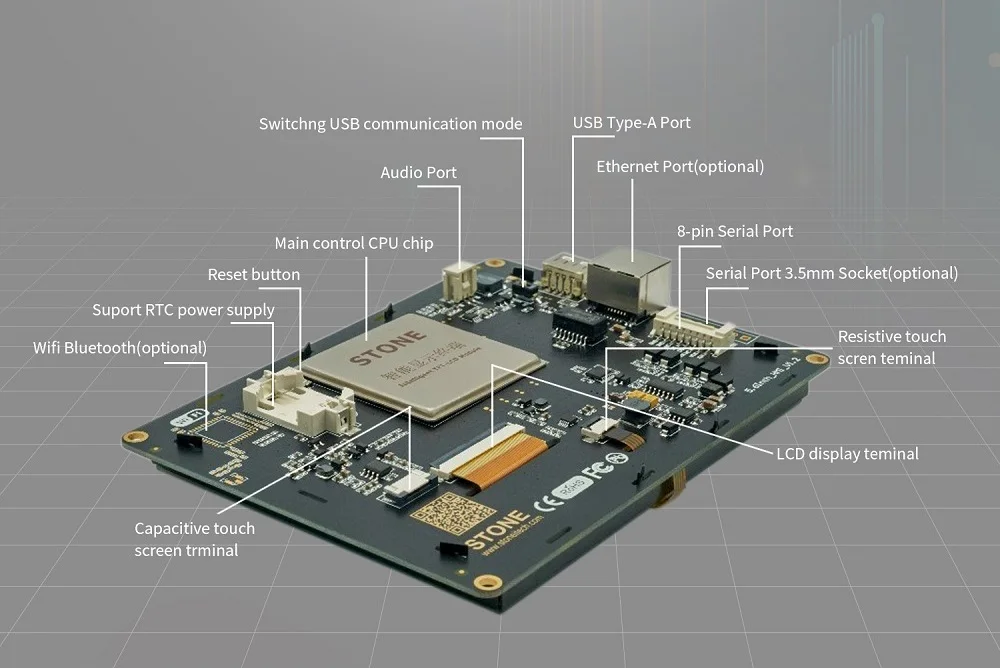

Interface
Serial Interface
RS232 / RS422 / RS485 / TTL level
Ethernet interface
10M/100M (Optional)
Wireless interface
Wi-Fi / Bluetooth (Optional)
Project file downloading
USB2.0 port or U storage Disk


Support Device
UART Port
Support
RS232 / RS422 / RS485 / TTL
Network Port
Support
Ethernet Port / Wi-Fi / Bluetooth
Flash Memory
Support
Standard 256MB, Extend 1GB or 2GB
Buzzer
Support
RTC
Support
USB port
Support
Online Download By USB Cable
U Storage Disk Interface
Support.
Offline Download or Copy User Data
Touch Screen
4 Wire Resistance / Capacitive
Vector Font
Standard TTF Format
Support PNG/JPG/BMP/SVG/GIF Format
Audio Interface
Support WAV format
The length of single audio file is not limited, theoretically up to 4096 audio files, speaker power is 8 ohms 2 watts or 4 ohms 3
watts
Command Set
Unified Simplified Command Sets


AI - Series Product
Size (inch)
Model
Resolution
Voltage(V)
Network
Interface
Brightness
Power (W)
3.5''
STWI035WT-01
320*240 (4:3)
DC 5.0-28
Ethernet/Wi-Fi/BT
RS232/RS422/RS485/TTL
300cd/m²
0.8
4.3''
STWI043WT-01
480*272 (16:9)
DC 5.0-28
Ethernet/Wi-Fi/BT
RS232/RS422/RS485/TTL
500cd/m²
1.0
5''
STWI050WT-01
800*480(16:9)
DC 5.0-28
Ethernet/Wi-Fi/BT
RS232/RS422/RS485/TTL
350cd/m²
1.3
5.6''
STWI056WT-01
640*480 (4:3)
DC 5.0-28
Ethernet/Wi-Fi/BT
RS232/RS422/RS485/TTL
280cd/m²
2.2
7''
STWI070WT-01
800*480 (16:9)
DC 5.0-28
Ethernet/Wi-Fi/BT
RS232/RS422/RS485/TTL
300cd/m²
2.6
8''
STWI080WT-01
800*600 (4:3)
DC 5.0-28
Ethernet/Wi-Fi/BT
RS232/RS422/RS485/TTL
400cd/m²
2.8
10.1''
STWI101WT-01
1024*600 (16:9)
DC 5.0-28
Ethernet/Wi-Fi/BT
RS232/RS422/RS485/TTL
350cd/m²
3.0
10.4''
STWI104WT-01
800*600 (4:3)
DC 5.0-28
Ethernet/Wi-Fi/BT
RS232/RS422/RS485/TTL
300cd/m²
3.0

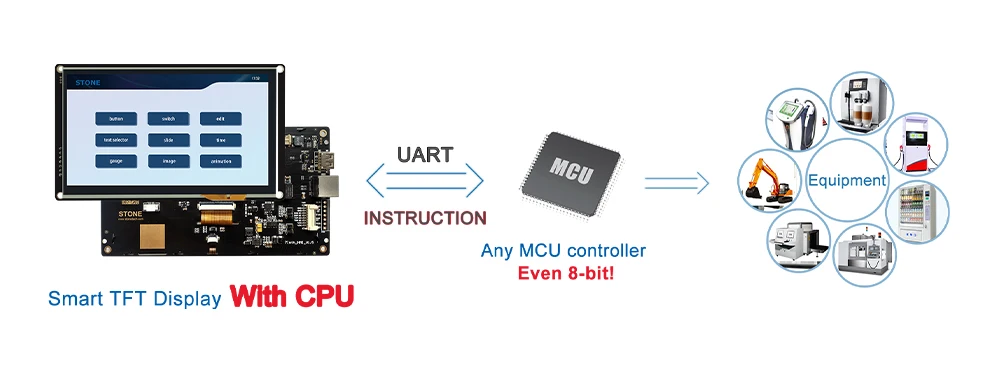

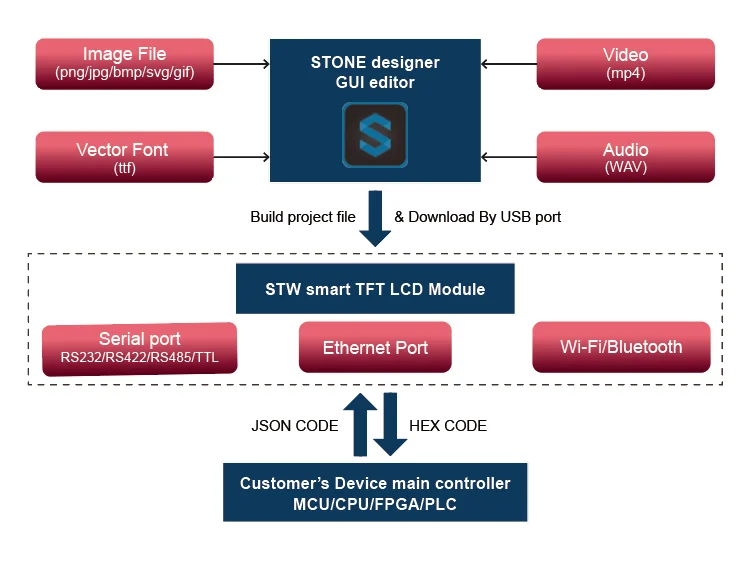

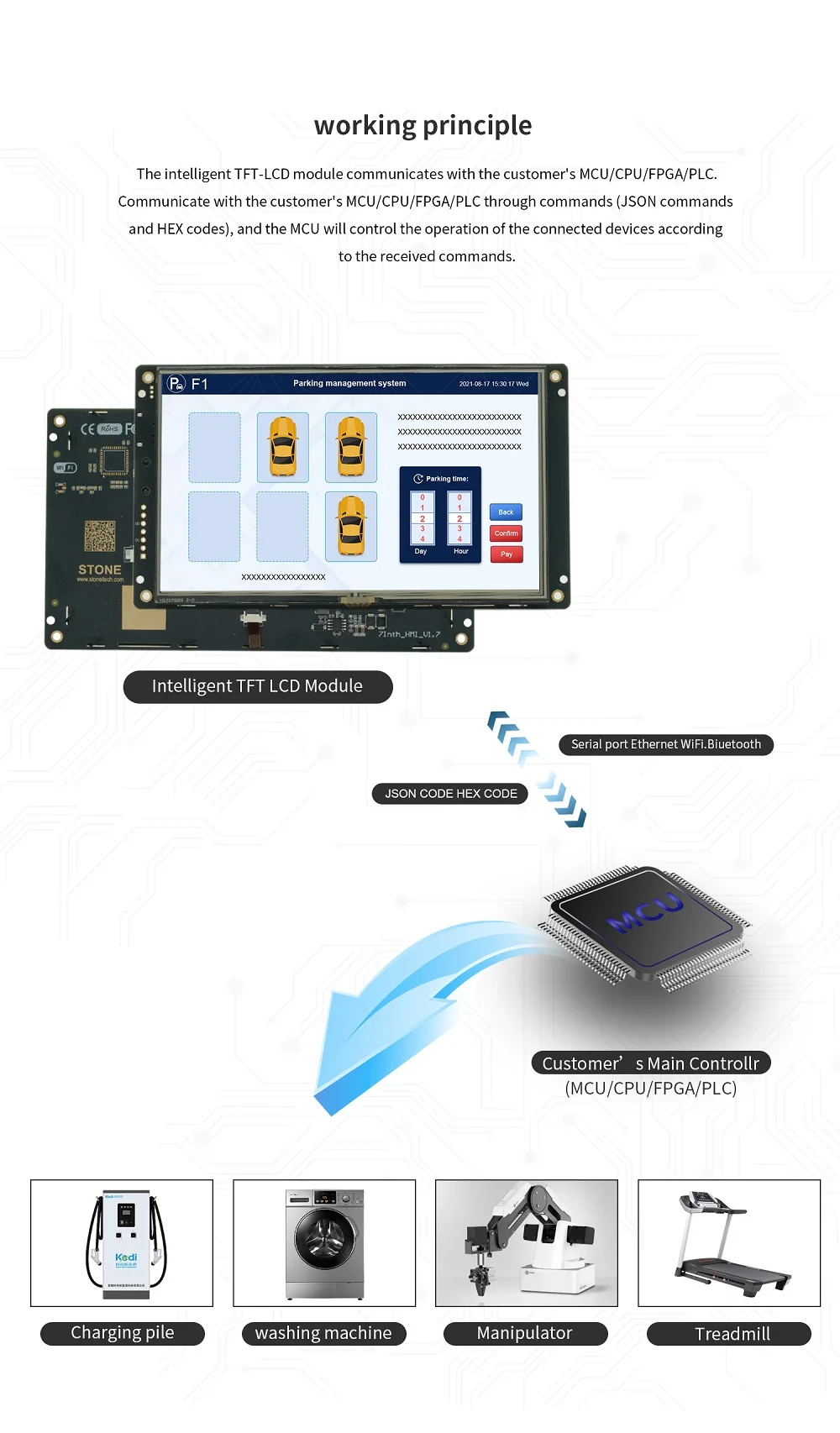

Working Principle
The Intelligent TFT-LCD Module communicates with the Customer’s MCU / CPU / FPGA / PLC via Commands (JSON command and HEX Code), and then the MCU would control its connected equipment to work according to the received
commands.
