Product Description
Machine Description
QHS-1500 beverage mixer is developed by our company absorbing imported technology and combining the actual production of carbonated beverages. This mixer is suitable for the mixing and processing of various carbonated beverages, and can also be used for slurry beverages, fermented beverages and other beverages. Mixed processing.
Main Features
1.Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC. Once an error occurs,the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically.
2.Easy operation and regulation:The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging and parts.
3.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.
4.Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating,So its carbon content is especially high.
1.Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC. Once an error occurs,the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically.
2.Easy operation and regulation:The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging and parts.
3.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.
4.Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating,So its carbon content is especially high.
Model | QHS-1500 | QHS-3000 | QHS-4000 | QHS-5000 | QHS-6000 | ||||
Production capacity | 1000-2000 | 2500-3000 | 3500-4000 | 4500-5000 | 5500-6000 | ||||
Adjustable proportion of of syrup and water | 1:3-1:6 | ||||||||
CO2 content | 1.5-2.5 | >2.5 | >2.5 | >3.5 | >3.5 | ||||
Cooling water entry temperature(℃) | 0-5 | ||||||||
Working pressure of carbonized and syrup tank(Mpa) | 0.05-0.15 | ||||||||
Working pressure of storage tank(Mpa) | 0.2-0.5 | ||||||||
Power(KW) | 1.5 | 3.7 | 4.5 | 5.6 | 6.2 | ||||
Dimension(mm) | 900*700 *2000 | 1720*1140 *2100 | 1860*1300 *2100 | 2020*1500 *2200 | 2020*1500 *2200 | ||||
Weight(KG) | 500 | 1100 | 1300 | 1600 | 1800 | ||||
Applications
This mixer is suitable for the mixing and processing of various carbonated beverages, and can also be used for the mixing and processing of other beverages such as slurry beverages and fermented beverages.
More Products
Company View
Certifications

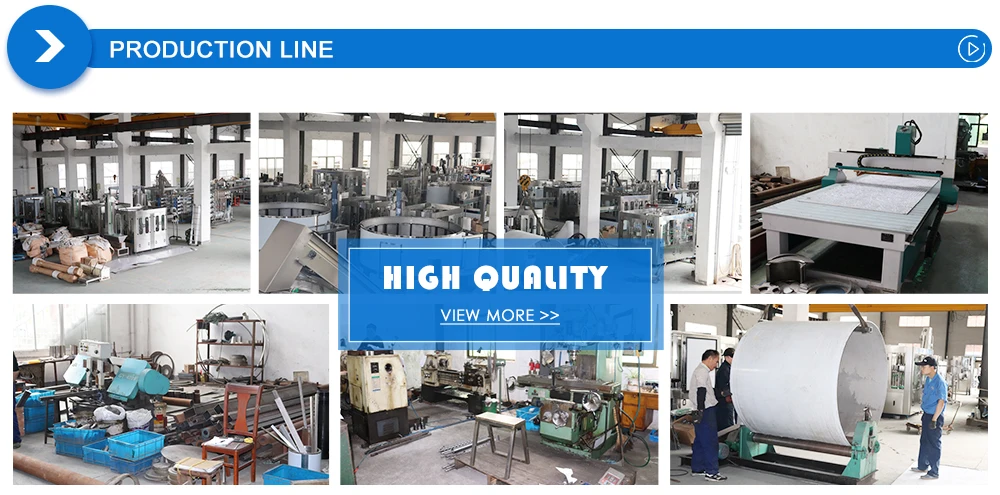

Production Line
Packaging&Shipping
FAQ
Q1: Do you have any reference project?
>>A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>>A3: We will customize the machine according to your needs, material ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>>A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>>A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
>>A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>>A3: We will customize the machine according to your needs, material ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>>A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>>A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
