Высокоскоростной платёжный блок для декодирования модуль сканирования 2d штрих-кода считыватель qr-кода
- Категории: Thermal Camera & Scaner >>>
- Поставщик: Shenzhen,Edoo,IOT,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Excellent screen code reading ability
Designed for barcode payment, it can quickly read payment codes, electronic coupons on the screen of mobile devices, which can be used in a high-traffic cash register environment.
Designed for barcode payment, it can quickly read payment codes, electronic coupons on the screen of mobile devices, which can be used in a high-traffic cash register environment.
Scenario
Applicable in AFC, access control, express delivery cabinet, Ticket Verification Device, Display Kiosk and self-service terminal
Applicable in AFC, access control, express delivery cabinet, Ticket Verification Device, Display Kiosk and self-service terminal

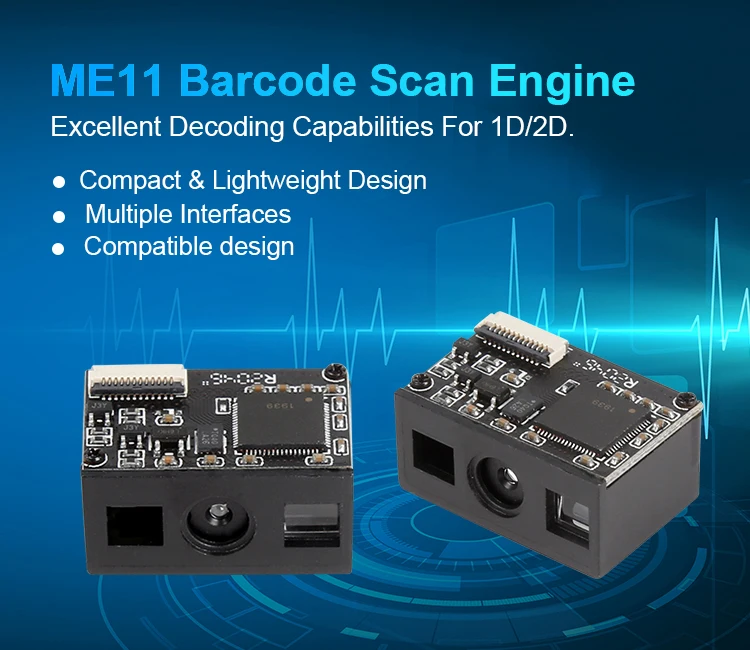

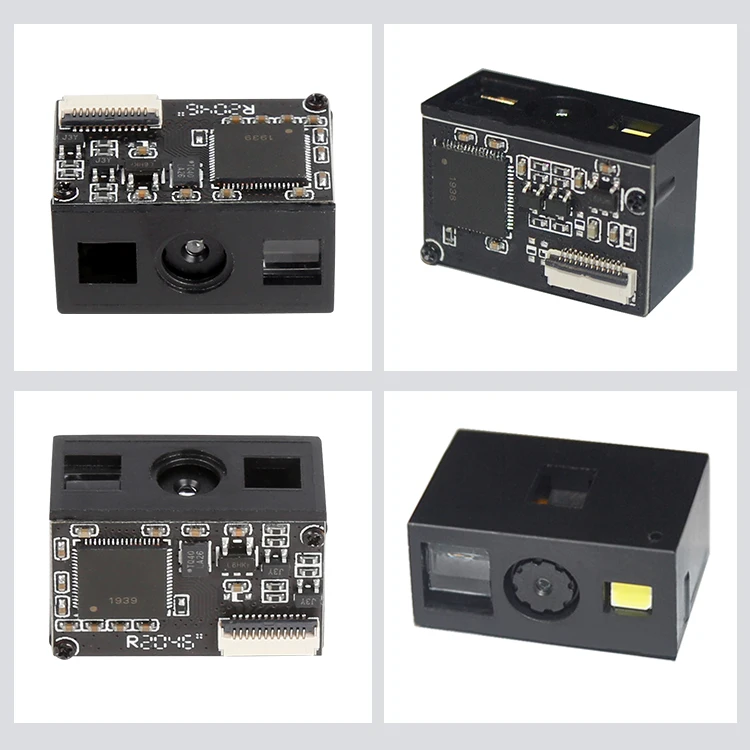

ME11-00 Barcode Scan Engine
Performance | Image Sensor | 640×480 CMOS | |
Illumination Aiming | White LED Red LED | ||
Symbologies | 2D | PDF417, Data Matrix, QR Code | |
1D | Code 128、Ean-13 、Ean-8、UPC-E、UPC-A、ITF-25（Interleaved 2 0f 5）、Code39、Code93、Codabar | ||
Precision* | ≥5mil | ||
Depth of Field* | EAN-13 | 45mm-269mm (13mil 13 byte) Typical | |
Code39 | 35mm-119mm（5mil 7 byte） | ||
Code128 | 43mm-310mm (13mil 10 byte) | ||
QR Code | 19mm-185mm (15mil 30 byte) | ||
Data Matrix | 45mm-116mm（10mil 30 byte） | ||
Symbol Contrast* | ≥20% | ||
Sensitivity* | Tilt±55°，Skew±55°，Roll 360° | ||
Field Angle | Horizontal 36°，Vertical 27° | ||
Mechanical/ Electric | Communication Interface | TTL-232，USB（HID-KBW，Virtual Series Interface） | |

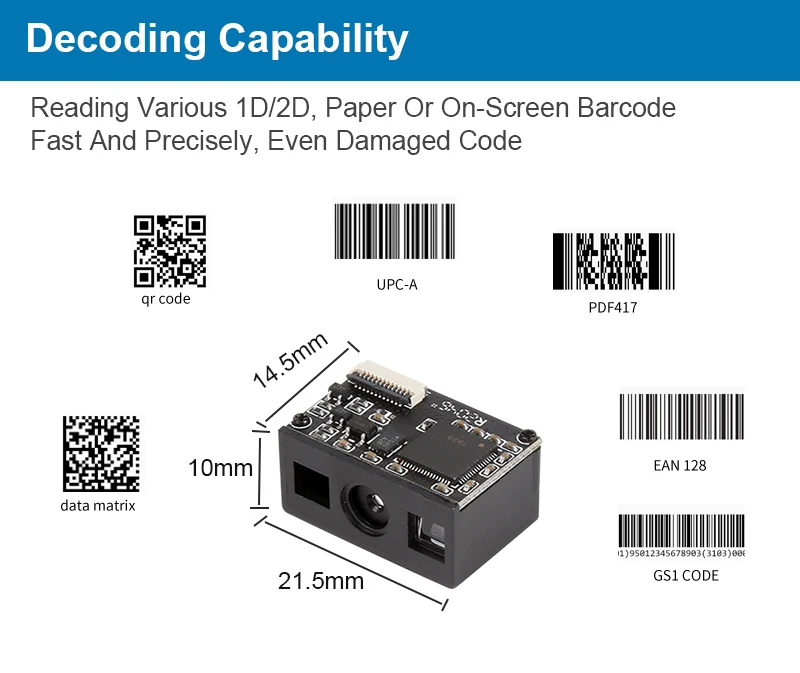

Physical Size(mm) | 21.5(D)×14.5(W)×10.0(H)（Max Value） | ||
Weight | 9 g | ||
Voltage | DC 3.3V(Operation)/150mA(Normal)/750mW(Consumption) | ||
Standby Current | 70mA | ||
Environmental | Operation Temperature | -20℃~+60℃ | |
Storage Temperature | -40℃~+80℃ | ||
Operation Humidity | 5%~95%（Non-condensing） | ||
Illumination | 0~100000 lux（Natural daylight） | ||
Certification | FCC Part15 Class B, CE EMC Class B | ||
Accessories | Development Board | Development board with trigger key and beeper, RS232 and USB interface | |

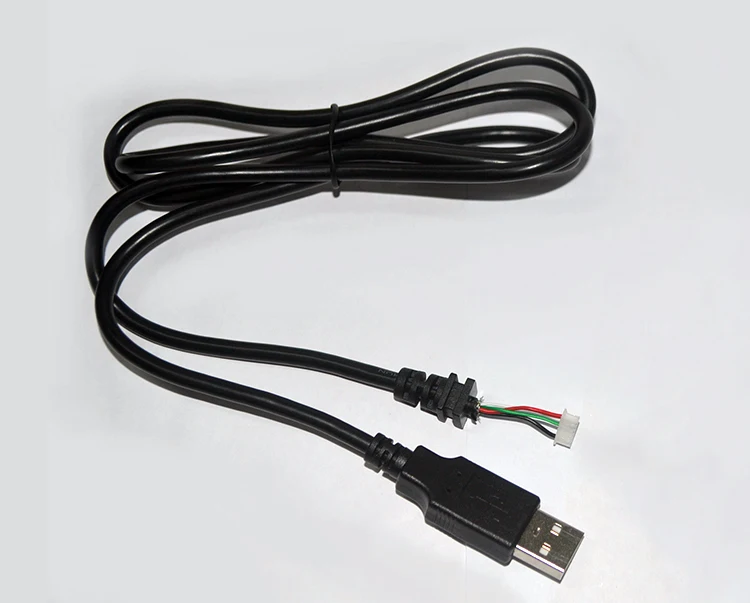

Data Cable | USB | USB cable, connecting with development board and information receiving host | |
RS-232 | RS-232 cable, connecting with development board and information receiving host | ||
Power Adaptor | 5V power supply adaptor, assist to power on the development board with RS-232 cable |
Multiple Interfaces
To provide USB or TTL-232 interface, to meet different interface requests.
To provide USB or TTL-232 interface, to meet different interface requests.
