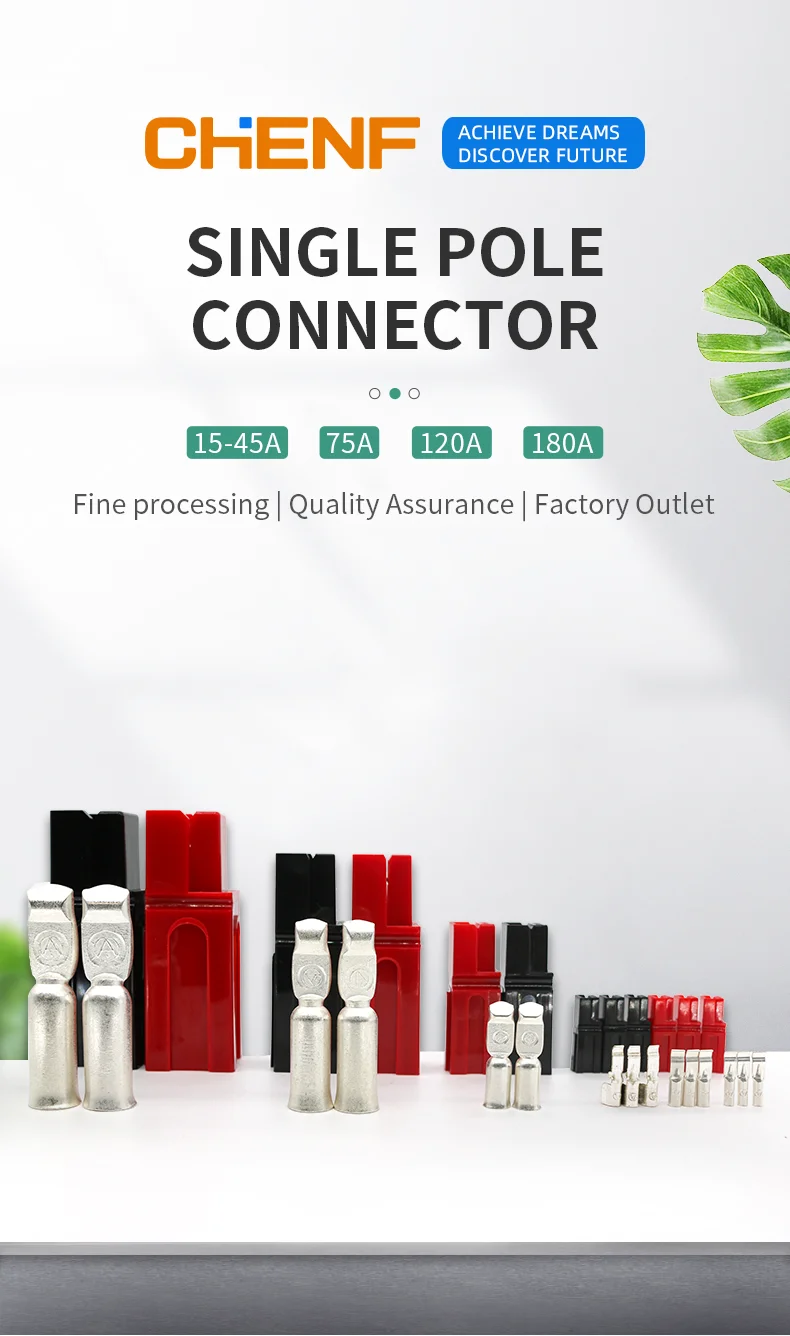

CHENF single pole connector PP15,PP30,PP45,PP75,PP120,PP180 solar UPS battery forklift E bike red,black power pole connector
Product Name | Power Pole Connector |
Model Number | PP15,PP30,PP45,PP75,PP120,PP180 |
Rated Current | 15A,30A,45A,75A,120A,180A |
Rated Voltage | 600V |
Contact Wire Size: | 16-1/0AWG |
Withstand Voltage | 2200V(DC) |
Insulation Resistance | 500M Ohm |
Average Contact Resistance | 0.05M Ohm |
No Load(Contact/Disconnect Cycles) | 10000 |
Average Insertion Force | 5N |

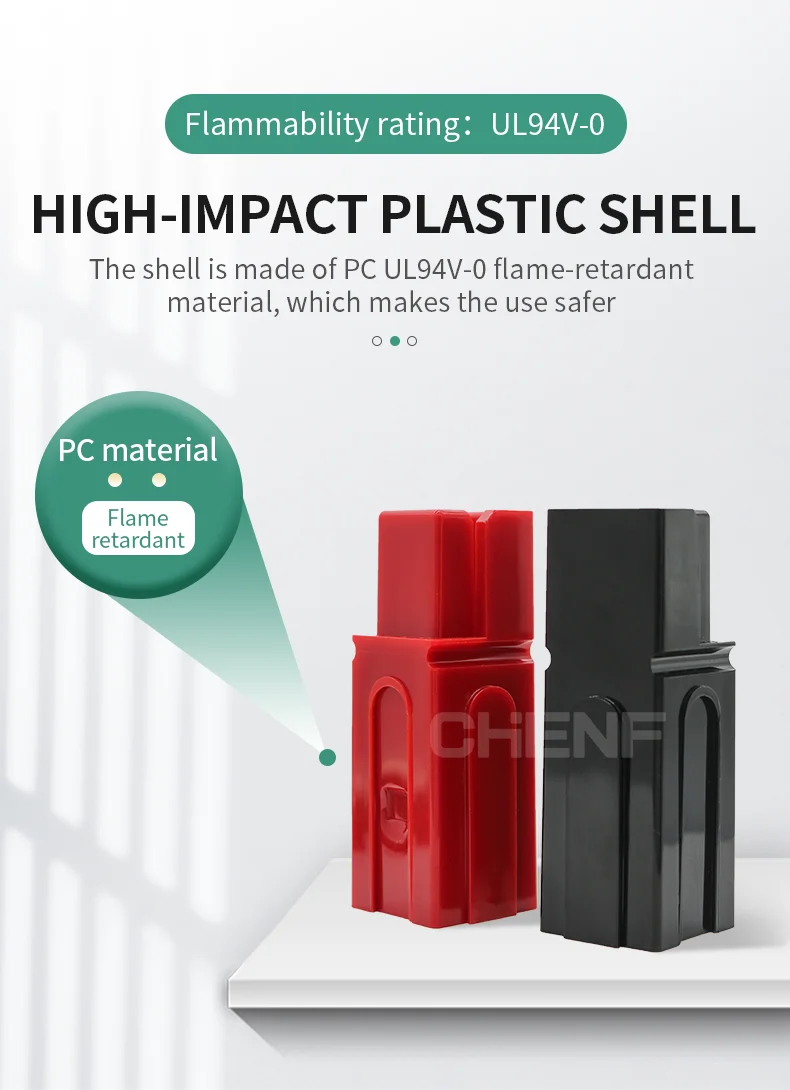

Fire Rating Of Housing | UL94-V0 |
Material Of Housing | PC |

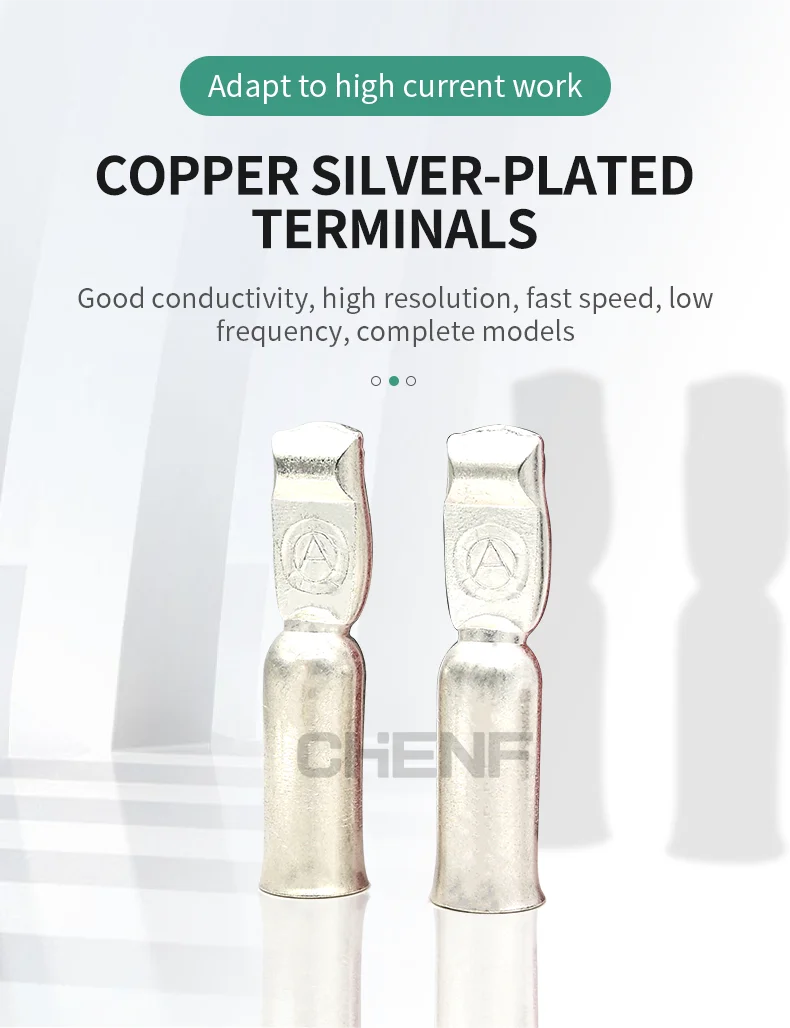

Contact Material | coppler plating siver |
