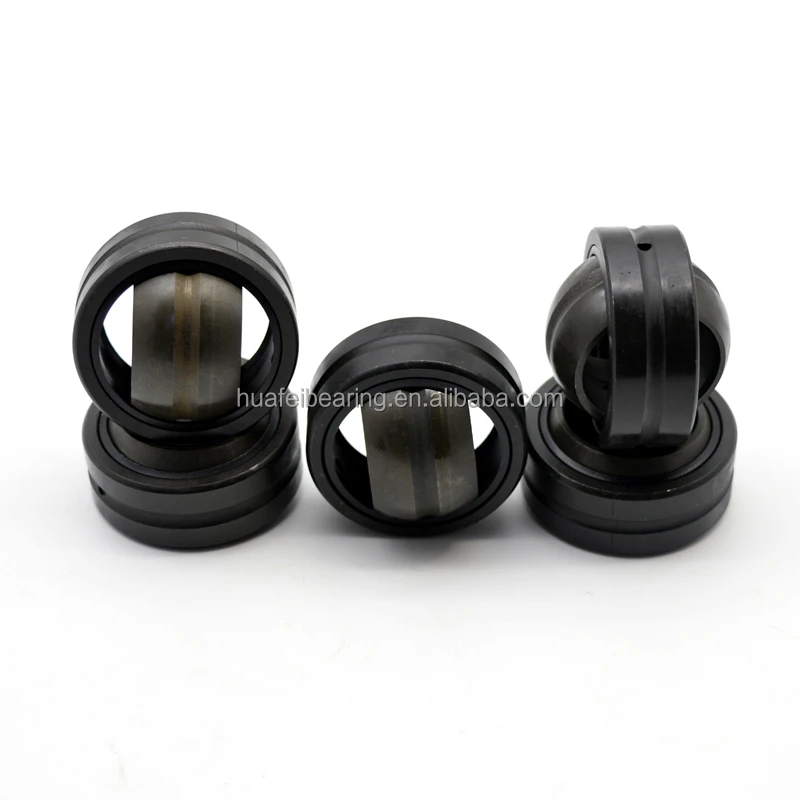

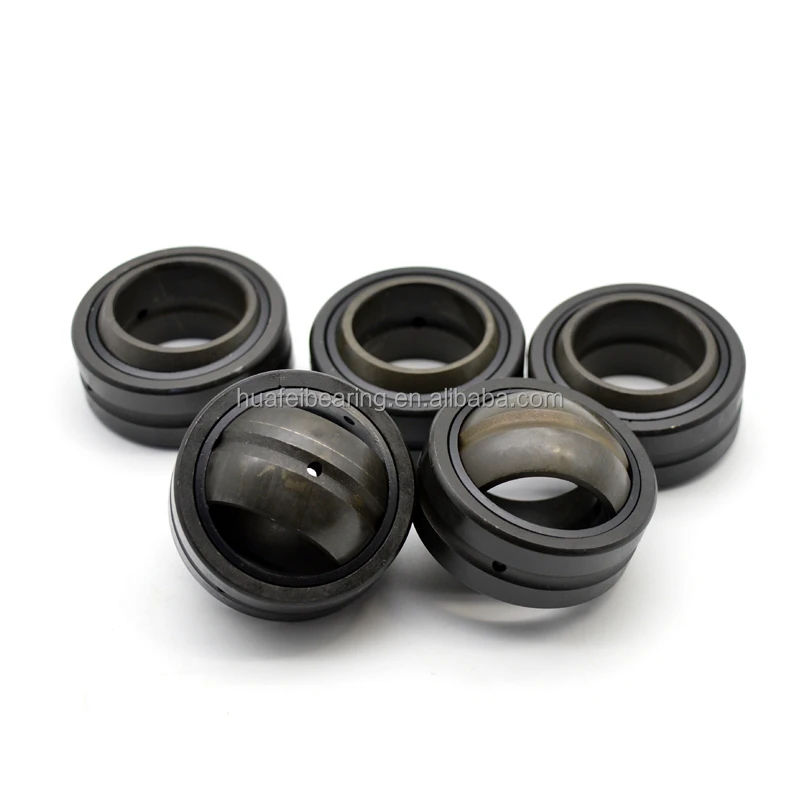

Stainless steel spherical plain bearing ge SGE25ES Service Rod End Bearing GE25E Spherical Plain Bearing
Products Description
Brief introduction:
Joint bearing is a kind of Spherical Plain Rod End Bearings, its sliding contact surface is an inner sphere and an outer sphere,which can rotate and swing at any Angle when moving. It is made of surface phosphating, blasting, inserts, spraying and other special processing methods. Joint bearings have the characteristics of large load capacity, impact resistance, corrosion resistance, wear resistance, self-aligning, good lubrication and so on.
Features:
Joint bearing can bear large loads. Depending on its type and structure, it can bear radial load, axial load or a combination of radial and axial loads. Because the outer sphere of the inner ring is inlaid with composite material, the bearing can produce self-lubrication in operation. Generally used for low speed swing movement, and low speed rotation, can also be in a certain Angle range for inclined movement, when the supporting shaft and shaft shell hole is not concentricity is large, it can still work normally. Self-lubricating joint bearings are used in water conservancy, professional machinery and other industries
application:
Joint bearing are widely used in engineering hydraulic cylinders, forging machine tools, construction machinery, automation equipment, automotive shock absorbers, water conservancy machinery and other industries. Joint bearing are Joint bearing, the basic type is composed of an inner and outer ring with a spherical sliding spherical contact surface. Depending on its structure and type, it can bear radial load, axial load, or the combined load of radial and axial action simultaneously
Joint bearing is a kind of Spherical Plain Rod End Bearings, its sliding contact surface is an inner sphere and an outer sphere,which can rotate and swing at any Angle when moving. It is made of surface phosphating, blasting, inserts, spraying and other special processing methods. Joint bearings have the characteristics of large load capacity, impact resistance, corrosion resistance, wear resistance, self-aligning, good lubrication and so on.
Features:
Joint bearing can bear large loads. Depending on its type and structure, it can bear radial load, axial load or a combination of radial and axial loads. Because the outer sphere of the inner ring is inlaid with composite material, the bearing can produce self-lubrication in operation. Generally used for low speed swing movement, and low speed rotation, can also be in a certain Angle range for inclined movement, when the supporting shaft and shaft shell hole is not concentricity is large, it can still work normally. Self-lubricating joint bearings are used in water conservancy, professional machinery and other industries
application:
Joint bearing are widely used in engineering hydraulic cylinders, forging machine tools, construction machinery, automation equipment, automotive shock absorbers, water conservancy machinery and other industries. Joint bearing are Joint bearing, the basic type is composed of an inner and outer ring with a spherical sliding spherical contact surface. Depending on its structure and type, it can bear radial load, axial load, or the combined load of radial and axial action simultaneously

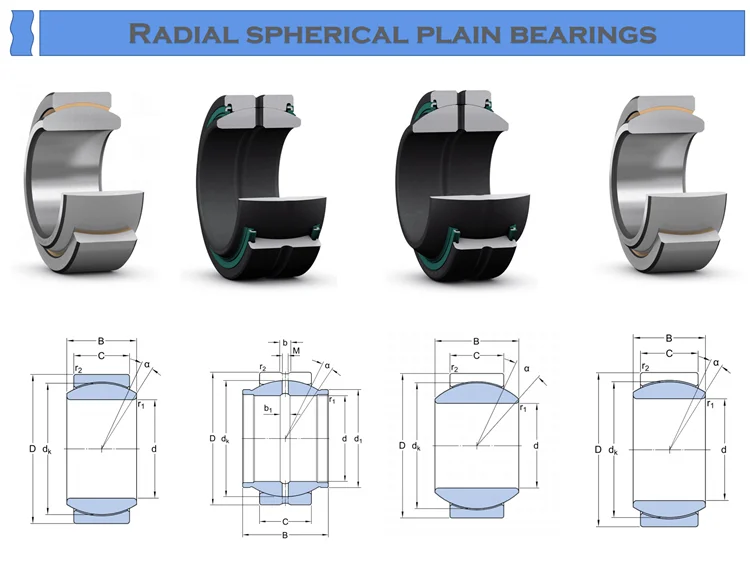

joint bearing
number | d | D | B | C | dk | ||
GE4E | 4 | 12 | 5 | 3 | 8 | ||
GE5E | 5 | 14 | 6 | 4 | 10 | ||
GE6E | 6 | 14 | 6 | 4 | 10 | ||
GE8E | 8 | 16 | 8 | 5 | 13 | ||
GE10E | 10 | 19 | 9 | 6 | 16 | ||
GE12E | 12 | 22 | 10 | 7 | 18 | ||
GE15ES | GE15ES-2RS | 15 | 26 | 12 | 9 | 22 | |
GE17ES | GE17ES-2RS | 17 | 30 | 14 | 10 | 25 | |
GE20ES | GE20ES-2RS | 20 | 35 | 16 | 12 | 29 | |
GE25ES | GE25ES-2RS | 25 | 42 | 20 | 16 | 35.5 | |
GE30ES | GE30ES-2RS | 30 | 47 | 22 | 18 | 40.7 | |
GE35ES | GE35ES-2RS | 35 | 55 | 25 | 20 | 47 | |
GE40ES | GE40ES-2RS | 40 | 62 | 28 | 22 | 53 | |
GE45ES | GE45ES-2RS | 45 | 68 | 32 | 25 | 60 | |
GE50ES | GE50ES-2RS | 50 | 75 | 35 | 28 | 66 | |
GE55ES | GE55ES-2RS | 55 | 85 | 40 | 32 | 74 | |
GE60ES | GE60ES-2RS | 60 | 90 | 44 | 36 | 80 | |
GE70ES | GE70ES-2RS | 70 | 105 | 49 | 40 | 92 | |
GE80ES | GE80ES-2RS | 80 | 120 | 55 | 45 | 105 | |
GE90ES | GE90ES-2RS | 90 | 130 | 60 | 50 | 115 | |
GE100ES | GE100ES-2RS | 100 | 150 | 70 | 55 | 130 | |
Ps ：This is part of model number joint bearing we have ,if you are fail to find the one you need ,please contact me directly

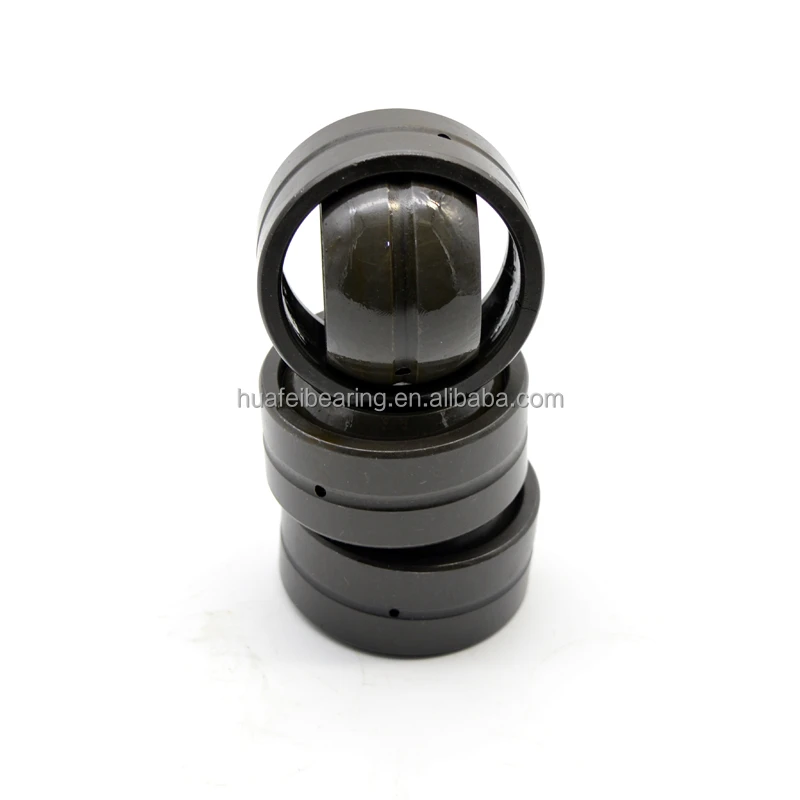

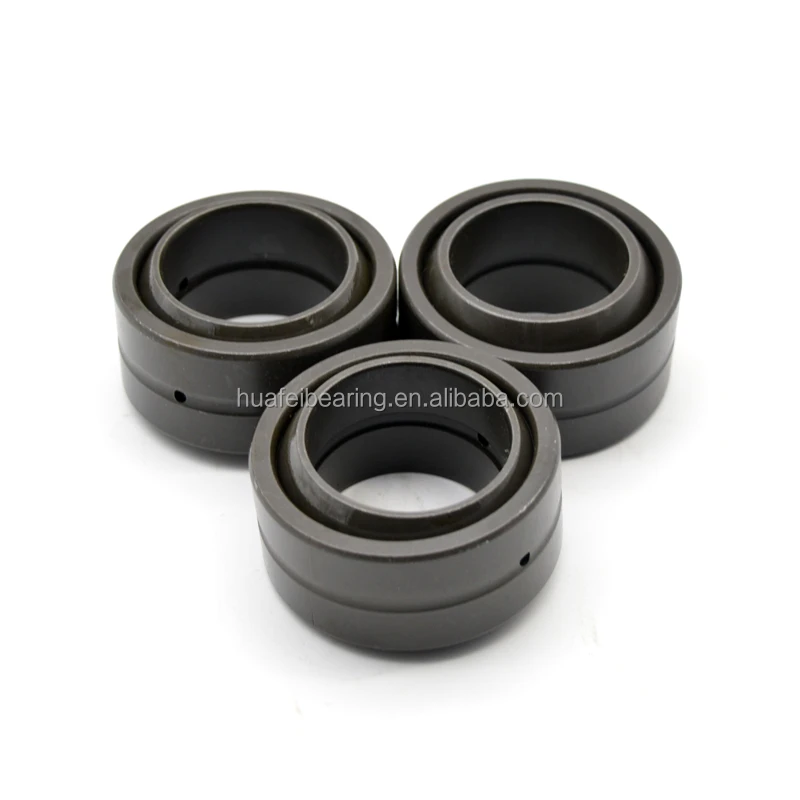

Product overall
Specification
Product Name | Stainless steel spherical plain bearing ge SGE25ES Service Rod End Bearing GE25E Spherical Plain Bearing |
Place of origin | Shandong,China |
Feature | Low noise, less vibration, high precision and long life |
Material | Chrome Steel GCR15 |
More Products
Packing & Delivery
Payment terms
Payment terms
A.T/TB.D/P
C.D/A
D.Paypal
E.Western union
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
Payment terms
A.T/TB.D/P
C.D/A
D.Paypal
E.Western union
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.

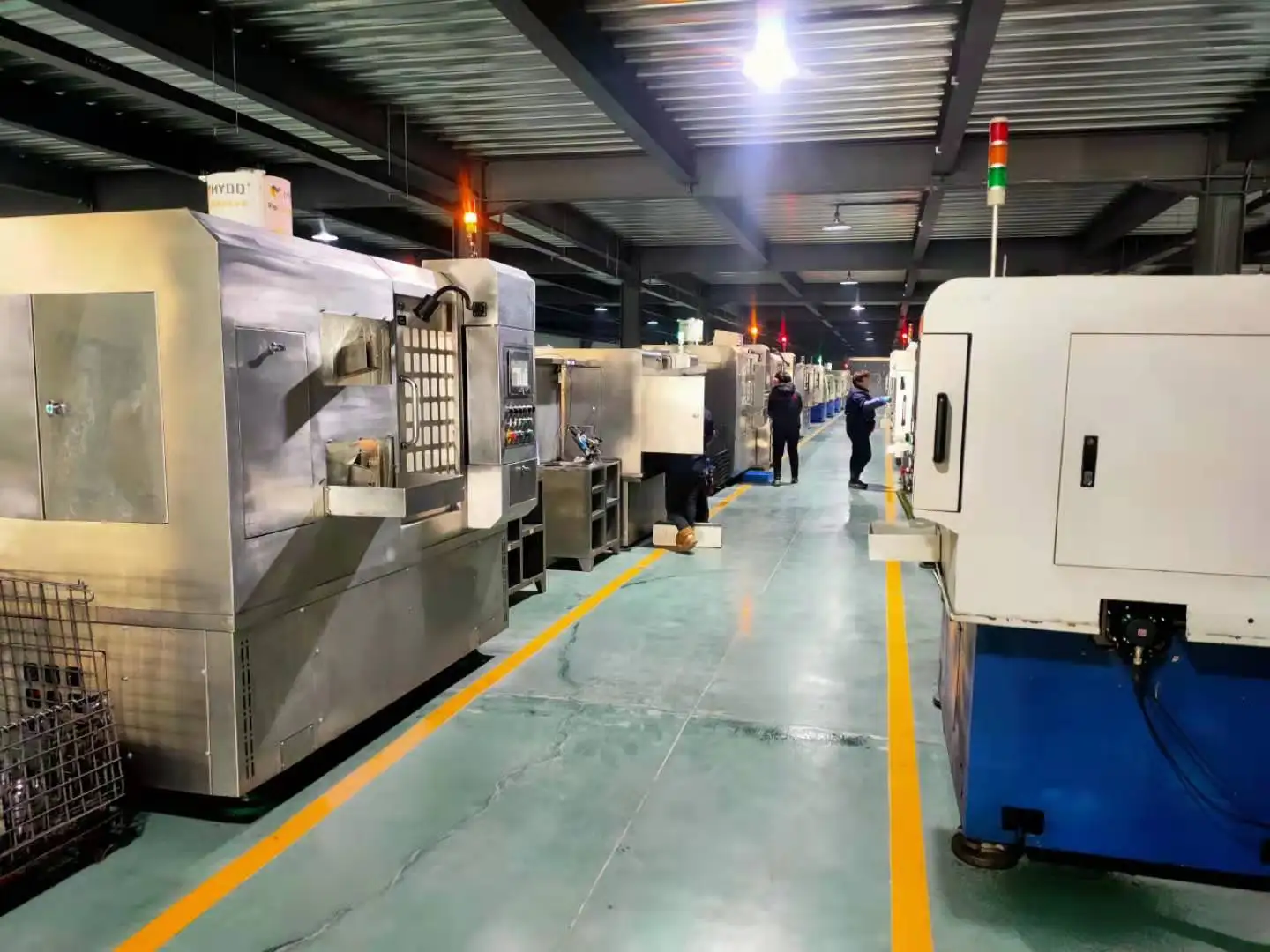

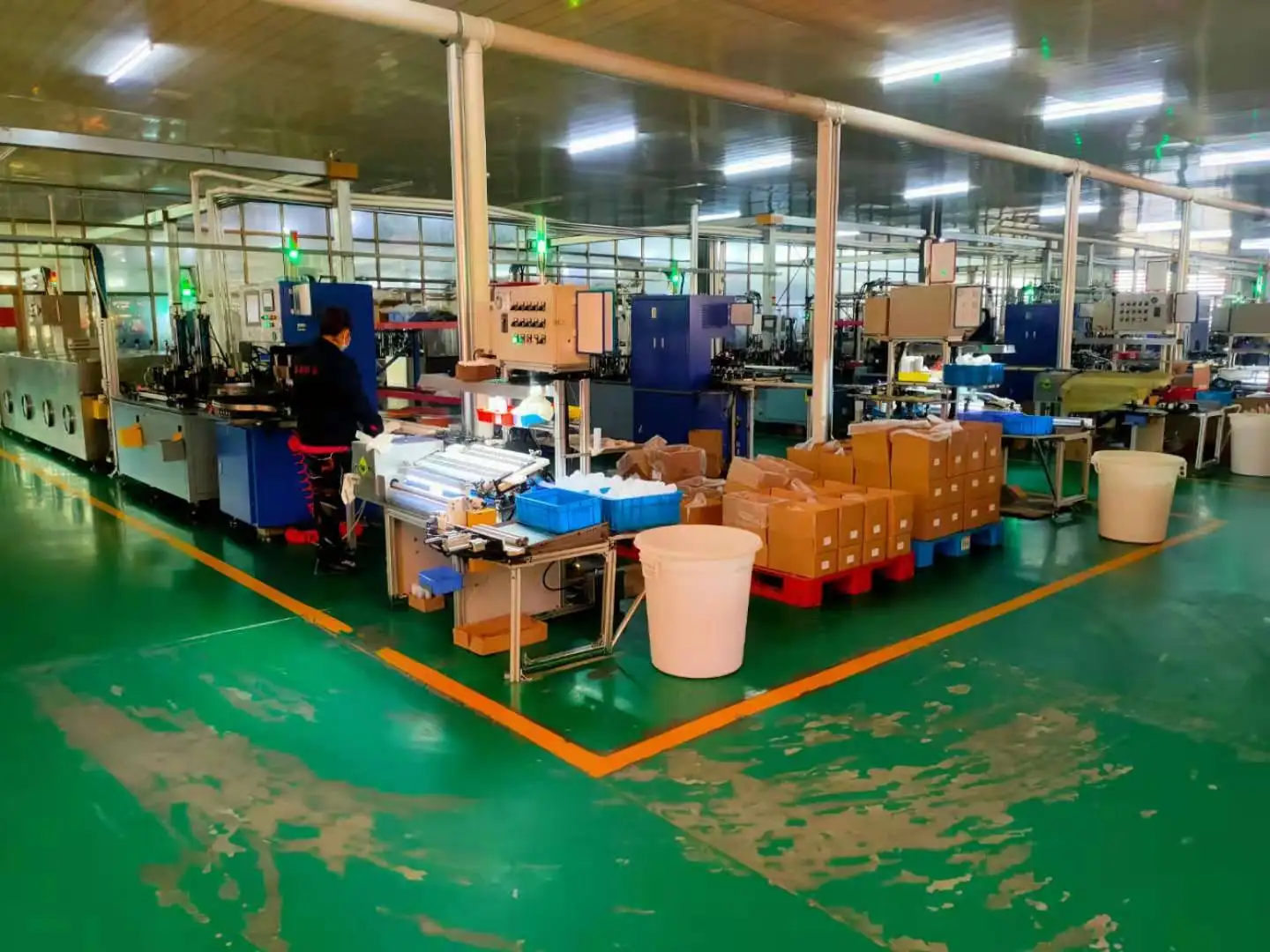

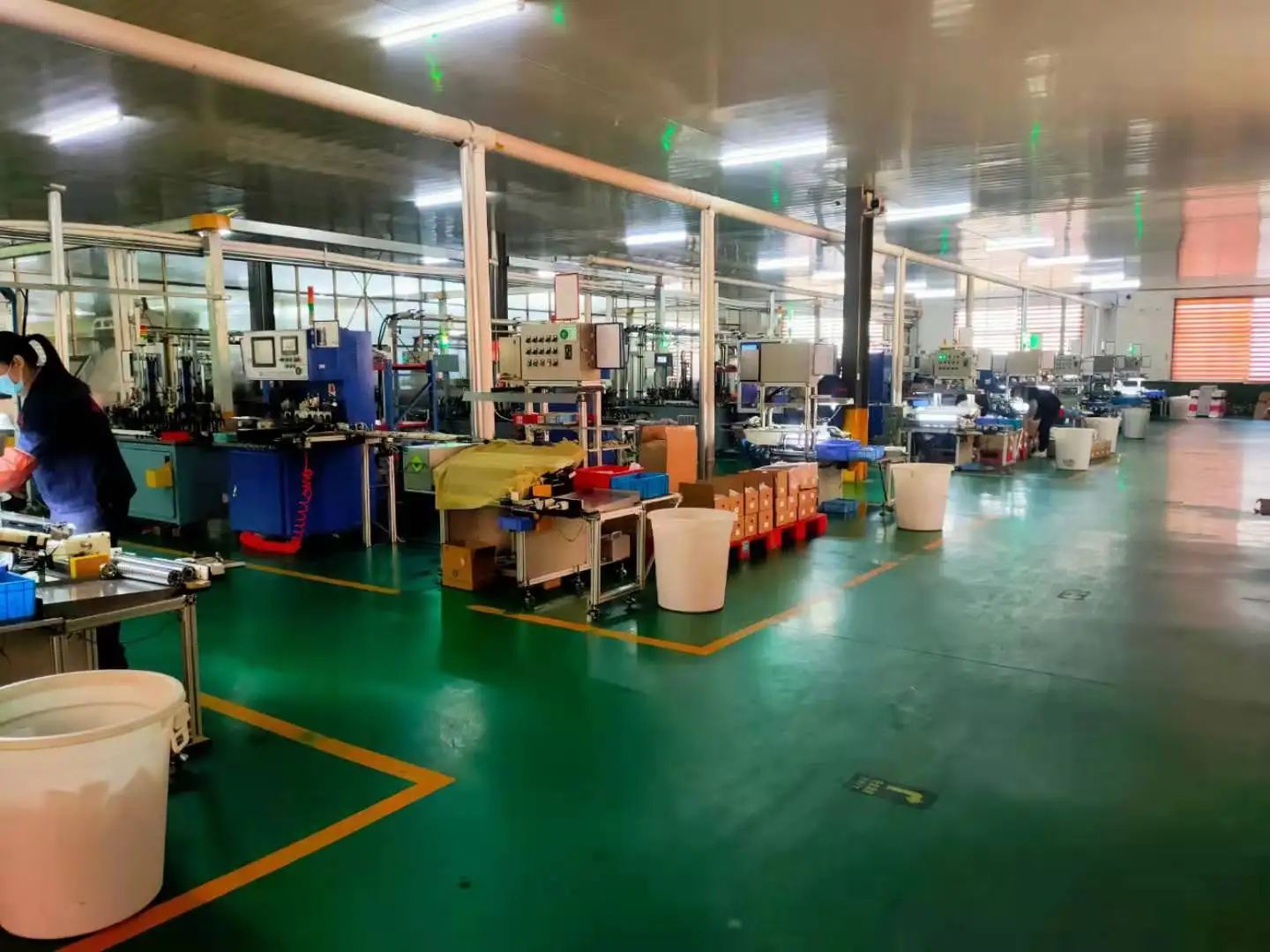

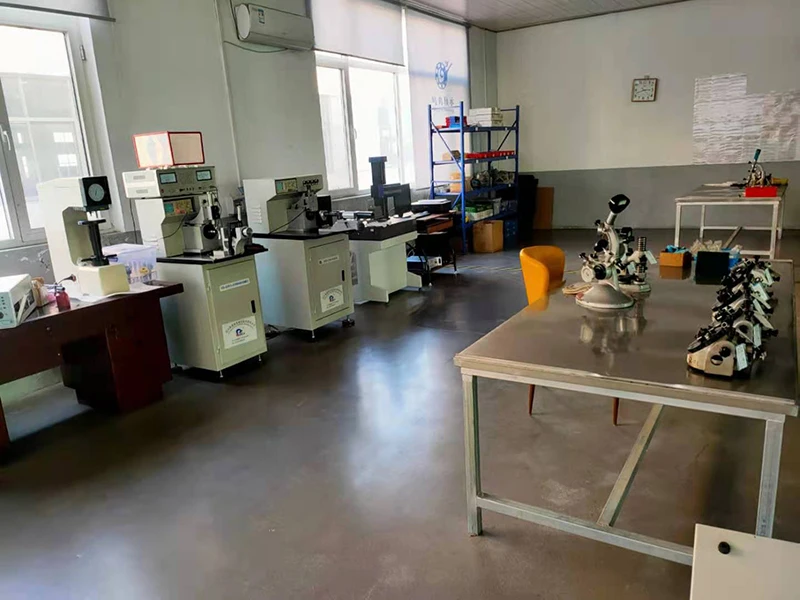

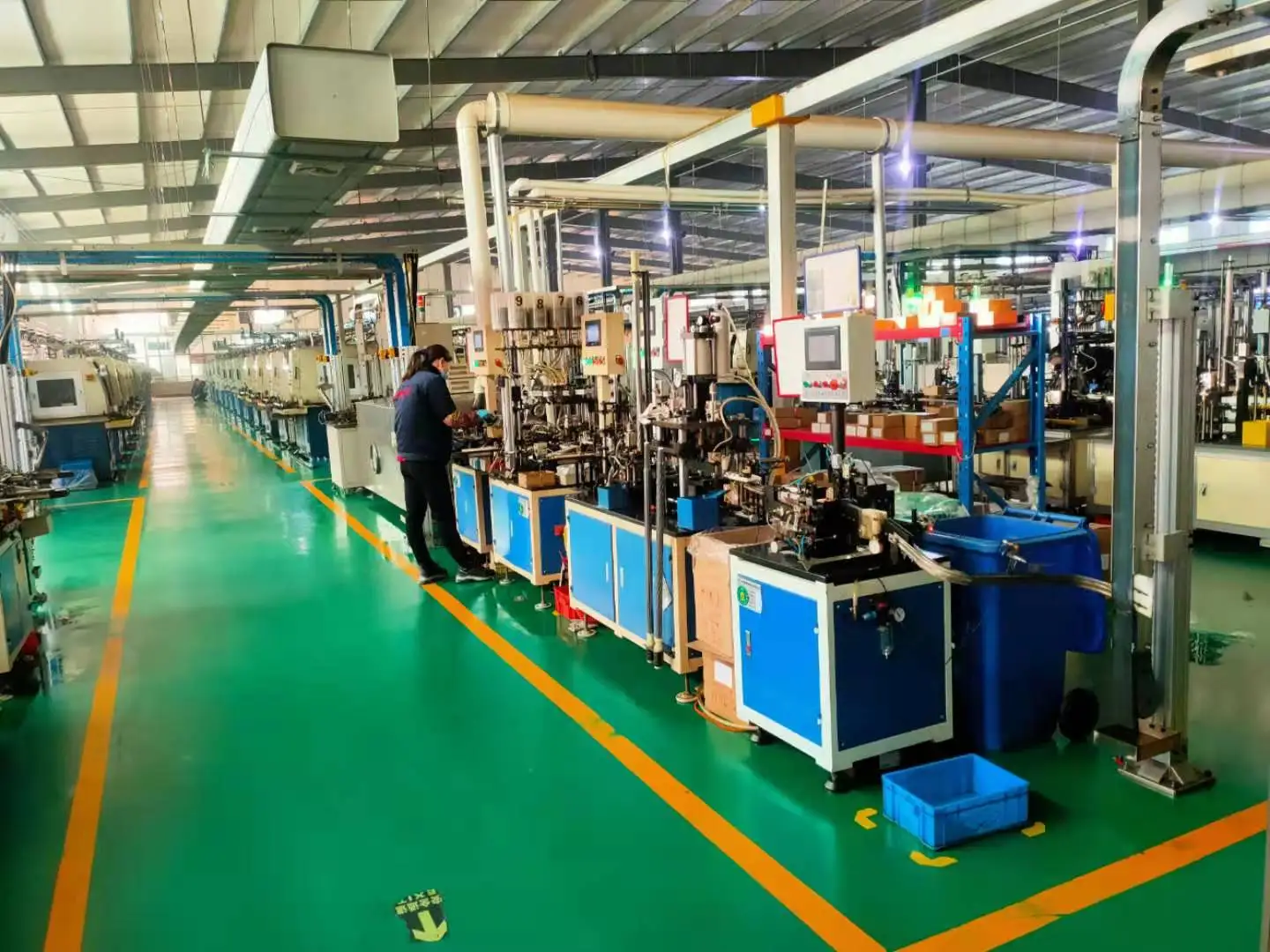

Company Profile
More about the company：
Shandonghuafeibearing co.,LTD. With industry and trade as one, specialized in bearing design,research and development, production, sales. Own import and export righet, and passed GB/ T19001-2016/ISO9001:2015 qualit management system
certification.Specializing in the production
of automotive hub bearings tapered roller bearings, deep groove ball bearings,spherical bearings and various non-standard bearings,can be customized according to customer drawings, samples,OEM processing production services.OEM processing production services. The company has advanced production equipment, with strong technical force,high-quality staff team, optimize product
design, improve processing technology, strictly in accordance with international standards to control the quality of products,so that our products have reached the domestic advanced level, at the same time, our brand "SHJZ" has been designated as adesignated supplier by many foreign customers. The company adheres to the business philosophy of "customer-oriented, honest managnment continuous
improvement", and adopts the enterprise standard higher than the national standard for production.
design, improve processing technology, strictly in accordance with international standards to control the quality of products,so that our products have reached the domestic advanced level, at the same time, our brand "SHJZ" has been designated as adesignated supplier by many foreign customers. The company adheres to the business philosophy of "customer-oriented, honest managnment continuous
improvement", and adopts the enterprise standard higher than the national standard for production.
FAQ
Q:How long is your delivery time?
A:Generally need 5-10 days if the goods are in stock. or it will need 15-20 days if the goods are without stock, it will be based on the order quantity.
Q:Do you provide samples ? is it free or extra ?
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the samples with free charge but do not pay the cost of freight
Q:Could you accept OEM and customize?
Q:Could you accept OEM and customize?
A:Yes,we can customize for you according to sample or drawing. Additionally,we have our own's band SHJZ
Q:Is you company factory or Trade Company？
Q:Is you company factory or Trade Company？
A:We have our own factory ,our type is factory +trade
Q:What is your terms of payment ?
Q:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question,
Looking forward to becoming your best partner
