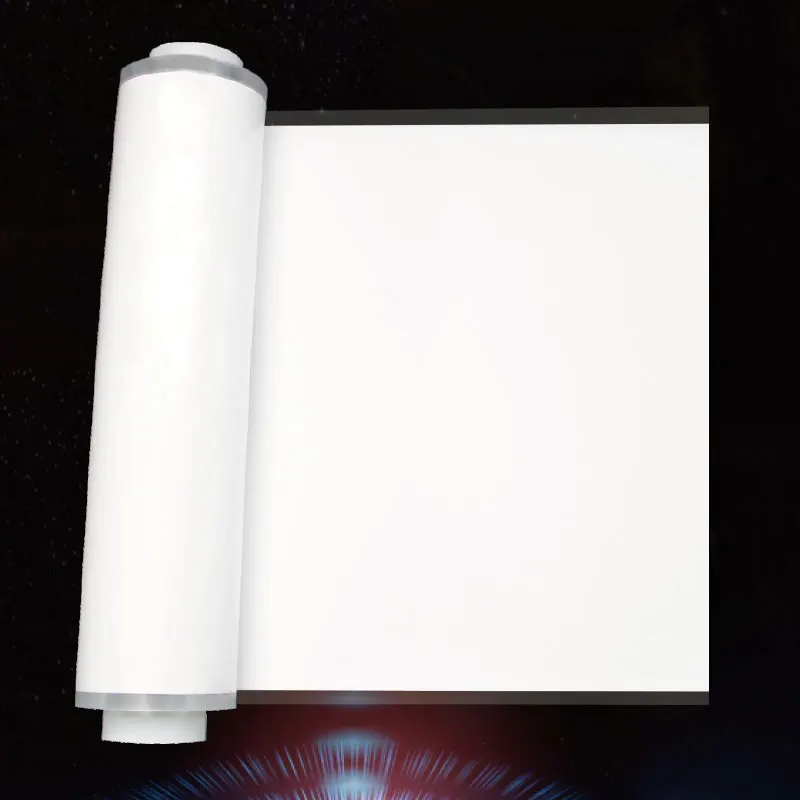

Aerogel Insulation Film
Thermal Management Materials
Aerogel insulation film is a kind of heat insulation material mostly used for heat preservation and
heat insulation. Its composition is mainly silica aerogel, the color is considered white, and the thickness is generally 0.05 to 0.3 mm.
heat insulation. Its composition is mainly silica aerogel, the color is considered white, and the thickness is generally 0.05 to 0.3 mm.
Product Description
Features:
1. Ultra-low thermal conductivity, good heat insulation effect
2. The thinnest thickness can reach 0.05 mm
3. Ultra-lightweight material with a density as low as 0.003 g/cm3
4. Has good insulation properties
5. Has good flame retardant properties
6. Meet RoHS standards
1. Ultra-low thermal conductivity, good heat insulation effect
2. The thinnest thickness can reach 0.05 mm
3. Ultra-lightweight material with a density as low as 0.003 g/cm3
4. Has good insulation properties
5. Has good flame retardant properties
6. Meet RoHS standards

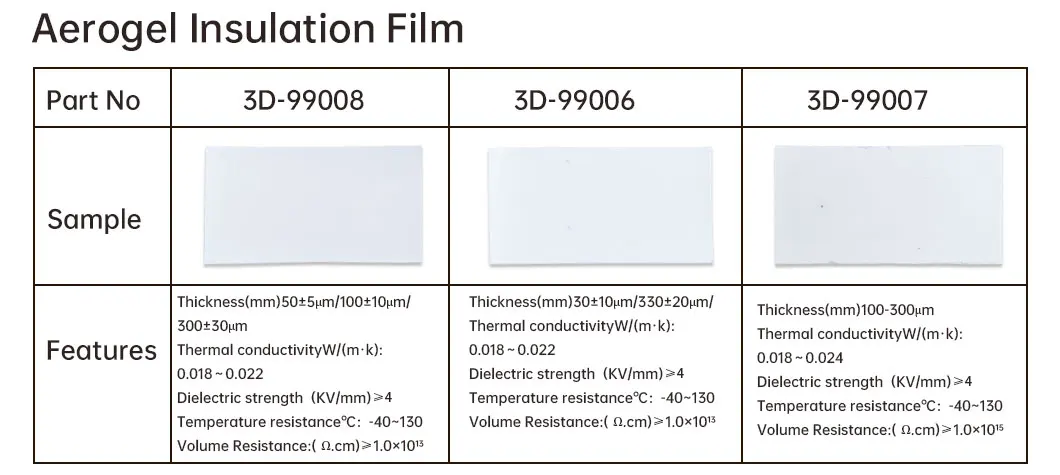

Specification:
Item | Unit | Specification | Test standard |
Color | / | white | Visual |
Thickness | mm | 0.05~0.3 | ASTM D374 |
Density | g/cm3 | 0.003 | ASTM D792 |
Thermal conductivity | W/(m.K) | 0.018-0.022 | ASTM D5470 |
Temperature Resistance | ℃ | -40~130 | / |
Long-term use temperature | ℃ | 120 | / |
Dielectric strength | KV/mm | ≥4 | ASTM D149 |
Volume Resistance | Ω.cm | ≥1.0×10^13 | GB/T1410 |

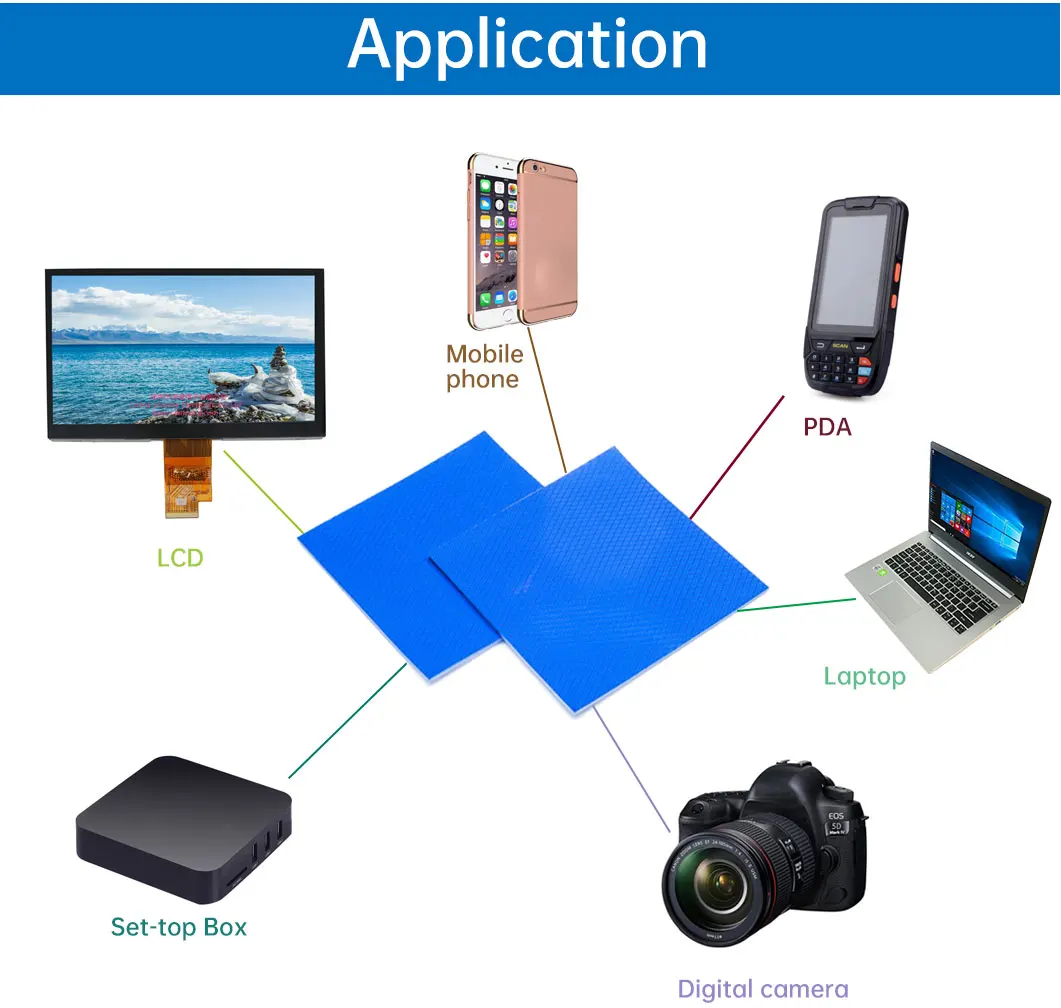

Application
Mobile Phone, PDA, Note-PC, Digital camera,LCD, PDP, Set-top Box.

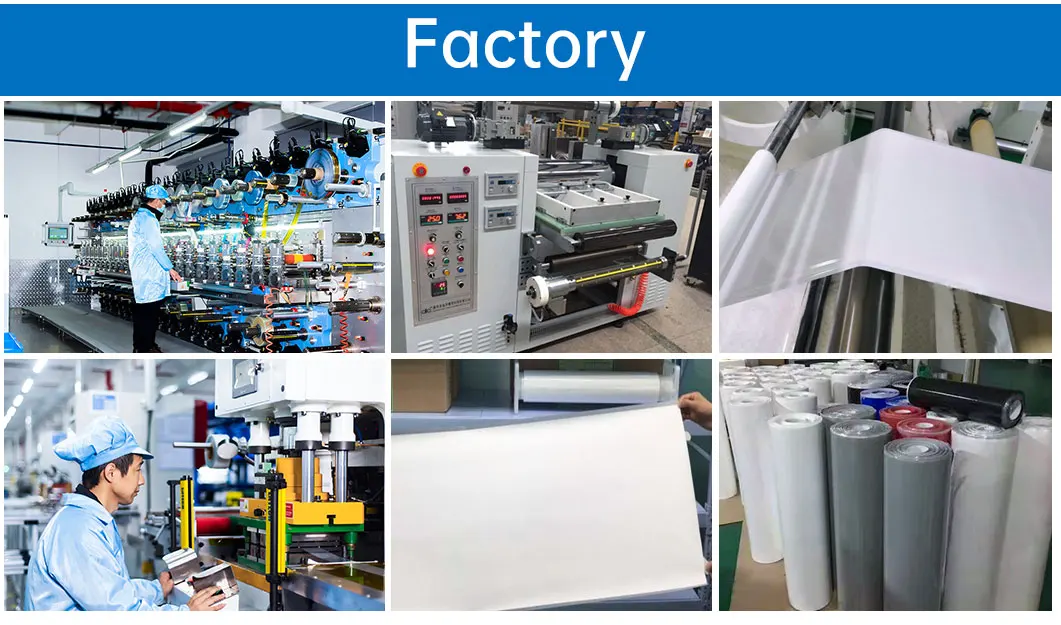

Factory
Company Profile
Suzhou konlida precision Electronic Co.,LTD,established in 2006,is a professional manufacturer eneaged in the research,development,production,sale and service of EMI,thermal management precision die cutting,precision machining products. As a high-tech company certified by ISO9001,ISO13485,AS9100D,konlida members always dedicated to provide strict quality control and thoughtful service to all of our customers in 3C electronics,medical,automotive and other industries.Our company has set up our own material R&D center,we have the ability to provide the customers from the solution to the material selection and from the implementation of the manufacturing process to the related reliability performation test.Power Supply Battery LED Computer CPU Graphics Card Heat Dissipation Insulation Thermal Conductive Silicone Gasket
Certifications
Our Team
FAQ
1. Are you a trading company or a manufacturer?
We focus on R&D and manufacturing of EMC/Die-cutting/Thermal management products with 15 years experience.Silicone Thermal Gaskets for PCB
Power Supply Battery LED Computer CPU Graphics Card Heat Dissipation Insulation Thermal Conductive Silicone Gasket
2. What are your products mainly used in ?
Use for equipment, ESD, EMI, EMC field, etc ;Mobile Phone, PDA, Note-PC, Digital camera;LCD, PDP, Set-top Box.Silicone Thermal Gaskets for PCB
Power Supply Battery LED Computer CPU Graphics Card Heat Dissipation Insulation Thermal Conductive Silicone Gasket
3. What kind of services can you support ?
To provide customized services for customers, OEM / ODM services.Silicone Thermal Gaskets for PCB
To provide customized services for customers, OEM / ODM services.Silicone Thermal Gaskets for PCB
Power Supply Battery LED Computer CPU Graphics Card Heat Dissipation Insulation Thermal Conductive Silicone Gasket
4. What's the packing of your products ?
Cartons and wooden cases.S
Power Supply Battery LED Computer CPU Graphics Card Heat Dissipation Insulation Thermal Conductive Silicone Gasket
