YOXO1007 решение IoT промышленный UART серийный для чипового сервера

YOXO1007 is a chip launched by Shanghai ZLAN for Internet of Things applications. YOXO is Shanghai ZLAN chip brand. YOXO1007 can convert serial port to Ethernet, UART to TCP/UDP,

MQTT gateway, Modbus gateway, JSON to Modbus independent collection, docking cloud platform and other functions

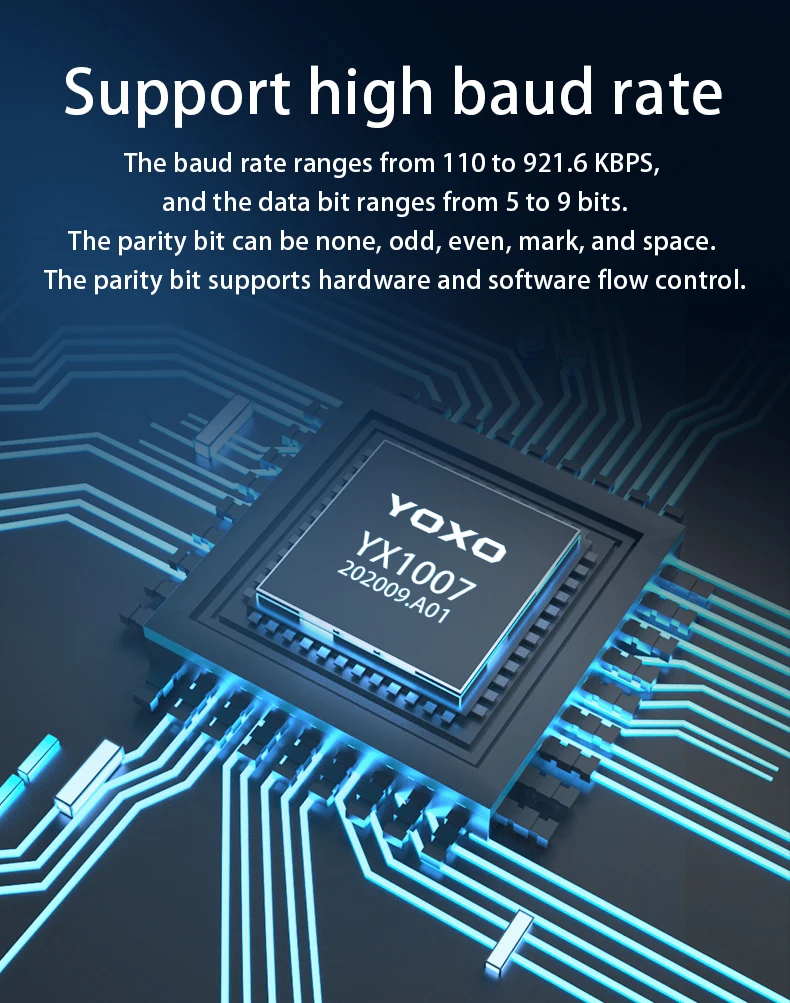

The network communication mode is Ethernet. The serial port rate ranges from 110 KBPS to 921.6 KBPS. You can also do simple ones

Encryption, edge computing and other functions. With high integration, high cost performance, simple development, strong stability, low power

Consumption and other characteristics.

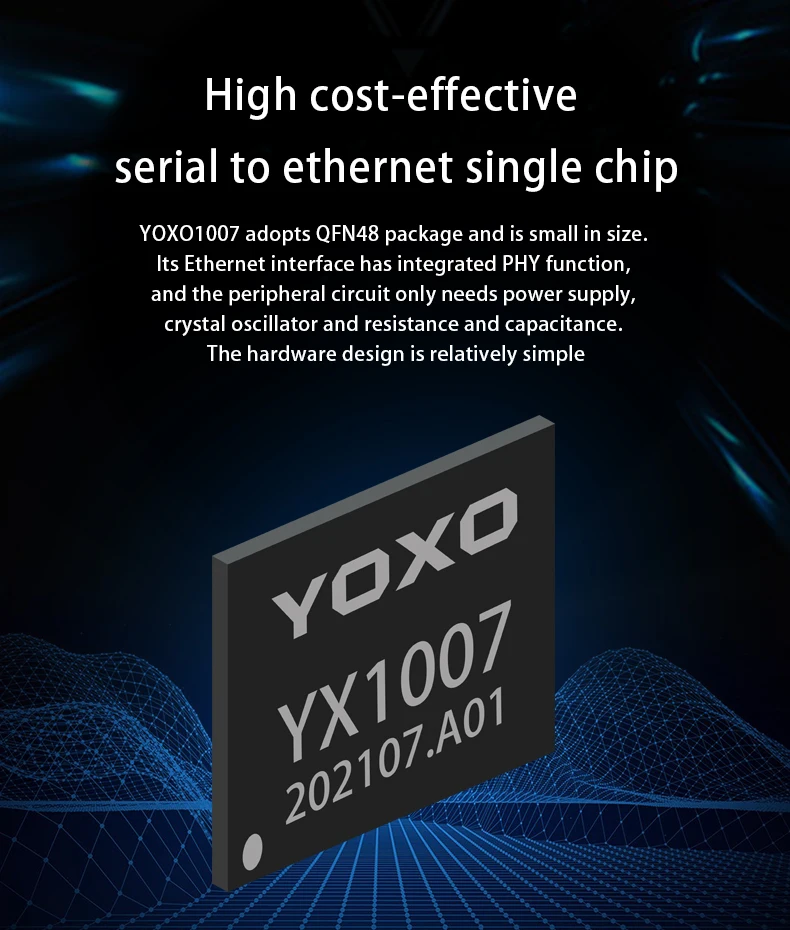

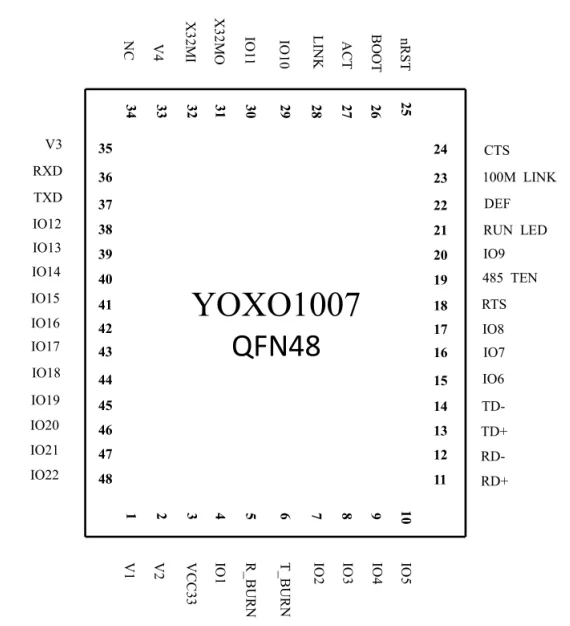

YOXO1007 adopts QFN48 package and is small in size. PHY power has been integrated inside its Ethernet interface, and the peripheral circuit only needs power supply, crystal oscillator and resistance and capacitance. The hardware design is relatively simple. Operating current is 25mA

Around 3.3V single power supply. The basic function of YOXO1007 series is to implement UART to TCP/IP

Protocol conversion, that is, the data received by UART is transferred to the cloud/computer, and the number delivered by the cloud/computer

Forwarded to UART. To achieve these functions, there is no need for users to develop programs, YOXO1007 internal programs are

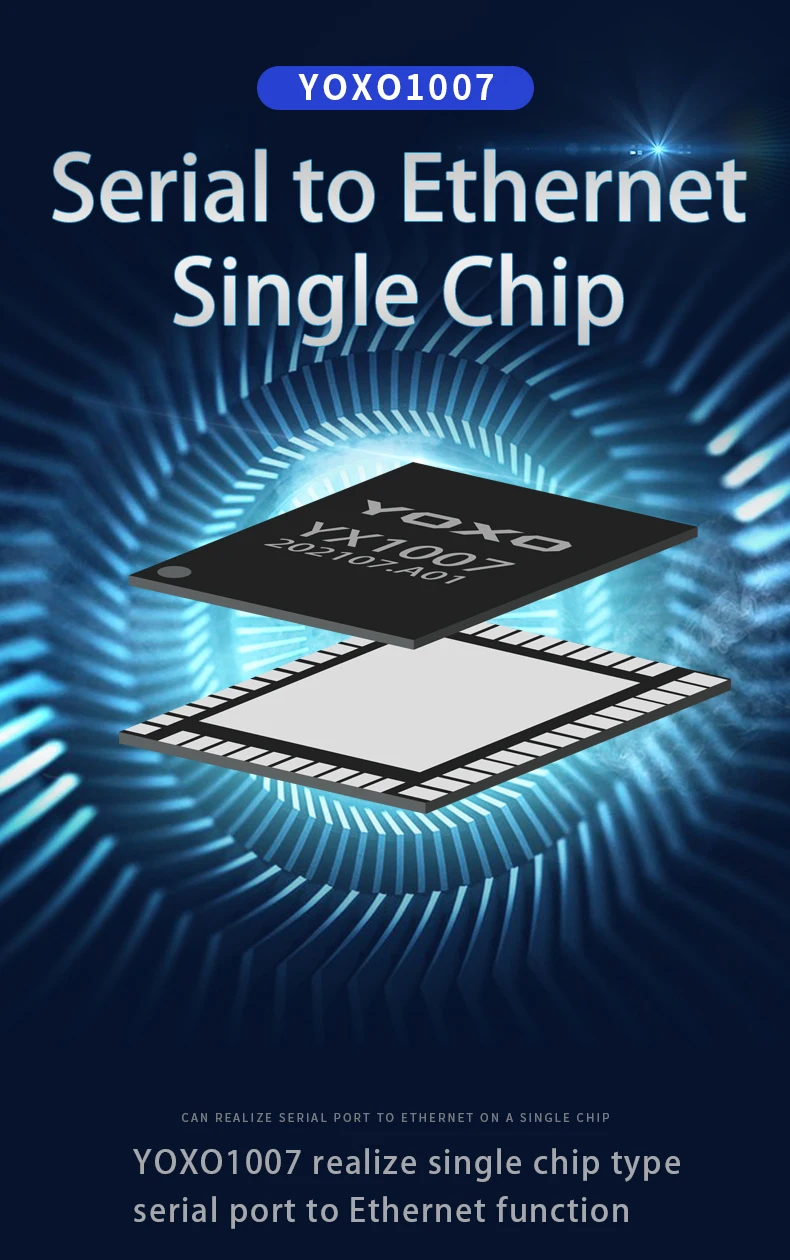

It has been solidified and can be used by user configuration. Think of it as a single-chip serial to network port, Chip, Iot gateway chip
