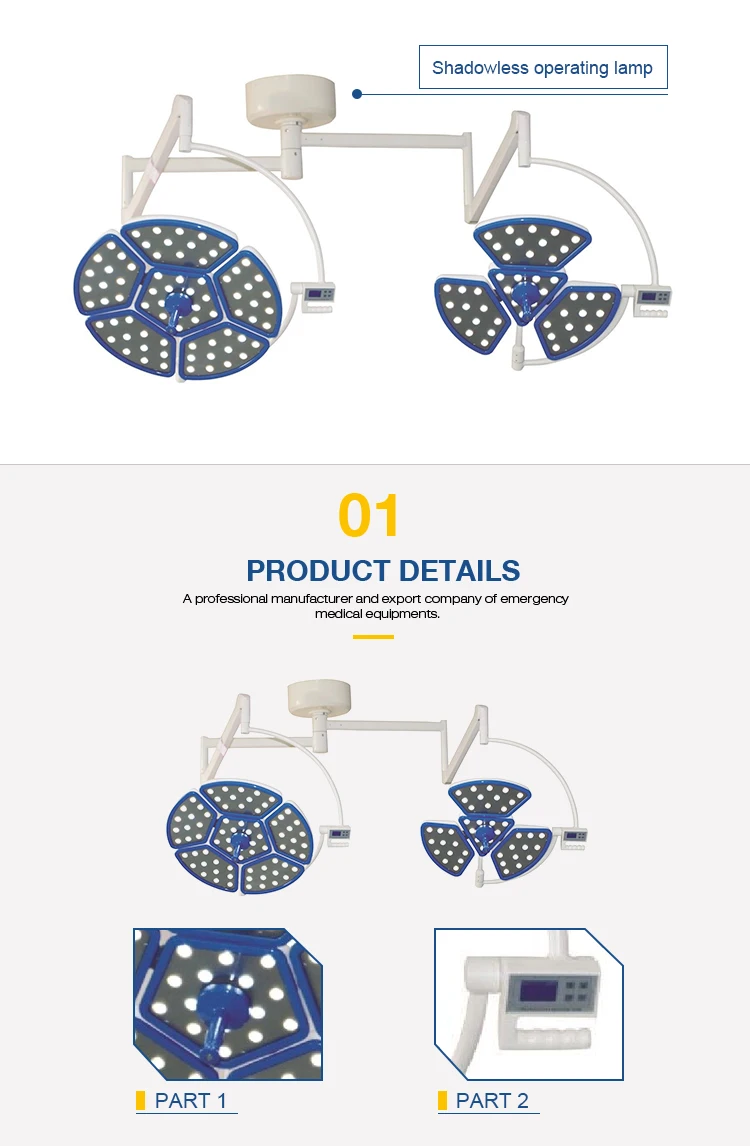

ANE-LED хирургические бестеневые лампы с ручной пульт дистанционного управления двойного

Описание и отзывы

Характеристики



Technical Parameters	LED5	LED3
Illuminancy(adjustable)	40,000-180,000Lux	30,000-160,000Lux
Bulb Quantity	75	45
Bulb Type	German OSRAM LED bulb	German OSRAM LED bulb
Bulb Life (h)	≥80,000h	≥80,000h
Color Temp (Kelvin)	3700K ~5000K	3700K ~5000K
Color rendering index(Ra)	85~98	85~98
Illumination Depth	50-180cm	50-180cm
Spot  Diameter(mm)	160-280mm	160-280mm
Light Adjust Range	1%-100%	1%-100%
Consumed Power	80	50
Temp Rise (doctor head)	<1℃	<1℃
Input Power	AC100-240V  50/60HZ	AC100-240V  50/60HZ
Best Install Height(m)	2.7-3.1m	2.7-3.1m

Germany imported original square balance arm

Germany imported lamp beads

Imported French lens

mould Die-casting  Eight edge type Revolving arm

Each LED can be replaced individually, which guarantees maximum economy



Product features:

1.Ideal cold light effects.

Using the new LED cold light source, energy saving and environmental protection and long service life up to 80,000hours or more. Temperature increase over surgeon’s head<1℃.

LED do not engender infrared ray and ultraviolet radiation, it doesn’t have the temperature rise and tissue damage caused by halogen shadowless light, can accelerate the wound healing after surgery, and has no Radiation pollution.

LED color temperature constant, soft, very close to the natural sun light.



2.Excellent shadowless effect

Lamp with the most scientific radian,Multi point light source design, so that more fullness of the light spot,When the lamps are partially occluded, also can achieve perfect shadowless effect.

Lamp panel radius of gyration: ≥182cm, the lamp can be pulled to vertical floor, convenient to any angle illumination.



3.Excellent deep lighting



4.Advanced control system



The use of liquid crystal display button control, to meet the needs of the medical staff of different patients with the brightness of the operation.

It offers illuminance memory function.

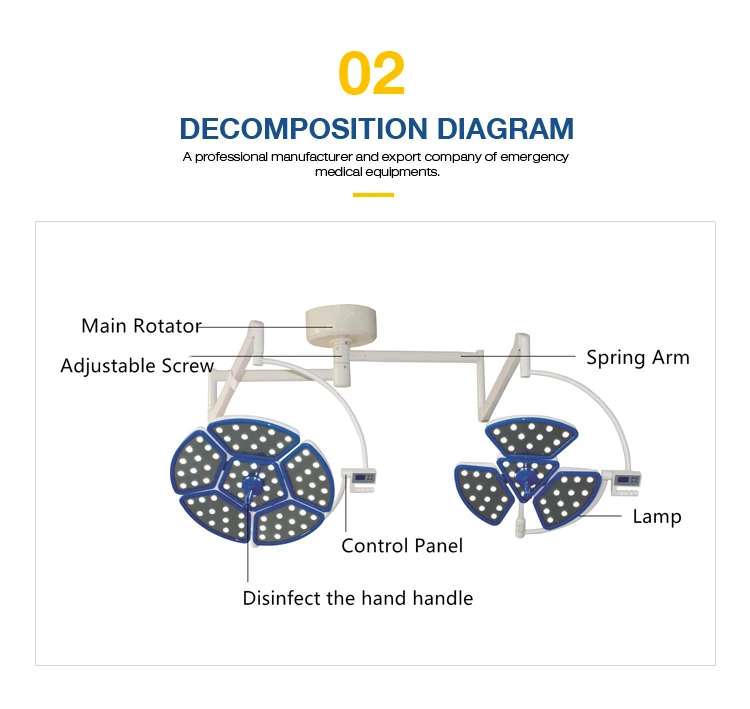

5.Universal suspension system

Rotating arm, a new type of alloy material is made of eight edge type.

Balanced system using imported arm module, more than 5 group universal joints, every cantilever must has more than 3 joints which can be rotated in 360°, The structure is light, easy to manipulate, accurate positioning, can provide the maximum range of regulation.

The equipped with fatigue correcting unit and fix position hand handle device, easy to fix position after long time use.



6.Modern laminar lamp

The thickest part of lamp-chimney is not more than 10cm.

The lamp-chimney is made of ABS, The handle on the central of lamp can be detachable, can take high temperature (≤ 134°C) sterilization treatment, easily adjust, flexible fixed.
