Product Description

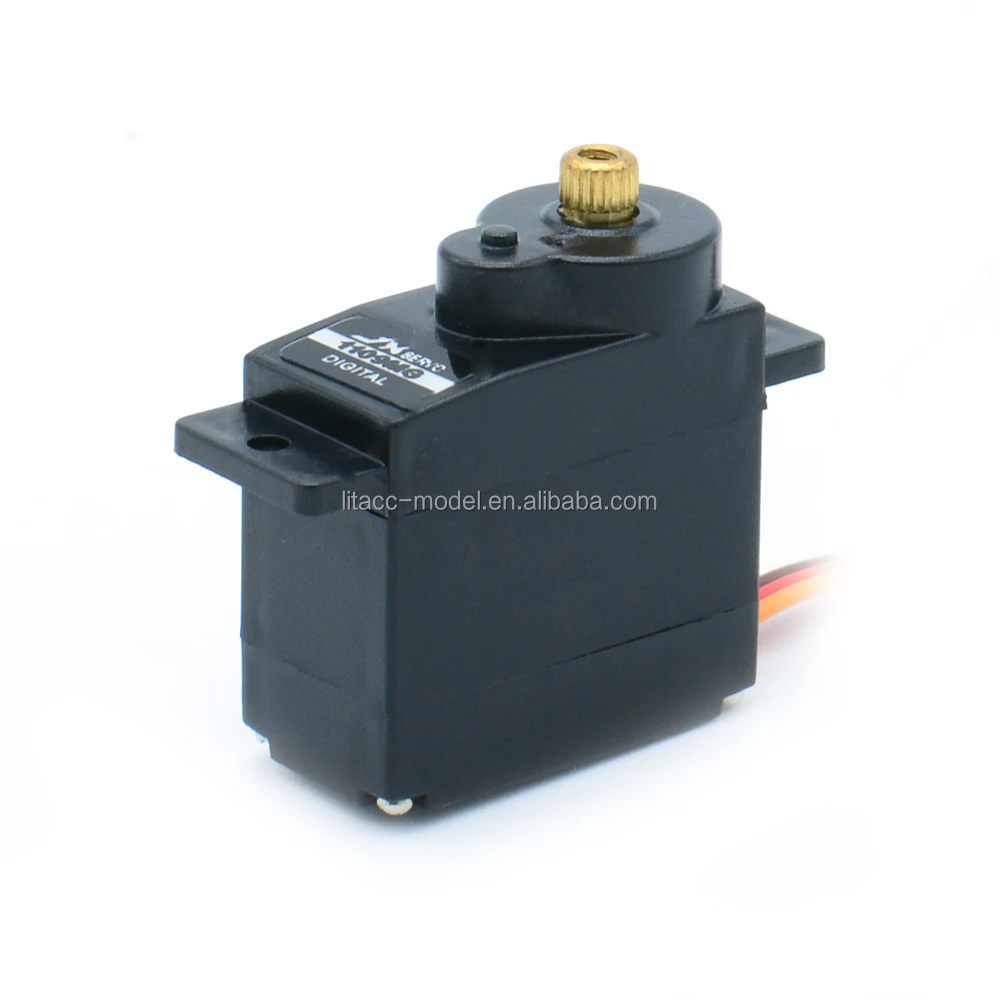

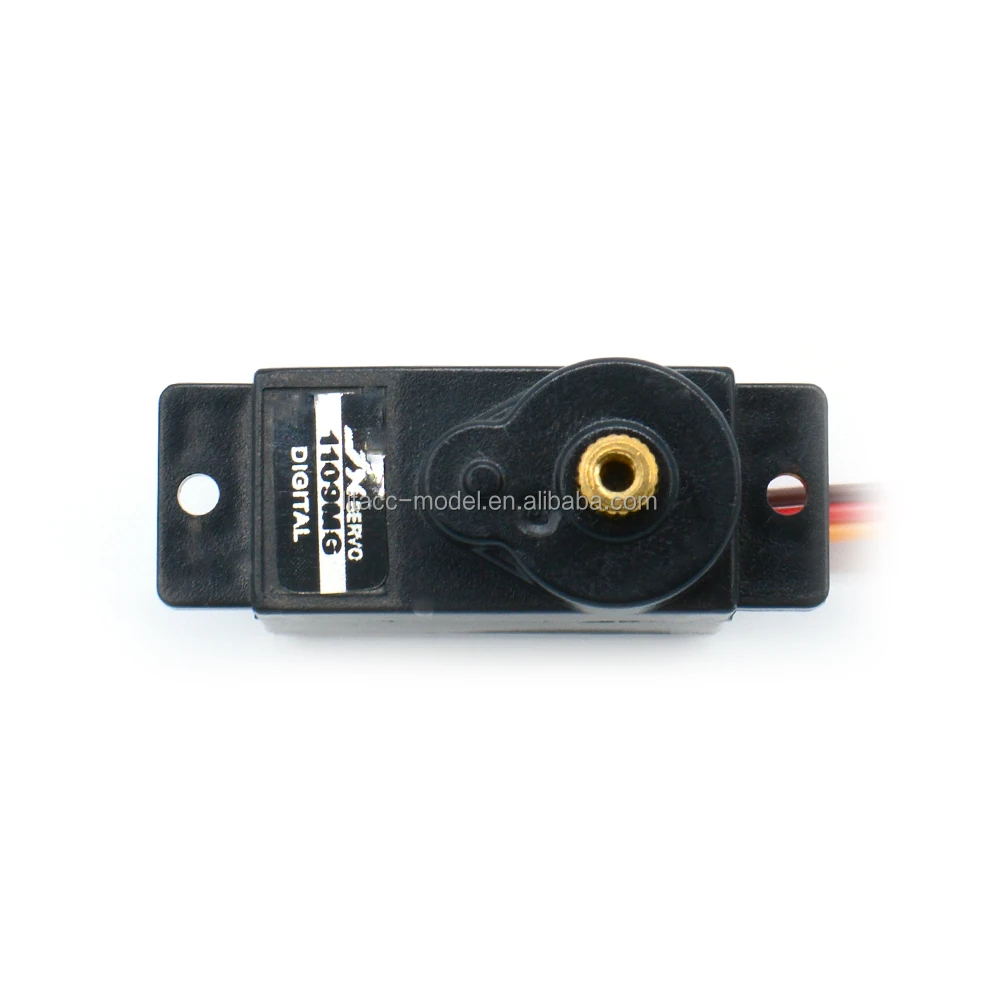

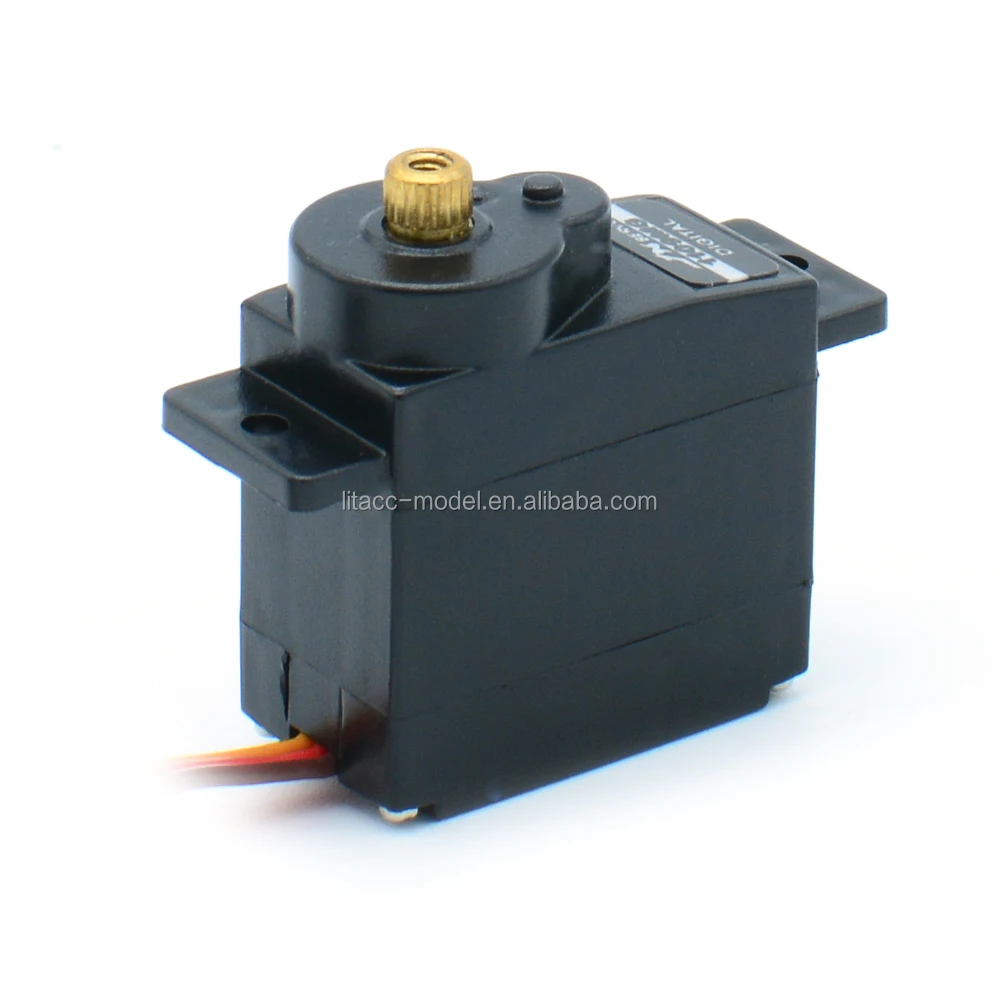

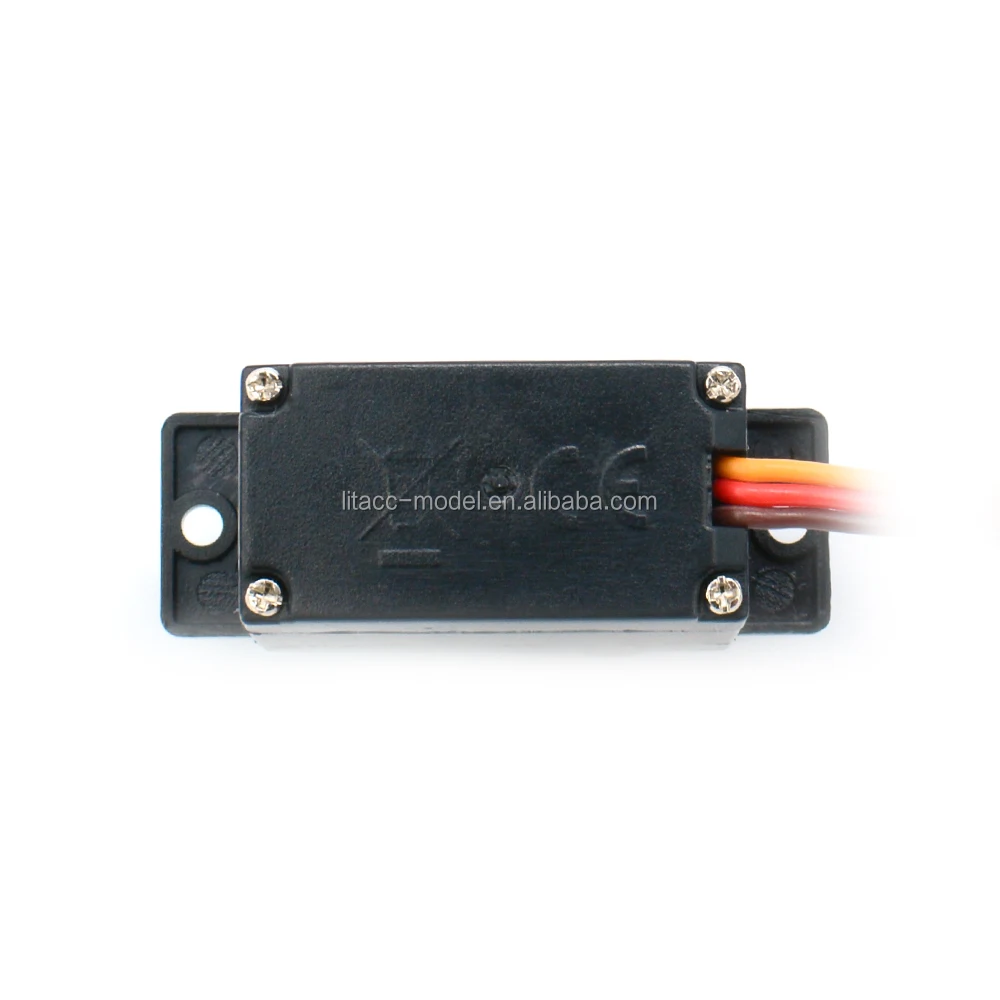

This 9g servo with 2.5kg torque is suitable for many rc models such as 1/18 RC car, airplane, fixed-wing or robots. It reacts very quickly and support 4.8~6.0V input voltage.
Light weight and high torque: small size and 9g light weight, but the torque could be 2.5kg during 6V input voltage.
High Speed: 0.12sec/60° during 4.8V voltage and 0.10 sec/60° during 6V input voltage,
Suitable for many rc models: such as rc robot, 1/18 1/24 RC car, airplane, fixed-wing and so on.
High quality and durable, equipped with metal gear, accuracy and not easy to be planished.

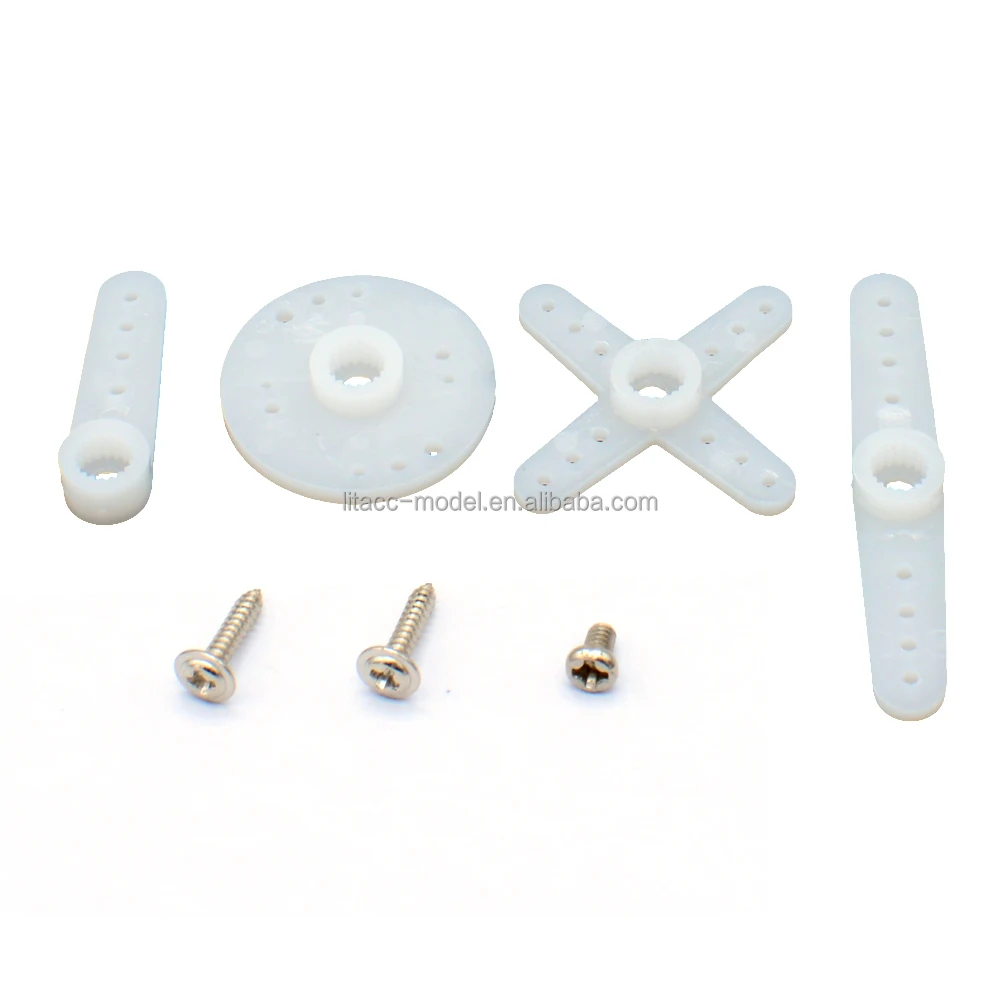

The package includes 4 different arms to fulfill your need.
Specifications:
Brand: JX Servo
Model: PDI-1109MG
Dead band: 1μs
Working frequency: 1520μs / 330hz
Motor: High quality core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6V): 0.10 sec/60°
Stall Torque (4.8V): 2.2kg.cm
Stall Torque (6V): 2.5kg.cm

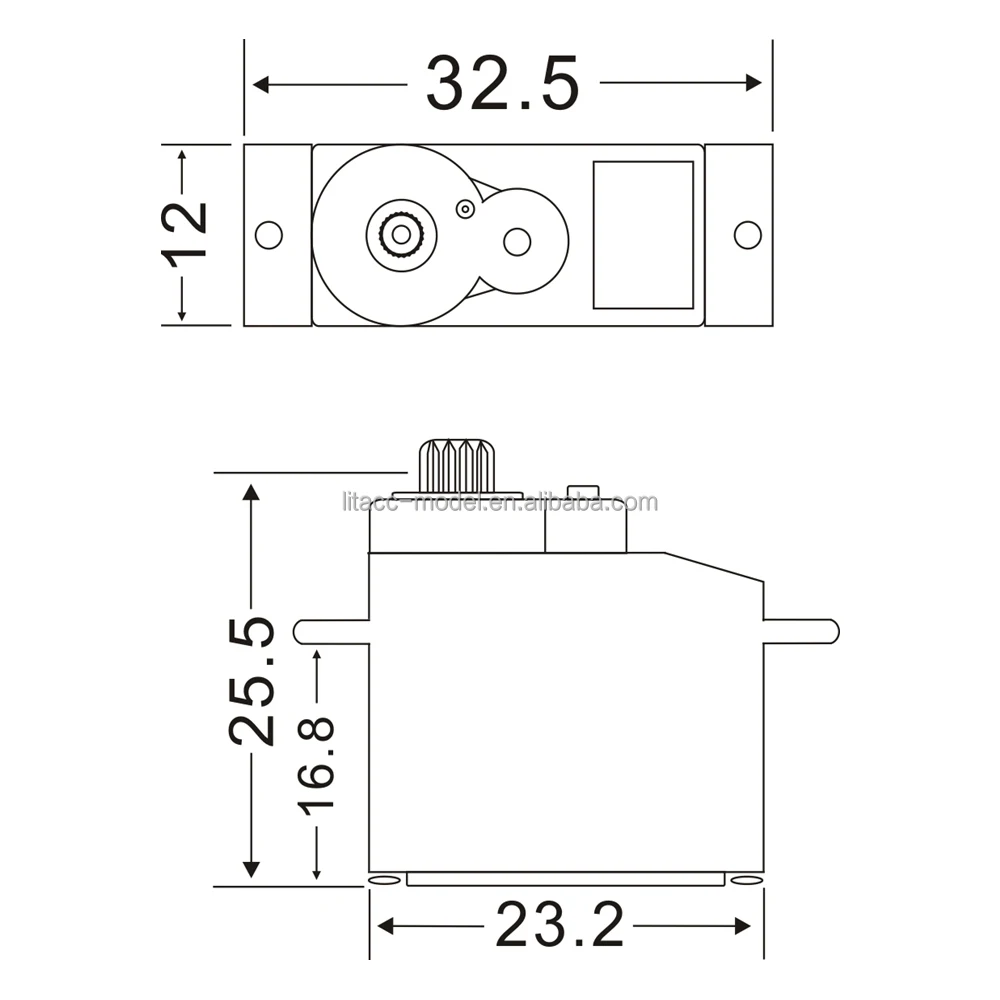

Dimensions: 23.2x12.0x25.5mm
Weight: 10.0g (0.35oz)
Connector Wire Length: JR 180mm
Package information:
Package size: 4.2 * 4.2 * 3.0cm / 1.6 * 1.6 * 1.2in
Package weight: 17g / 0.62oz
Color box packing
Packaging & Shipping
Color box packing.
For shipping, express (DHL / FedEx / UPS / EMS), special line, by air, by sea. We will offer the best shipping method according to your order quantity.
Company Information
We (LIT Model) are a young and passionate team, aims to be your one-stop platform for your RC business. We supply series products for RC car, boat, airplane, FPV, agricultural drone, include brushless motor, speed controller, balance charger, Lipo battery, flight control, etc.
In the meantime, we are professional in researching and developing the brushless motors for RC models, household electrical appliances, instruments, medical devices.
We have a very strong capacity for manufacturing precision hardware. With our own CNC department, can custom manufacturing various cases and components for precise motors according to customer requirements.
We are looking forward to working with you!
FAQ
Q: Can you put our logo on your products?
A: Yes, we supply ODM or OEM service for some products.
Q: What is your MOQ (minimum order quantity)?
A: Small quantity and trial order is acceptable.
