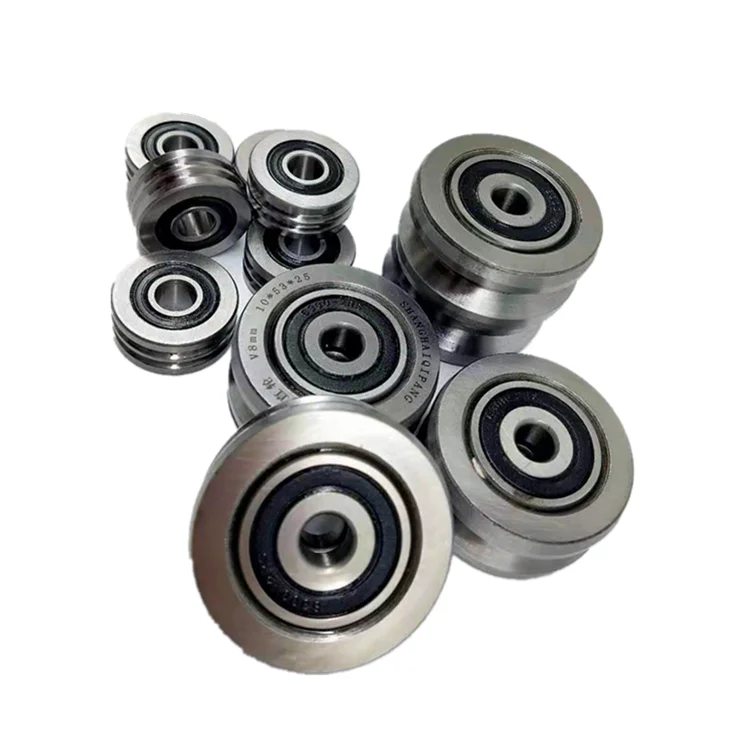

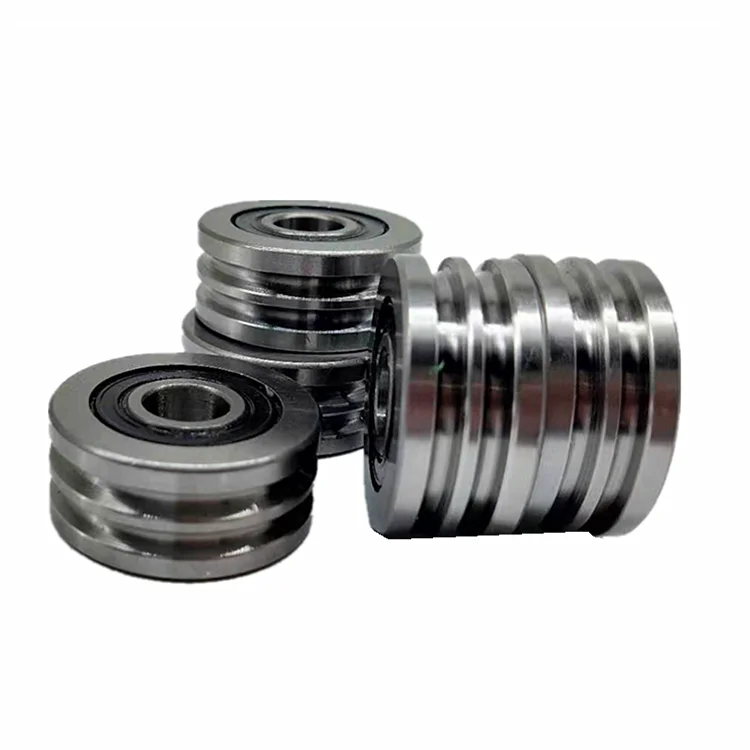

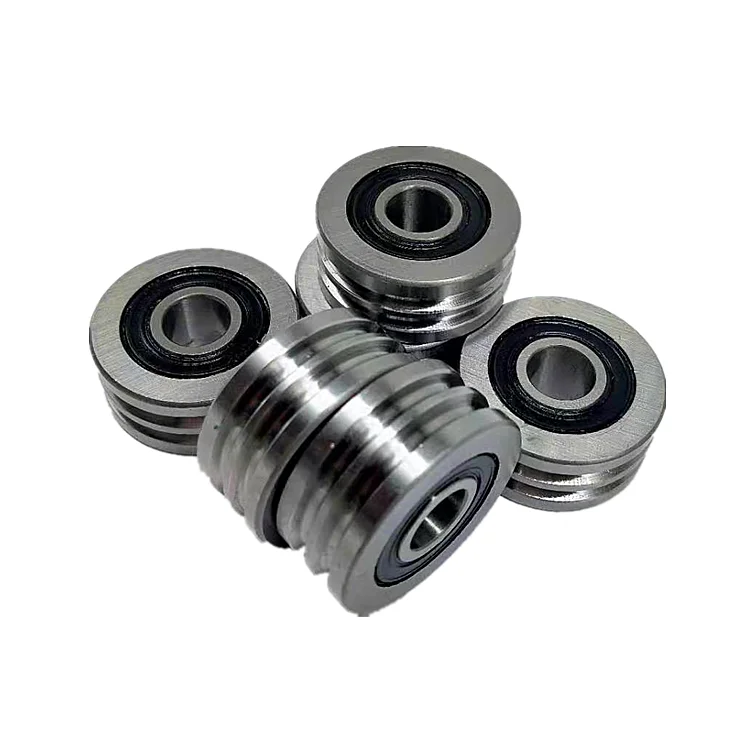

Qipang ролики для выпрямления проводов V/U-образный паз 10x32x9 мм 10x35x9 10x40x14 с подшипниковой сталью 5
Qipang ролики для выпрямления проводов V/U-образный паз 10x32x9 мм 10x35x9 10x40x14 с подшипниковой сталью 5
Qipang ролики для выпрямления проводов V/U-образный паз 10x32x9 мм 10x35x9 10x40x14 с подшипниковой сталью 5
Qipang ролики для выпрямления проводов V/U-образный паз 10x32x9 мм 10x35x9 10x40x14 с подшипниковой сталью 5
Qipang ролики для выпрямления проводов V/U-образный паз 10x32x9 мм 10x35x9 10x40x14 с подшипниковой сталью 5
Qipang ролики для выпрямления проводов V/U-образный паз 10x32x9 мм 10x35x9 10x40x14 с подшипниковой сталью 5
Qipang ролики для выпрямления проводов V/U-образный паз 10x32x9 мм 10x35x9 10x40x14 с подшипниковой сталью 5

Qipang ролики для выпрямления проводов V/U-образный паз 10x32x9 мм 10x35x9 10x40x14 с подшипниковой сталью 5


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description


V-guide straightening roller (straightening roller) - A and AT series applications:V-guide straightening roller (straightening roller) - A and AT series applications:

Cables, steel bars and steel wires are subjected to progressively straightening and straightening to obtain the final product, with reasonable operation of different steps for coils or stocks and unnatural materials. Therefore, for each step of production must be completed by its material support part of the flipping process, at this time the straightening and shaping operation begins, specifically in three steps:


1. Straightening: The material is returned to the original, this step is completed by the first few guiding straightening wheels (straightening wheels).

2. Removal of the residue due to the reel formed by the reel: This step is performed by a guide straightening wheel located in the middle of the straightener.


3. The last few guiding straightening rollers complete the forming of the steel wire: generally these guiding straightening rollers are placed at an angle of 90 degrees to the first few guiding straightening rollers. Usually these three steps should be combined, on the grounds that the straightener uses 5.7.1.11 or 13 guiding straightening rollers on the two planes. The manufacturing accuracy of the guide straightening roller has a major influence on the quality of the final product (steel wire) and the service life of the guiding straightening roller.

Therefore, the V-shaped straightening groove on the outer circle should have the same geometric characteristics and precision as the other parts of the guiding straightening roller. For this purpose, the V-grooves leading to the straightening rollers have been precision machined prior to assembly of the alignment straightening rollers.




Inner diameter*outer diameter*height
Groove
Material
10x32x9mm
V
Bearing steel
10x32x9mm
U
Bearing steel
10X35X9mm
V
Bearing steel
10x40x14mm
U
Bearing steel

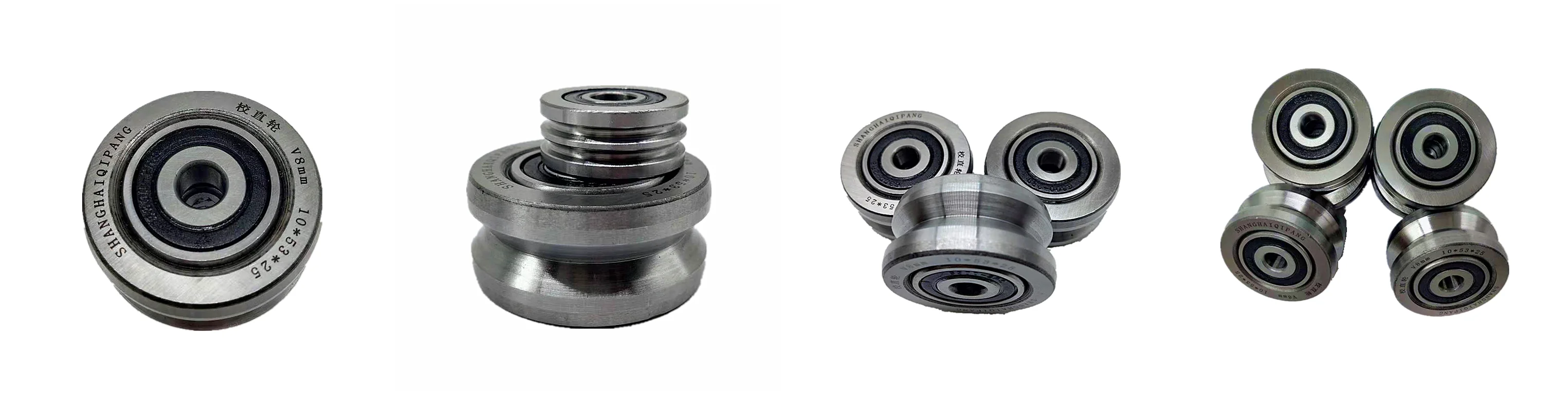

Detailed Images




Packing & Delivery






Why Choose Us






FAQ


FAQ

Q1:  Are you a factory or trading company?

We are a factory . We can promise you a short lead time and best price if you purchase our machine.  We also have our own trading department.


Q2:  How does the factory ensure products quality?

With Nearly 16 years experience in manufacturing wire straightening rollers, we have our own technology develop department and testing department.

Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.


Q3：How about your after-sale service?

We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype).  Please contact us once the machine has any problem. Best service will be offered.


Q4:  What are your payment terms?

100%TT or prepaid 50% ,  balance 50% before shipping.


Q5:  How can I get my order? How can I know you sent the goods?

We will send the goods by UPS, DHL, FedEx or sea shipment.  After we sent the goods, we will give you the tracking number or other relative files for checking.


Q6 :  Will you send the installed machine or machine parts?

We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.


Q7:  Will you provide operation guidance for us?

We will send the instruction book with the machine and send you a video about how to operate the machine.


Q8 : How long is the warranty period?

12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
