Products Description

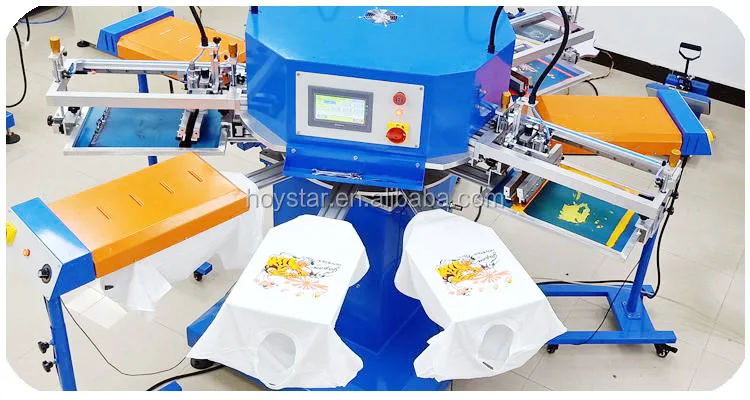

4 color rapid tag automatic silk screen machine for t shirt printer printing press

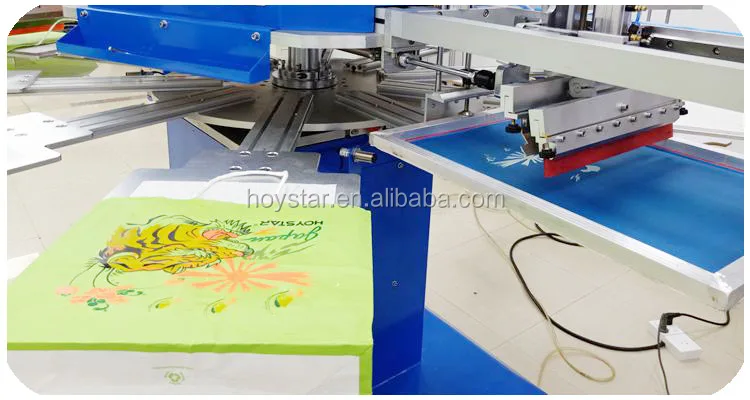

What's this rotary screen printing machine use for?It's a carousel screen printing machine with 4 color 10 pallets.
Application for printing kinds of fabric/textile items such as
Non-woven bags, paper bags, shopping bags, kraft bags, t-shirts, garments, clothes, sleeve, pockets, neck label logo, knitting gloves, working clothes....etc
Technical Parameter
Max.printing size | 300*300mm |
Screen frame size | 400*520mm |
Printing head | 4 pcs |
Drying stations | 4 pcs |
Loading/unloading | 1 pcs for each, by hand |
Electric Voltage | 220V Single phase |
Air pressure | 6-8 Bar |
Dimension | 2200*2100*1600mm |
Net weight | 580kg |
Details Images

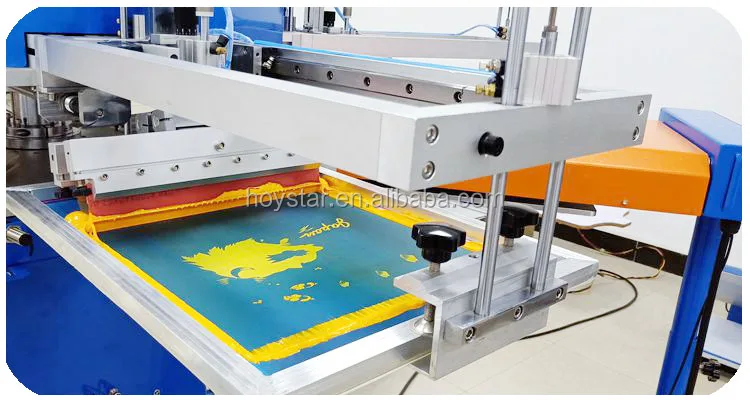

Screen Printing Machine's Head

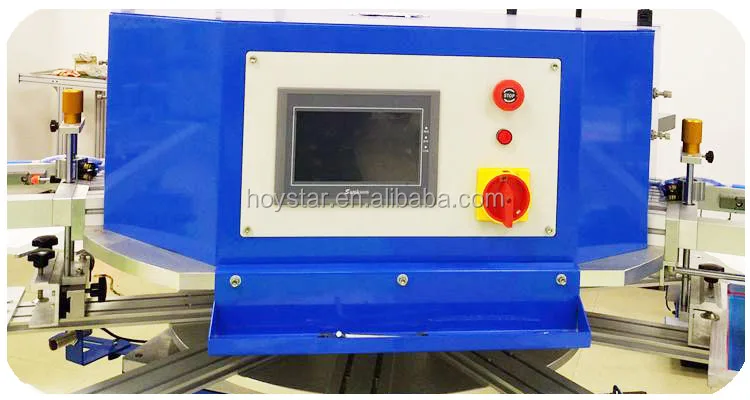

Control by touch screen panel
Printing head frame full aluminum material by CNC processed Printing head moving front/back by double guide at 2 sides, running
more steady

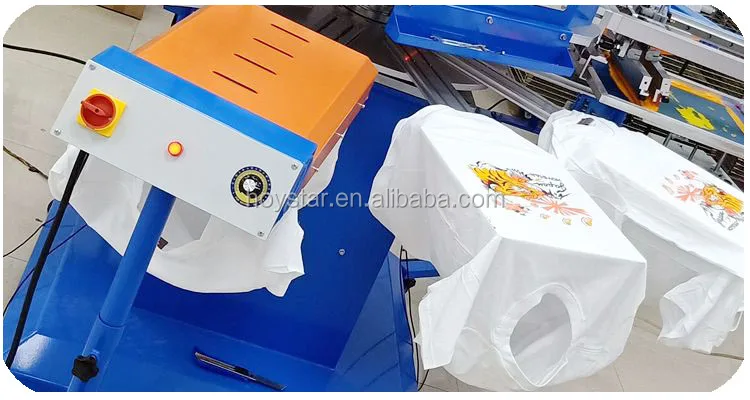

Adopts flash dryer separately
Total 4 pcs flash dryer for 4 color printing
1. Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate
2. Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control
3. The rotate worktable adopts electric controll,CHINT AC contactor, Taiwan FOTEK photoswitch
4. Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing .
5. Hihg quality infrared lamps,it can be up to 1500-2000 hours
6. It has "No product,No print" function,you can open and stop machine freely during printing,Product sensors can be 360 degrees
adjustable
7. It has total 10 pcs of work station,4 pcs of printing work stations,4pcs of drying systems and 2 pcs of load/discharging work
stations
8. The 4 printing head can be controlled independently
9. Pneumatic components control adopts Taiwan brand,front and back printing precision linear Guide rails using Taiwan brand.
10. Machine surface is metallic paint ,beautiful and dignified
Our company
Product packaging
Package material | by wooden case |
Package dimension | 2300*2300*1700mm |
Gross weight | 760kg |
Shipping way | by sea |
Delivery time | 15 workdays |
Customer Feedback
Printed sample show
