professional pulse mig digital control arc welding machine for aluminum PROMIG-250SYN Pulse

professional pulse mig digital control arc welding machine for aluminum PROMIG-250SYN Pulse

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Topwell igbt inverter mig mag 250 welding machine PROMIG-250SYN PULSE

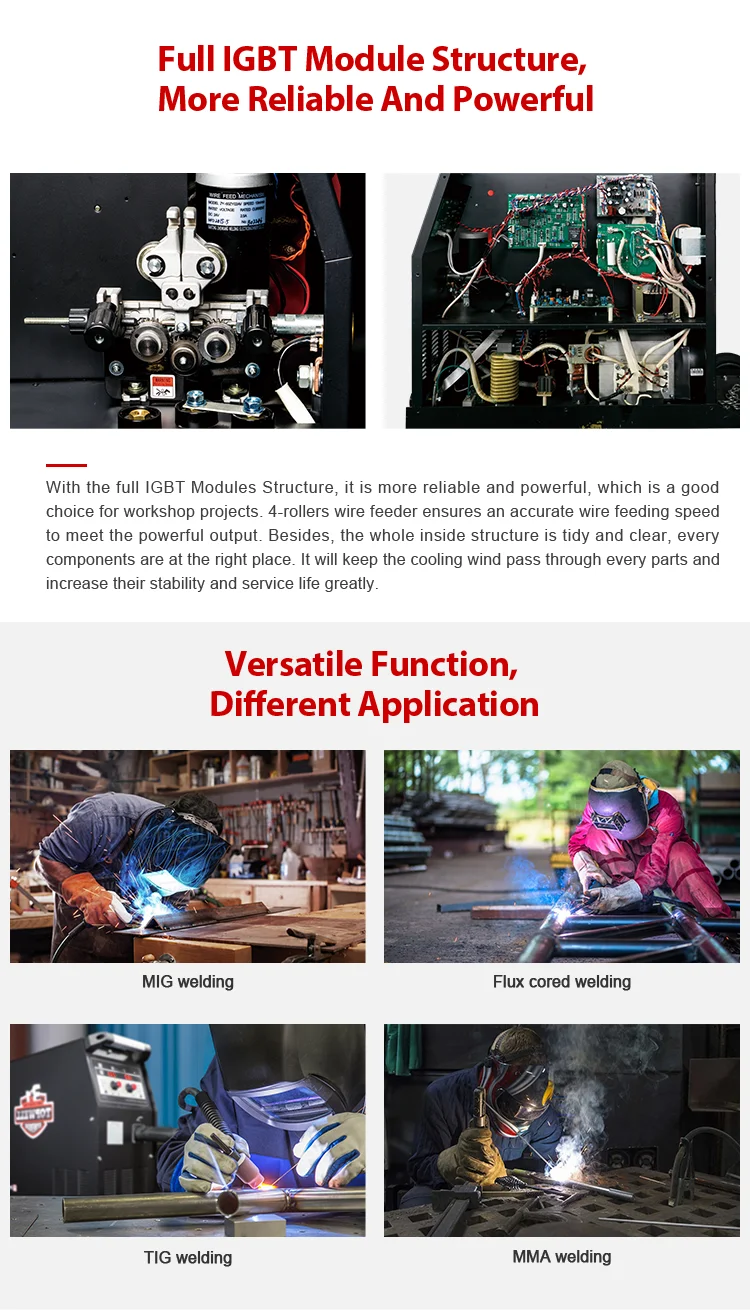

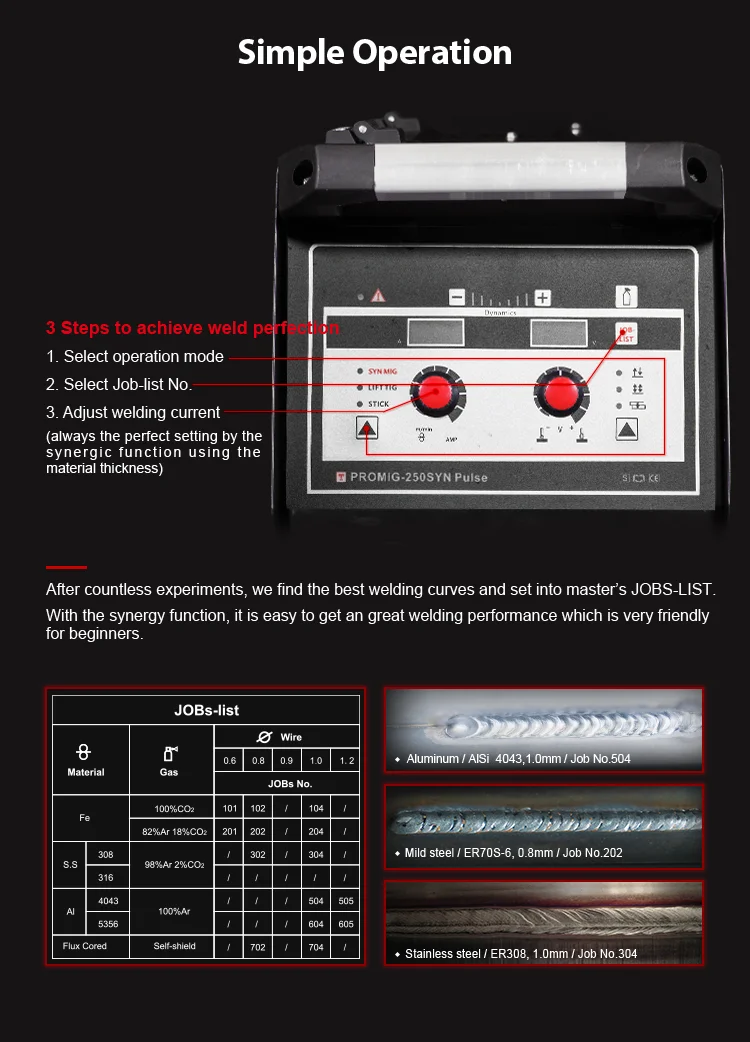

Product Features

PROMIG-250SYN-PULSE_01 PROMIG-250SYN-PULSE_02 PROMIG-250SYN-PULSE_03 PROMIG-250SYN-PULSE_04

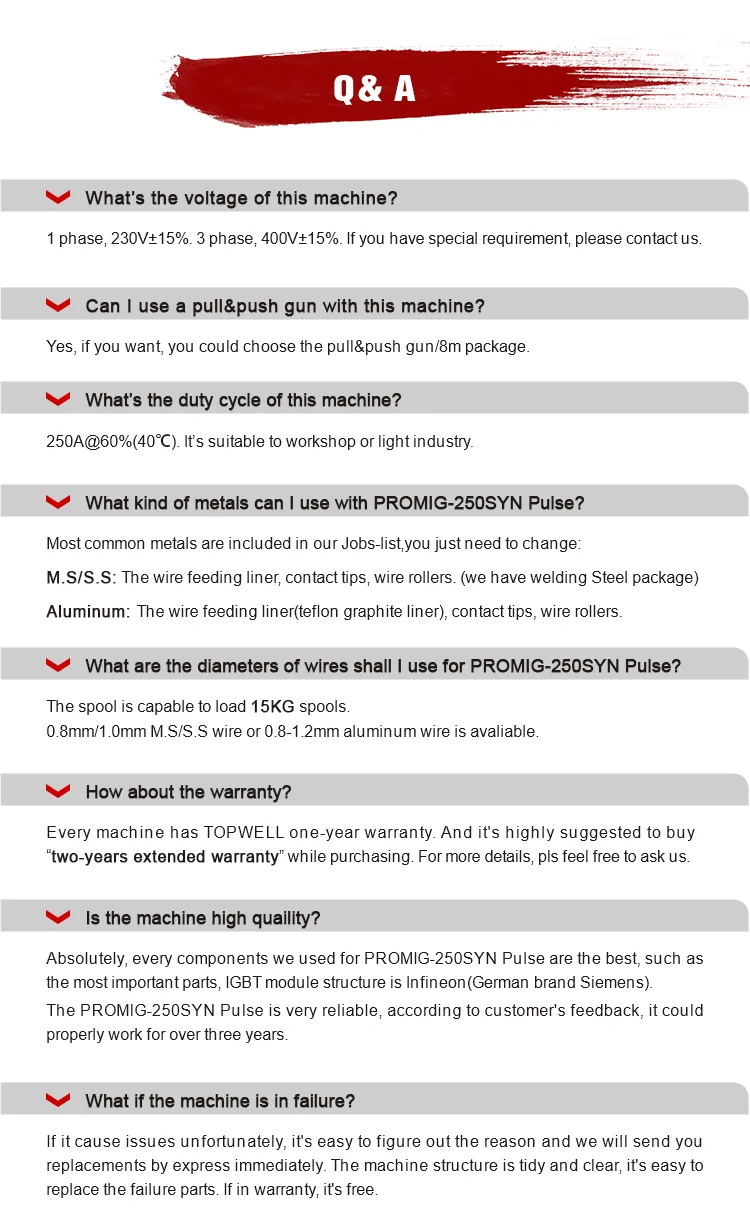

Q&A

PROMIG-250SYN-PULSE_05

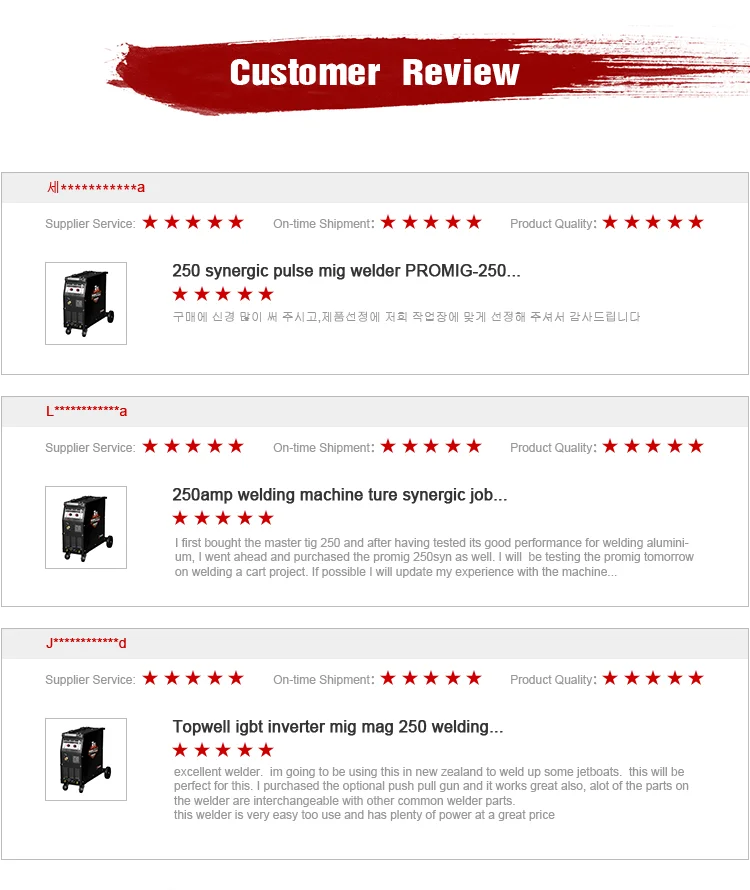

Customer Review

PROMIG-250SYN-PULSE_06

Packages Available

PROMIG-250SYN-PULSE_07

PROMIG-250SYN-PULSE_08

Related Products

PROMIG-250SYN-PULSE_09

Technial Data

PROMIG-200SYN-PULSE_14

Item No	PROMIG-250SYN PULSE
Rated Input Voltage	1PH ~ 230V ±15%/3PH ~ 400V ±15%
Max. Load Power Capacity	11.72KVA
Rated Duty Cycle(40℃) 35%	MIG: 250A/26.5V
	MMA: 250A/30V
	TIG: 250A/20V
100%	MIG: 200A/24V
	MMA: 200A/28V
	TIG: 200A/18V
Welding Current/Voltage Range	MIG: 10A/14.5V ~250A/26.5V
	MMA: 20A/20.8V~250A/30V
	TIG: 5A/10.2V~250A/20V
Open Circuit Voltage	70V~80V
Power Factor	0.8
Efficiency	80%
Wire-feed Mechanism	4 Rollers
Wire-feed Speed Range	0-25m/min
Wire Spool Capacity	300mm (15kg)
Filler Wires Ø (mm) Fe, Ss	0.8~1.2mm
For Stainless steel:	0.8~1.2mm
For Aluminum:	0.8~1.2mm
