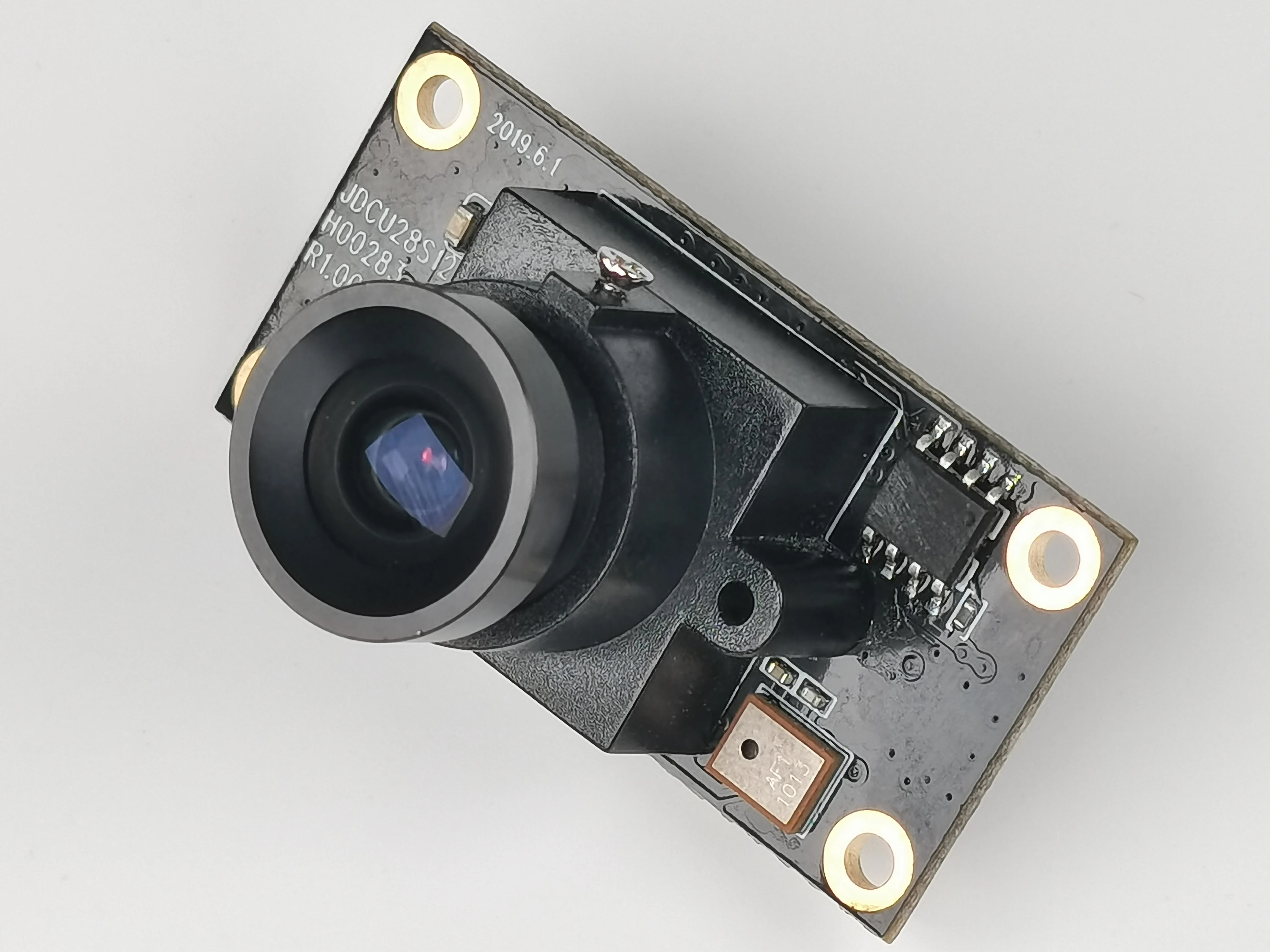

Плата модуля USB камеры 1080P ночное видение 1/2.8 дюймов CMOS сенсор 3 6 мм
- Категории: Webcams >>>
- Поставщик: Zhuhai,Shenjiuding,Optronics,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Why Choose VIDEW 1080P USB Camera Module?

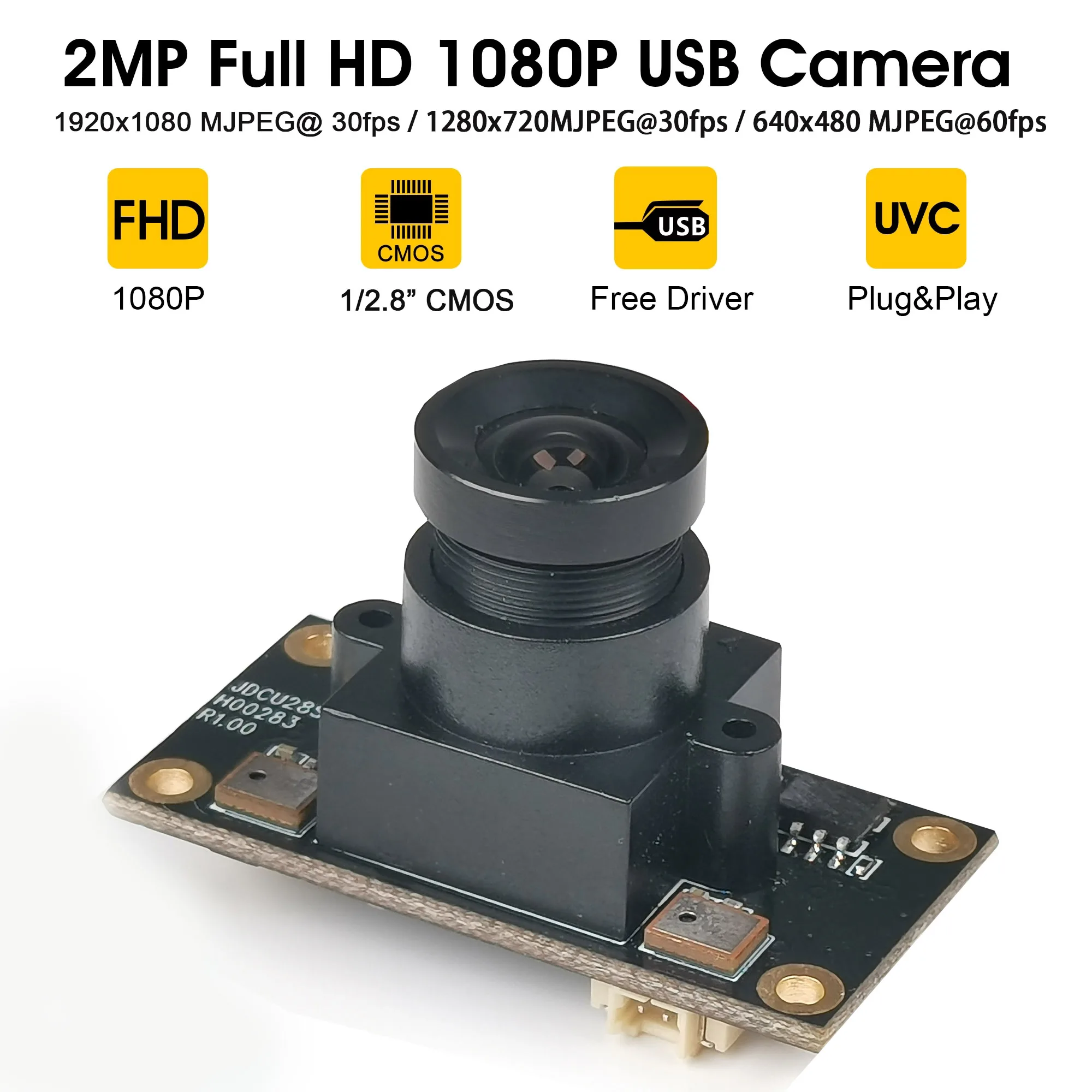

*High Speed 1080P HD USB Camera
*Equiped with 3.6mm wide angle lens
*Can drive 30fps@1080P and 30fps@720p
*CMOS 1080P sensor for high quality sharp image
*CMOS 1080P sensor for high quality sharp image
*High speed USB 2.0 interface for high resolution PC camera interface
*Super small outline and thin profile for embedded applications
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Effective Pixel | 1928H×1088V |
Pixel Size | 3µm x3µm |
Image area | 5832µmx3288µm |
Output image format | YUV2/MJPEG /H.264 |
Lens Focus | 3.6mm |
Focusing | Manual |
Supported Resolution and Frame Rate | 1920x1080 MJPEG@ 30fps /YUY2@5fps 1280x720MJPEG@30fps/ YUY2@10fps 640x480 MJPEG@60fps /YUY2@30fps |
Lens Angle | Horizontal: 38°±5% Vertical: 25°±5% |
Focus Distance | 40CM(Near) 1.5M ( Far) |
Shutter Type | Electronic rolling shutter and GRR |
Interface Type | USB2.0 High Speed |
USB Wire | Optional: 1M/2M/3M/5M |
Functions Supported | Automatic exposure/white balance/gain control |

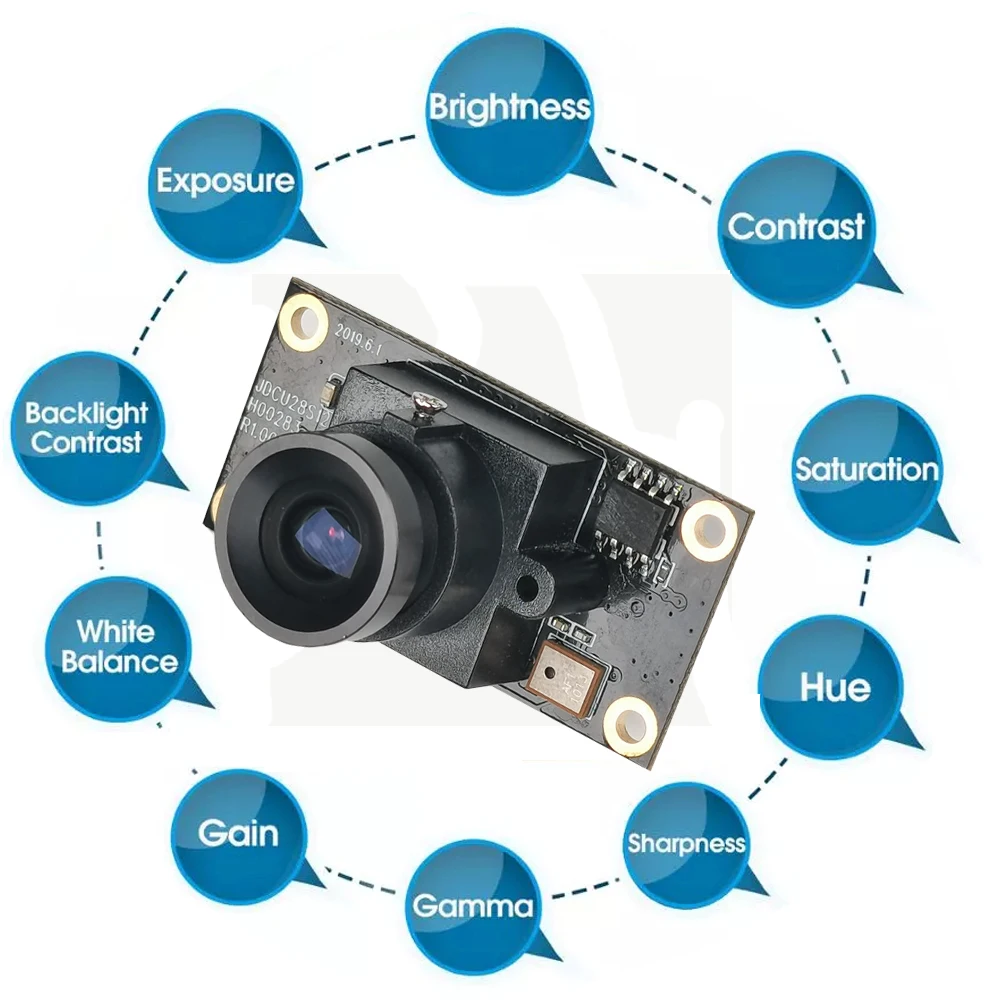

Adjustable parameter | Brightness contrast color saturation tone clarity gamma white balance backlight contrast exposure |
System Supported | Win XP/Vista/Win7/Win8/Linux with UVC(above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
Voltage | DC5V |
Power Consumption | DC+5V Voltage: current:225mA±10mA |
Dimension | 40mm（L）×20 mm（W） |
Working Temperature | 0℃ ～ 60 ℃ |

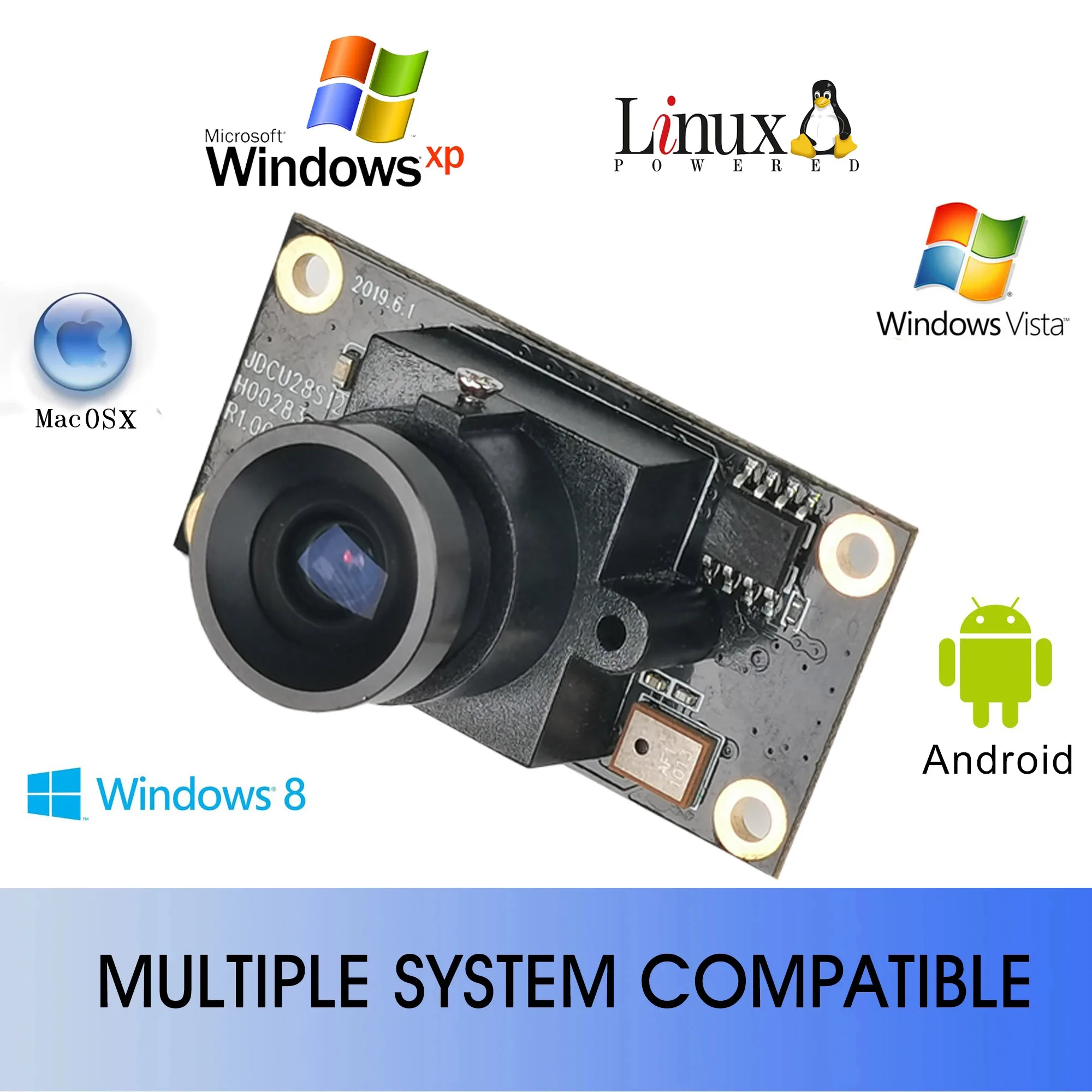

【Superior Compatibility】
This mini usb camera module designed with standard UVC protocal USB connector, Support Windows WinXP/Vista/Win7/Win8, Linux with UVC（above linux-2.6.26),MAC-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above with UVC.
【Mini Size for Wide Applications】

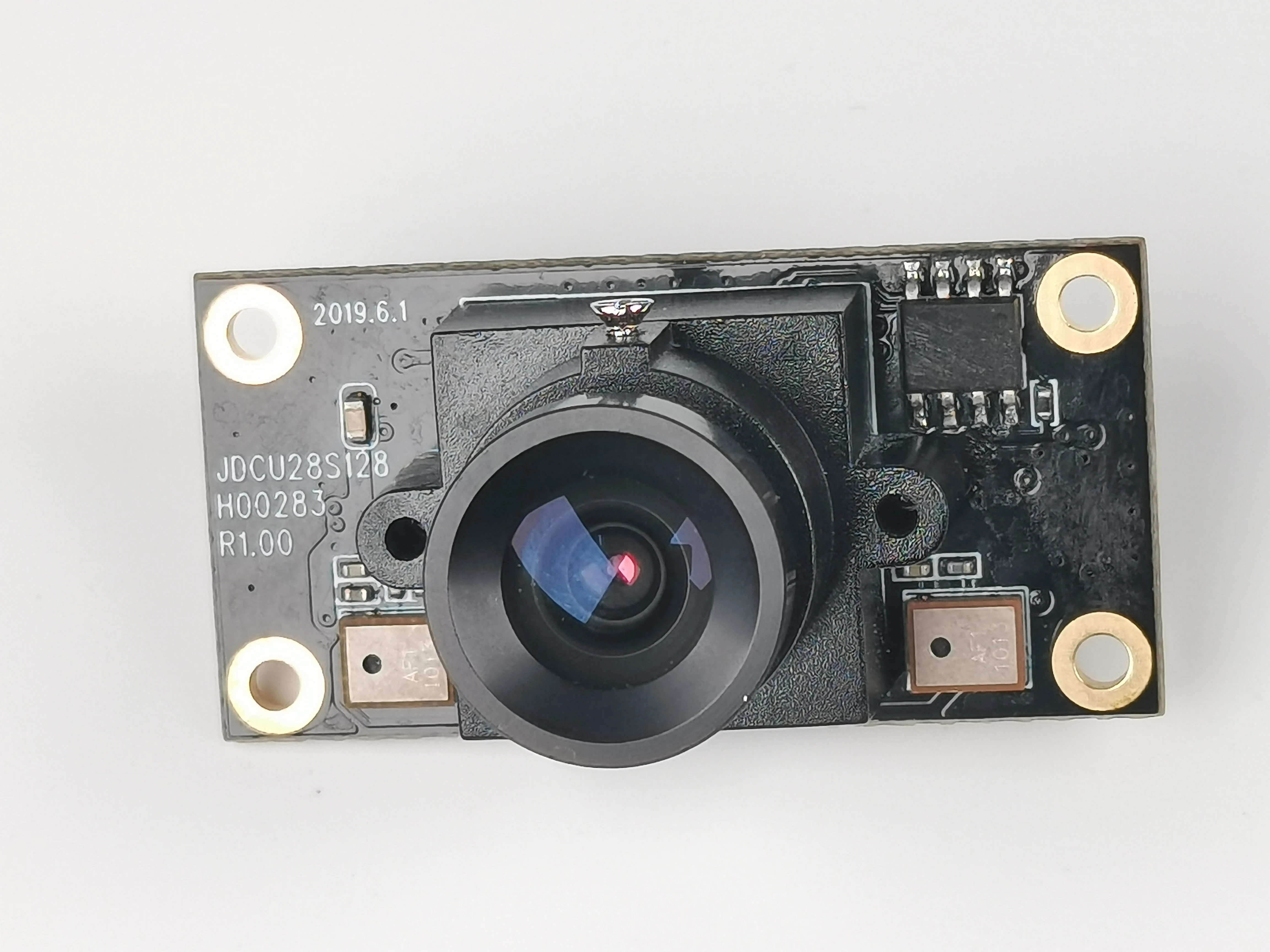

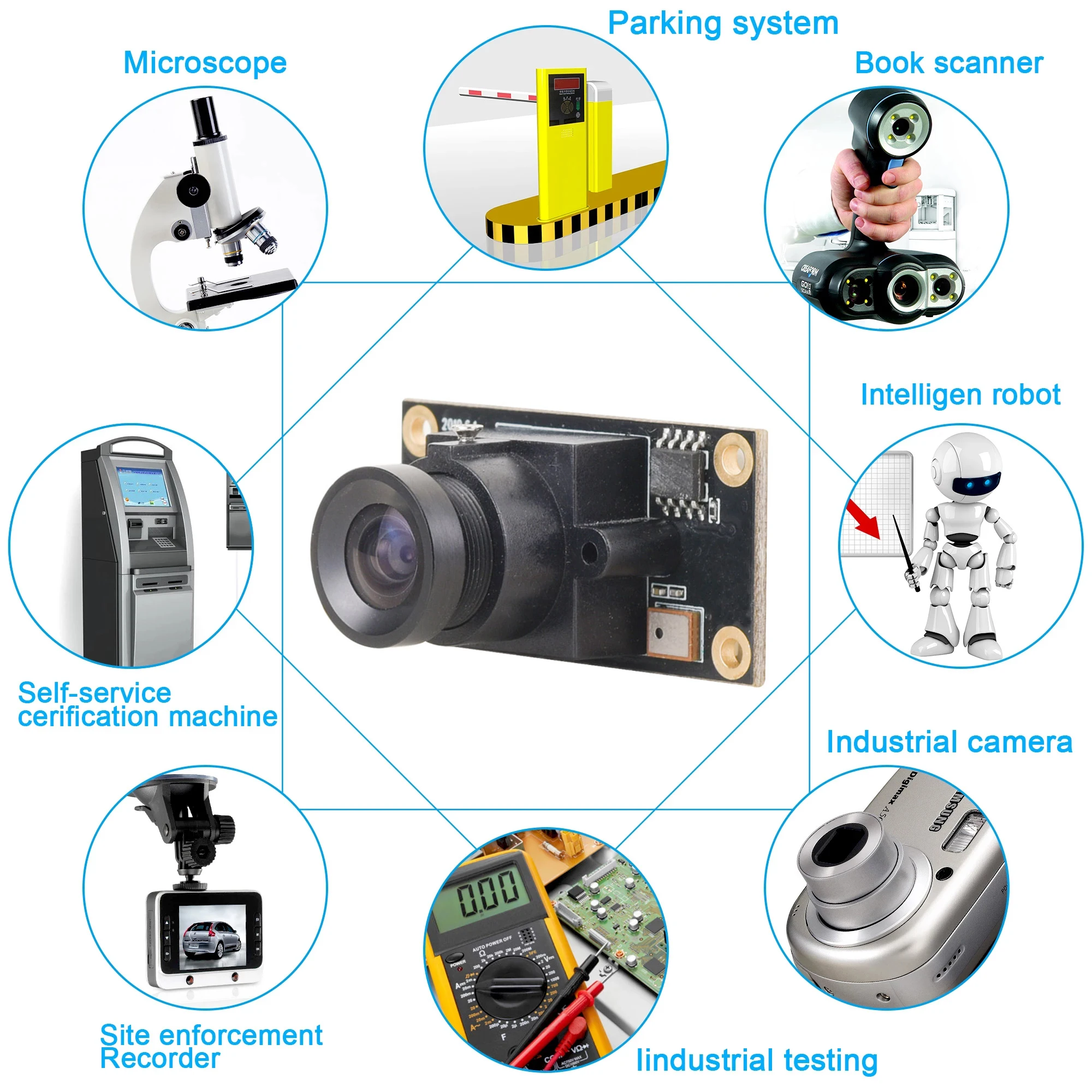

Mini sized USB camera board only L40xW20mm, the open structure of this camera board is good for project, allow it to use in embedded project, widely use for picture and recording, smart TV, live streaming, security monitoring systems ect.
【High Qualiy Image Sensor】
With advanced 1/2.8” CMOS Image sensor, this USB camera can provide crustal clean images. High frame rate 30fps at 1080P, 30fps at 720. Output format support MJPEG/YUV2. Special designed for professional video production and surveillance system manufacturing.

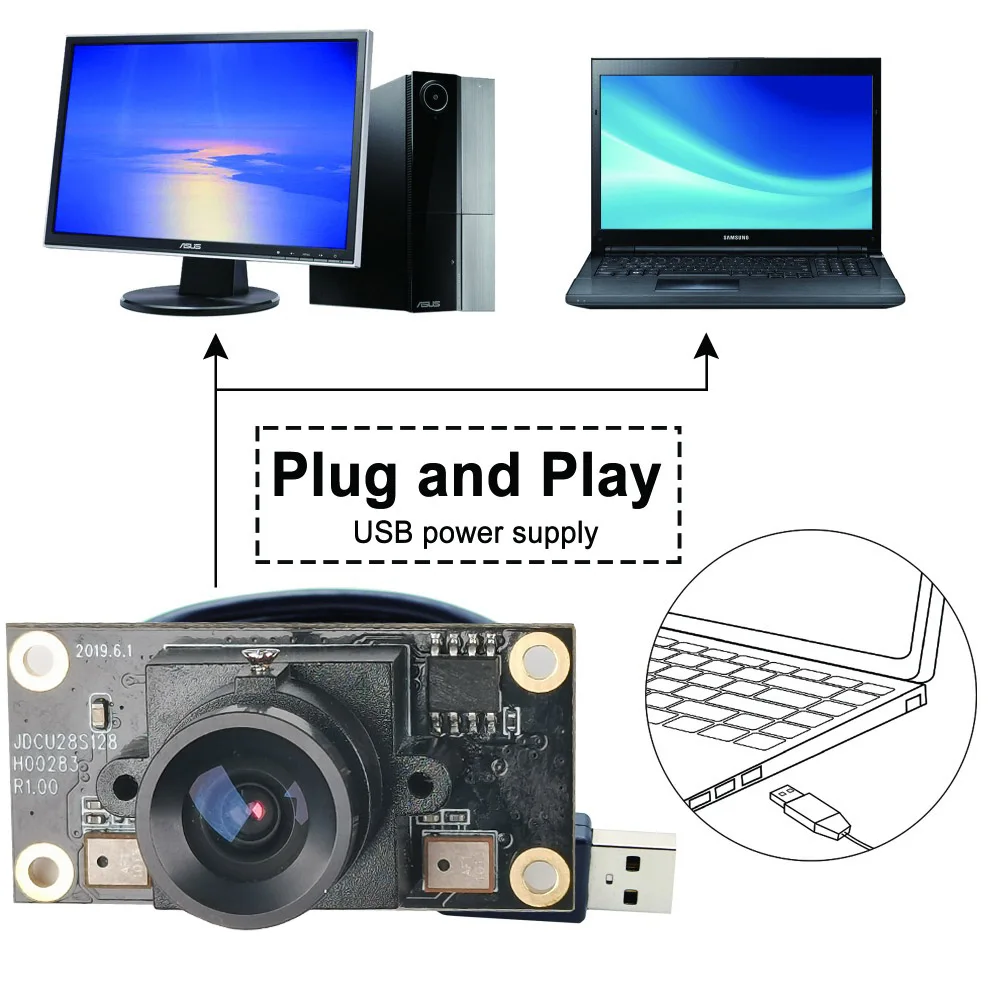

【Plug & Play Drive-free 】
Very easy to use of this mini usb camera module,set up easily, only need to plug this camera board to USB port,really plug and play, no need to download or install any drivers.
High speed usb 2.0 interface. 1m/2m/3m/5m usb cable optional
