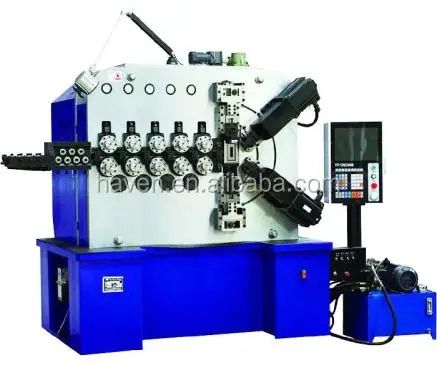

6 Axis CNC Wire Extension Spring Coiling Making Forming Machines buckle making machine CNC- 86100

Mechanical features and functions:

1. Computer control systems imported from Taiwan and imported servo motors;

2. The computer is English interface, easy to operate, accurate positioning, the computer can control 6 servo motors, all motors can be operated synchronously or separately;

3. With precision detection and tracking equipment, if there are unqualified products can automatically stop;

4. According to the working condition on the fluorescent screen, the outer diameter angle of the product can be corrected at any time;

5. Mechanical automatic parts are automatically lubricated for oil supply design to ensure long-term operation of the equipment;

6. When the wireless, disconnected, entangled line automatic shutdown design and automatic acceleration of the wire frame, making production easier and more effective;

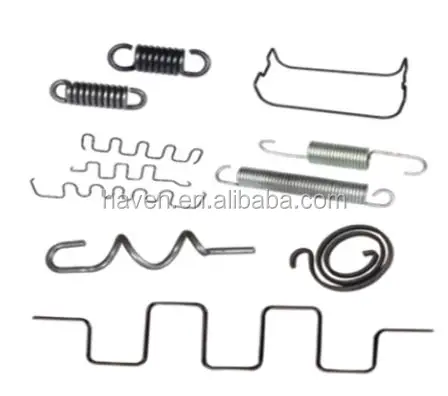

7. Suitable for the production of double torsion springs, straight springs, pagoda springs, tension springs, rectangular springs, wire forming, steel vortex springs, springs and various fancy springs, complex and difficult shaped springs (computer spring machines).



Main specifications:

Model	CNC-8645	CNC-8660	CNC-8680	CNC-86100
Number of Axis	6	6	6	6
Max steel wire Dia.(mm)	Dia1.5-Dia4.5	Dia2.0-Dia6.0	Dia3.0-Dia8.0	Dia3.5-Dia10.0
Max. OD of spring(mm)	Dia65	Dia90	Dia120	Dia150
Length of feeding wire	No limitation	No limitation	No limitation	No limitation
Number of feeding roller	3	3	4	5
Servo motor(kw)
Wire feeding Pitch Blade Up/Down OD Up/Down	7.5 1.0 1.8/1.8 1.5/1.5	9.0 1.5 2.7/2.7 1.8/1.8	15 2.0 4.4/4.4 2.9/2.9	30 2.9 7/7 3.8/3.8
Machine size(cm)	170x120x190	210x125x210	250x145x220	300x155x220
Machine weight(kg)	1450	3000	4100	5800
