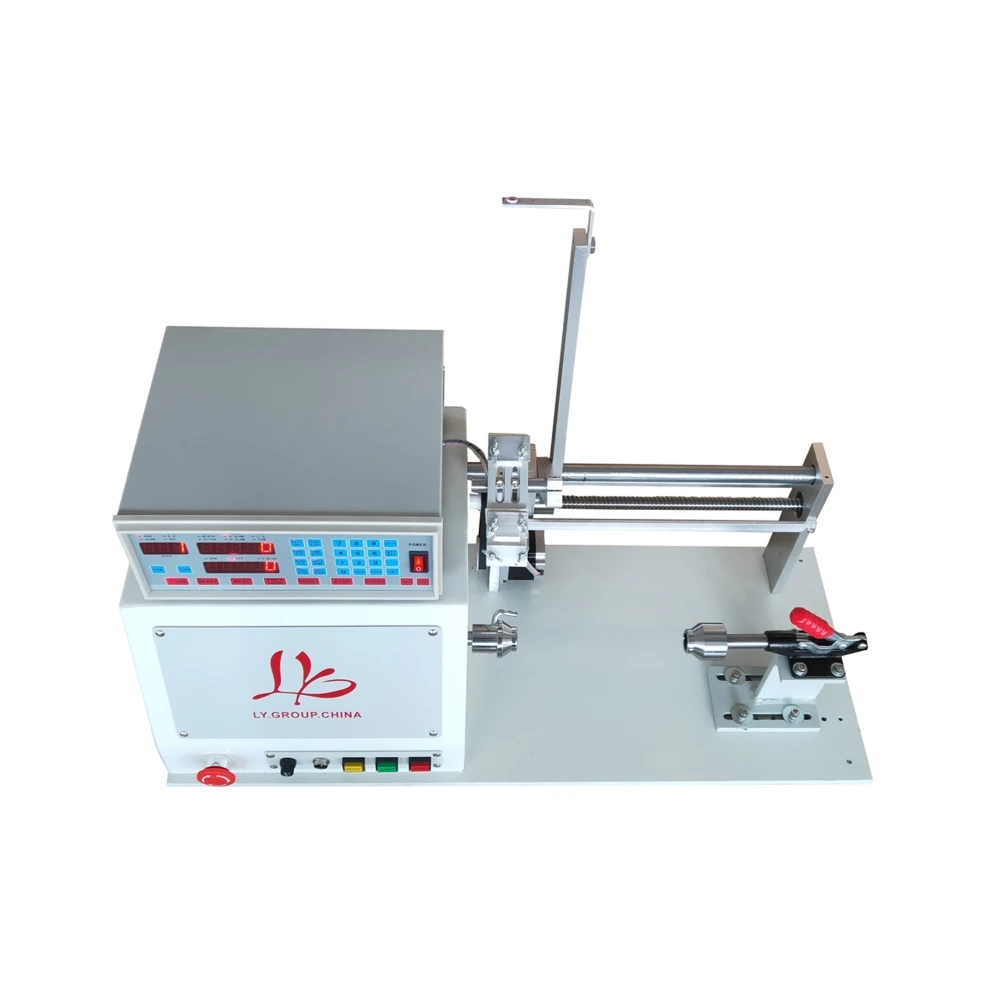

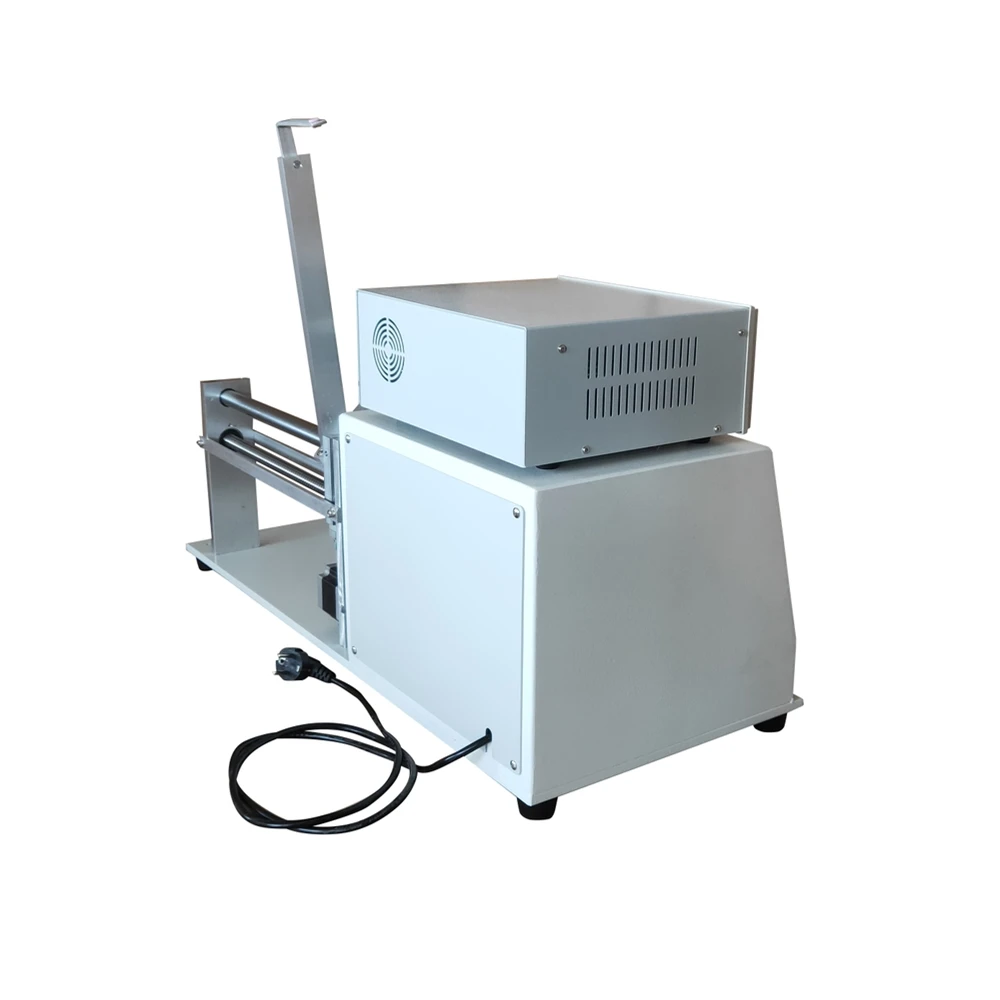

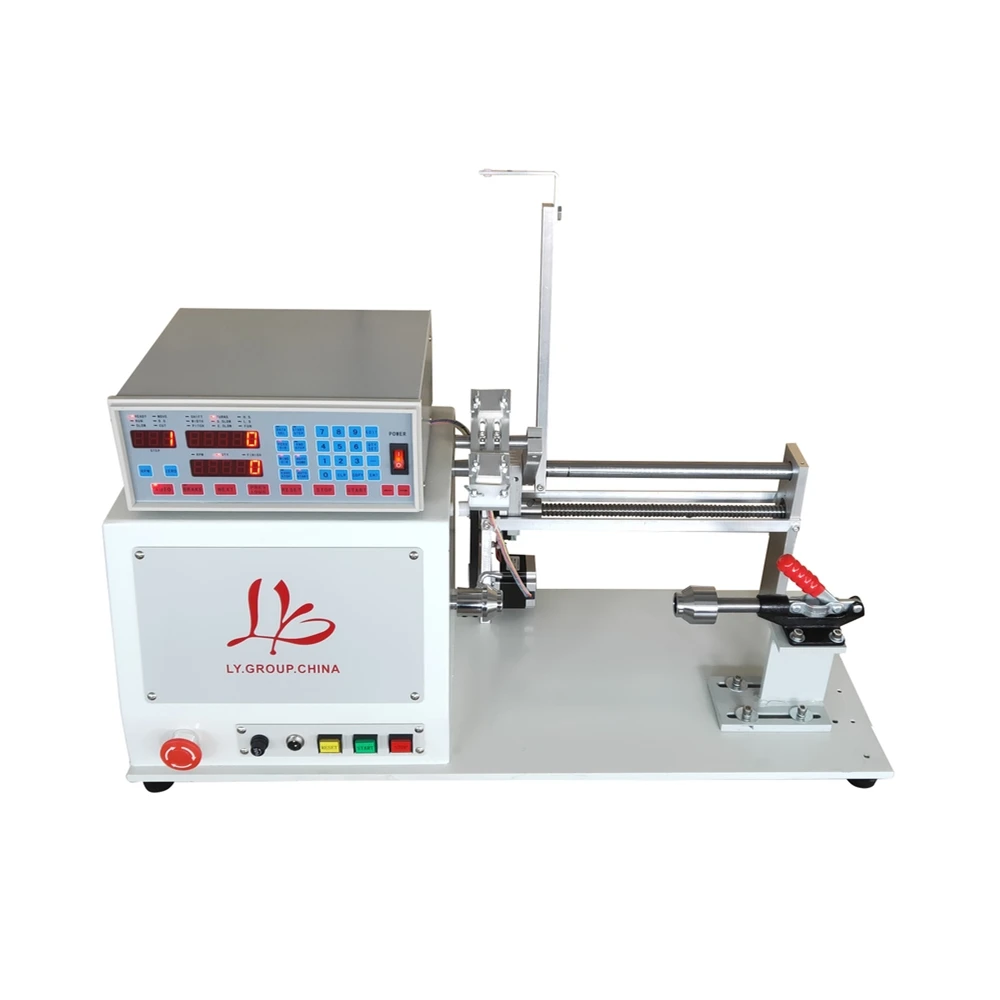

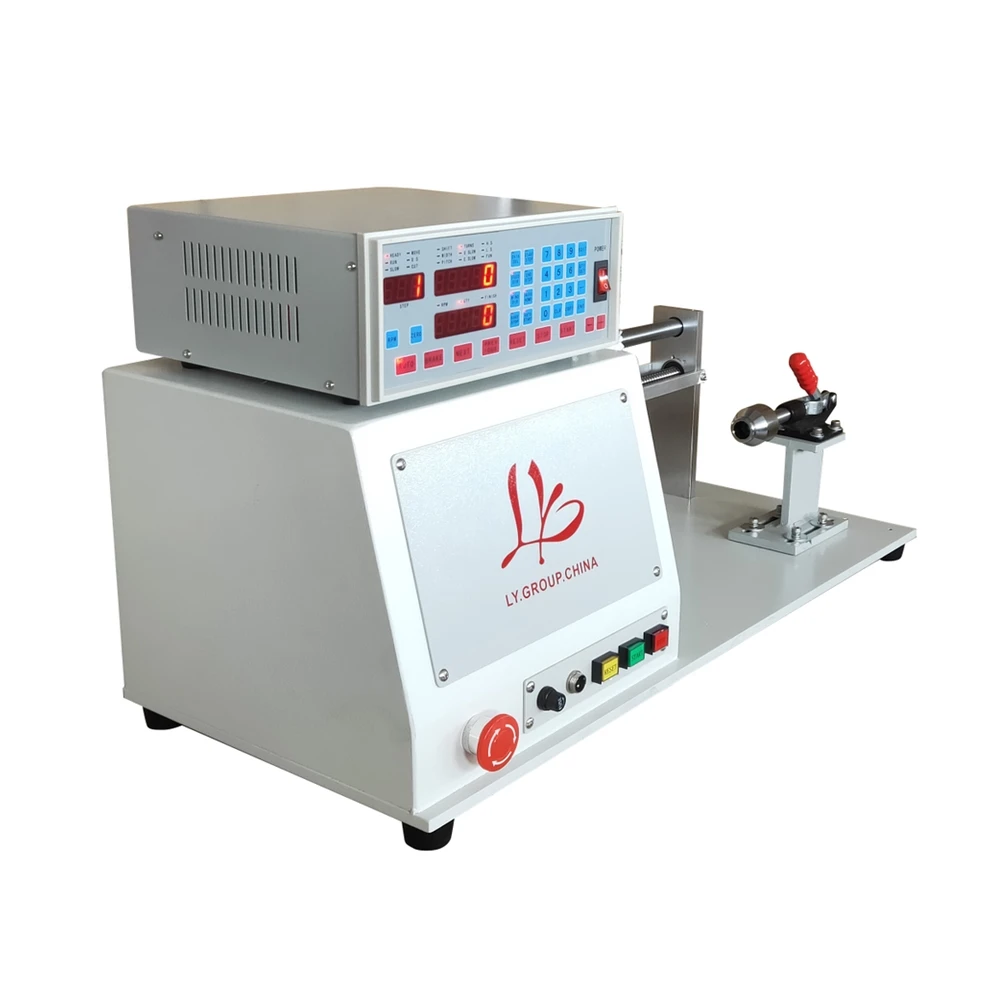

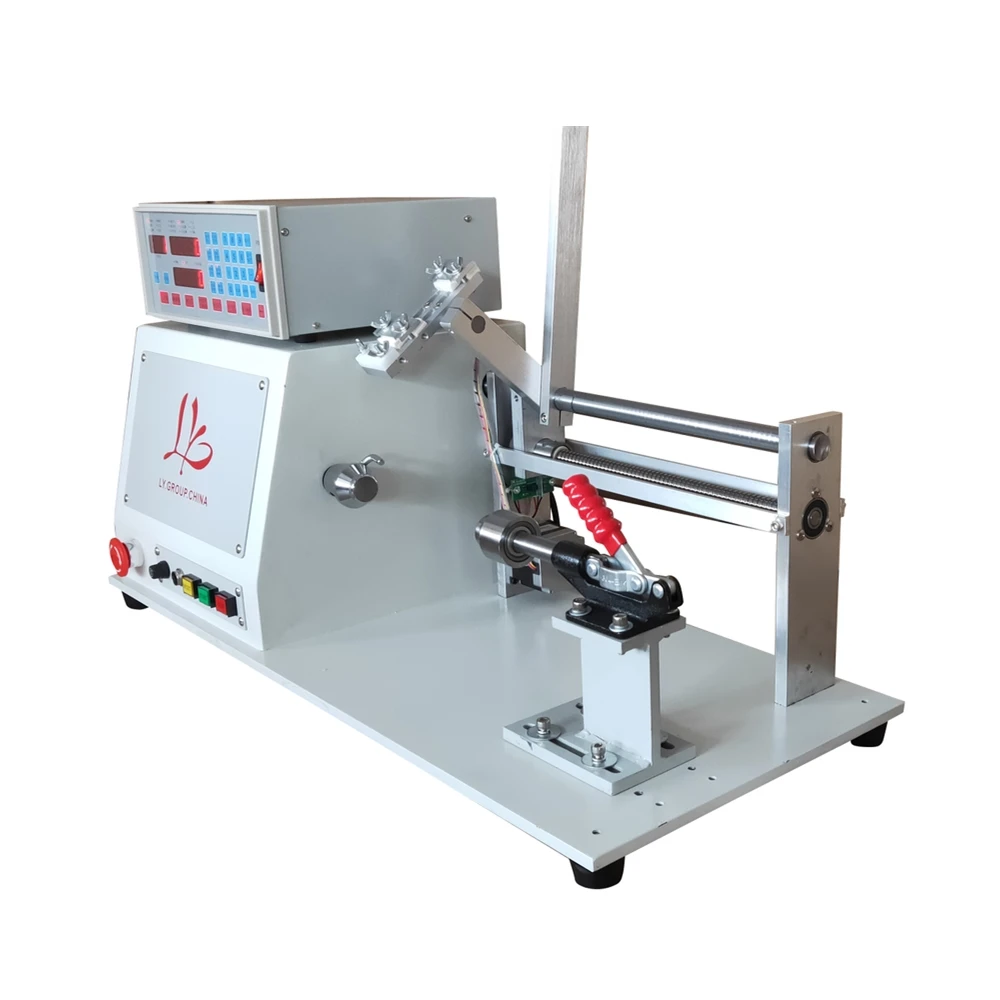

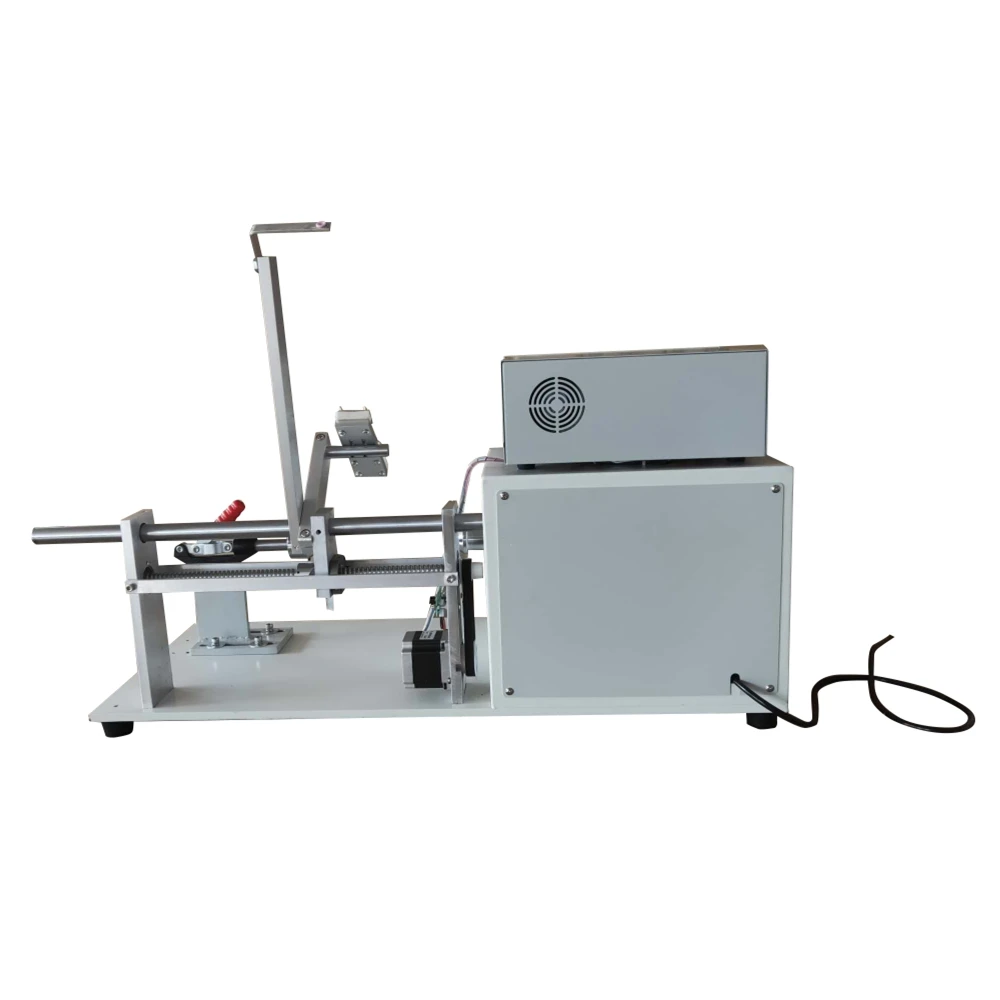

LY 830 High quality New Computer Automatic Coil Winder Winding Dispenser Dispensing Machine for 0.04-1.20mm wire 220V/110V 400W

    If your place is remote ,then need to pay 35usd .

Feature

1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .

2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.

3.Has vernier caliper functions and can measure the winding width and starting point easily.

4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator  also can synchronize with it.

5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.

6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.

7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

8.Foot-switch connection for better efficiency.

9.Winding parameters and options can be set independently for each step.

10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.

Specification

power voltage:single phase AC 220V  50/60HZ

Cop motor:three phase machine 400W(1/2hp)

Spindle speed:3000rpm

Brand:LY

Spindle motor: Brushless DC

Numbers of cop:1

Windable wire gage:0.04-1.20mm

Spread range:0-280MM

Maximum screw diameter:1-260mm

Storable winding groups:999 groups

Counting resolution:0.1 circle

Complete appliance weight:45kg

Machine Size:800*400*470mm

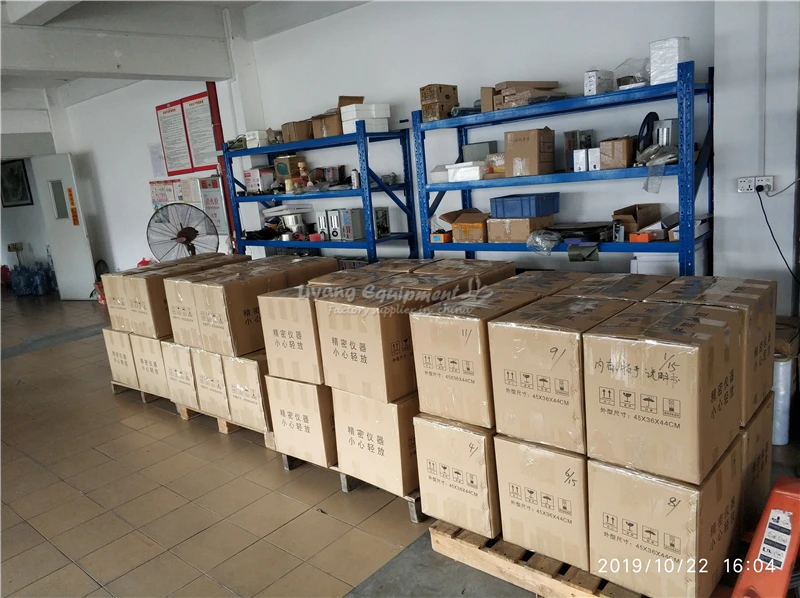

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

C. 25-30 workdays shipping from China to Russian customers.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
