Экскаватор 6 тонн для bull-дозирование по низкой цене китайского бренда блок развертки тележки Yuchai YC60-9 строительная техника escavator мини домашнего

Экскаватор 6 тонн для bull-дозирование по низкой цене китайского бренда блок развертки тележки Yuchai YC60-9 строительная техника escavator мини домашнего

Категории: Excavators >>>
Поставщик: Guangxi,Yuchai,Heavy,Industry,Company,Limited

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Why Choose YUCHAI

CHOOSE YUCHAI

Large number of retained, large number retained in China excavator market reach 100000 units,It is the brand that the customer believes in.

CHOOSE YUCHAI

The first domestic R&D of harvester head and successfully listed on the market for more than 10 years.

CHOOSE YUCHAI

Yuchai Group's Annual sales revenue exceeded RMB 45 billion Yuan

CHOOSE YUCHAI

70 year's experience in Diesel engine R&D and manufacturing; 32 years's experience in construction machinery R&D and manufacturing.

CHOOSE YUCHAI

Yuchai Group ranks among the top 500 Chinese enterprises, the top 500 Chinese manufacturing companies, the top 100 Chinese machinery manufacturers and 100th among the 500 most valuable brands in China, with a brand value exceeding RMB57.276 billion

CHOOSE YUCHAI

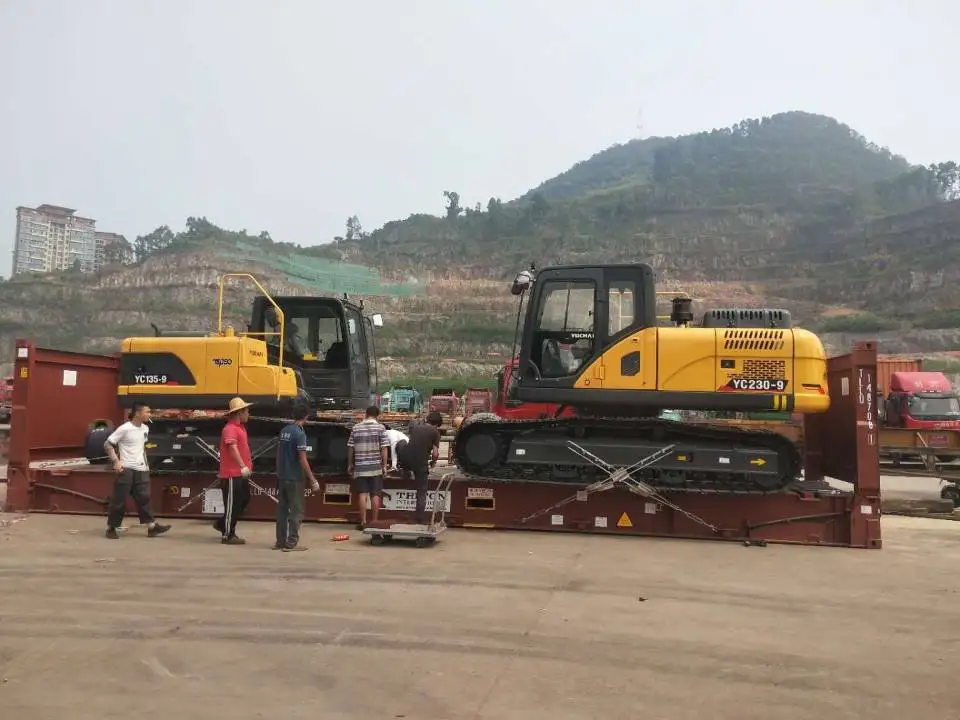

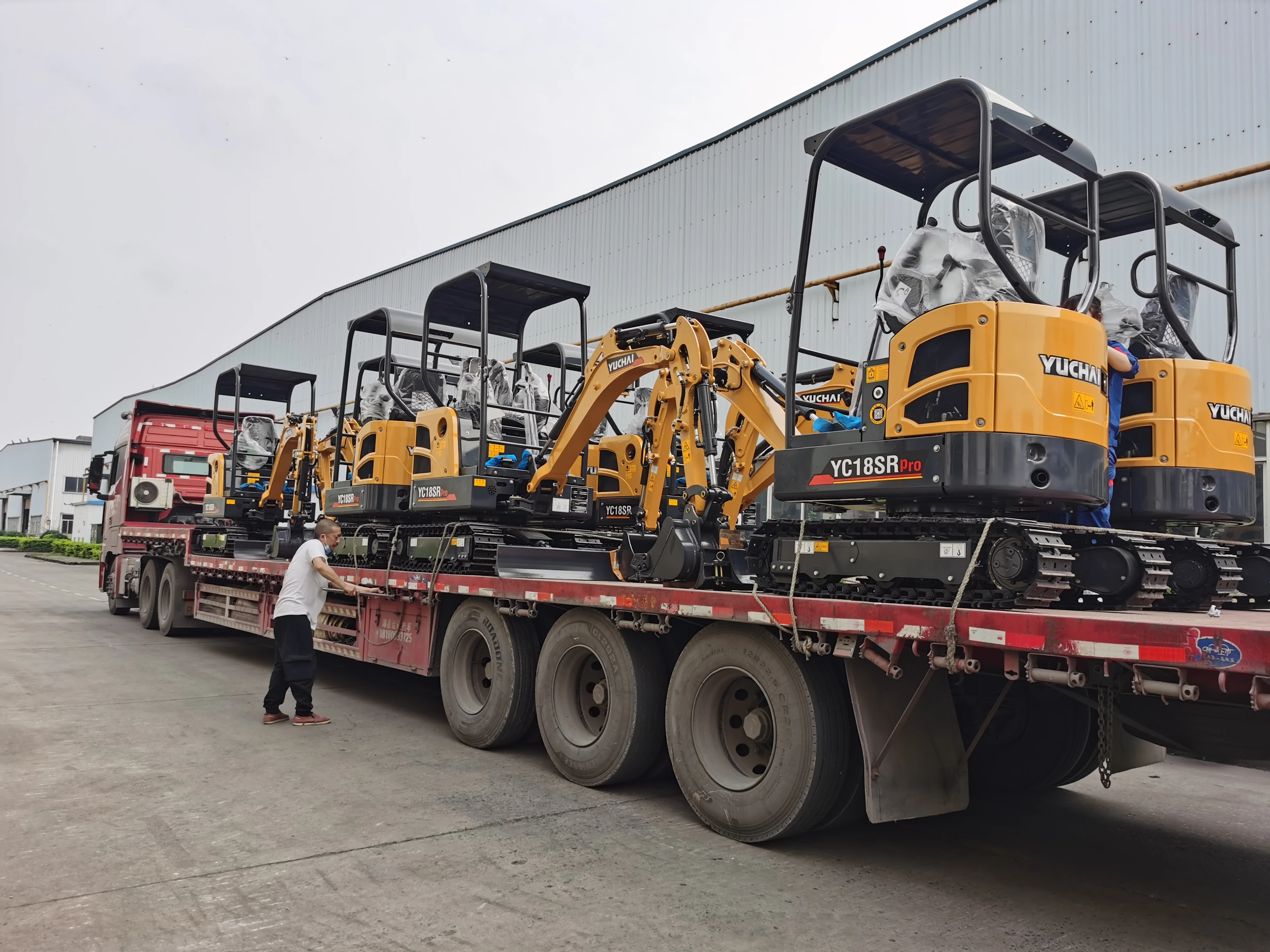

Exports to more than 100 countries and regions.

CHOOSE YUCHAI

Choice of more than 13,000 overseas users

Products Description&Product Paramenters

YC60-9

Technical Specification
Basic parameter	Machine weight	5750 kg
		Bucket capacity	0.21 m³
		Width of bucket	742 mm
Performance parameter	Engine model	KUBOTA
		Engine power	30.7/2200 kW/rpm
		Max. Gradeability	35^o
		Max. digging force of arm	27.5 KN
		Max. digging force of bucket	36.6 KN
		Traveling speed	2.2/3.6 km/h
		Max. traction	46.5kN
		Slewing speed of platform	9~11 rpm
Operating parameter	Max.digging height	5740 mm
		Max.digging depth	3720 mm
		Max.digging radius	6065 mm
		Max.digging radius on ground level	5945 mm
	Operating parameter	Max.dumping height	4040 mm
		Min.slewing radius	2175 mm
		Max.vertical digging depth	2750 mm
Transportation dimension	Overall length	5656 mm
		Overall width	1920 mm
		Overall height	2585 mm
Other Parameter	Width of undercarriage	1920 mm
		Length of track	2494 mm
		Width of track	400 mm
		Height between undercarriage and ground	316 mm
		Height between platform and ground	670 mm
		Platform tail turning radius	1520 mm
		Track gauge	1960 mm
		Fuel tank capacity	103 L
		Hydraulic oil tank capacity	74 L

Recommend Products

Company Profile

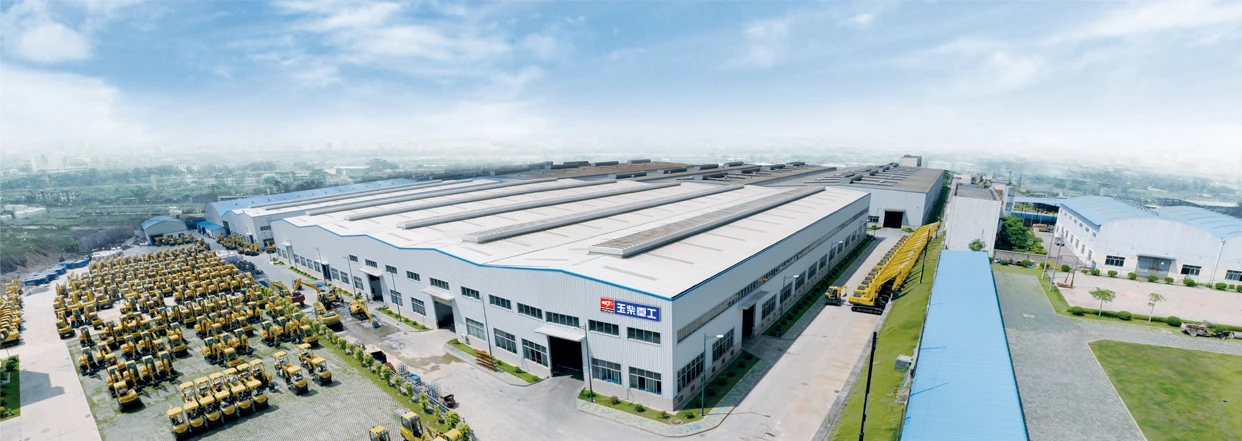

COMPANY PROFILE

GUANGXI YUCHAI HEAVY INDUSTRY COMPANY LIMITED

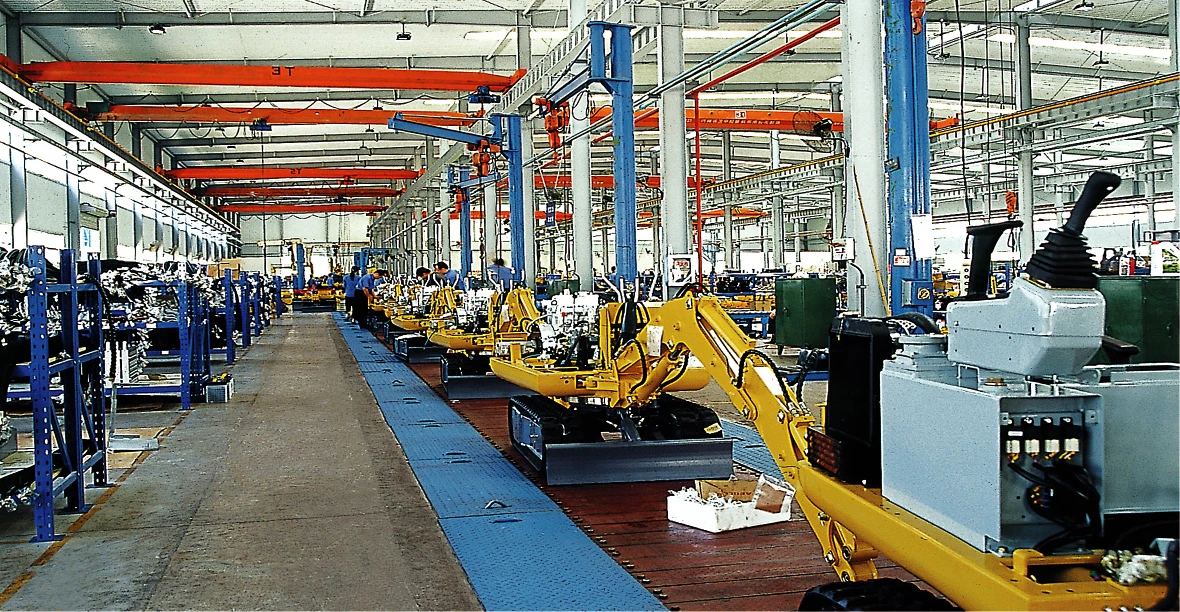

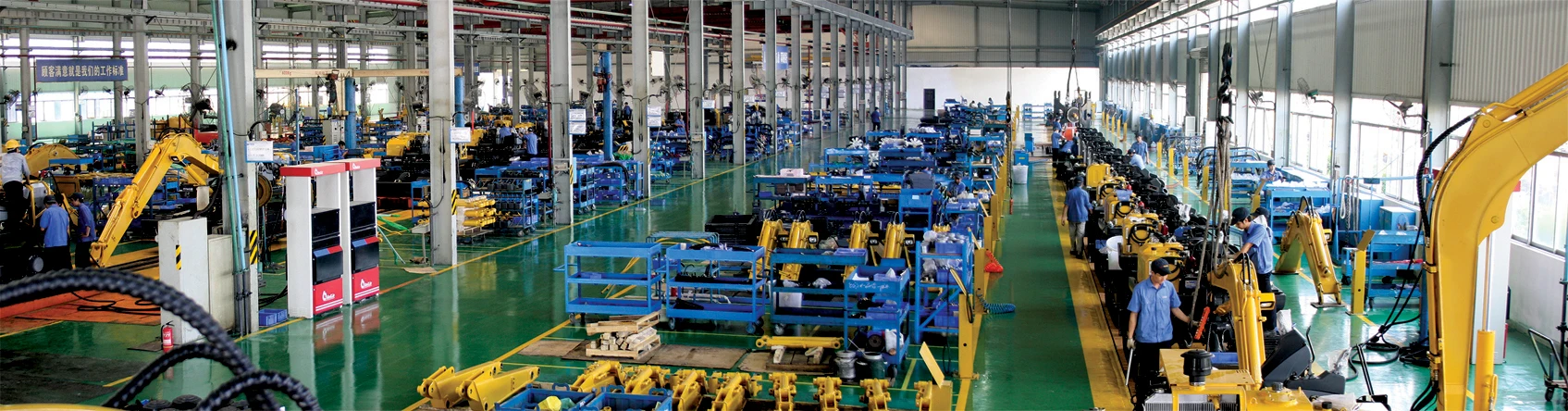

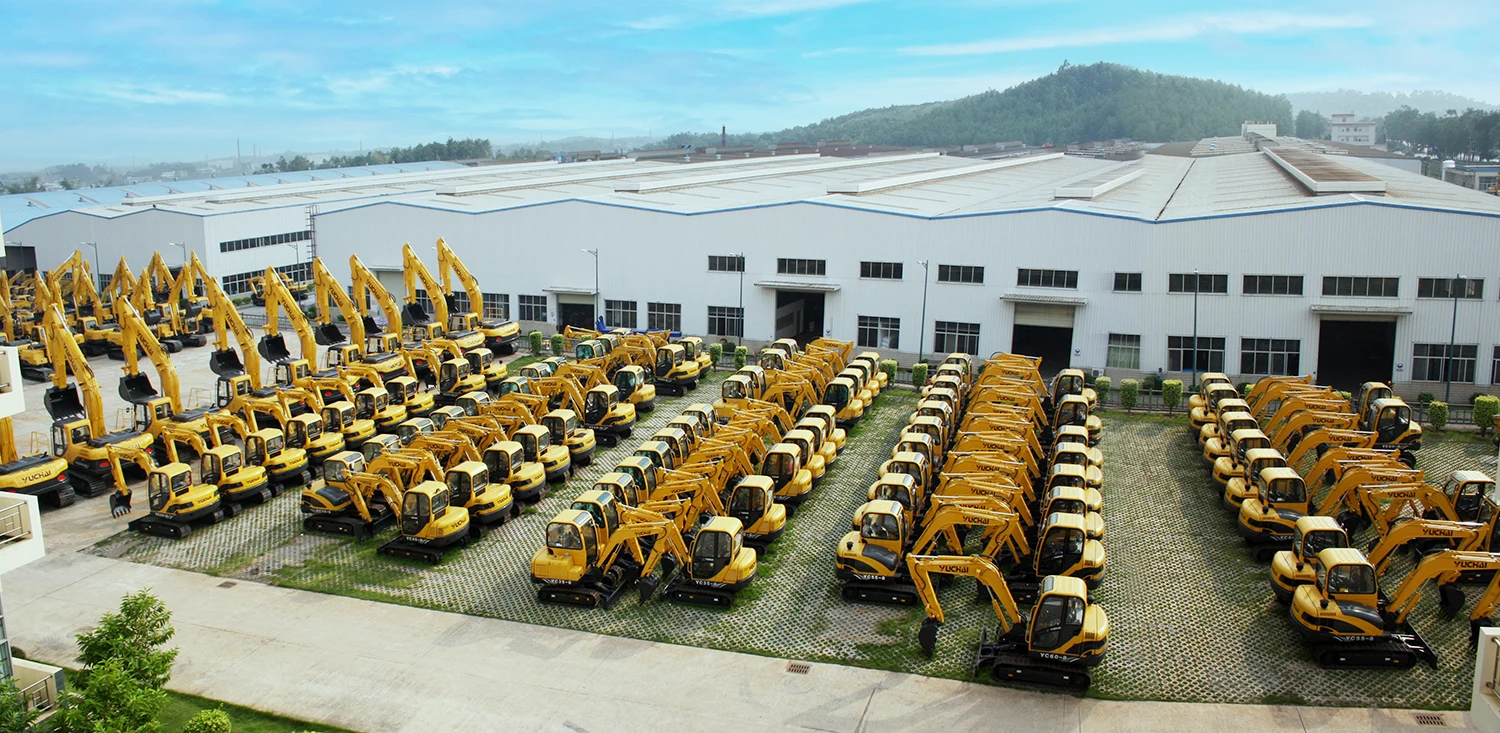

Guangxi Yuchai Heavy Industry Co., Ltd. is a Sino-foreign joint venture enterprise controlled by Yuchai Machinery Group Co., Ltd.It is al professional manufacturer who focus on crawler excavators since 1989, engaged in R&D, manufacturing and sales of varioussized construction machinery. It is the first manufacturer of mini excavator in China, as well as the main export base of miniconstruciton machinery.The company upholds such quality concepts with Creating famous brand name by manufacturing crowned product and such serviceprinciples with striving all out to serve the customers, spending full sincerity to confidence the world, And is trying all the time to provide better products to the world. With an annual capacity to produce 10,000 sets of construction machinery. The main products are the Hydraulic Excavator, Rotary Drilling Rig, Skid Steer loader etc. There are more than 18 models of multi-functional full hydraulic excavators. The products are of compac structure and reliable quality. The performance indexes of the products have reached the international advanced level, and obtained more thar 300 national patents. Most of them are CE certified. They could conduct digging, rock-breaking, drilling, grabbing and ditch-cleaning, and widely used in construction projects such as public and municipal infrastructure works, garden, farm, mine and irrigation etc. And such service principles with striving all out to serve the customers, spending full sincerity to confidence the world, And is trying all the time to provide better products to the world.
