Китай тяжелый автомобиль HOWO 6x4 10 колеса Bobtail LPG грузовик 20000L для заполнения газовые

Описание и отзывы

Характеристики

HOWO 6x4 10 wheel 20M³ LPG Tanker LPG Gas Bobtail Truck 20000L price

1. Engine: WD615.47, 371hp.
2. Volume: 3m3, 5m3, 8m3, 10m3, 12m3, 15m3, 18m3, 20m3, 25M3, 35.5M3/ 3000L, 5000L, 8000L, 10000L, 12000L, 15000L, 18000L etc.
3. Loading capacity: 2tons, 4tons, 5tons, 6tons, 8tons, 9ton, 10tons, 15tons, 18tons etc.
4. Key parts: blackmer/corken pump, filling gun, dispenser filling weight scale, flew meter, Pressure Gauge, Level Gauge etc.



The Characteristic of LPG TANK from our Company:



1. The tank is one important part of the liquefied gas semi-trailer.

2. The tank consists of the cylinder shell and standard ellipsoidal head.

3. The tank’s material is high intension steel plate Q345R that is specially used in pressure vessel.

4. The double side auto-welding is adopted in tank’s main welding joints.

5. The 100% x-ray checking shall be done to A and B kinds welding joints and shall accord with Ⅱ grade requirements of JB4730 ‘Non-destruction testing for Pressure vessels’.

6. The fully magnetism checking or penetrate checking shall be done to C and D kinds welding joints and shall accord with Ⅰ grade requirements of JB4730. PWHT shall be done after the welding of tank. The hydraulic test shall be done after the post weld heat treatment.

7. The manhole of the tank is used for cleaning and maintenance of the tank’s inside. The baffles are mounted on the tank’s inside to prevent wave. The seat is welded on the tank’s bottom.

 8.After tanker assembly, have carried on the gas leak test to the complete vehicle according to the design pressure, authorize third party to have qualification supervise after examining by country-qualified making available to the users.

Technical Specifications



Cabin		Sinotruk Hw76 Cabin ,left hand drive, with air conditioner3 Passengers Allowed
Vehicle Main Dimensions		Overall dimensions (L x W x H)mm			8980×2500×3690
		Wheel base (mm)			4350 +1350
		Wheel track (front/rear) (mm)			1900 /1800
		Approach/Departure angle(°)			38/18
Weight in KGS		Tare Weight			12000
		Payload			10000
		Front axles loading capacity			1x7000
		Rear axles loading capacity			2x16000
Max. driving speed(km/h)				90
Engine	Brand		Sinotruk
	Model		WD615.47
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		371
	Displacement (cc)		7200
	Emission standard		Euro II
Gearbox	10 forwards & 2 reverse
Steering	Left hand driven
Tire	10.00-20 nylon tires with one spare ,11 pieces totally
LPG Tank System	Volume of tank: 20 CBM Filling Medium: Liquefied Petroleum Gas (propane) Medium Density:420-590 kg/ cbm Design Temperature(ºC):Under 50ºC Water Pressure Test(MPa) : 2.1 Mpa / 21 Bar Design Pressure(MPa): 1.61 Mpa / 16.1 Bar Corrosion Allowance(mm): 1mm Tank Material: Q345R high tension steel, 10 mm Thick Tank Body. With filling system , hydraulic pump ,hydraulic motor,lpg pump , meter, filling hoses , filling nozzle. Main Accessories: Safety Valve DN100,Emergency Cut-off Valves, DN25 for gas phase,DN50 for liquid phase;Ball Valves,DN25 for gas phase, DN50 for liquid phase;Liquid level meter, Pressure gauges,Temperature Gauge, Valve Box.

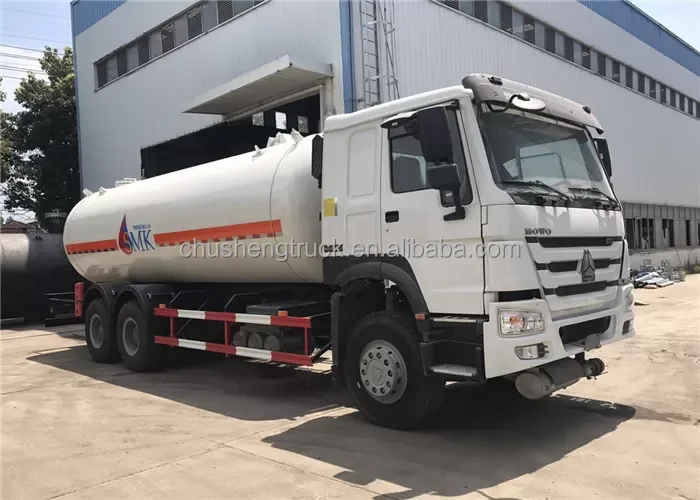

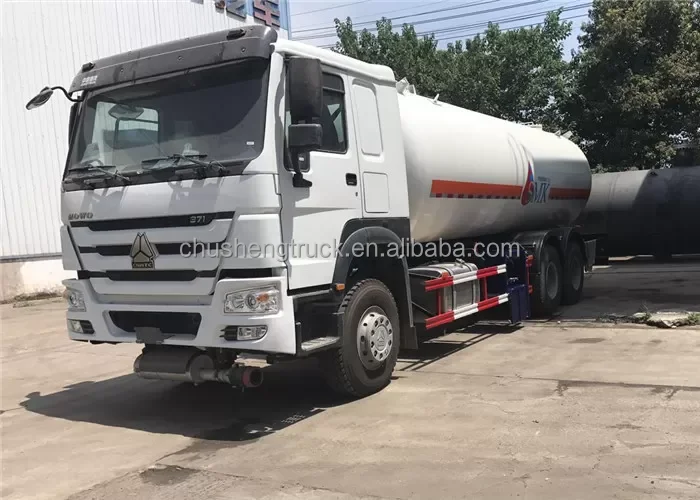

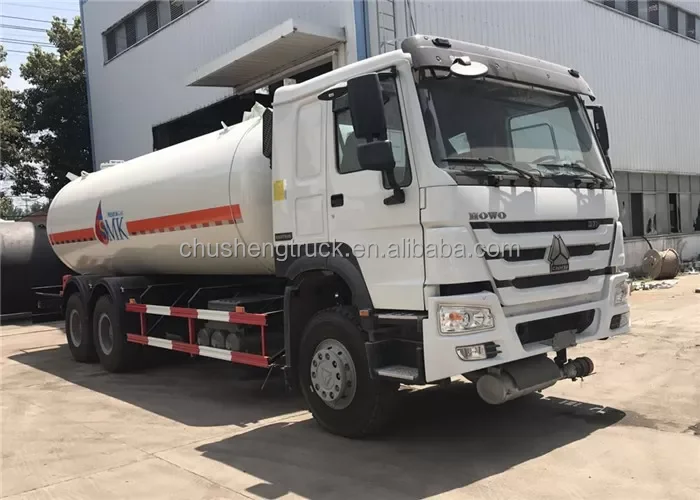

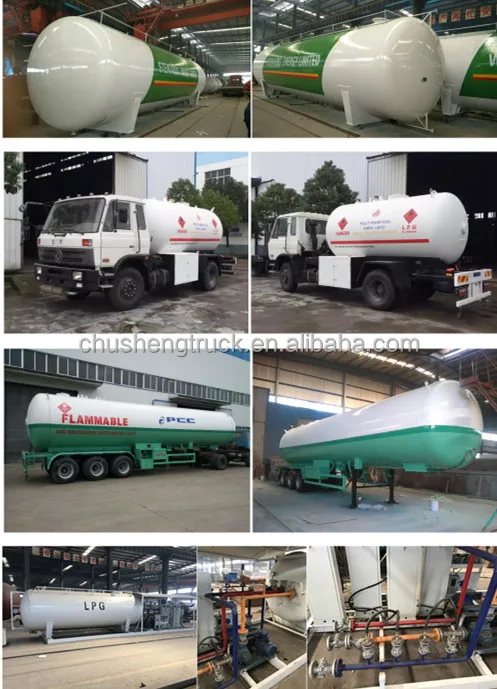

LPG Tank Truck Pictures for your reference

Relevant Products

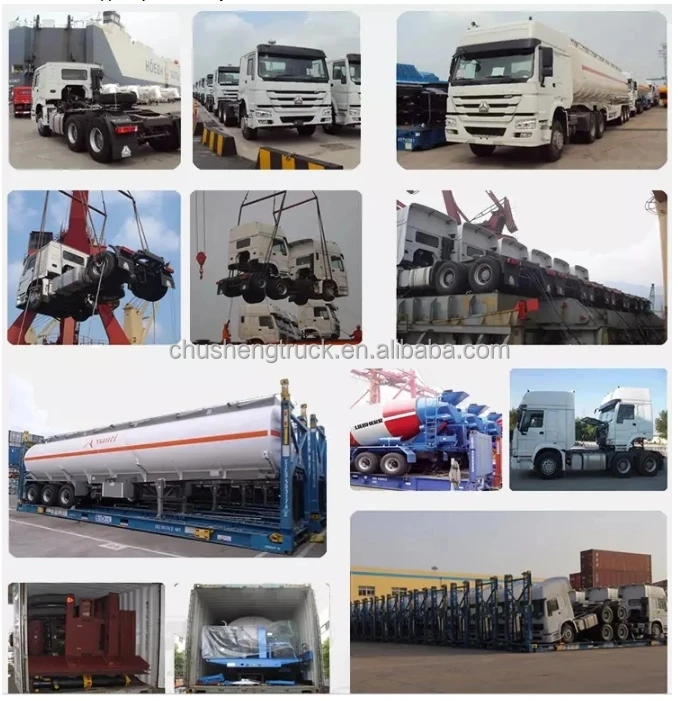

Packaging and shipping
Trucks can be shipped by bulk, ro-ro, flat-rack or containers.

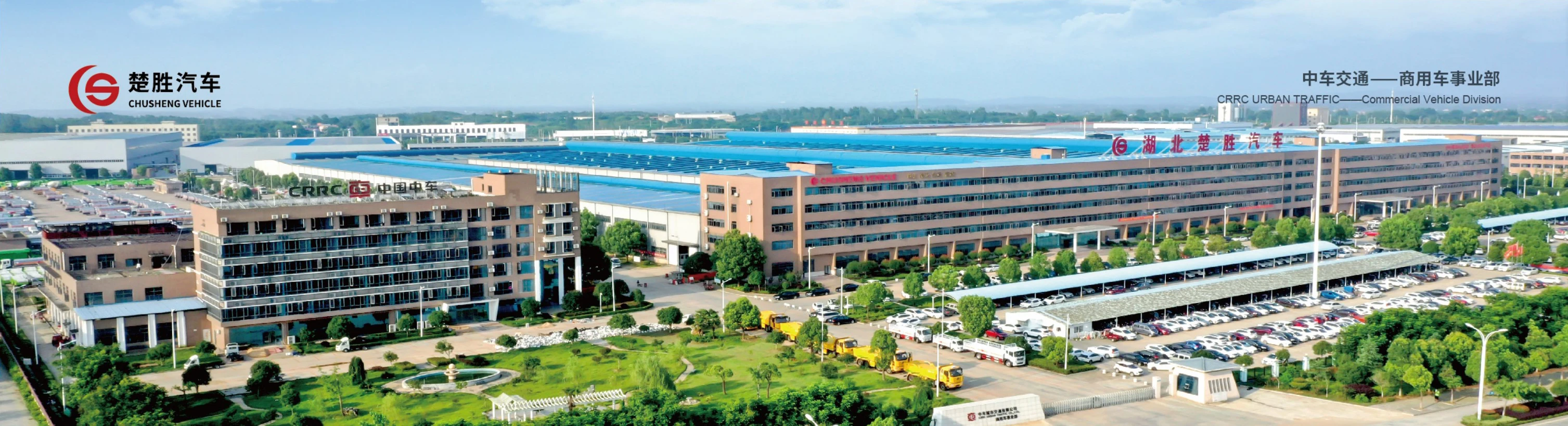

Company Imformation



1. Chusheng Vehicle Group Co., Ltd. is a famous and the biggest manufacturer  with professional  experience in special automobile field for more than 20 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 700,000m².

2. Our products have been exported to 60 countries, including Middle East, Asia, Africa, Eastern Europe and other countries and regions.  Our product have passed the ISO9001 quality system certification, and CCC certificate.

3. Our company has more than 1000 units advanced production equipments, forming production lines for dump trucks, tank trucks, wrecker trucks, garbage trucks, other special trucks and semi-trailer, with an annual output of 50,000 units production capacity.

Our Services

Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service:
1. Lifetime free maintenance and upgrade. Spare parts could be supplied by cost price.
2. Free technician training, engineer abroad for customer service.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
4. Special service for big project, such as stadium, exhibitions, squares and so on.

FAQ
Q1. Are your manufacturer ?
A : Yes. We can totally manufacture the trucks as you required.

Q2. Do you have a good organization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line, like MSK,PIL, SUNSHINE SHIPPING, ETC. The order over 500 units of vehicle, we will lease a vessel.

Q3. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.

Q4. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.



Contact us: Kelly(@)cs-vehicle.com
