10 Years Experience Factory Directly pe pipe winder / plastic pipe winder in plastic winding machines
Application:
The machine was mainly used to tolling and packing of the plastic soft pipes. It matches other equipment in usage to effect the automatization of processing.
Advantage of winder machine :
1.Fully automatic,save manpower.
2.Suitable for wide range diameter of pipe.
3.Easy to operate,maintain.e
4.Lower powder consumption.
The machine was mainly used to tolling and packing of the plastic soft pipes. It matches other equipment in usage to effect the automatization of processing.
Advantage of winder machine :
1.Fully automatic,save manpower.
2.Suitable for wide range diameter of pipe.
3.Easy to operate,maintain.e
4.Lower powder consumption.
Technology Parameters
1. Double station coiler (20-63mm)
Speed: 0.5-12m/min
Winding length: 250-300m
1 | Max. winding speed | 12m/min |
2 | Min. inner diameter of coil | 580mm |
3 | Max. outer diameter of coil | 2200mm |
4 | Coil width | 400-600mm |
5 | Air pressure | 0.3-0.6Mpa |
2. Single station winder (63-110mm)
Speed: 0.5-4m/min
Winding width: 400m
1 | Max. winding speed | 0.5-4m/min |
2 | Min. inner diameter of coil | 1600, 1800, 2000mm (adjustable) |
3 | Max. outer diameter of coil | 3000mm |
4 | Coil width | 1000mm |
5 | Air pressure | 0.6Mpa |

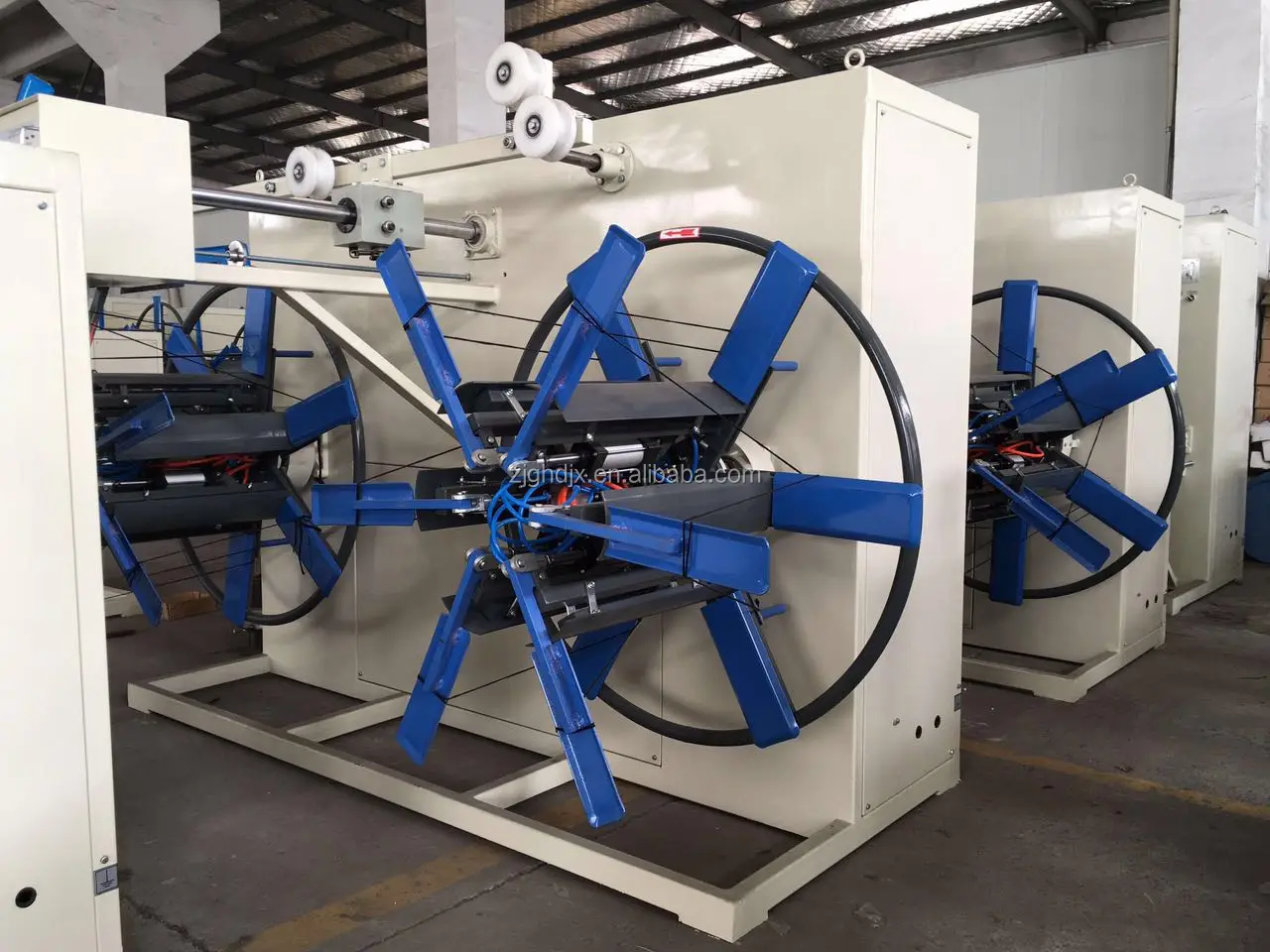

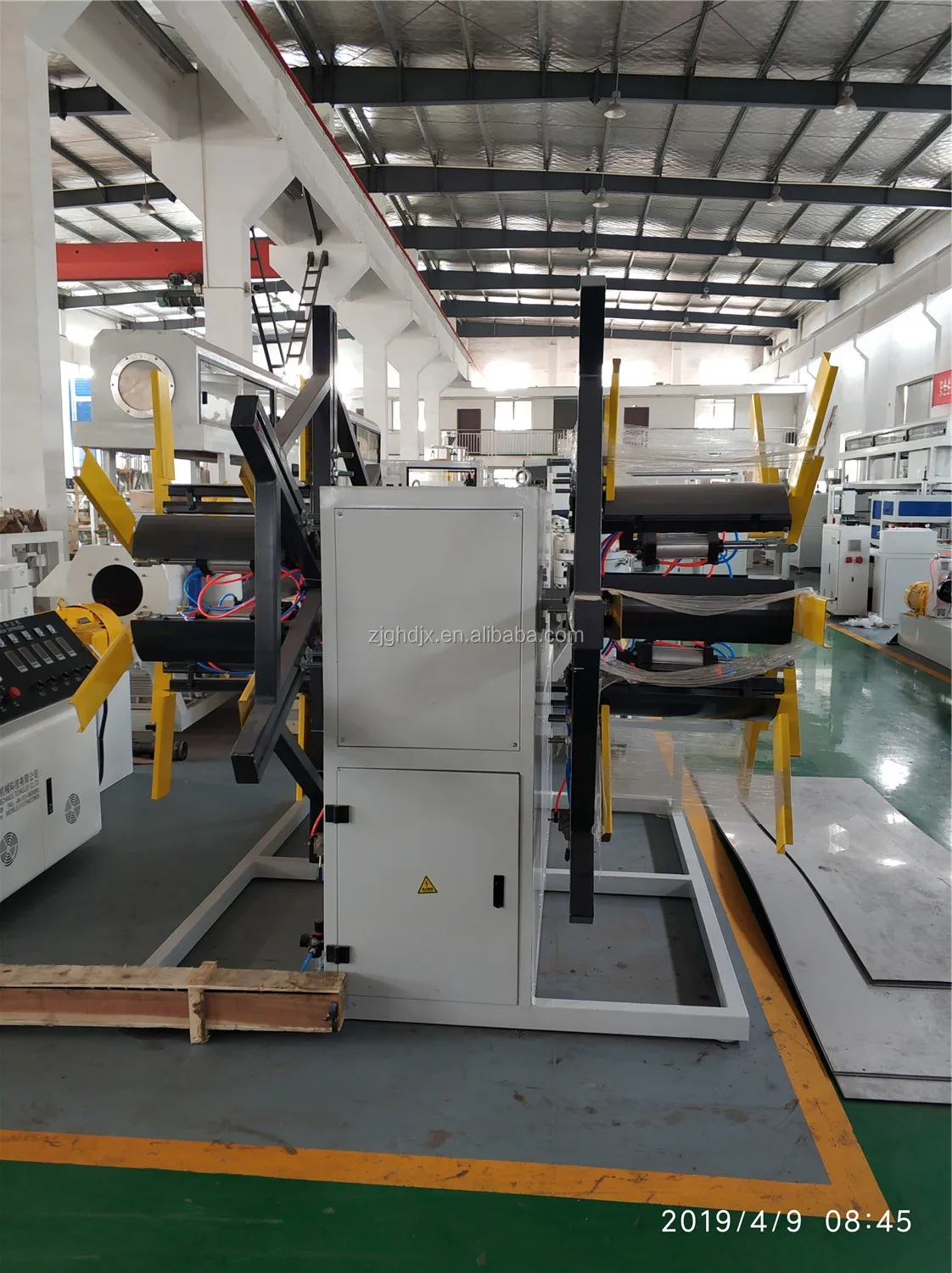

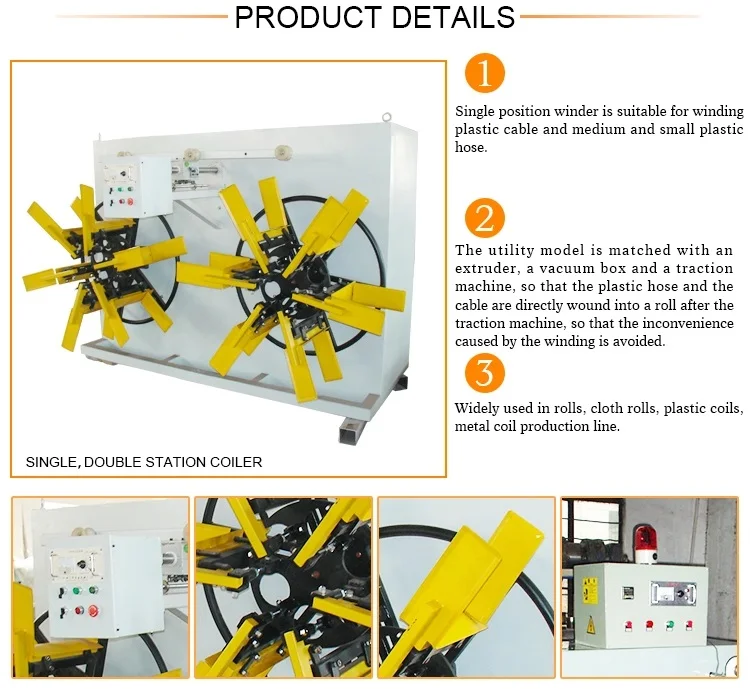

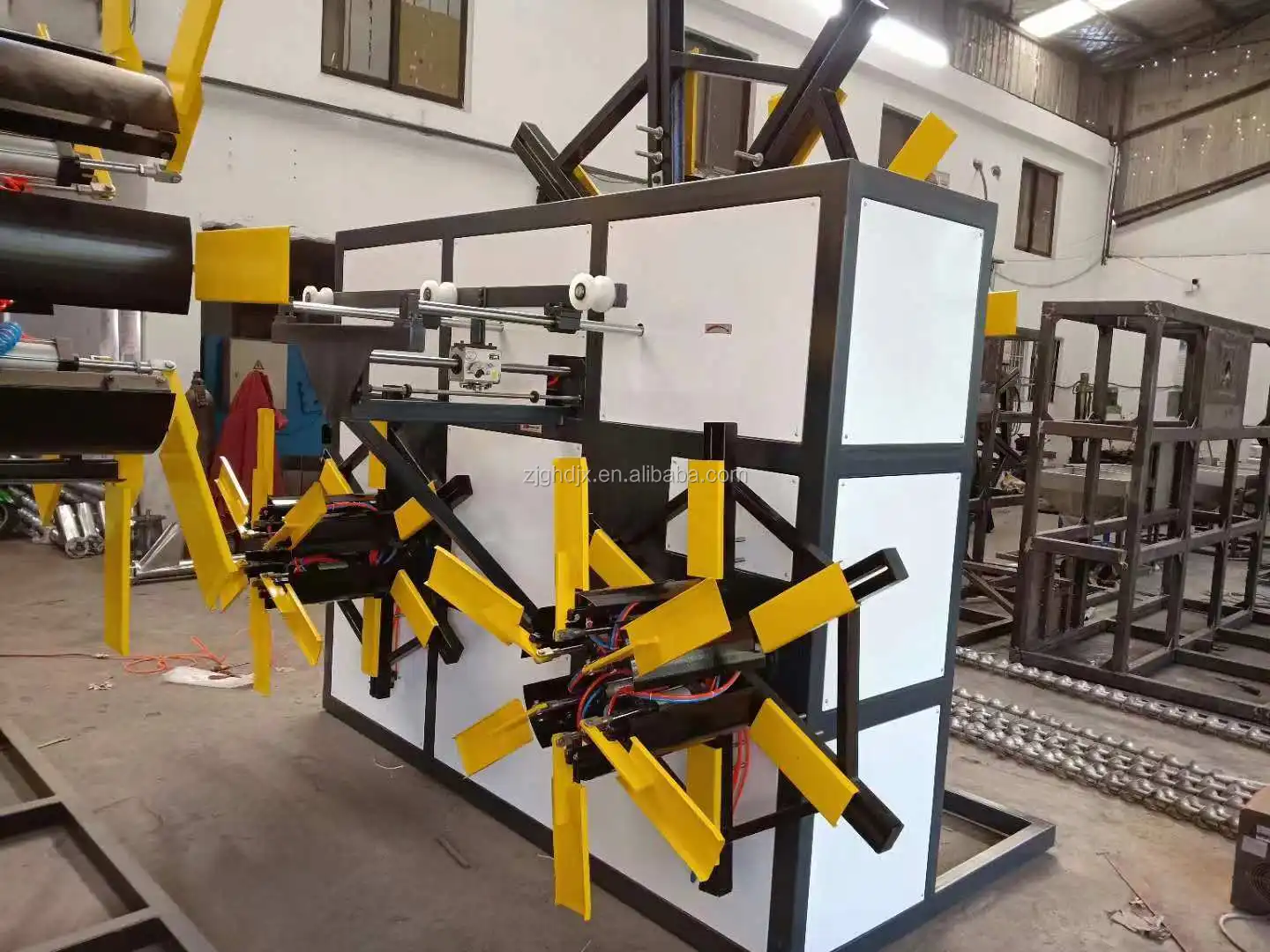

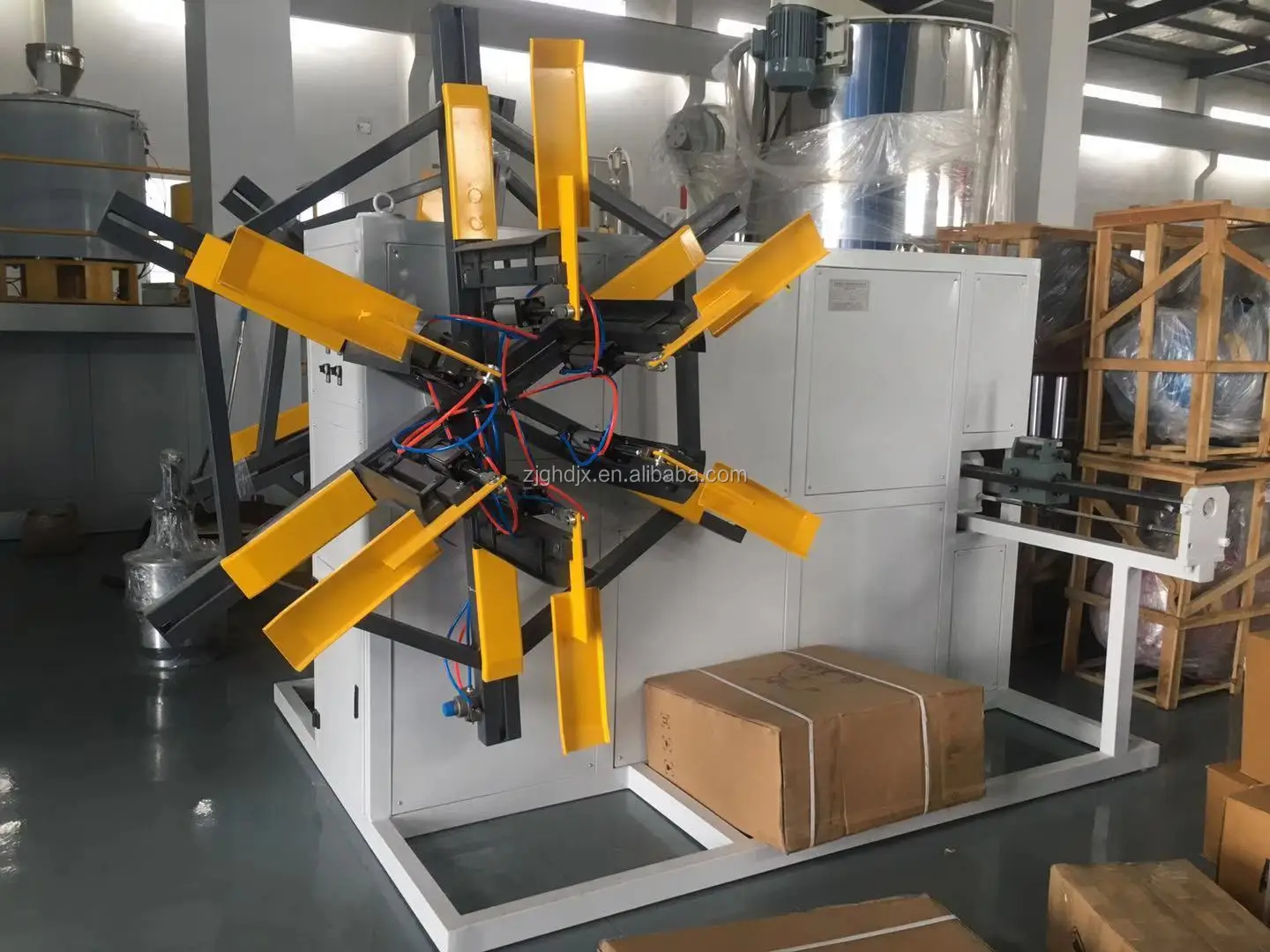

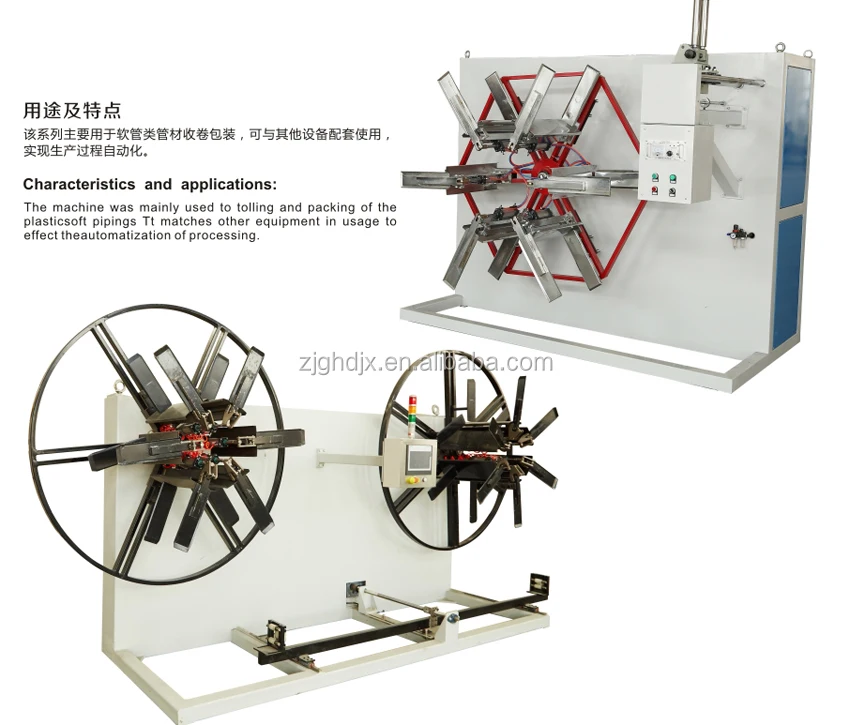

10 Years Experience Factory Directly pe pipe winder / plastic pipe winder in plastic winding machines photos
10 Years Experience Factory Directly pe pipe winder / plastic pipe winder in plastic winding machines from Zhangjiagang Huade Machinery
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to South Asia(10.00%),South America(10.00%),Eastern Asia(10.00%),Mid East(8.00%),Southeast Asia(5.00%),Africa(5.00%),Northern Europe(3.00%),Eastern Europe(3.00%),Southern Europe(3.00%),Western Europe(2.00%),North America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PVC PIPE PRODUCTION LINE,PE/PPR PIPE EXTRUSION LINE,PLASTIC RECYCLING WASHING LINE,PET BOTTLE /PE PP RECYCLING MACHINE,PLASTIC MIXER
4. why should you buy from us not from other suppliers?
We will always put the quality in the first place, our team of inspectors' controls all production steps and makes sure each machine is tested with its original voltage, frequency and safety standard before leaving the factory.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Russian
We are based in Jiangsu, China, start from 2011,sell to South Asia(10.00%),South America(10.00%),Eastern Asia(10.00%),Mid East(8.00%),Southeast Asia(5.00%),Africa(5.00%),Northern Europe(3.00%),Eastern Europe(3.00%),Southern Europe(3.00%),Western Europe(2.00%),North America(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PVC PIPE PRODUCTION LINE,PE/PPR PIPE EXTRUSION LINE,PLASTIC RECYCLING WASHING LINE,PET BOTTLE /PE PP RECYCLING MACHINE,PLASTIC MIXER
4. why should you buy from us not from other suppliers?
We will always put the quality in the first place, our team of inspectors' controls all production steps and makes sure each machine is tested with its original voltage, frequency and safety standard before leaving the factory.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Russian
