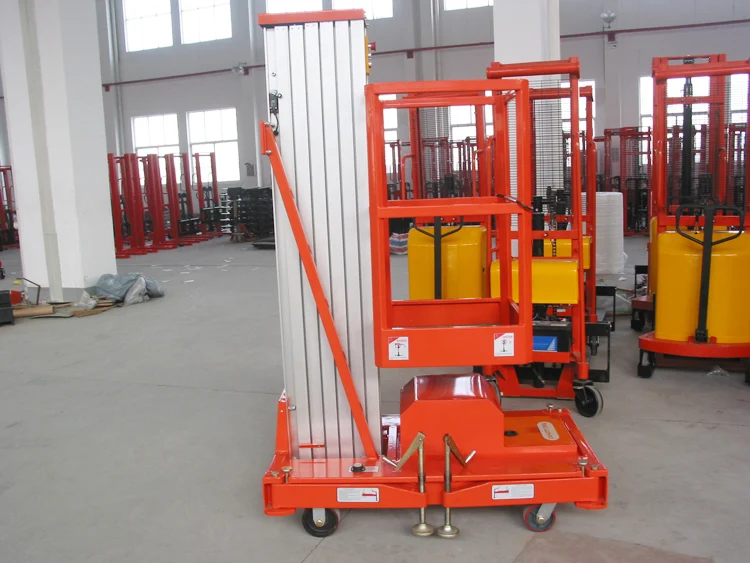

GTWY SERIES ALUMINIUM AERIAL LIFT PLATFORM
-Single Aluminum alloy mast Lifts are made up of high quality aluminum alloy and is equiped with the universal wheels.
-Easily pushed around to the work site due to its light weight.
-Beautiful structure,compact main body,light weighted,safe and reliable.
-The control panels are available on both the upper lift platforms and the lower lift base.
-Single Aluminum alloy mast Lifts is a good helper for the aerial equipment/ maintainnance / paint decoration.
-Easily go through the regular doors and elevators,of low energy consumption, no pollution, do no damage to the grounds.
-The lifting height ranges from 4m to 10m and lifting capacity varies from 100 to 150kg.
-The power sources could be 220V,380V,415V or chargeable battery.
-It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops. hall,hotels,lobby,restaurant,railway stations,exhibition hall and shopping malls.
-Easily pushed around to the work site due to its light weight.
-Beautiful structure,compact main body,light weighted,safe and reliable.
-The control panels are available on both the upper lift platforms and the lower lift base.
-Single Aluminum alloy mast Lifts is a good helper for the aerial equipment/ maintainnance / paint decoration.
-Easily go through the regular doors and elevators,of low energy consumption, no pollution, do no damage to the grounds.
-The lifting height ranges from 4m to 10m and lifting capacity varies from 100 to 150kg.
-The power sources could be 220V,380V,415V or chargeable battery.
-It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops. hall,hotels,lobby,restaurant,railway stations,exhibition hall and shopping malls.
Model | GTWY4-100 | GTWY6-1000 | GTWY8-100 | GTWY9-100 | GTWY10-100 | |
Max.Plarform Height | mm | 4000 | 6000 | 8000 | 9000 | 10000 |
Max. Working Height | mm | 5700 | 7700 | 9700 | 10700 | 11700 |
Groud Clearance | mm | 80 | 80 | 80 | 80 | 80 |
Max load Capacity | kg | 125-150 | 125-150 | 125-150 | 125 | 125 |
Platform Size | mm | 640x580 | 640x580 | 640x580 | 640x580 | 640x580 |
Outspread Size | mm | 1930*1770 | 1930*1770 | 1930*1770 | 1930*1770 | 1930*1770 |
Electric Source | AC | 220V | 220V | 220V | 220V | 220V |
DC | 24V | 24V | 24V | 24V | 24V | |
Battery | V/Ah | 2*12/60 | 2*12/60 | 2*12/60 | 2*12/60 | 2*12/60 |
Charger | V/A | 24/10 | 24/10 | 24/10 | 24/10 | 24/10 |
Lifting Motor | AC | 220V/0.75Kw | 220V/0.75Kw | 220V/0.75Kw | 220V/0.75Kw | 220V/0.75Kw |
DC | 24V/2.0Kw | 24V/2.0Kw | 24V/2.0Kw | 24V/2.0Kw | 24V/2.0Kw | |
Overall Length | mm | 1180 | 1280 | 1280 | 1360 | 1450 |
Overall Width | mm | 800 | 800 | 800 | 850 | 850 |
Overall Height | mm | 1650 | 1650 | 1980 | 1980 | 2150 |
Net Weight | AC | 200 | 265 | 290 | 315 | 350 |
DC | 230 | 295 | 320 | 345 | 380 |
Q1: Are you a manufacturer?
A 1: Yes, and we also export for several our partner factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, we have large range of product, no factory can produce all these product in one factory.
Q2: Warranty for the product?
A2: 12 months warranty on major components.
Q3: How about the delivery time for the products showed in website?
A3: Normally 15-35 days after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.
Q4: How many days we need for sending shipping documents?
A4: Usually within 5 days after vessel shipped out.
Q5: Can you add our own logo on the products or use our designs?
A5: Yes,of course you can add logo on the product you bought with on condition that you will issue letter of authorization of the brand.We provide OEM/ODM service.I addition,we promise your design would protect by law,we won't tell anyone else about this. It's your own copyright.
Q6: Can you send the machine to my factory in other city to load the container?
A6: Yes,please tell us the detail address,we can arrange to send your factory in time with a reasonable charge on transportation.\t\t\t\t\t
Q7: How can the machines be send to us?
A7: Most of our products are heavy and big, it's cylinder contains hydraulic oil. so it is only suitable for sea-shipment in terms of cost.
A 1: Yes, and we also export for several our partner factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, we have large range of product, no factory can produce all these product in one factory.
Q2: Warranty for the product?
A2: 12 months warranty on major components.
Q3: How about the delivery time for the products showed in website?
A3: Normally 15-35 days after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.
Q4: How many days we need for sending shipping documents?
A4: Usually within 5 days after vessel shipped out.
Q5: Can you add our own logo on the products or use our designs?
A5: Yes,of course you can add logo on the product you bought with on condition that you will issue letter of authorization of the brand.We provide OEM/ODM service.I addition,we promise your design would protect by law,we won't tell anyone else about this. It's your own copyright.
Q6: Can you send the machine to my factory in other city to load the container?
A6: Yes,please tell us the detail address,we can arrange to send your factory in time with a reasonable charge on transportation.\t\t\t\t\t
Q7: How can the machines be send to us?
A7: Most of our products are heavy and big, it's cylinder contains hydraulic oil. so it is only suitable for sea-shipment in terms of cost.
