Product Description

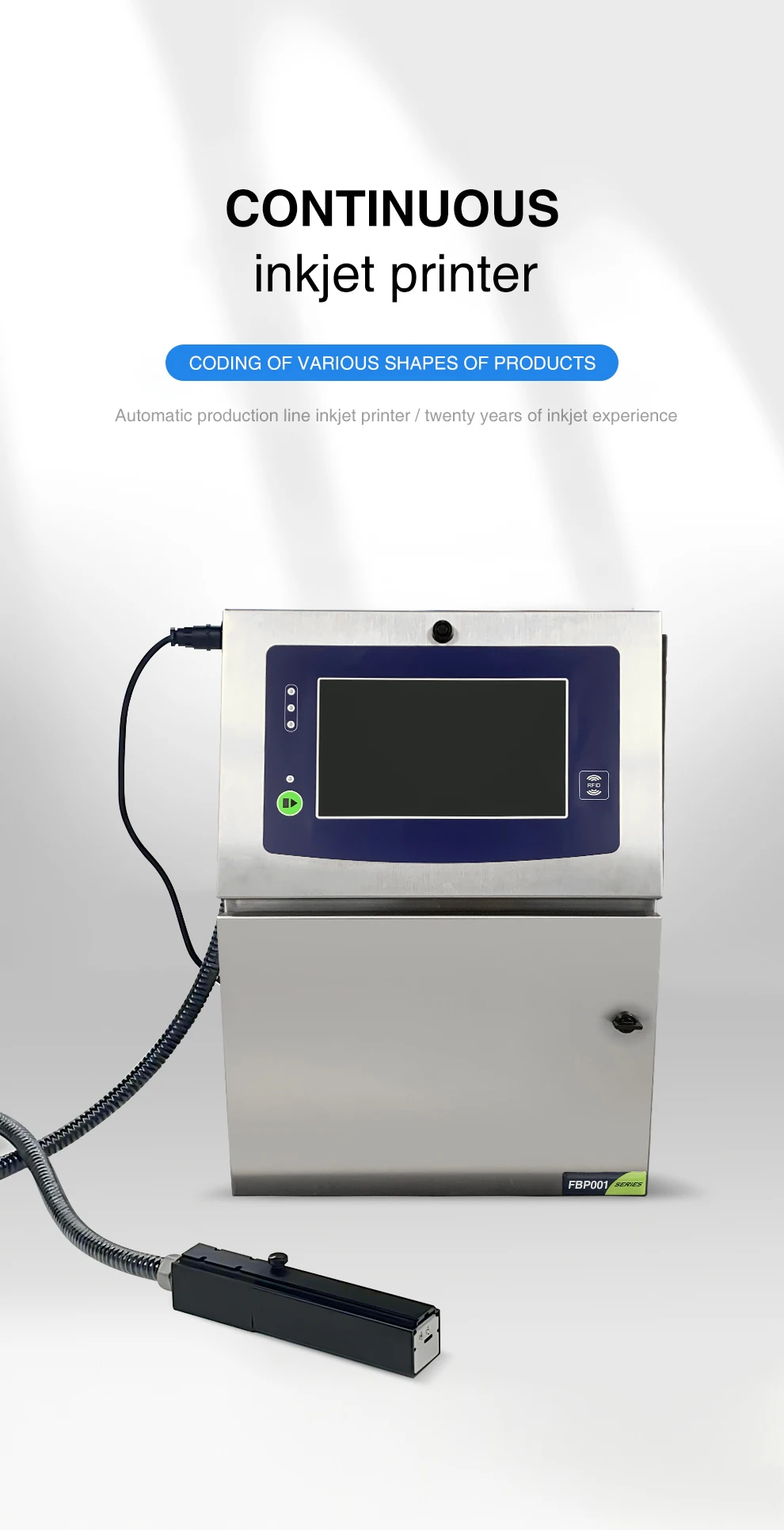

Continuous Inkjet Printer
Coding of various shapes of products
Automatic production line inkjet printer/twenty years of inkjet experience

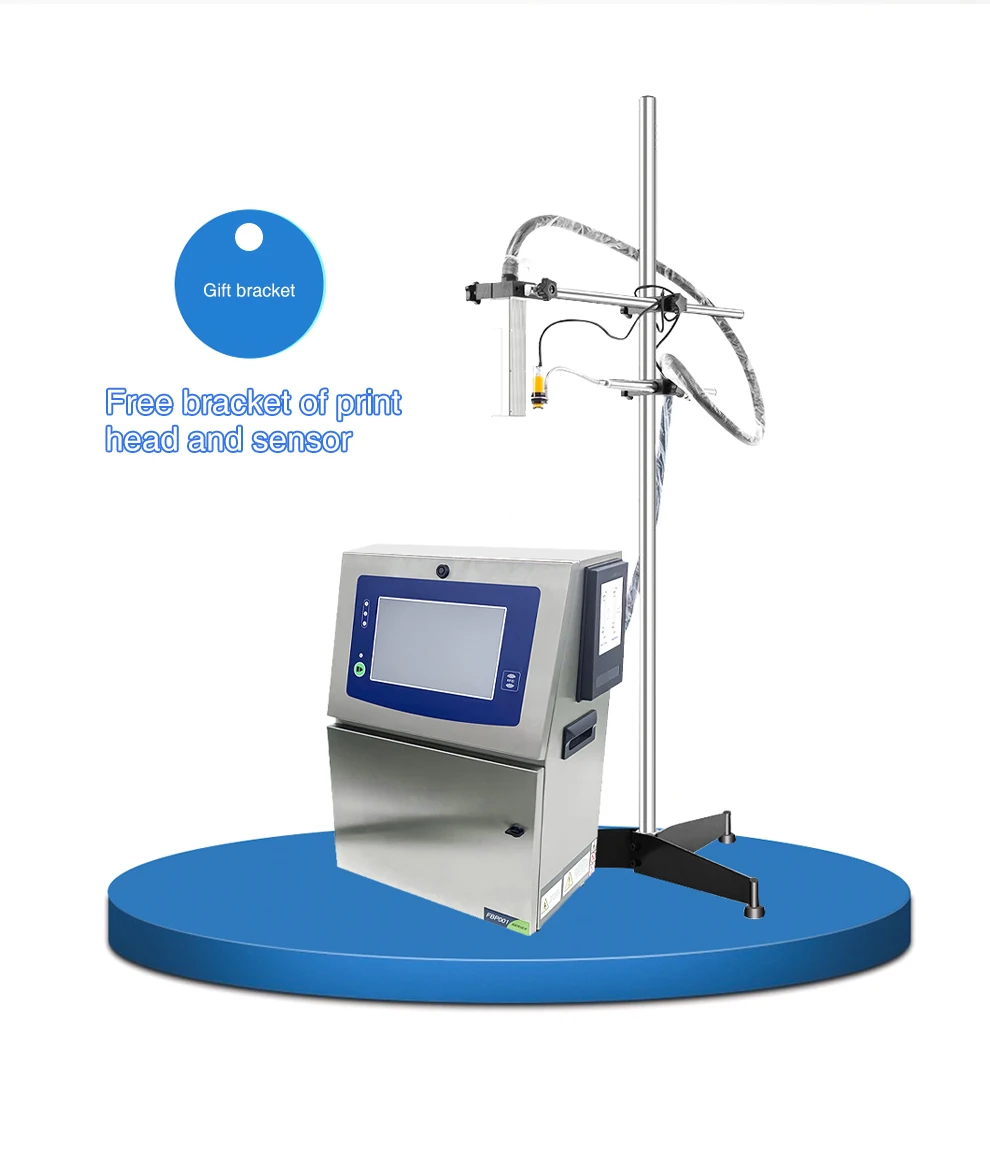

gift bracket
Free bracket of print head and sensor.

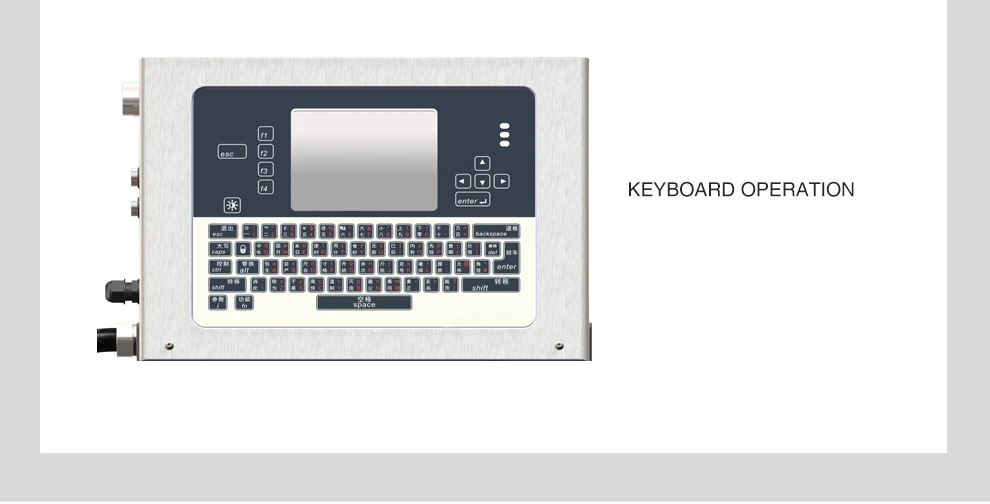

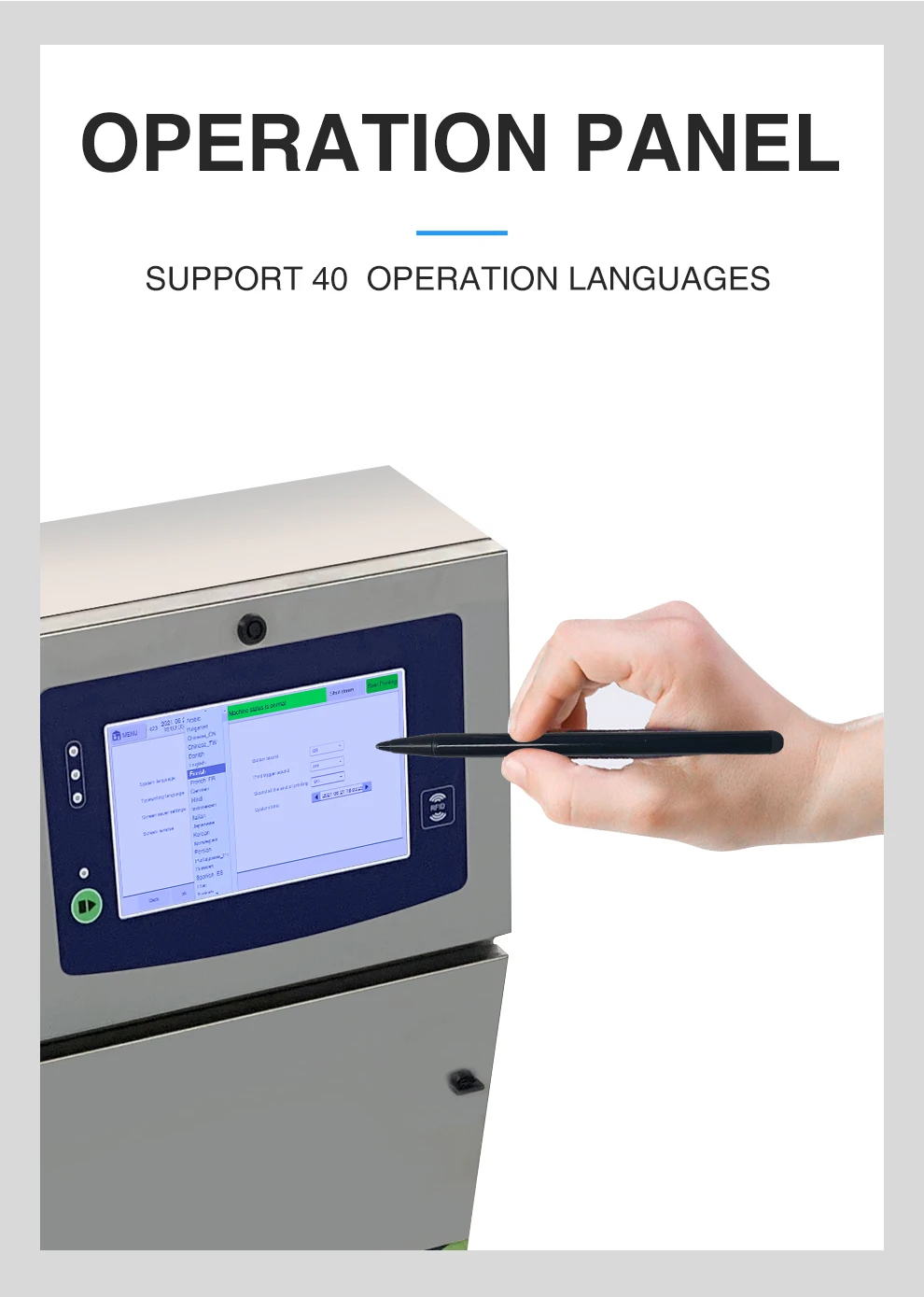

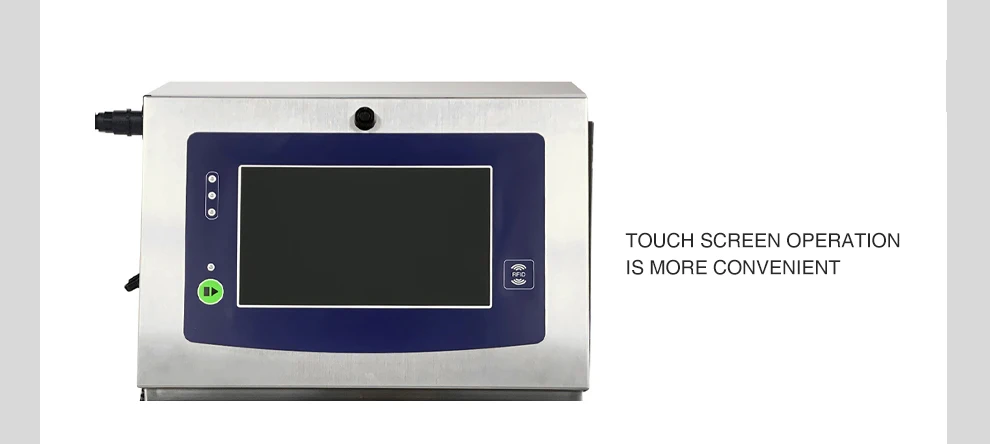

Operation panel
Support 40 operation languages.

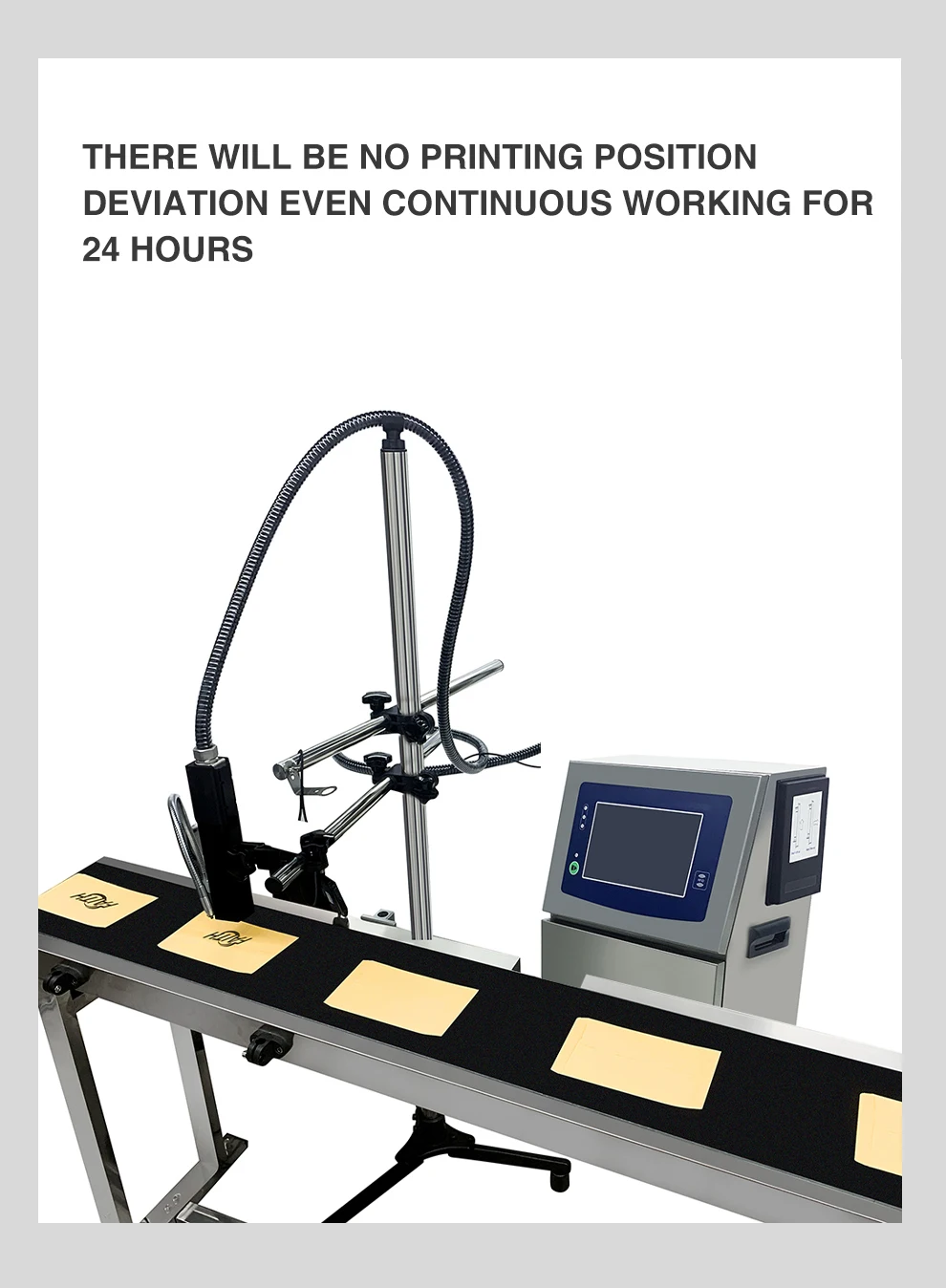

There will be no printing position deviation even continuous working for 24 hours.

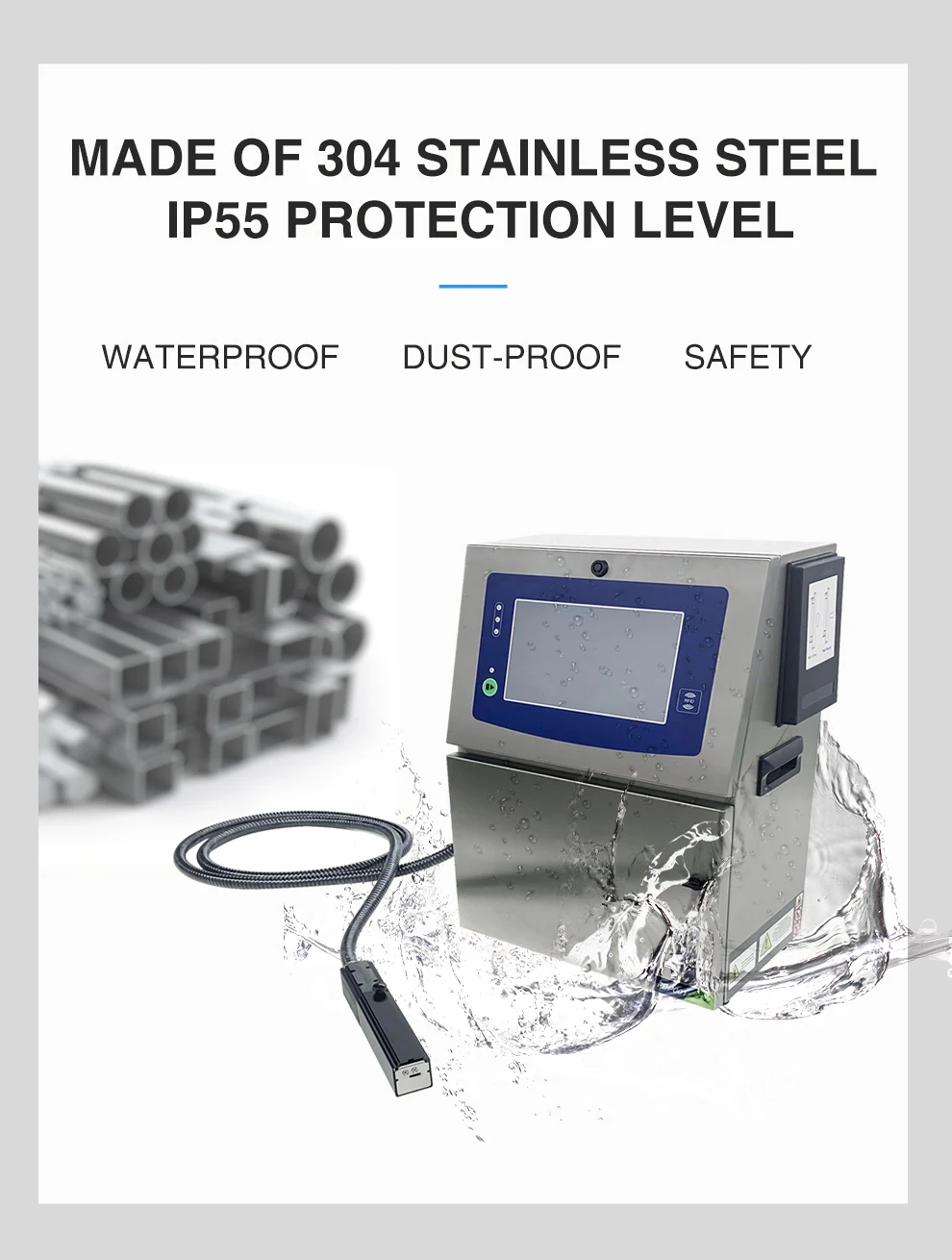

Made of 304 stainless steel ip55 protection level
waterproof dust-proof safety
Insist on design & innovation
our technical team
developed the touch screen to replace the keyboard
Printing Material
Specialize in various concave and convex surfaces.
Continuous inkjet printer product parameters
Printing parameters | Nozzle pipe | 3 meters |
Nozzle specifications | 50u,60u,75u | |
Meter counting accuracy | 0.5-2mm | |
Printing height | 2-20mm | |
Printing distance | 3-30mm | |
Number of printing lines | 1-2 lines | |
Printing speed | 150 meters (5 points), 120 meters (7 points), 150 meters (9 points), 120 meters (11 points), 80 meters (16 points) | |
Printing content | Text, time, date, pattern, shift, serial number, dynamic barcode / QR code, dynamic serial port Data, dynamic database(Other content can be added as required) | |
Barcode type: CODE11,C25INTER,CODE39,EXCODE39,EAN13,EAN13x,CODE128,CODE16K,C ODE49,CODE93,Flattermarken,UPCA,UPCE,EAN14,VIN,NVE18 (More types are available on request) | ||
QR code type: QRcode, DataMatrix, MicroQRcode, PDF417, PDF417TRTRUNC, MICROPDF417 (More types are available on request) | ||
counter | More than 20 independent counters | |
Printing material | Carton, plastic, metal, sheet, pipe, stone, glass, electronic components, auto parts,Industrial chemical packaging, pharmaceutical and food gift packaging boxes | |
Ink type | High adhesion, high temperature resistance, special for glass, permeability, food grade, oil resistance | |
Ink color | Black, red, blue, green, invisible | |
Machine parameters | operating system | Embedded Linux secure operating system |
display screen | 10-inch color display, industrial touch screen | |
Main hardware | American TI AM3358 industrial grade CPU, American Xilinx Spant9 industrial grade FPGA, TIJ dedicated ASIC chip | |
Communication Interface | USB, RS232, network port | |
External interface | Optical eye, encoder, warning light | |
Protection level | IP55 | |
Support language | Supports more than 40 national languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.) | |
Power parameters | Input 100-240V AC | |
Motherboard memory | 256M+8M | |
Machine material | ABS+PC+metal | |

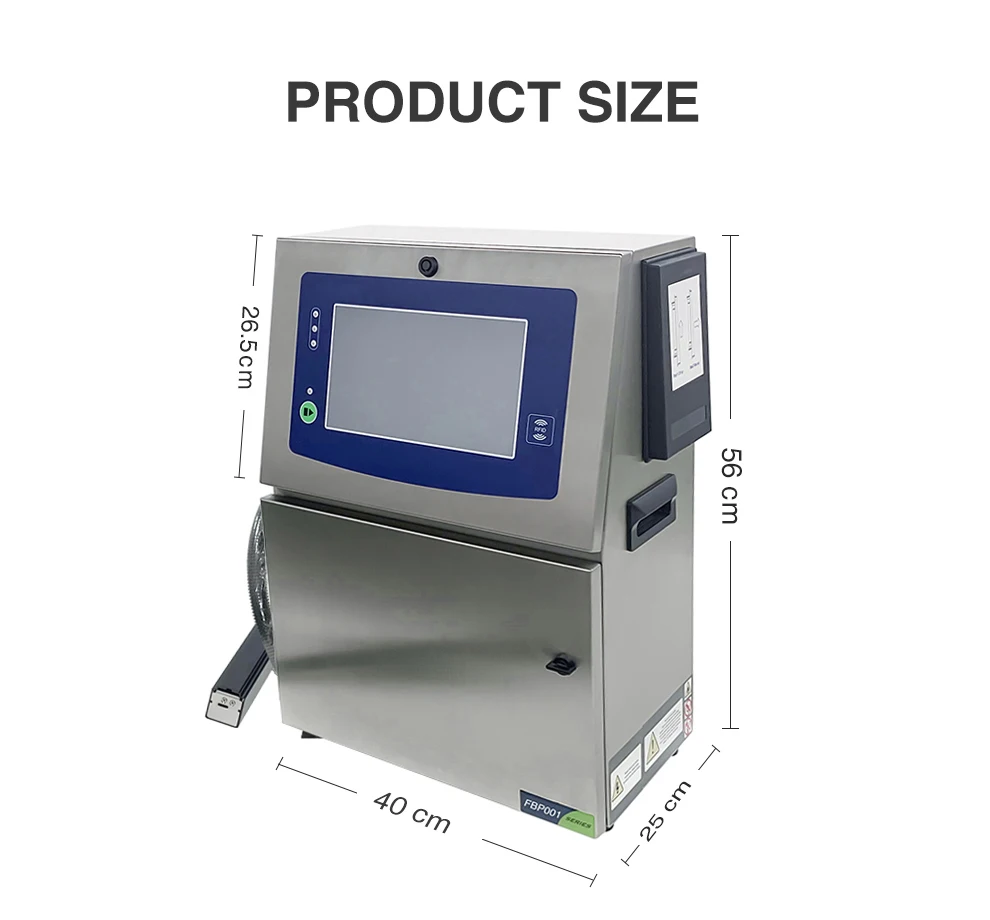

Machine specifications | 400mm*246mm*550mm | |
working environment | Temperature 0-45ºC/ Humidity 30-70%Rh | |
Related certification | RoHS,CE,FCC |

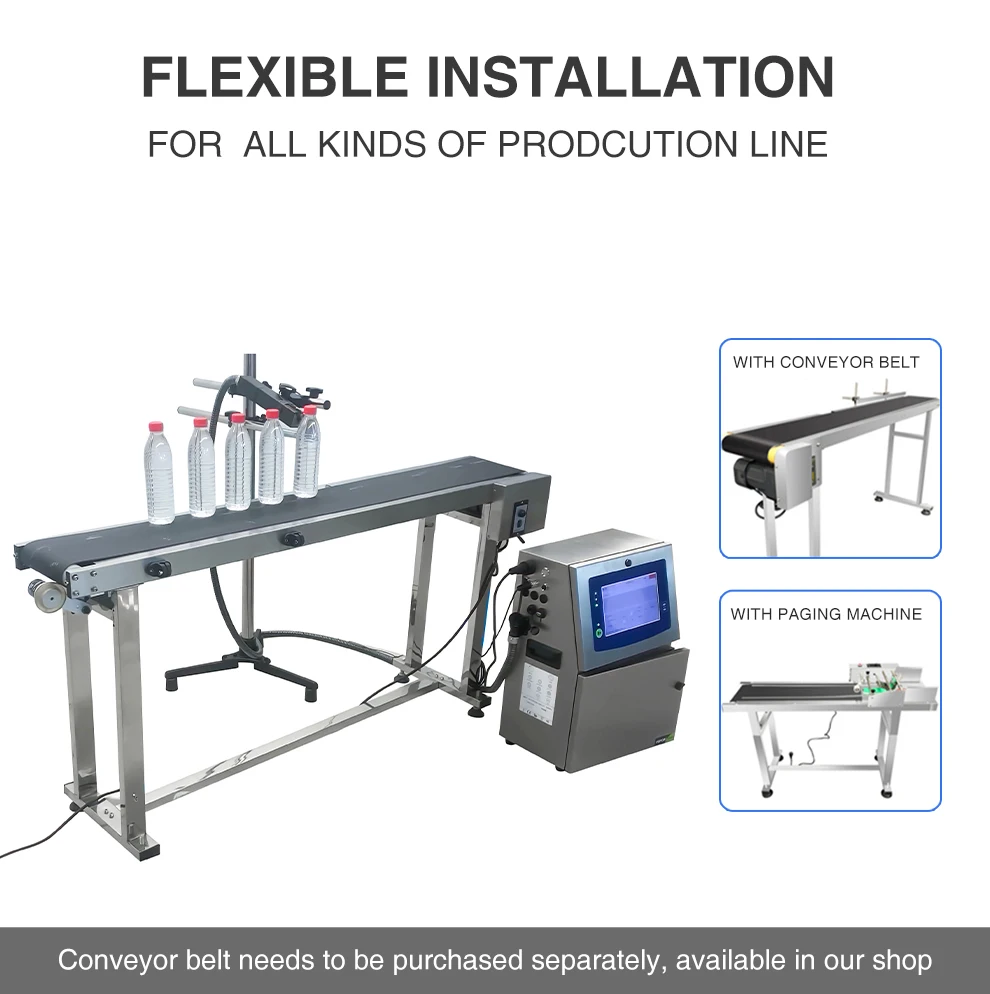

Flexible installation for all kinds of production line
conveyor belt needs to be purchased separately , available in our shop
if you need conveyor belt ,please click here
if you have any question, please contact us

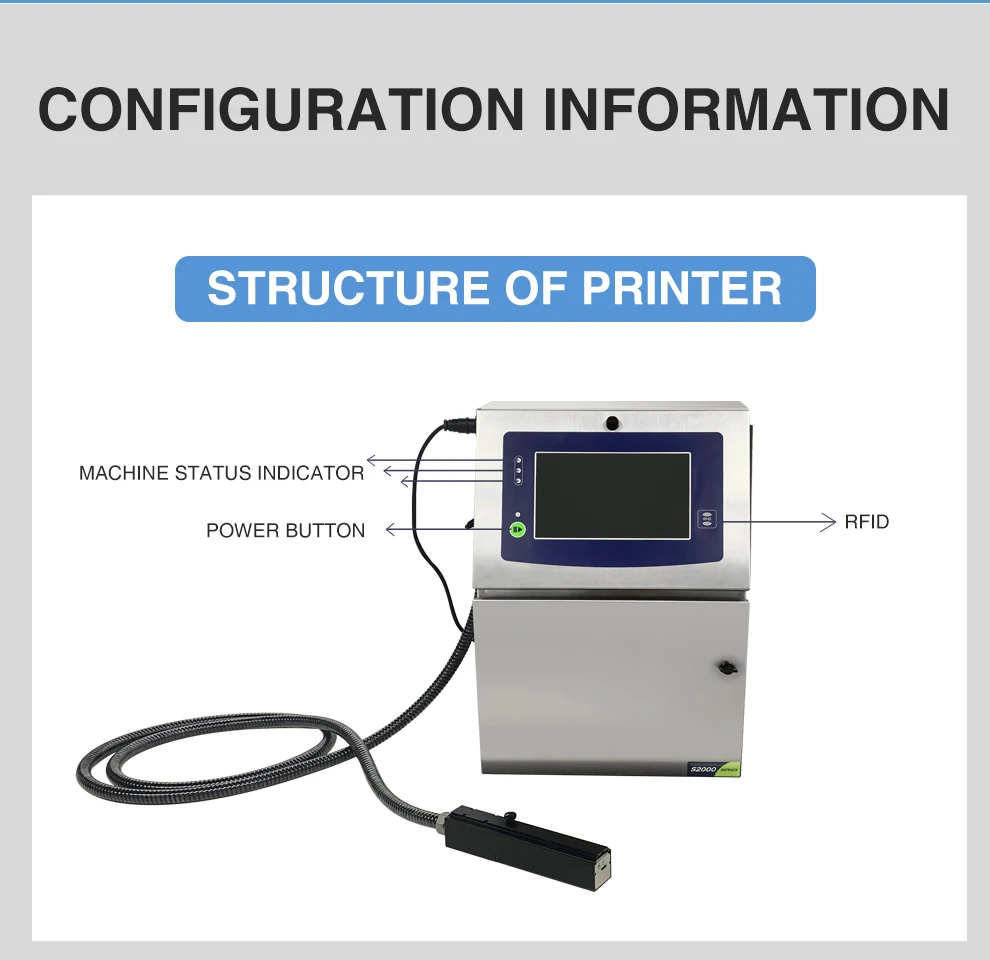

Configuration Information

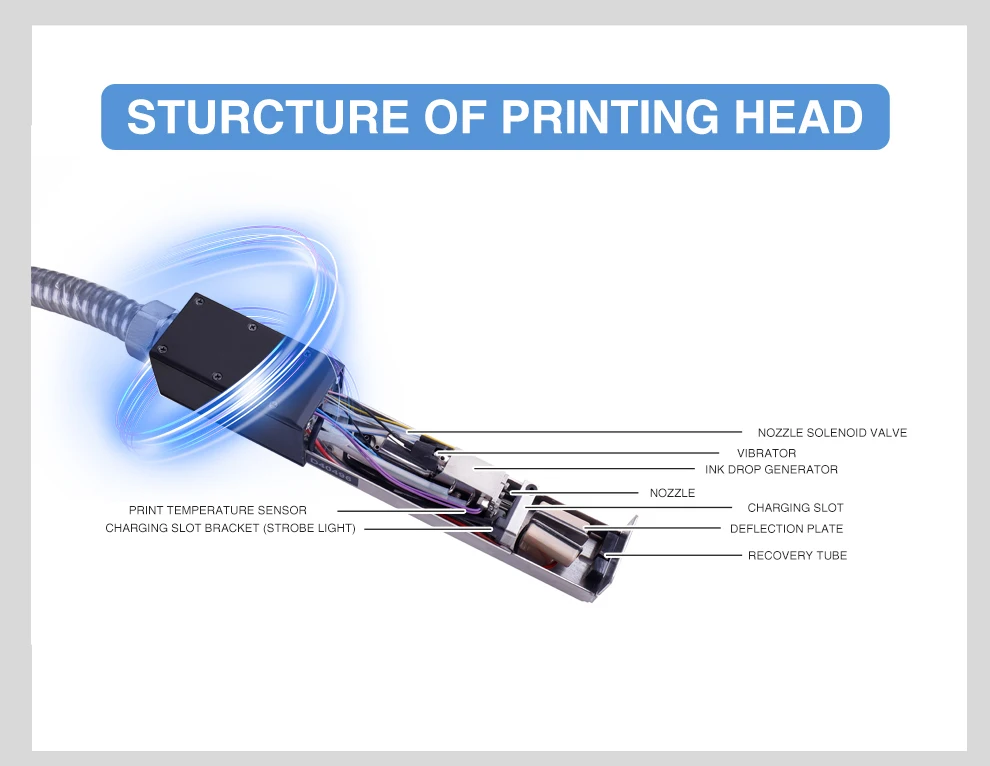

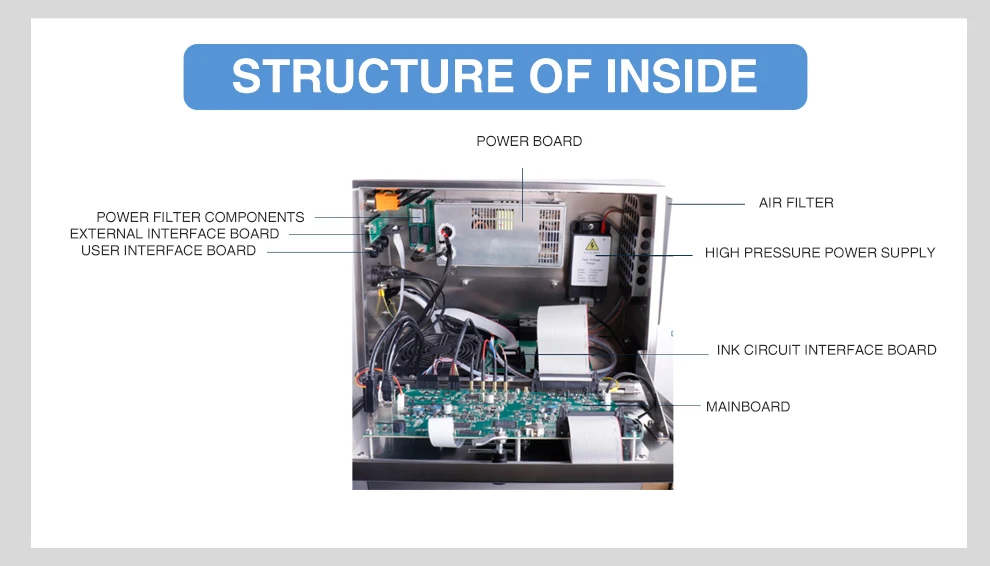

Structure of Printer
Packing & Delivery
After payment is complete, your order will ship within 1-2 days.
We use express UPS, DHL, EMS, FedEx, and the package will reach your hand in 6-12 working days.
Why Choose Us

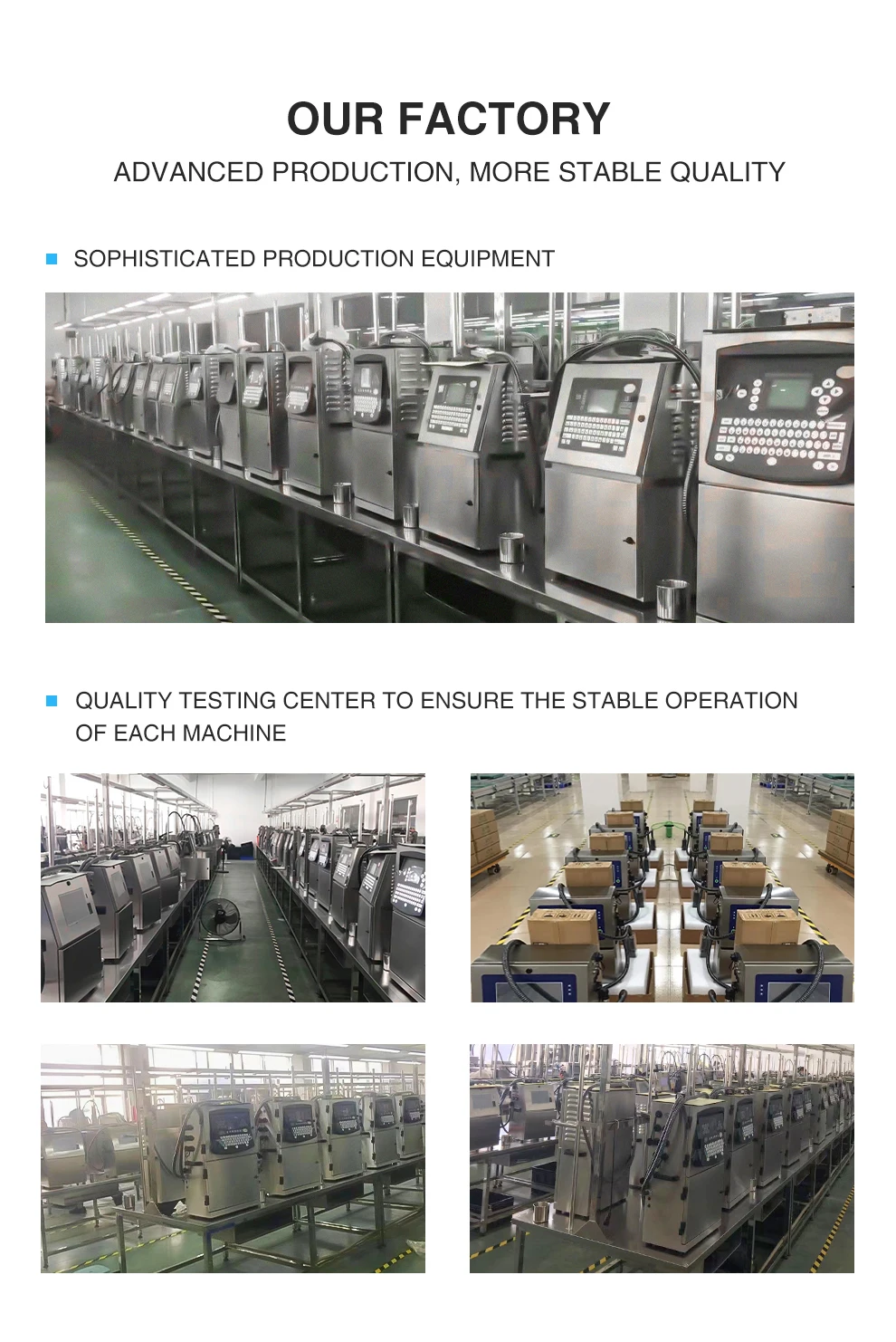

Our Company
Shenyang Faith Technology Co., Ltd. is a high-tech enterprise, which integrates independent research and development, production,sales and service.
It specializes in providing industrial coding technology and traceable system solutions. The company was founded in 2010 with a 30-person team and a 500㎡ production workshop. After more than 10 years of unremitting efforts, by early 2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.
The company's products mainly include laser marking machines, CIJ printers, TIJ printers, and conveyor belts. The products are exported to Spain, the United States,Brazil, Argentina, Chile, Saudi Arabia, the UAE, Egypt, Ecuador and other 126 countries, serving more than 200,000 customers.
The company's philosophy is focus on coding, treats quality as the base and service-oriented principles. Shenyang Faith Technology's vision is to become the most professional, caring and trustworthy enterprise in the printing industry.
Online After-sales Service 24 Hours
No matter you seek help at any place, any time, we can respond quickly excellent technical consultant, provide the best solution online.
Two Years Warranty
During the warranty period we provide professional, considerate and timely after-sales service.
Customer Feedback
Our products have been well received by customers, I hope you can rest assured that purchase.
FAQ
1, Can this printer print my product?
We have a water based ink cartridge and a quick drying ink cartridge for different materials. Most of the products can be printed with EXP date, batch code, barcode, QR code, serial number, logo and other printing information.
2, Can the mark be cleared?
No, if you don't scratch with a tough tool, it won't erase.
3, How long does it take for the ink to dry?
3-5 seconds.
4, Are you a factory or a trading company?
We have our own factory and provide perfect OEM and after-sales service.
5, How do I know your machine is working fine?
Before delivery, we tested every machine and adjusted it to the best possible condition. If you have special production requirements, we can also customize the machine for you.
6, do I only use the stocks of the machines from your factory?
Not necessarily. We offer genuine HP imported ink supplies, but most cartridges will fit. You can also choose others based on your preference.
1, Can this printer print my product?
We have a water based ink cartridge and a quick drying ink cartridge for different materials. Most of the products can be printed with EXP date, batch code, barcode, QR code, serial number, logo and other printing information.
2, Can the mark be cleared?
No, if you don't scratch with a tough tool, it won't erase.
3, How long does it take for the ink to dry?
3-5 seconds.
4, Are you a factory or a trading company?
We have our own factory and provide perfect OEM and after-sales service.
5, How do I know your machine is working fine?
Before delivery, we tested every machine and adjusted it to the best possible condition. If you have special production requirements, we can also customize the machine for you.
6, do I only use the stocks of the machines from your factory?
Not necessarily. We offer genuine HP imported ink supplies, but most cartridges will fit. You can also choose others based on your preference.
