Why Choose Us
（1）We have our own factory, and we also have our own R&D design team and production department. From production to sales are done by we do it ourselves.
（2）We are a company that is willing to take on.For delivery delays,we have the following measures：
1% discount for 7 days delay;
2% discount for 2 weeks delay;
3% discount for 3 weeks delay;
5% discount for one month delay.


Product Description


Product Name
32-way POE power supply monitoring system equipment
Model
YZ-W301L32-32C4MP
Clarity
8mp、4mp、2mp

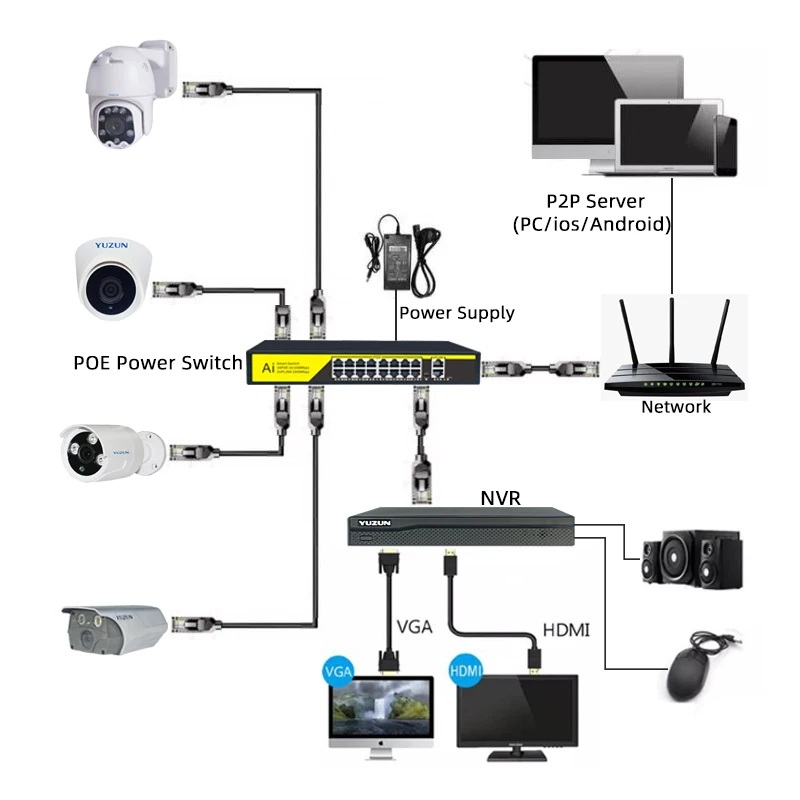

System composition and function
The security monitoring system consists of 32 POE cameras, two 16-way POE network switches, a 32-channel NVR.
Features: humanoid recognition、motion detection、P2P、voice intercome、alarm push、night vision、dual light source、full color (order description), etc.




●High-performance DSP processor with H.265 encoding and compression technology, capable of transmitting high-quality video images at low bandwidth.
●High-performance Mega Progressive Scan CMOS image sensor, with megapixel-level clarity while capturing motion images without jaggedness and clearer images.
●Support IR-CUT filter automatic switching function, effective day and night monitoring.
●3D-MCTF digital noise reduction, night vision enhancement, effective noise suppression, clearer images at night.
●Network cable direct connection power supply, eliminating the need for cloth power lines, easy installation.
●Support for listening function.(YZ-P2"X"0T2Q-F built-in speaker).
●Camera support lightning protection, in line with national standard GB/T17626.5, international standard IEC61000-4-5.
●Support for human detection function and alarm push function.
●Equipped with infrared fill light and white light fill light, long-distance vision in day and night.
●Support alarm linkage sound(YZ-P2"X"0T2Q-F) and light alarm(YZ-P2"X"0T2Q-F and YZ-P2"X"0T7A-F).
●Support horizontal 355 ° / vertical 90 ° PTZ control, better achieve effective monitoring(YZ-P2"X"0T2Q-F).
●Support text conversion custom alarm voice(YZ-P2"X"0T2Q-F).


Configuration Options


Optional 1：
Adopt YZ-P2"X"0T5A
The security monitoring system contains：
●32pcs waterproof(indoor and outdoor) POE cameras.
●Two 16-way POE network switches.
●A 32-channel NVR.
Optional 2：
Adopt YZ-P2"X"0T7A-F
The security monitoring system contains：
●32pcs waterproof(indoor and outdoor) POE cameras.
●Two 16-way POE network switches.
●A 32-channel NVR.


Optional 3：
Adopt YZ-P2"X"0T3A
The security monitoring system contains：
●32pcs non-waterproof(indoor) POE cameras.
●Two 16-way POE network switches.
●A 32-channel NVR.
Optional 4：
Adopt YZ-P2"X"0T2Q-F
The security monitoring system contains：
●32pcs waterproof(indoor and outdoor) POE cameras
●Two 16-way POE network switches
●A 32-channel NVR.

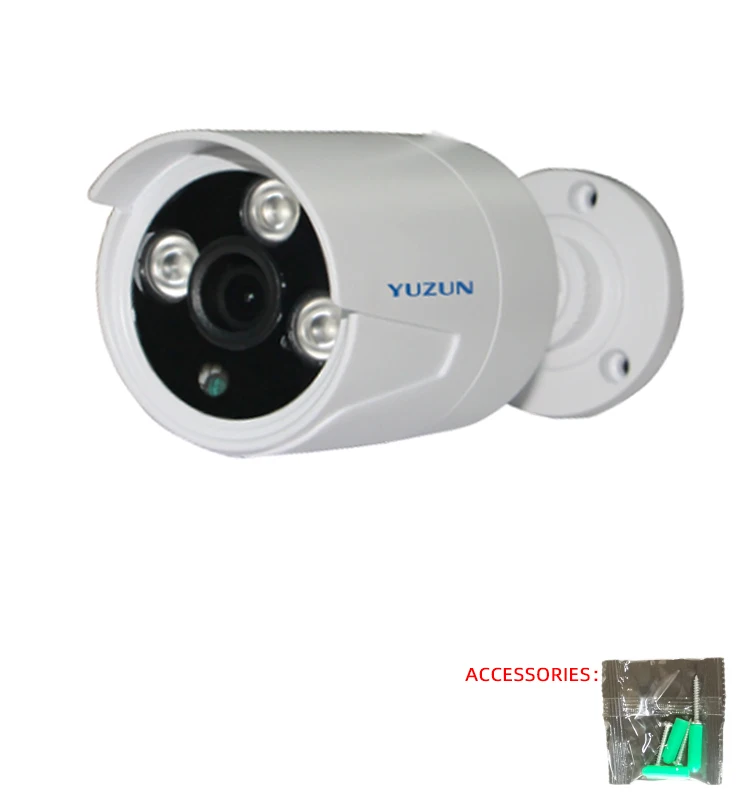

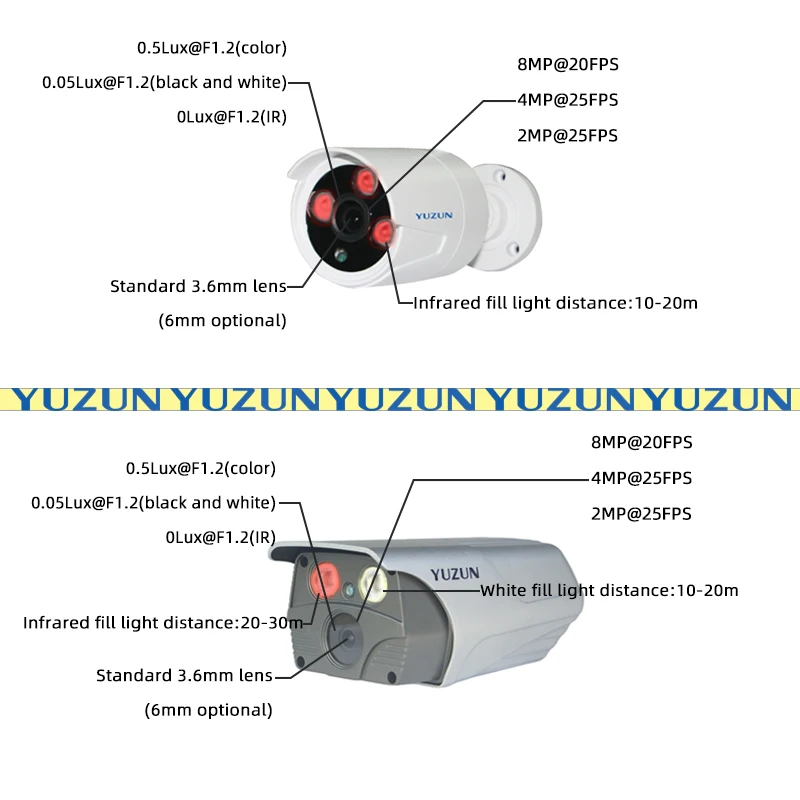

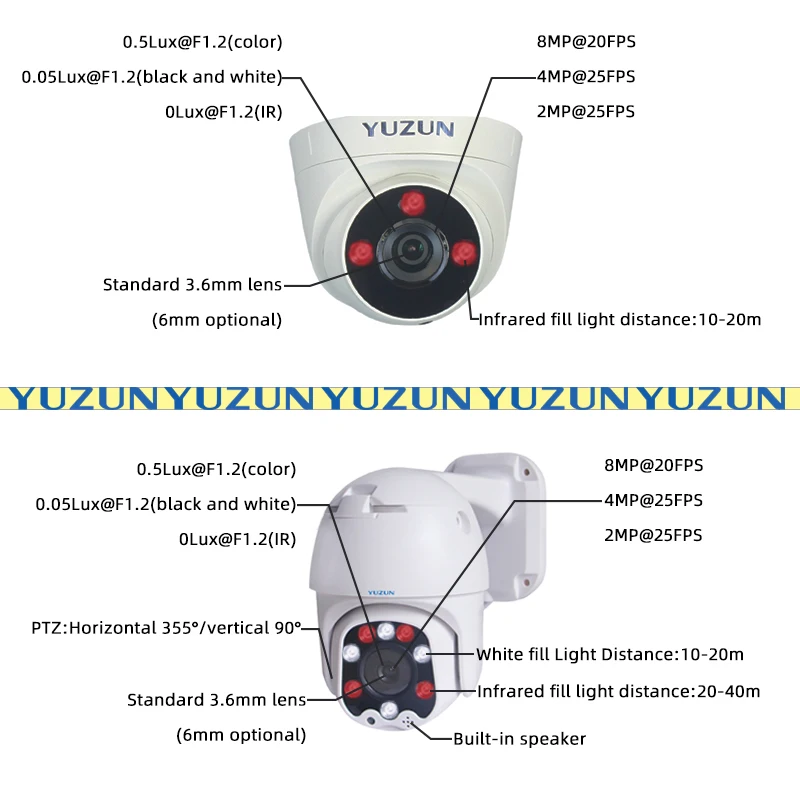

Product Item Description






Model
YZ-P220T5A
YZ-P240T5A
YZ-P280T5A
Clarity
2MP@25FPS
4MP@25FPS
8MP@20FPS
Lens
Standard 3.6mm lens (6mm optional)
Image Sensor
1/2.9' Mega Progressive Scan CMOS
Min. illumination (LUX)
0.5Lux@F1.2(color), 0.05LUX@F1.2(black and white), 0Lux@F1.2(IR)
Compression Format
H.265/H .264
Humanoid Detection
Support human shape detection, can detect human shape for intelligent alarm
Fill Light
3 infrared fill light
Monitor
Built-in mic, support monitoring
IR Distance
10-20 meters
Waterproof or not
IP66，Waterproof，Suitable for indoor or outdoor use
Network Interface
1 RJ45 10/100Mbps network interface
Power
≤ 4W during the day, ≤ 10W at night (after the infrared light is turned on)
Power Supply
POE cable power supply or DV12V

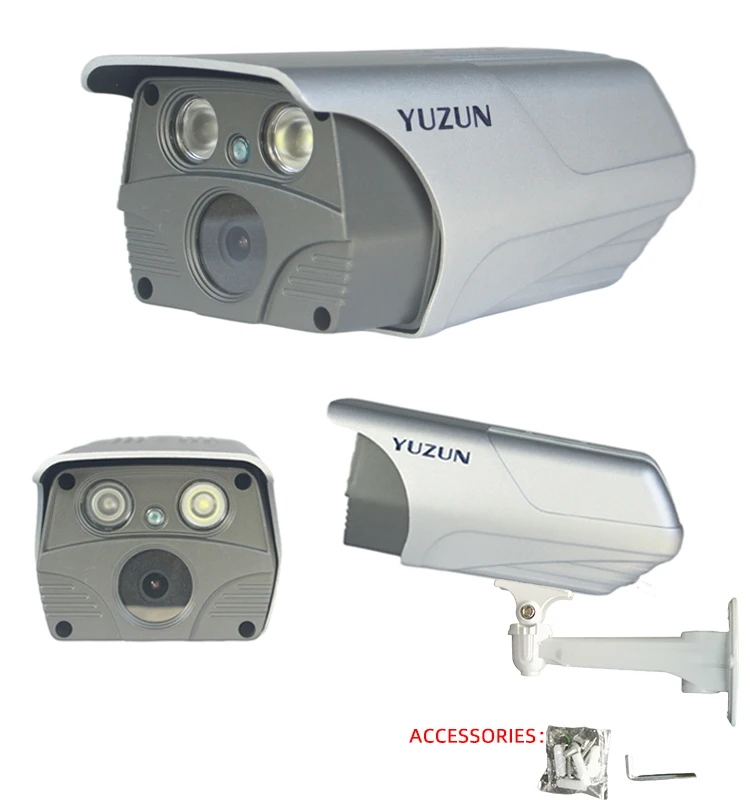

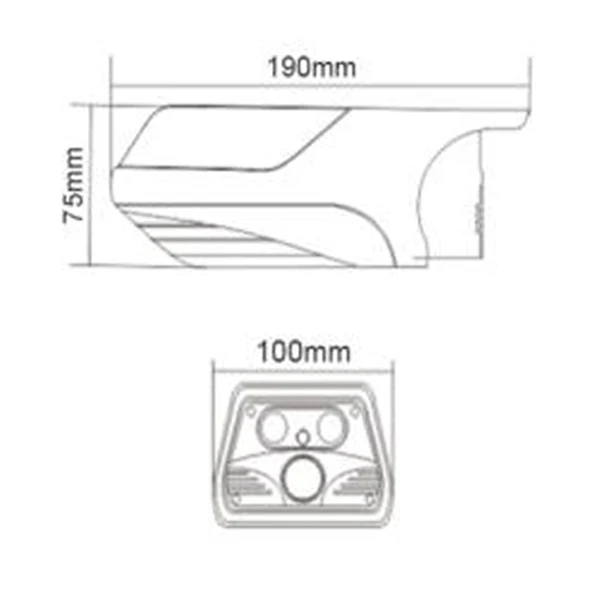

Model
YZ-P220T7A-F
YZ-P240T7A-F
YZ-P280T7A-F
Clarity
2MP@25FPS
4MP@25FPS
8MP@20FPS
Lens
Standard 3.6mm lens (6mm optional)
Image Sensor
1/2.9' Mega Progressive Scan CMOS
Min. illumination (LUX)
0.5Lux@F1.2(color), 0.05LUX@F1.2(black and white), 0Lux@F1.2(IR)
Compression Format
H.265/H .264
Alarm linkage

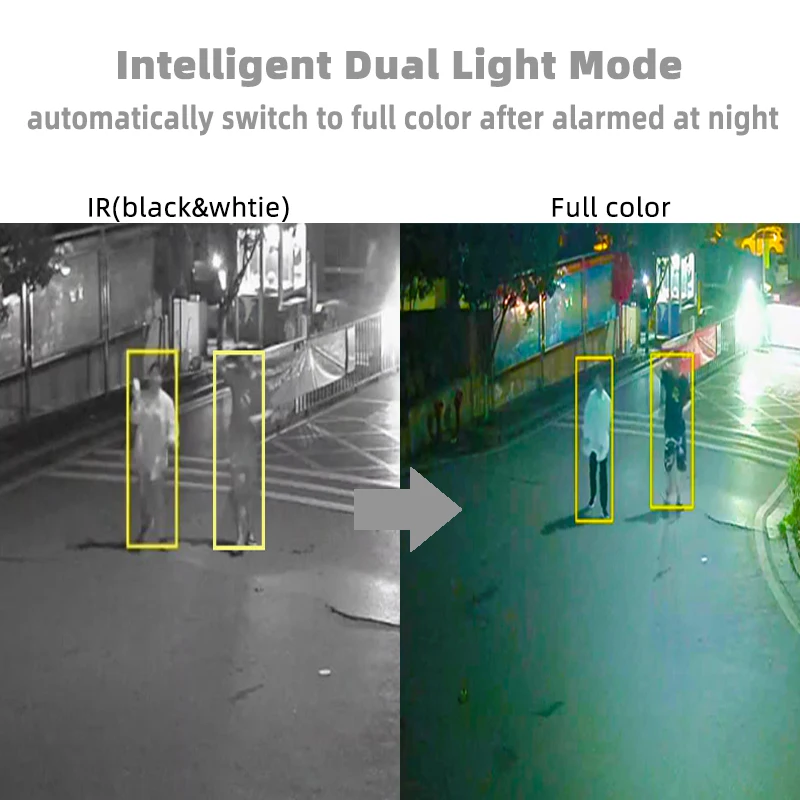

Alarm occurs at night can be linked to the image switch to color mode at the same time by the infrared light switch to white light fill light
Humanoid Detection
Support human shape detection, can detect human shape for intelligent alarm
Fill Light
1 infrared fill light and 1 white light fill light，White light distance up to 10-20m
Monitor
Built-in mic, support monitoring
IR Distance
20-30m
Waterproof or not
IP66，Waterproof，Suitable for indoor or outdoor use
Network Interface
1 RJ45 10/100Mbps network interface
Power
≤ 4W during the day, ≤ 10W at night (after the infrared light is turned on)
Power Supply
POE cable power supply or DV12V

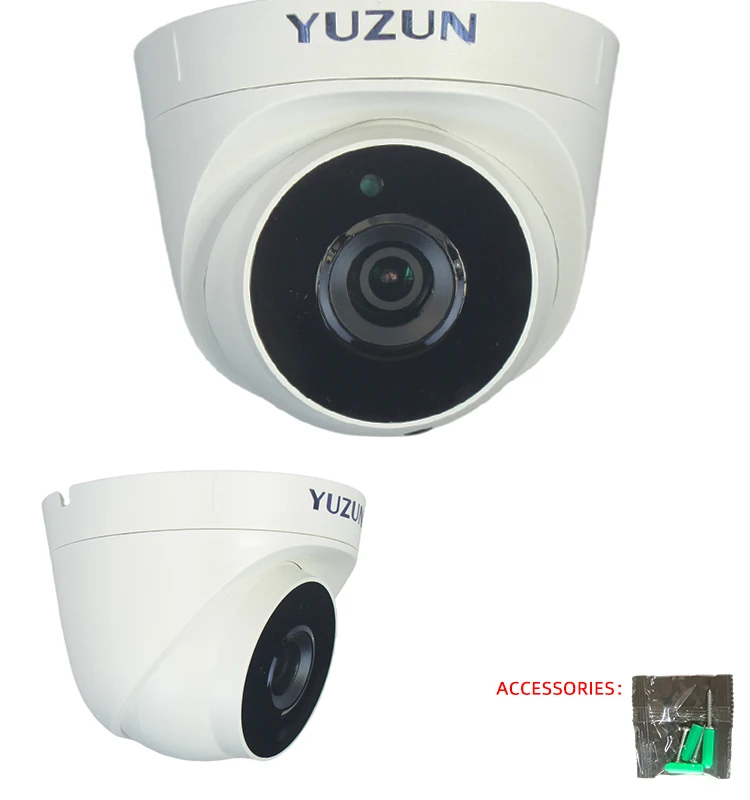

Model
YZ-P220T3A
YZ-P240T3A
YZ-P280T3A
Clarity
2MP@25FPS
4MP@25FPS
8MP@20FPS
Lens
Standard 3.6mm lens (6mm optional)
Image Sensor
1/2.9' Mega Progressive Scan CMOS
Min. illumination (LUX)
0.5Lux@F1.2(color), 0.05LUX@F1.2(black and white), 0Lux@F1.2(IR)
Compression Format
H.265/H .264
Humanoid Detection
Support human shape detection, can detect human shape for intelligent alarm
Fill Light
3 infrared fill light
Monitor
Built-in mic, support monitoring
IR Distance
10-20m
Waterproof or not
Non-Waterproof，Suitable for indoor use
Network Interface
1 RJ45 10/100Mbps network interface
Power
≤ 4W during the day, ≤ 10W at night (after the infrared light is turned on)
Power Supply
POE cable power supply or DV12V

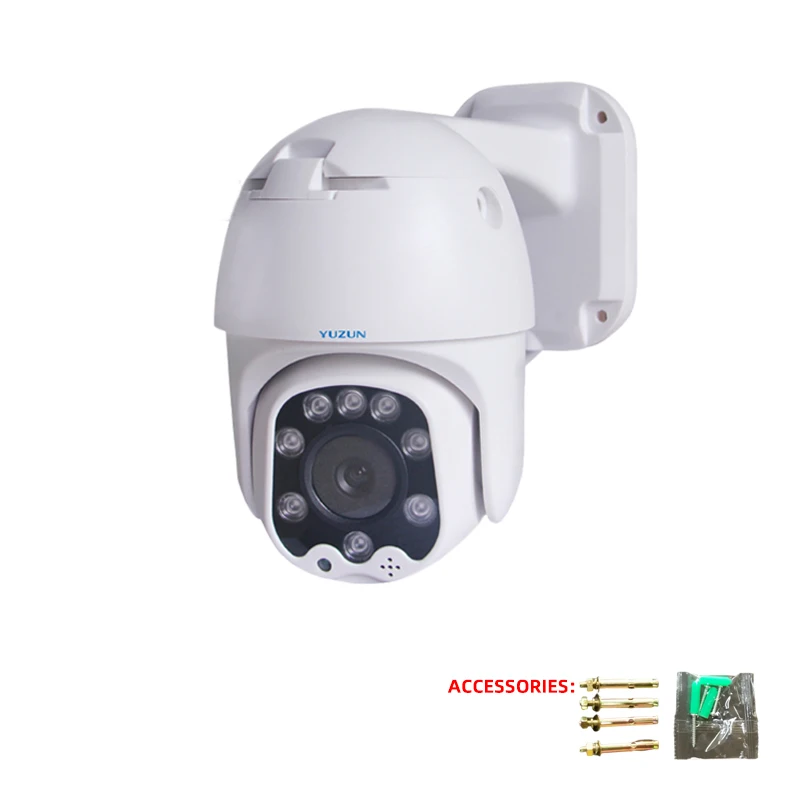

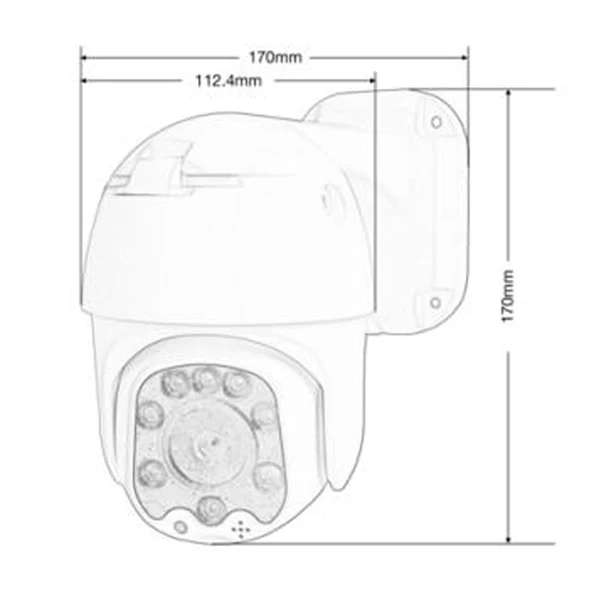

Model
YZ-P220T2Q-F
YZ-P240T2Q-F
YZ-P280T2Q-F
Clarity
2MP@25FPS
4MP@25FPS
8MP@20FPS
Lens
Standard 3.6mm lens (6mm optional)
Image Sensor
1/2.9' Mega Progressive Scan CMOS
Min. illumination (LUX)
0.5Lux@F1.2(color), 0.05LUX@F1.2(black and white), 0Lux@F1.2(IR)
Compression Format
H.265/H .264
Alarm linkage
Alarm occurs at night can be linked to the image switch to color mode at the same time by the infrared light switch to white light fill light
Humanoid Detection
Support human shape detection, can detect human shape for intelligent alarm
Fill Light
4 infrared fill light and 4 white fill light,white fill light distance up to 10-20m
Monitor
Built-in speaker and mic, support voice intercom function，support for custom voices
IR Distance
20-40m
Waterproof or not
IP65，Waterproof，Suitable for indoor or outdoor use
Network Interface
1 RJ45 10/100Mbps network interface
Power
≤ 4W during the day, ≤ 10W at night (after the infrared light is turned on)
Power Supply
POE cable power supply or DV12V

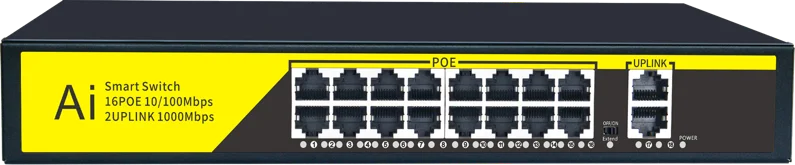

Model
YZ-E1602P
RJ45 Network Port
18
POE power supply port
16 x 100Mbps network ports
Upper network port
2 x 1000Mbps network ports
Signal foot position
12+/36-
Power supply foot position
12+/36-
POE power supply standard
IEEE 802.3AT/AF
Voltage
DC48V~55V
Network Media
Category 5 or Super Category 5 unshielded twisted pair cable is recommended
Backplane bandwidth
7.2Gbps full-duplex
VLAN
Support one-click VLAN function
Extension mode
Support extension mode, can force POE power port transmission distance up to 250 meters
Power supply
DC48~55V wide voltage, standard DC52V/200W power supply
Size
312*185*46mm

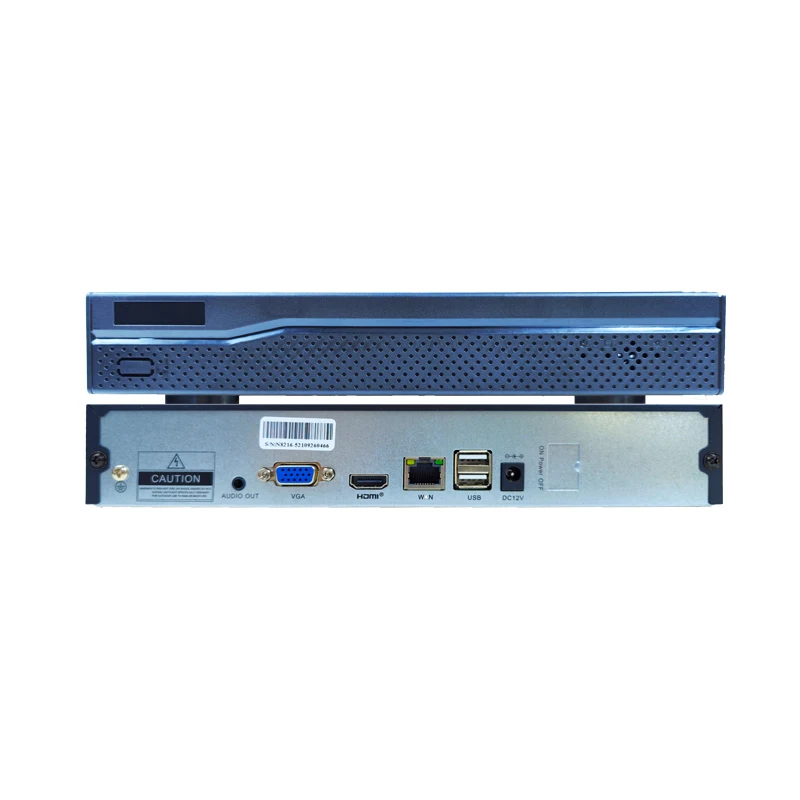

Model
YZ-W302H32P







Function
●Support for automatic adding and adding devices across network segments. automatic reconnection of cameras after IP change
●Support for amplifier speakers and 3.5mm audio interface. support VGA and HDMI output at the same time, HDMI maximum resolution
●Support 4K support HDMI output audio(need display device to support audio out put)
●Support for APP push alarm function
●Support for cloud upgrade function
●Support for human detection alarm function(requires front-end camera support) ●Support for alarm linkage local voice playback and other functions
●Support for humanoid intelligent playback
●Support for 32-way 5MP or 16-way 4K camera access
●Support for network and USB backup functions
●Support for modifying the image parameters of front-end cameras connected by the P6S protocol.
●The ability to use EasyVMS PC client software to remotely monitor and playback video
●Remote monitoring and playback of video using P6SLite APP is available
●The ability to use the P6SLite APP to scan the code for local login
System
Main Processor
Industrial grade embedded microprocessors
Operating System
Linux Embedded Real-Time Operating System
Interface
Operation interface
Graphical interface, support mouse operation
Screen display
1/4/6/9/16/25/36 screens

Supported Languages
Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French, German, Italian, Russian, Thai, Indonesian, Turkish,Portuguese, Spanish, Vietnamese, Korean, Greek, Czech, Arabic, Persian
Video
Video Access
32-channel 5MP, 16-channel 4K, dual stream access
Video frame rate
25FPS
Video encoding standards
H.265/H.264
Pan&Tilt Control
Control front-end camera with PTZ through network
Number of playback channels
1 way 4K / 2 way 5MP / 4 way 3MP
Video mode
Manual recording, timed recording, motion detection recording, intelligent recording
Video Search
Time replay, browse replay, smart replay, event search
Video Replay
Point-in-time search, calendar search, event search, channel search
Smart Playback
Support AI persona playback function, playback more accurate
Audio
Voice Alarm
Support linkage VCR local audio alert broadcast, built-in a variety of alert voice
Video Output
1 VGA port, 1 HDMI port (resolution support 4K)
Audio input
According to the number of channels 1 to 1 network audio input audio input
Audio output
Support HDMI output audio, 3.5mm audio output interface, 1.25 seat speaker output
Storage Backup
Video Preservation
Local hard disk, network (EasyVMS remote recording)
Backup method
USB flash drive, network backup
Remote Monitoring
Remote Monitoring
Phone：P6SLite APP Remote Access
PC：EasyVMS client LAN or remote access
External Interface
Network Interface
1 RJ45 10/100M adaptive Ethernet port
USB interface
2 USB 2.0 ports
Hard Drive Interface
2 SATA 3.0 interface, supports 8TB hard drives


Application Showcase






Company Profile


Yuzun is a brand of Shenzhen lingbiao technology development Co., Ltd,the campany is dedicated to research CCTV imagecoding anddecoding,professional security equipment,security systems,netword software development,production,sales and service of high-tech security company,is committed to digital security research ,development and production,launch a series with independent intellectual property rights of the digital,networded,intelligent video surveillance products served to mankind,the company strictly according to ISO9001 quality system to implement production,the products passed the CE,FCC,RoHS,and other international quality certification,perfect after sales service system,assured to buy.

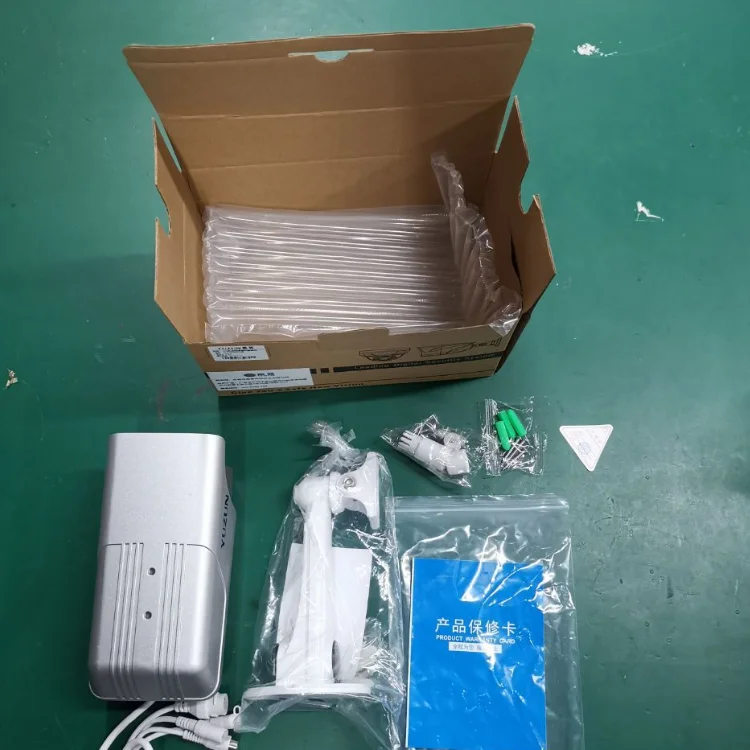

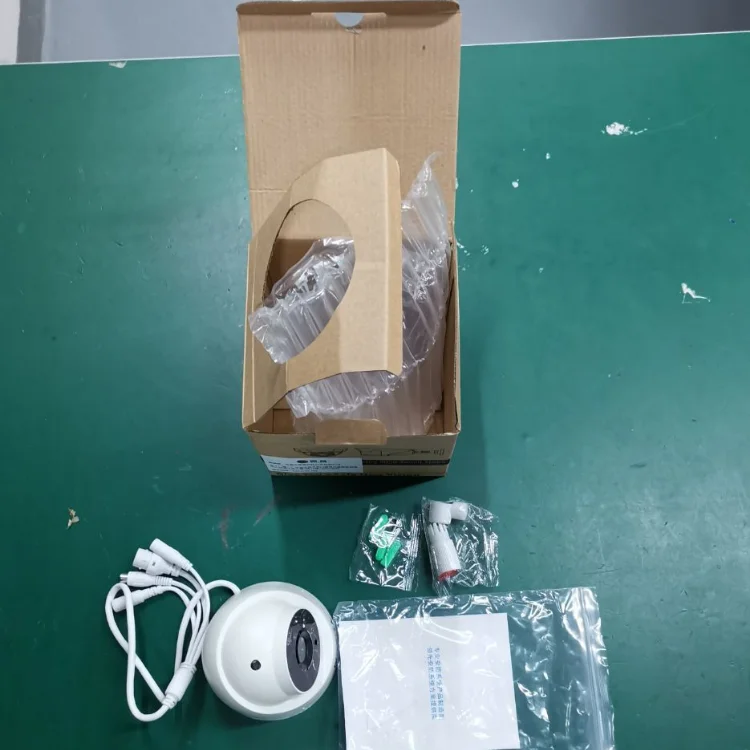

Packing & Delivery


Please note that the volume and weight may vary when placing an order, please consult customer service








Purchase Matters


Related Services
1.Warranty service Free maintenance and lifetime technical support will be provided for 2 years after the product delivery date.If any product is proved to be defective under normal use, we will repair or replace it free of charge.
A. If you can repairthe product yourself, we will provide spare parts.
B. If you are unable to repair the product, please send it back to us, wewillrepair it and bear 50% of the freight. All our products pass strict quality inspection before shipment.
2.OEM: OEM silk screen
LOGO/sticker/box/manual/software/carton, free MOQ
3.The ODM project is acceptable, and your inquiry is welcome!

MOQ
Welcome to try!
There is no minimum order quantity for sample orders; after the sample order, the minimum order quantity for eachmodel is 10 pieces.
The minimum order quantity for silk-screened OEM logo is 100 pieces, and the minimum order quantity for OEM design boxes is 1000 pieces.

How to order from us?
1.This product is a Ready to Ship product, you can place an order to confirm payment according to your needs.
2.When you do not understand the product, you should confirm the type and quantity of the purchased product with our sales staff, or send an email to us.
3.If you have special needs, you can remark in the order information such as the quantity of various types of products, the focal length of the lens, etc.
4. We receive your order and usually ship within 7 days.
5. After the goods are ready, we will send the customer's designated transportation method according to your designated logistics (such as DHL, air or sea or other methods).And let you know the tracking number and estimated time of arrival.

Technical Support
Professional technical support team is online 24 hours!
