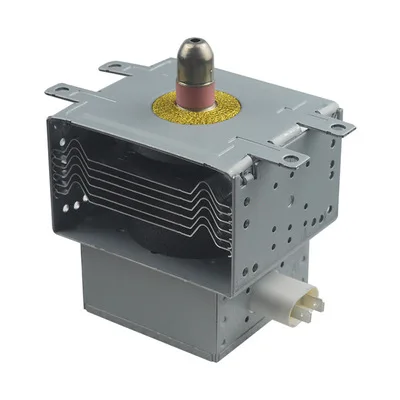

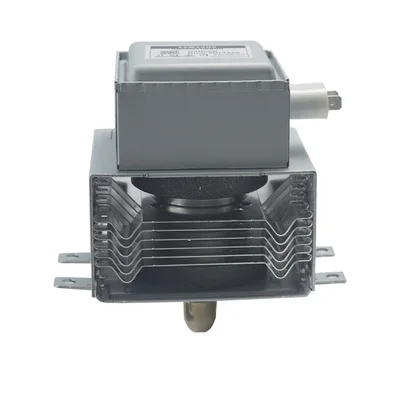

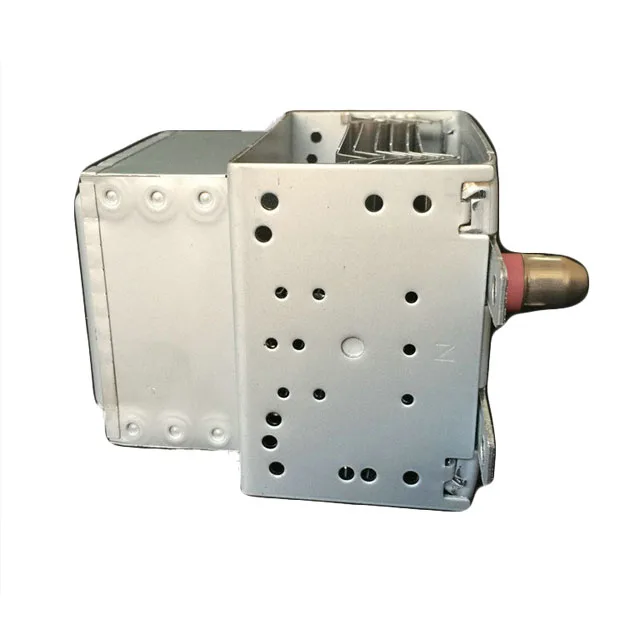

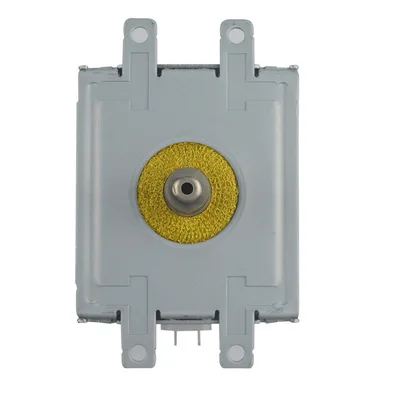

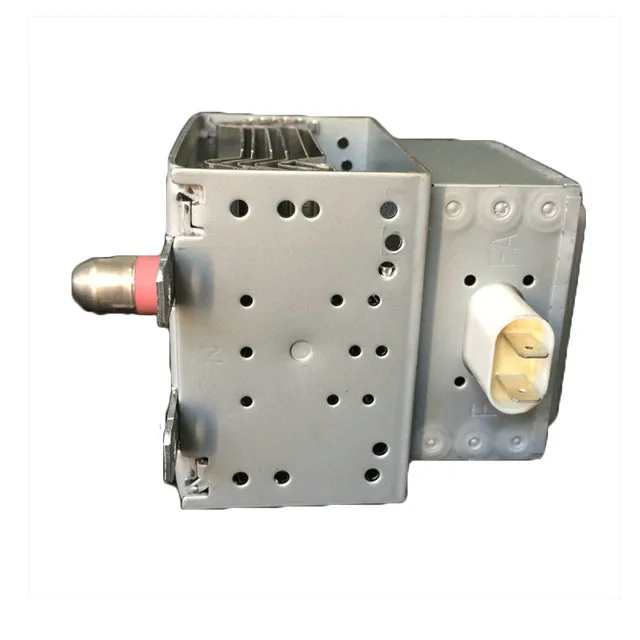

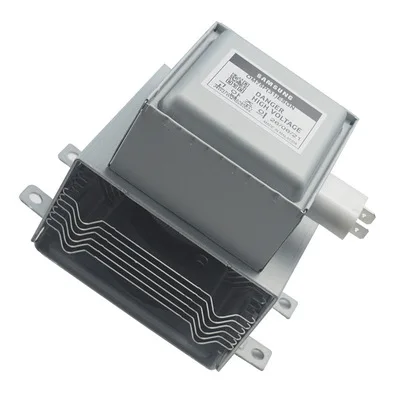

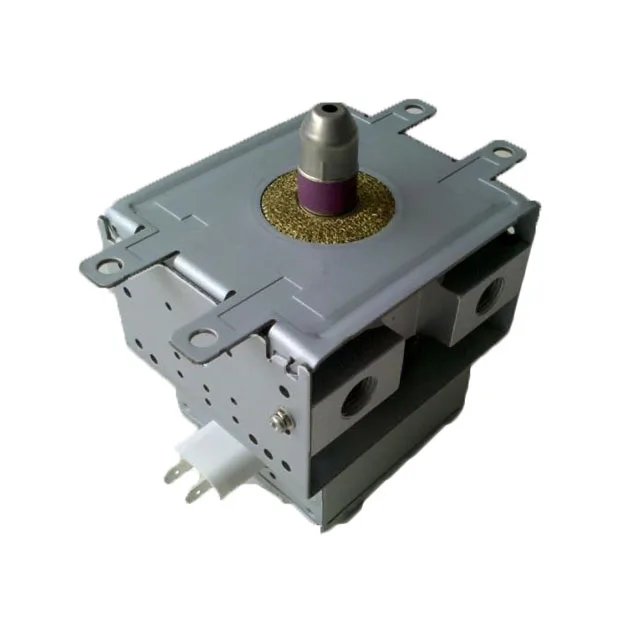

Магнетрон высокой мощности 2465 Гц 500 Вт/1000 Вт/1200 Вт водяное охлаждение/воздушное охлаждение
- Категории: Kitchen Appliance Parts >>>
- Поставщик: Zhuhai,Pindom,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Item | 2465HZ high power magnetron 500 watt/1000 watt/1200 watt water cooling/air cooling magetron |
Frequency | 2465MHZ |
Cooling | water cooling/air cooling |
Voltage | 4.5kv |
Efficiency | 71.0% |
Storage Temperature | -35℃ to +60℃ |
R.F Coupler | WR430 system |
Cooling Water Flow | 1.40L/min |
Microwave frequency | 2465HMz |
Output Power | 1200W/1000W |
Product Description
OM75P（31） is a continuous wave magnetron with fixed frequency of 2465MHz and high efficiency.
For power supply an L.C single phase half wave doubler should be used.
- The filament voltage should be measured at tube terminals.
- The combination of transformer and capacitor should be chosen such that for normal line
- The filament voltage should be measured at tube terminals.
- The combination of transformer and capacitor should be chosen such that for normal line
voltage, Ia mean
=330mA±1% and la peak 1020 to 1050mA.
- It is recommended to use a 10-12KV avalanche diode as protection for capacitor and transformer.
- For wave guide configuration and power supply, see page 5 and 6.
- A water load of which the V.S.W.R≤1.1 over the frequency band 2425MHz up to 2475MHz should be used.
- Unless otherwise stated, limits apply for a tube within 15 seconds after application of voltage and at 25℃.
- Before testing, the tube should be "at room temperature" for at least four hours.
- During test, the magnetron should be cooled with 1.40L/min in of forced water.
=330mA±1% and la peak 1020 to 1050mA.
- It is recommended to use a 10-12KV avalanche diode as protection for capacitor and transformer.
- For wave guide configuration and power supply, see page 5 and 6.
- A water load of which the V.S.W.R≤1.1 over the frequency band 2425MHz up to 2475MHz should be used.
- Unless otherwise stated, limits apply for a tube within 15 seconds after application of voltage and at 25℃.
- Before testing, the tube should be "at room temperature" for at least four hours.
- During test, the magnetron should be cooled with 1.40L/min in of forced water.
