Цена:0,15 $ - 0,19 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

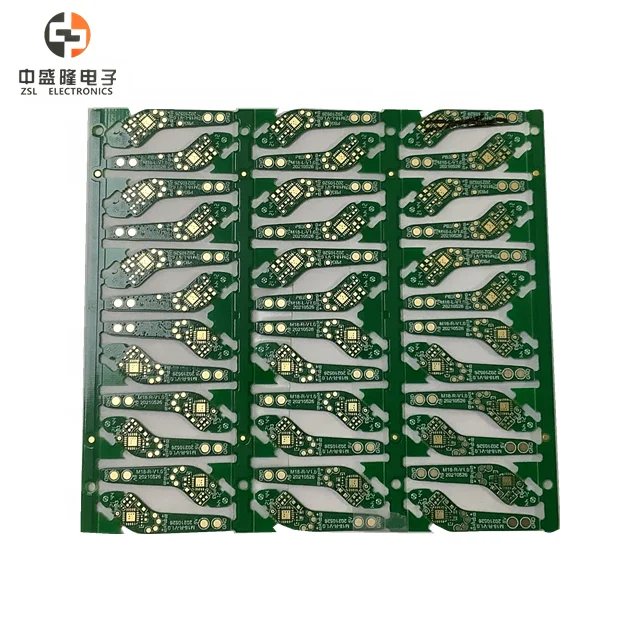

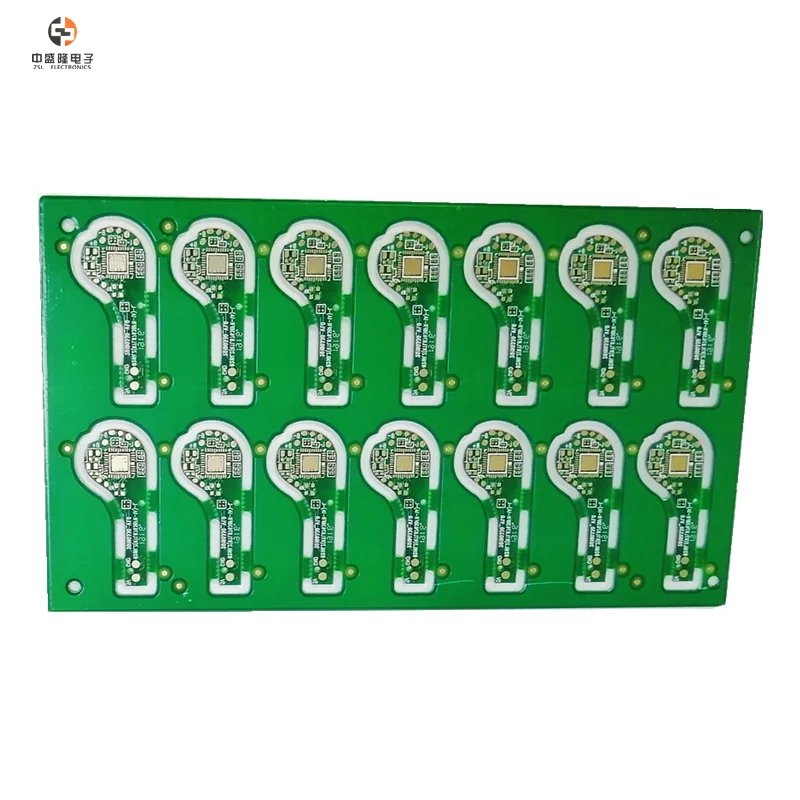

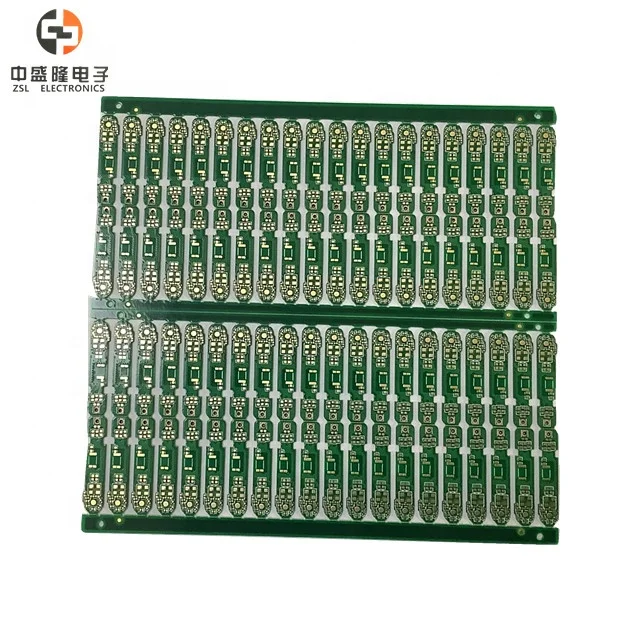

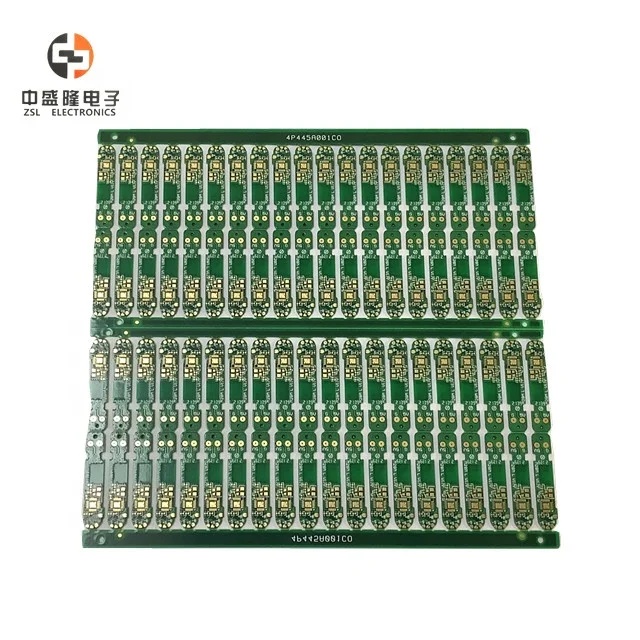

Blind Buried Via HDI PCB
Layer: 4
Dimensions: 84*80 mm/120 PCS
Material: SY FR-4 TG150
Board Thickness : 0.6mm
Copper Thickness: 1/H/H/1OZ
Surface Protection: ENIG
Legend : None
Mask : Matt Black
Min Holes: 0.1mm
Line Width/Space: 0.1/0.089mm







Rigid PCB Manufacturing Capability
Item
Parameters

Item
Parameters
Layer
1-12

Peeling Strength
12.3N/cm2
Finished Board Thickness
0.6-3.2mm

Max.Panel size
546mm*650mm
Bare Board Material
FR-4/CME/(It depends)

Min.Track Width/Space
0.075mm/0.075mm
Board Material Supplier
Shengyi/KB/Isola/Rogers(It depends)

Min.Ring Width
0.1mm
Copper Weight
HOZ-6OZ

Solder Mask Contronl
±10%
Solder Mask
white/blue/green/yellow/

Skill Screen
white/black
Min.Hole diamater
0.1mm

PTH/NPTH Tolerance
±0.076mm/±0.05mm
Aspect Ratio
10/1

Outline Tolerance
±0.075mm
Bow and Twist
≤0.5%

Surface Finishing
HASL-LE/OSP/ENIG/Immersion Tin/Immersion silver/gold


Flexible  FPC Manufacturing Capability
Item
Parameters
Item
Parameters
Layer
1~6
Max.Panel Size
250mm~600mm
Finished Board Thickness
0.027~1.0mm
Min.Track Width/Space
0.06/0.06mm
Board Thickness Tolerance
± 0.03mm
Outline  Tolerance
±0.075mm
Basic Copper Weight
1/3OZ,1/2OZ,1OZ,
Skill Screen
White,Black
Solder Mask
Yellow,blace
Min,Ring
0.125mm
Hole Diamater
0.1~6.5MM
Surface Finishing
Immersion NI & Gold
Stiffener Material Type
PI /PET /
Etching Tolerance
±0.02%


Company Information
Headoffice
Shengzhen ,Guangdong province
20 minutes drive from Shenzhen Baoan Airport.
20  minutes drive from Shenzhen Baoan International airport
This office is main marketing department.
Production base 1
Meizhou ,Guangdong province
4 and half hours drive from shenzhen Baoan Airport
This workshop was built in 2007, covers an area of 2,8000 ㎡ mainly use positive film process,produce  1~4 layer rigid PCB.
Production base 2
Ganzhou ,Jiangxi province
5 and half hours drive from shenzhen Baoan Airport
This workshop was built in 2011，covers an area of  104,000 ㎡，mainly use negative film process,produce 1~12 layer rigid PCB,flexible PCB and HDI PCB.
Production base 3
Shenzhen ,Guangdong province
40 minutes drive from Shenzhen Baoan Airport.
This workshop was built in 2020, mainly provides SMT,DIP , Component purchasing and other PCBA service。






FQA:
1. Leading Time:
a) Single & double Sides PCB : 7 working days after EQ confirmed.
b) More than 4 layers PCB: 15~20working days after EQ confirmed.
C) HDI and other PCB with special process need add another 3~ 5 working days.

NOTES:The delivery date will change due to the production conditions and special process of the PCB. Please refer to the date confirmed by the staff.

2.Payment
a)50% deposite,50% balance before shipment. (if there any questions please talk with our staff )

3.Delivery
Express,vessel,air,rail all are avaliable.

4.About EQ (Engineer Questions)
For New PCB & PCBA files, the EQ will be sent to you ,please answer it clearly.
Mostly we will optimize your panel,but the new panel draw must be confirmed with you.
