Specification
road machinery SG16 160HP/180HP/210HP shantui motor grader
● famous engine with reliable performance, high efficiency and energy saving.
● ZF technology gearbox is adopted for reliable and
flexible operation.
flexible operation.
● better material control capability.
● small turning radius and flexible.
● luxurious, full view, fully
sealed cab shock-absorbing seat, comfortable operation.
sealed cab shock-absorbing seat, comfortable operation.
● maintenance free high-performance battery
Basic specification | ||
Engine model | 6CTA8.3 | |
Rated power/speed | 160kW/2200rpm | |
Dimension(LxWxH) | 9105×2625×3470mm | |
Operating weight(Standard) | 16500kg | |
Performance specification | ||
Travelling speed ,forward | 5,8,11,16,26,38 km/h | |
Travelling speed ,reverse | 5,8,11,16,26,38 km/h | |
Tractive force(f=0.75) | 98KN | |
Max. gradeability | 20% | |
Tire inflation pressure | 260 kPa | |
Working hydraulic pressure | 16 MPa | |
Transmission pressure | 1.3~1.8MPa | |
Operating specification | ||
Max. steering angle of front wheels | ±50° | |
Max. lean angle of front wheels | ±17° | |
Max. oscillation angle of front axle | ±15° | |
Max. oscillation angle of balance box | 15 | |
Frame articulation angle | ±27° | |
Min. turning radius using articulation | 7.3m | |
Biade | ||
Maximum lift above ground | 450mm | |
Maximum depth of cutting | 500mm | |
Maximum blade position angle | 90° | |
Blade cutting angle | 28°—70° | |
Circle reversing rotation | 360° | |
Moldboard width X height | 4270×610mm | |
Track gauge | mm | |
Ground length and ground pressure | mm/MPa | |
Pitch | mm | |
Forward speed | km/h | |
Reverse speed | km/h | |

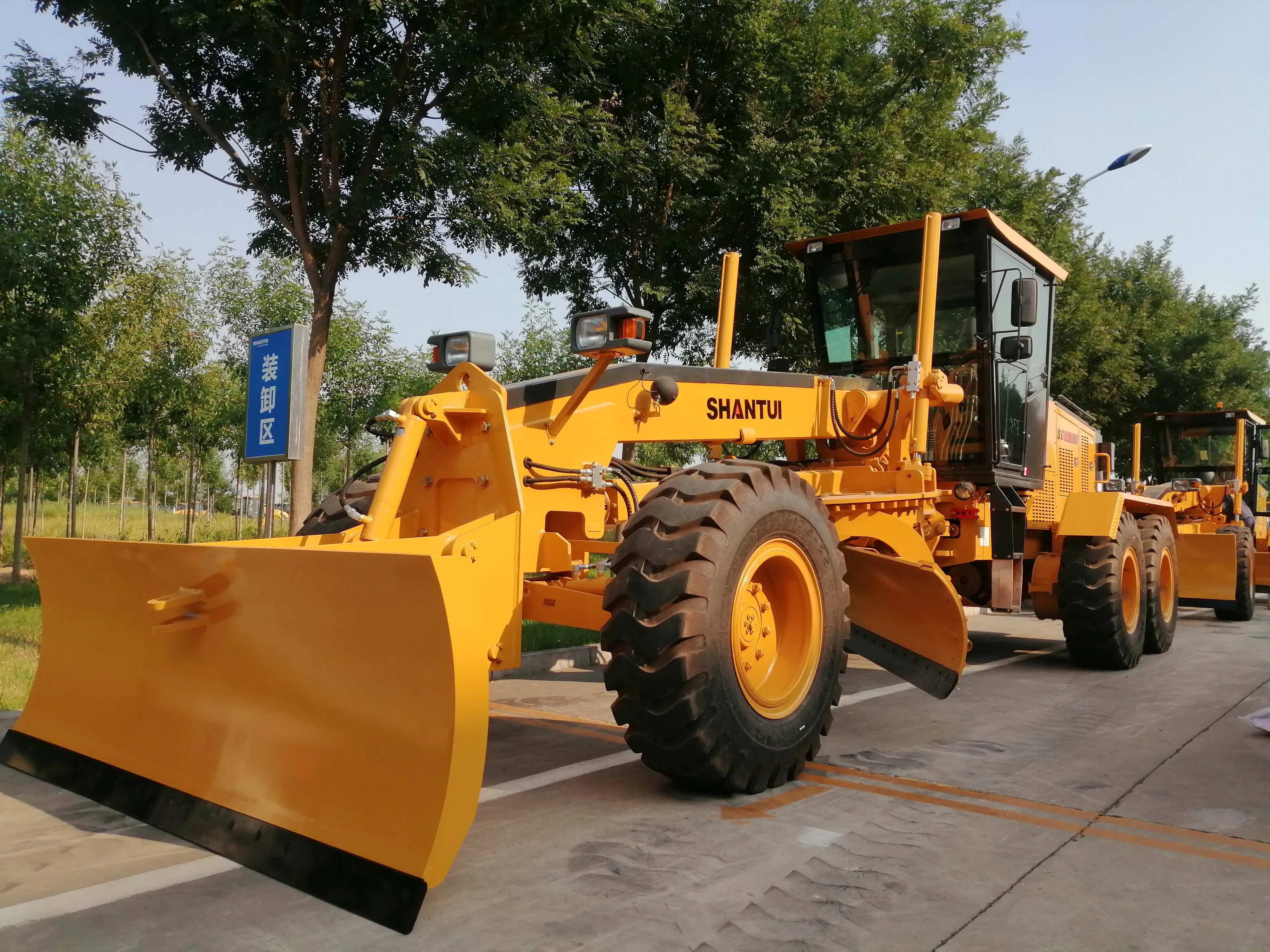

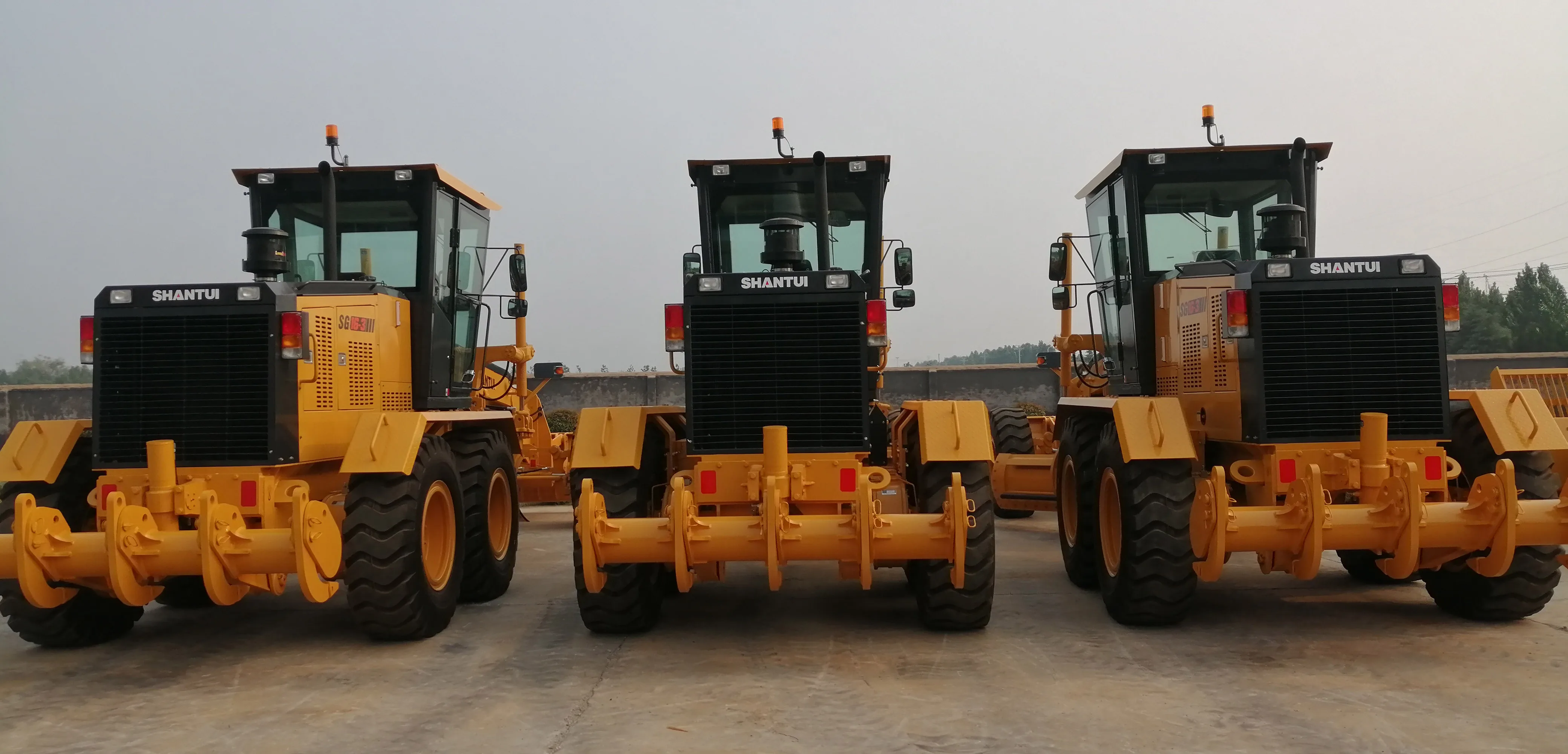

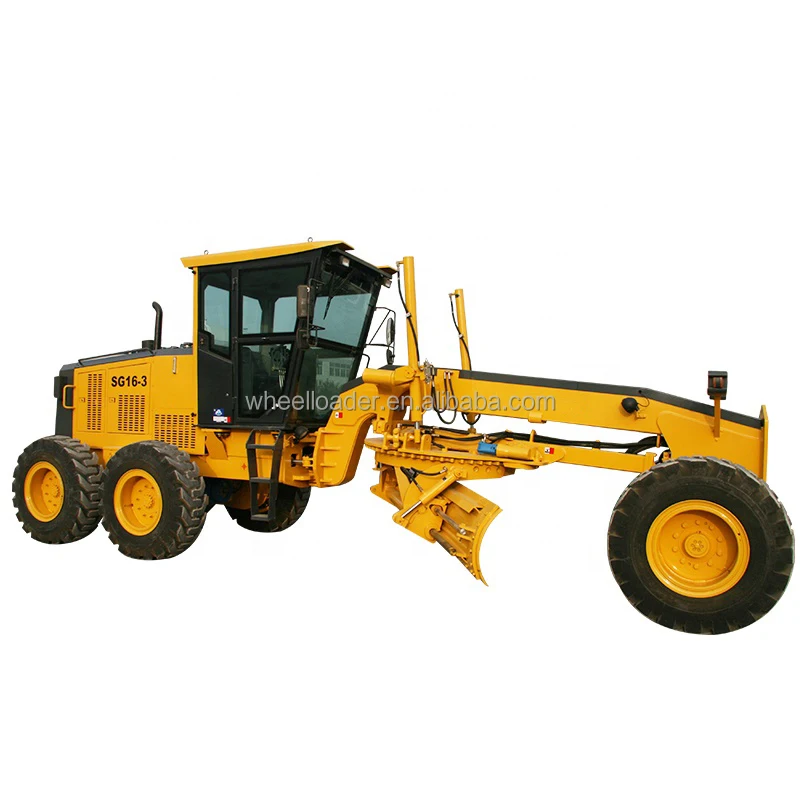

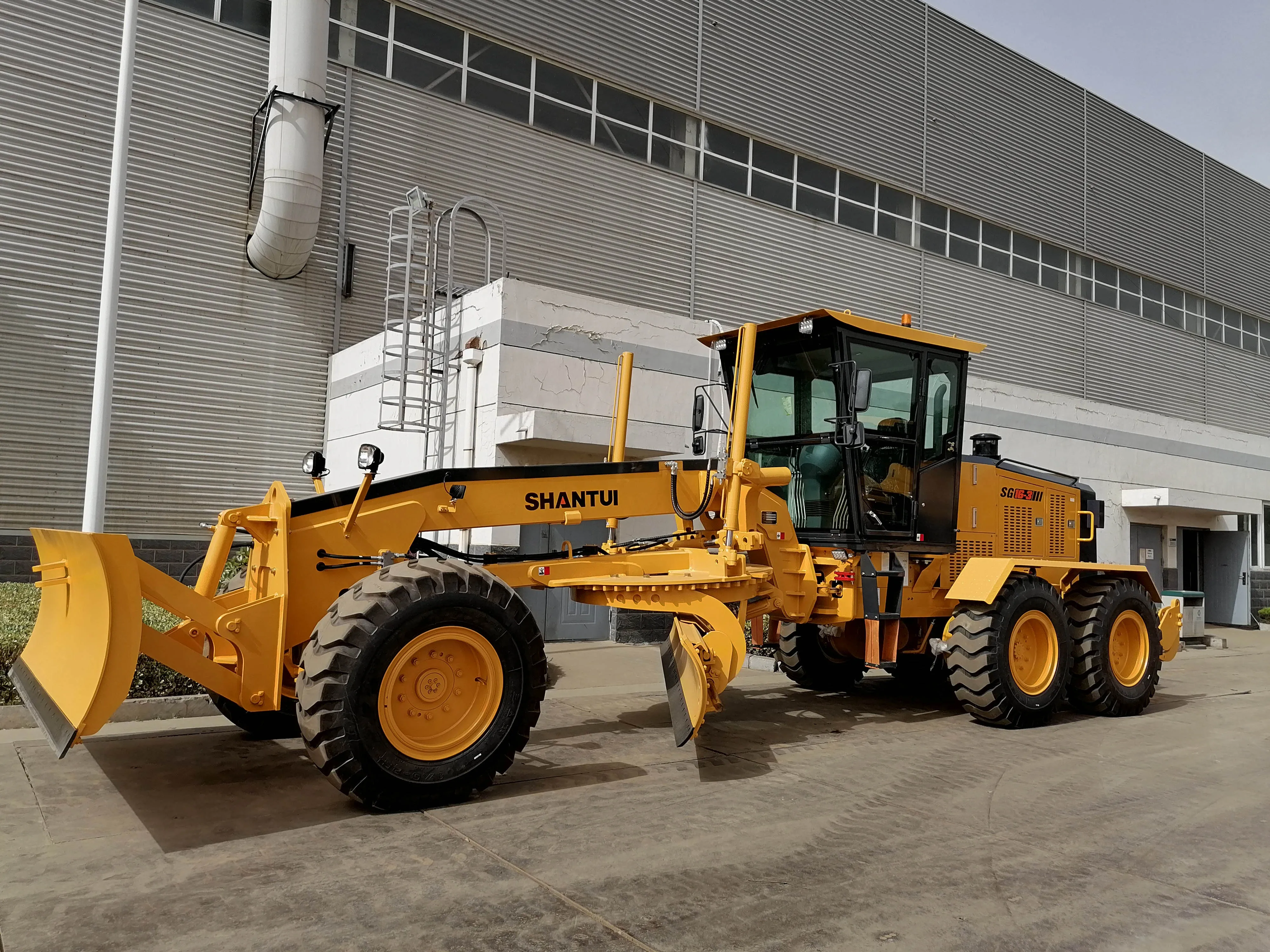

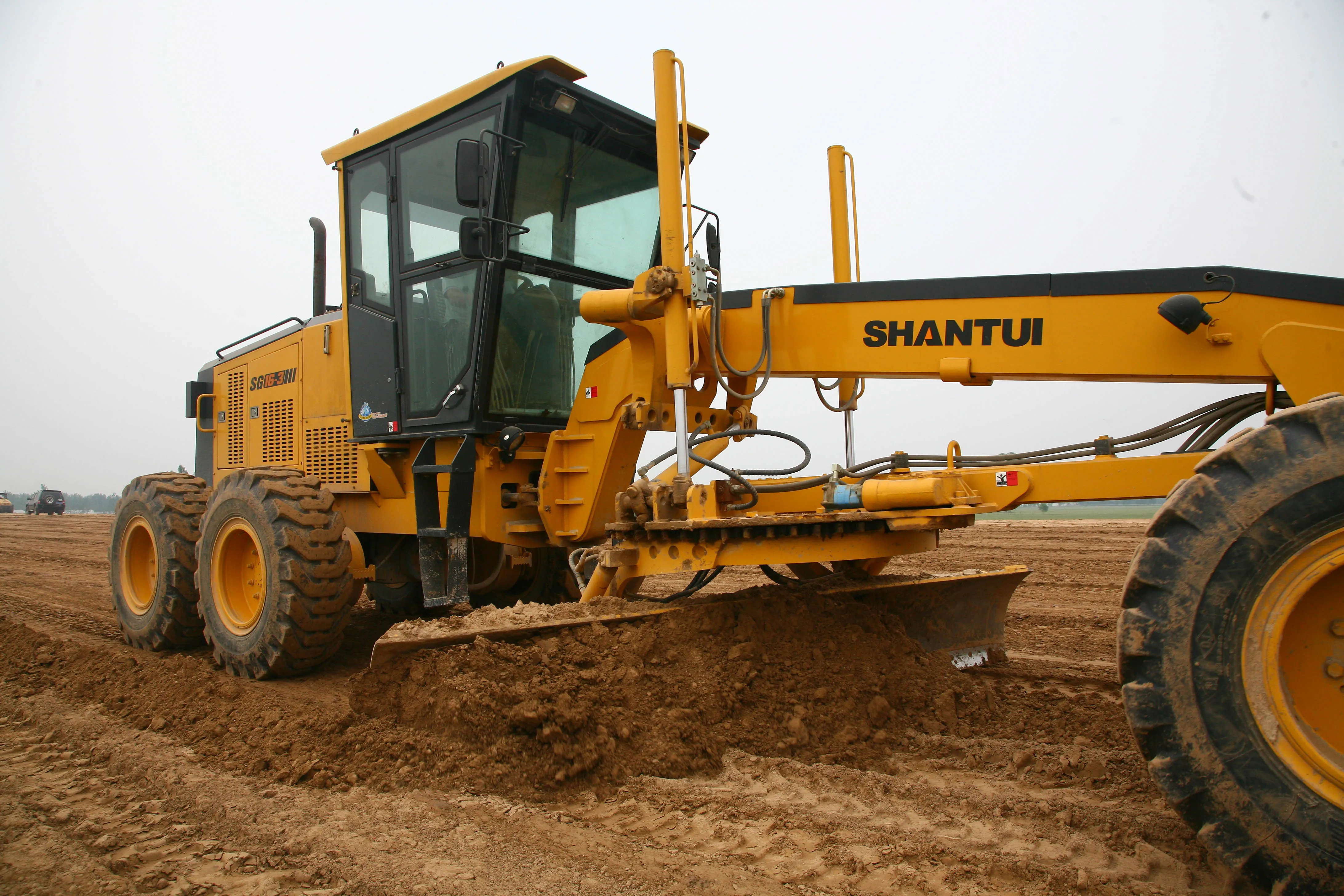

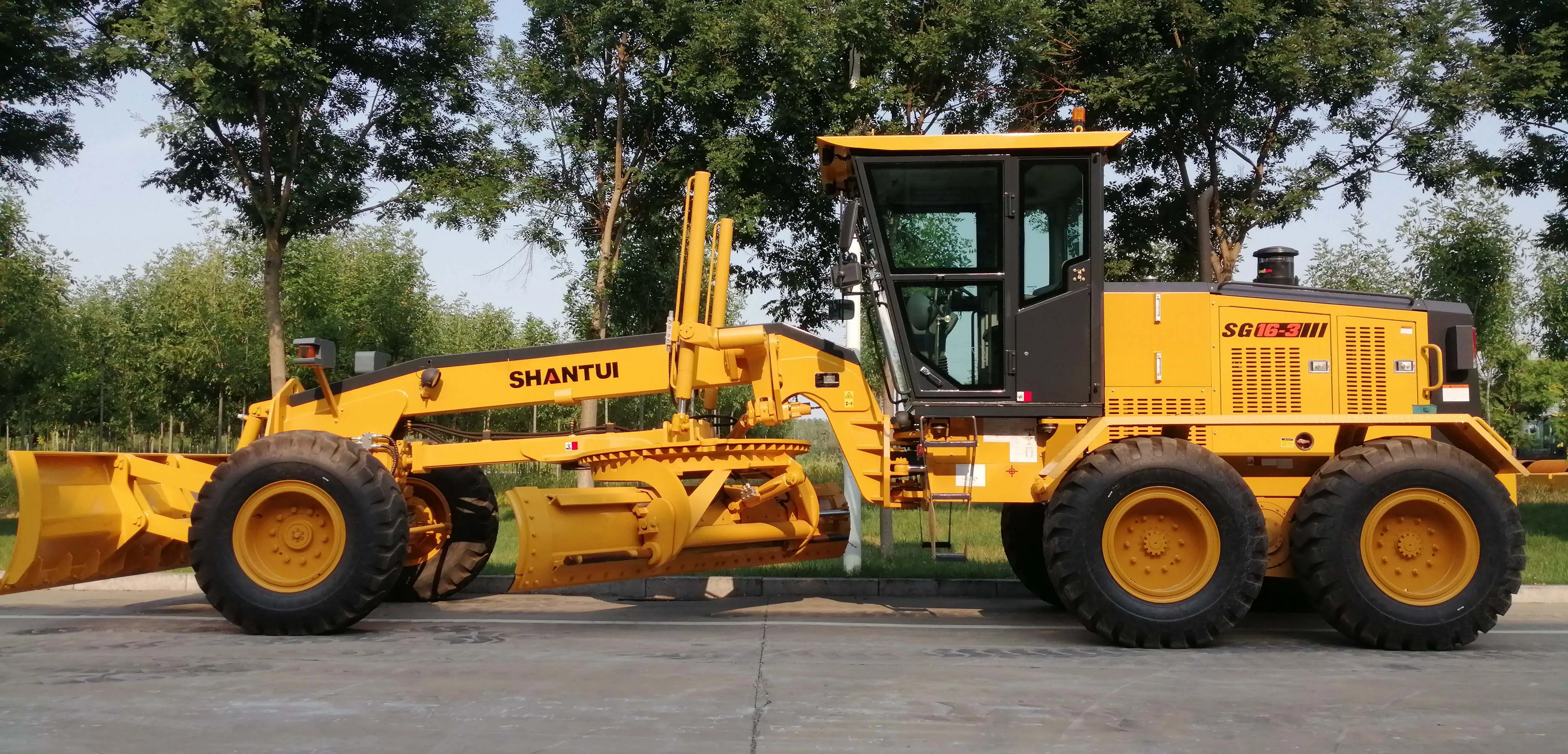

Product Show
