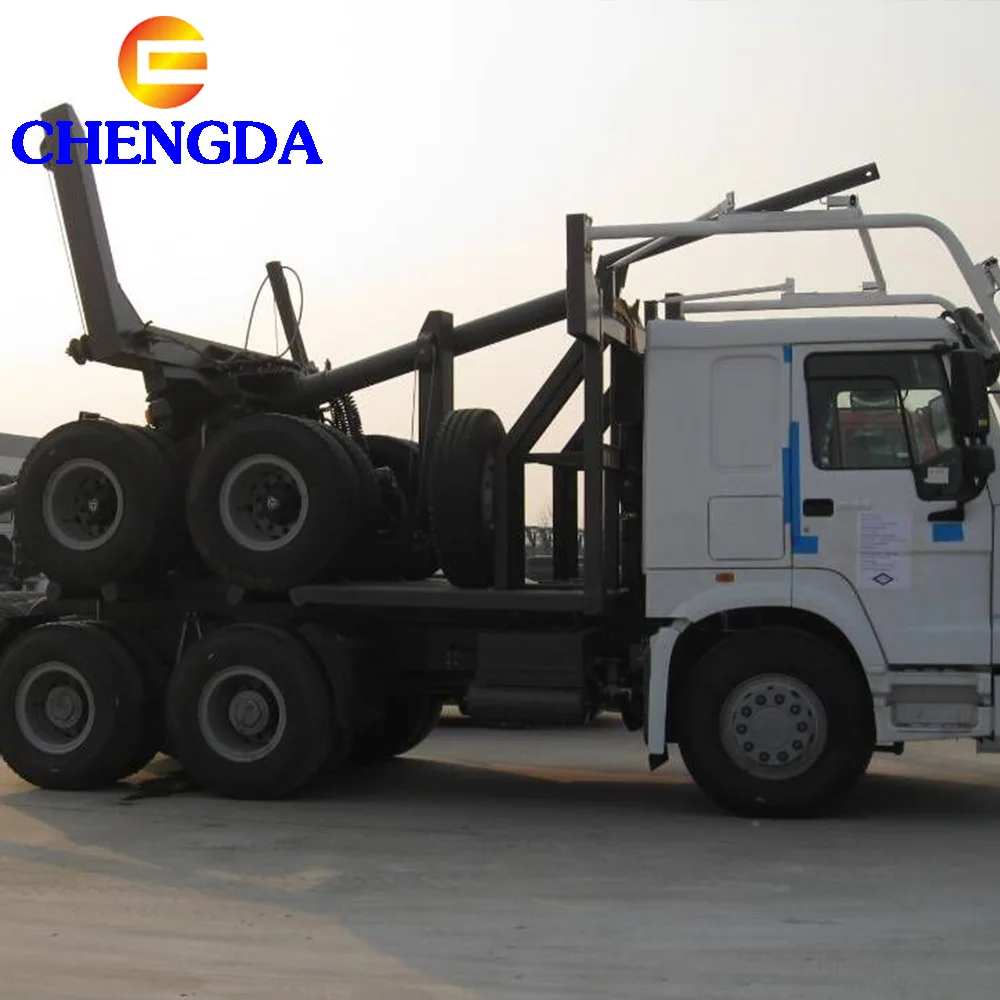

Грузовик для транспортировки древесины лесозаготовки
- Категории: Cargo Trucks >>>
- Поставщик: Shandong,Chengda,Auto,Sales,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Sinotruck Howo Dumper Truck 6x4 8x4 336 371HP 40Ton Tipper Dump Truck
Product Description
More Details
Tire
12.00R20 Radial
10+1pieces
Chassis
Front axle:HF9
Real axle:HC16
Heavy Duty
Model
Horse power:371 HP
Emission:Euro 2
Specification
Log transport semi trailer | ||||||
Assembly | Composition | Specification | Optional | |||
Dimensions | Size(LxWxH) | 13000x2500x4000mm | ||||
Curb weight | 10700kg | |||||
Loading weight | 60000kg | |||||
Chassis | Main beam | Q345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Downplate is 16mm. | ||||
Cross beam | 16# channel steel | |||||
Side beam | 25# channel steel | |||||
King pin | 2'' or 3.5'' traction pin | Optional JOST | ||||
Floor | 3mm diamond steel plate | |||||
Fence | 1.5m steel plate 600mm height, fence 500mm+200mm | |||||
Support leg | China brand 28Tons (Double speed) | |||||
Suspension | Type | Common mechanical | Optional Air suspension | |||
Steel spring | 90(W)mm*13(Thick)mm*10 Layer | |||||
Axle | Brand | Fuwa(13000kgx3) | Optional BPW | |||
Wheel rim | 9.0-22.5 steel wheel rim | |||||
Tire | 12.00R22.5 | Optional 12.00-20 | ||||
Brake system | Brake chamber | WEBCO, 6 big chamber | ||||
Brake valve | KTL/WEBCO | |||||
Brake syste | Dual line brake system | Optional ABS | ||||
Other | Light | Tail lamp with tum signal, brake light & reflector, side lamp etc. | ||||
Landing gear | 28 Ton manual operating, heavy duty landing gear. | Optional JOST | ||||
Tool box | 1 set standard tool box | |||||
Spare tire carrier | 2 pcs | |||||
Painting | 1 coat of anticorrosive prime, 2 coats of final paint. | |||||
Packing & Delivery
Bulk Cargo
Container
Ro-Ro
In order to protect the interests of buyers, we will insure the entire shipping process.
Please rest assured to buy!
Company Profile
Our company is a professional truck factory in china. We have been in truck sale for more than 18 years.
Mainly exported to African and South American markets, with nearly 10,000 trucks exported to Africa every year.
Customer feedback is very good
Other Products
FAQ
1.Q: What kind of payment do you accept?
A: We accept T/T and L/C; Others payment is negotiable.
2.Q: What's your minimum order quantity?
A: One unit.
3.Q: What's your delivery time?
A: 10-20 days after received the deposit.
4.Q: What's warranty time?
A: 12 months or 30,000 km from the date of shipment whichever comes first.
5.Q: What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply.
A: We accept T/T and L/C; Others payment is negotiable.
2.Q: What's your minimum order quantity?
A: One unit.
3.Q: What's your delivery time?
A: 10-20 days after received the deposit.
4.Q: What's warranty time?
A: 12 months or 30,000 km from the date of shipment whichever comes first.
5.Q: What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply.
