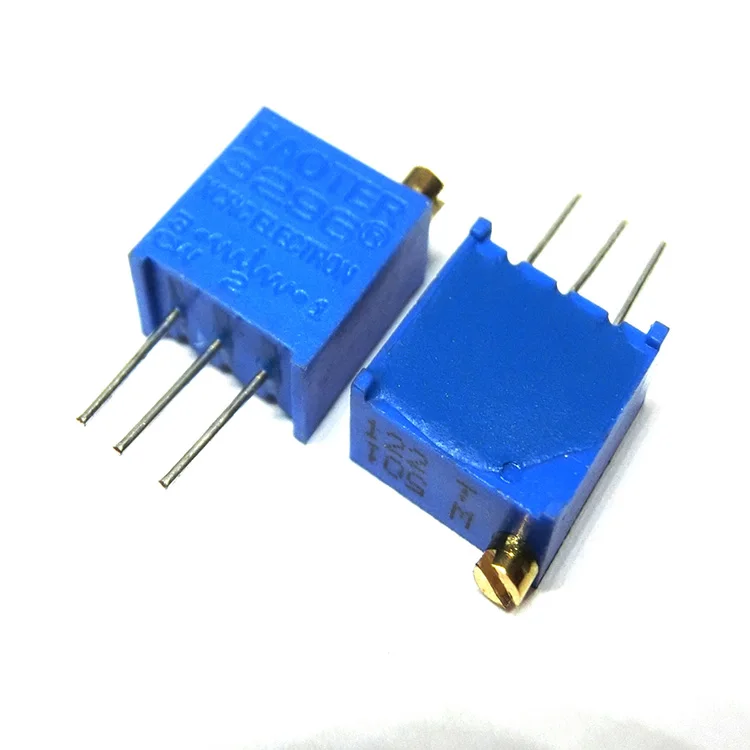

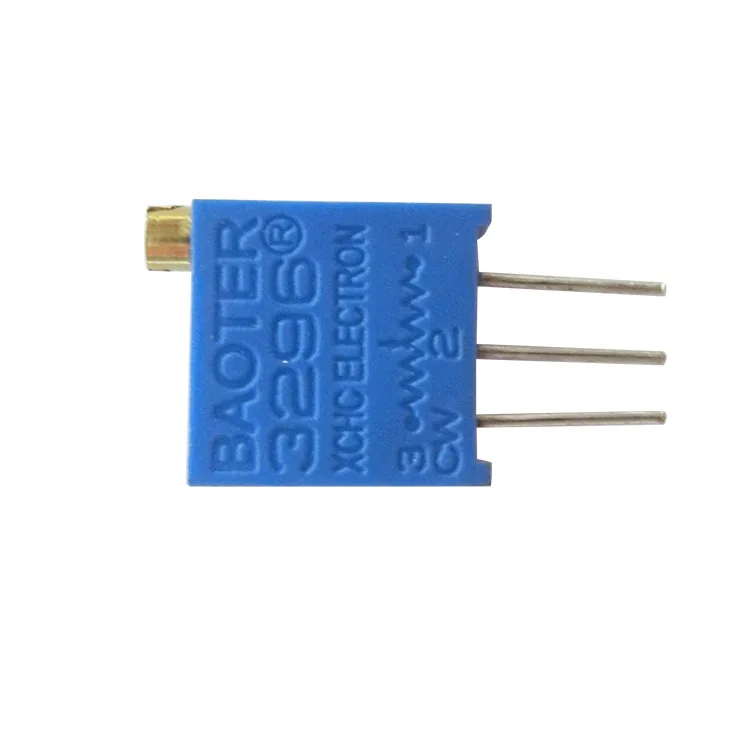

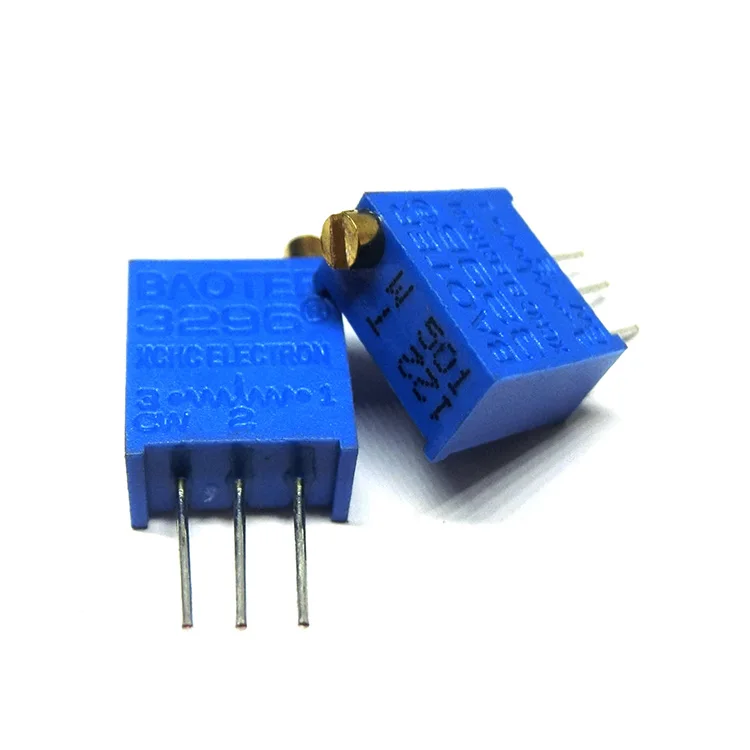

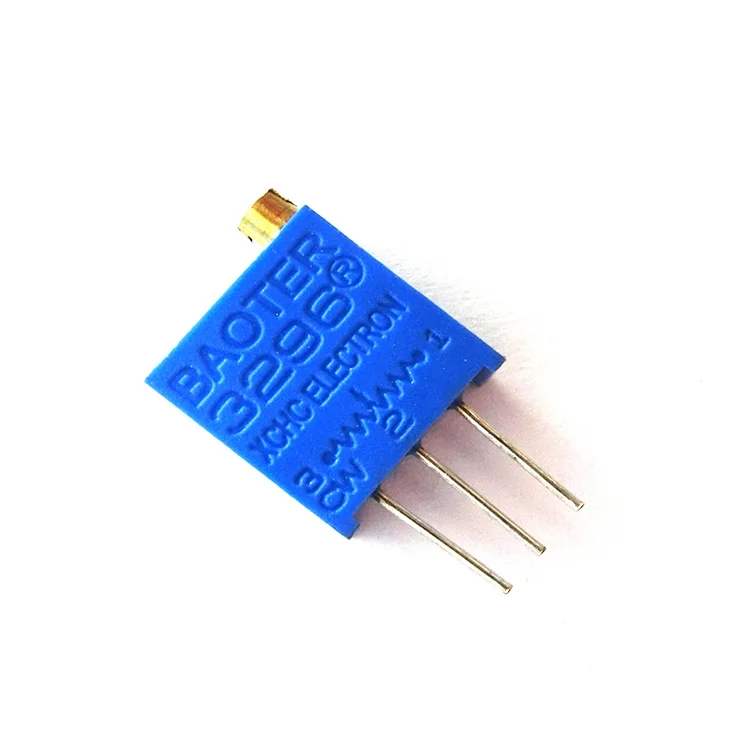

3296 бренд Bochen лидер продаж продукты 100k 0 5 w потенциометр

Цена:0,04 $ - 0,08 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

Specification

ctrical Characteristics	Range of nominal resistance	5Ω~5MΩ
		Resistance tolerance	±10% ±5% (customization)
		Terminal resistance	≤±1%R or 2Ω
		Contact resistance variation (CRV)	≤±1%R or 3Ω
		Insulation resistance	≥ 1GΩ (100V AC)
		Withstand voltage	640V (DC or AC peak value)
		Effective electrical travel	30±2 cycles

Environment Characteristics	Rated power	0.5W ( 300V max)
		Temperature range	-55°C~+125°C
		Temperature Coefficient	±250, ±100ppm/°C
		Collision (390m/S2, 4000 times)	ΔR≤±1%R
		Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
		Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
		Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
		Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
		Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
		Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	30±2 cycles
Physical Characteristics		Starting torque	≤36mN.m
