Himo Электрический велосипед C26 сменный комплект батареи 48 в 10 Ач 500 Вт рама встроенный

DTB Electric bicycle battery Datasheet

Model

DTB4810IR25

Chemistry

LiNiCoMn

Nominal Voltage

48V

Nominal Capacity

10Ah

Weight

Approx 3.6Kg

Outer case

eBike frame insert battery

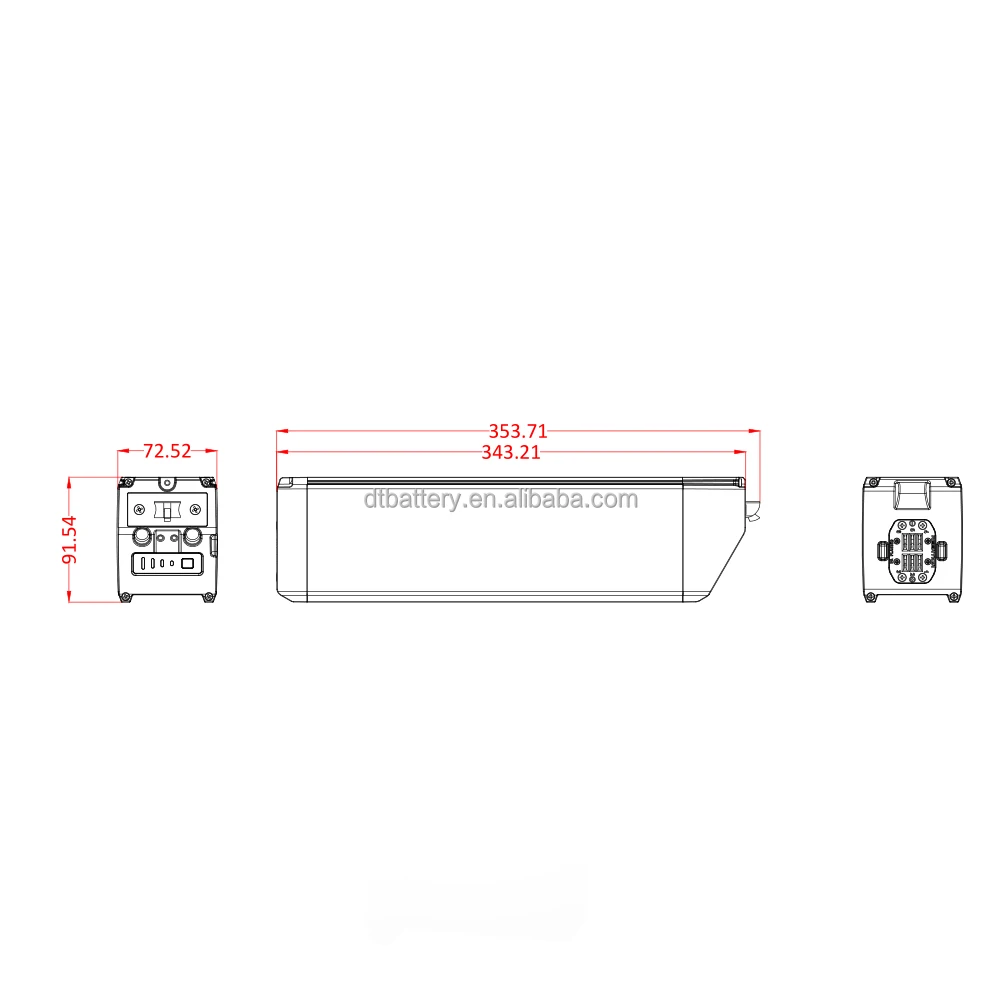

Dimension

354*73*92mm

Standard Charge

Constant Current 0.2C, Constant Voltage 54.6V 100mA Cut-off

Fast Charge

Constant Current 0.5CA, Constant Voltage 54.6V 100mA Cut-off

Standard Discharge

Constant Current 0.2C/End Voltage 39V

Cycle Life

500 times with DOD80%

Continuous Discharge Current

15A-25A depending on motor powe 250W 350W 500W 750W

BMS function

Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance

Storage Temperature Range

Temperature: -10-40

Relative humidity:45-75%

Pressure: 86-106KPa
