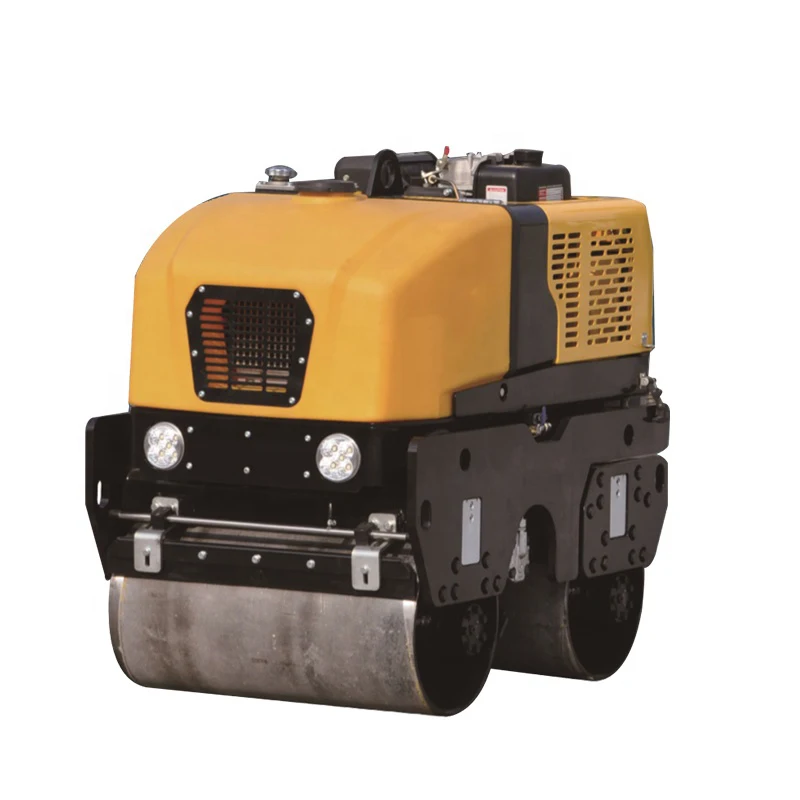

Construction Machinery SHANTUI Mini Road Roller SRD900W to Peru
Products Description
High flexibility and usability
●Multi-purpose compactor achieves outstanding compaction result at various site condition , compaction in trenches,sewers or pipeline construction
●The working width can be easily changed between 600 and 850mm with the drum extention
●Multi-purpose compactor achieves outstanding compaction result at various site condition , compaction in trenches,sewers or pipeline construction
●The working width can be easily changed between 600 and 850mm with the drum extention
Hydraulic system
● World leading hydrostatic driving system guarantees stepless speed control to achieve outstanding compaction result
●The hydraulic articulated steering system features flexible motions and effectively adapts to diversified working conditions.
● World leading hydrostatic driving system guarantees stepless speed control to achieve outstanding compaction result
●The hydraulic articulated steering system features flexible motions and effectively adapts to diversified working conditions.
Remote control
● Reliable radio remote control eliminates problems caused by intense light or the simultaneous use of other machines
● Reliable radio remote control eliminates problems caused by intense light or the simultaneous use of other machines
Product Paramenters
Parameter name | SRD900W |
Performance parameters | |
Operating weight (Kg) | 870 |
Exciting force (KN) | 20 |
Vibration frequency (Hz) | 60 |
Nominal amplitude (mm) | 0.5 |
Ground pressure (KPa) | |
Gradeability (%) | 30 |
Engine | |
Rated power/rated speed (kW/rpm) | 8/3600 or 13.5/3600 |
Overall dimensions | |
Overall dimensions of machine (mm) | 1120*680*1110 |
Driving performance | |
Forward speed (km/h) | 0-3.6 |
Reversing speed (km/h) | 0-3.6 |
Chassis System | |
Tank capacity | |
Fuel tank (L) | 6.5 |
Working device | |
Compacting width（mm） | 680 |

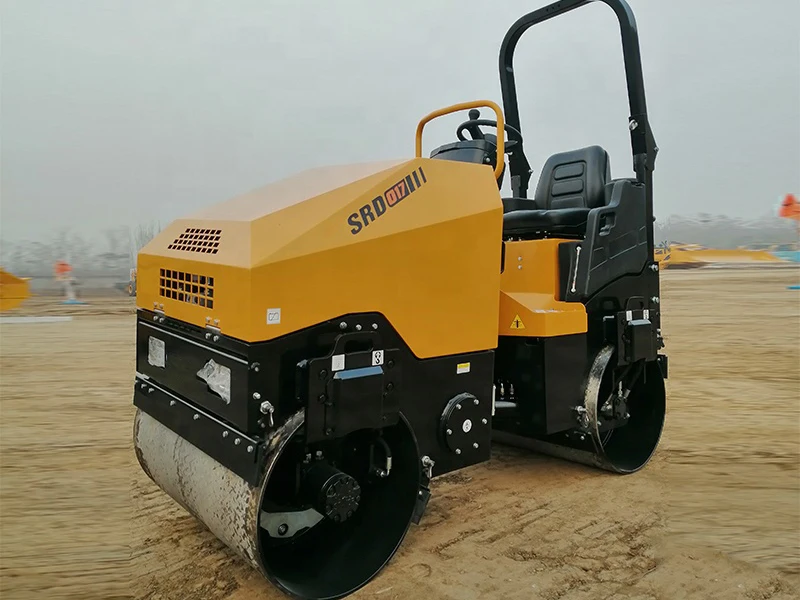

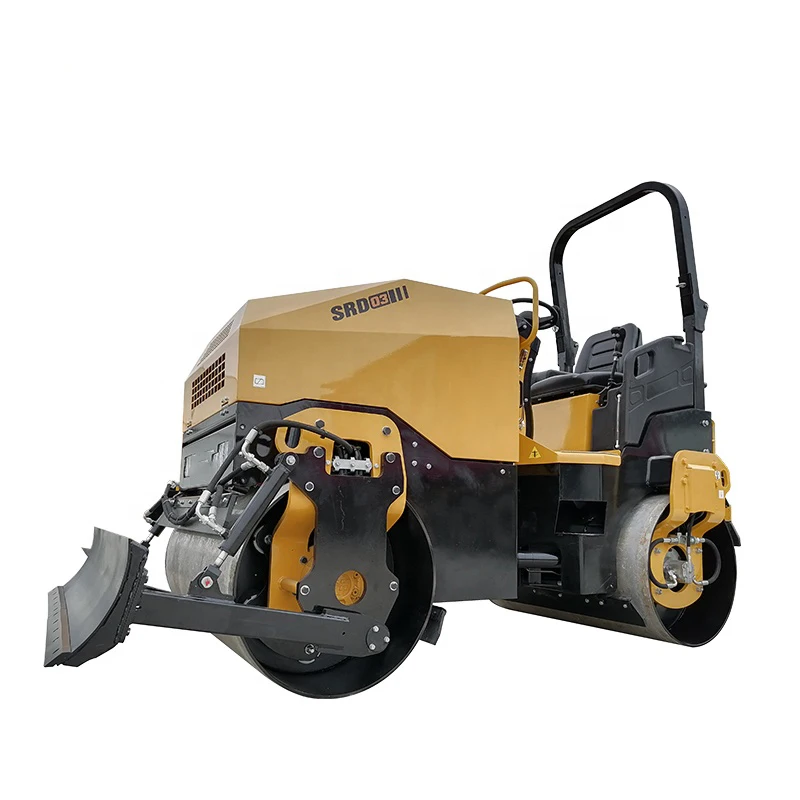

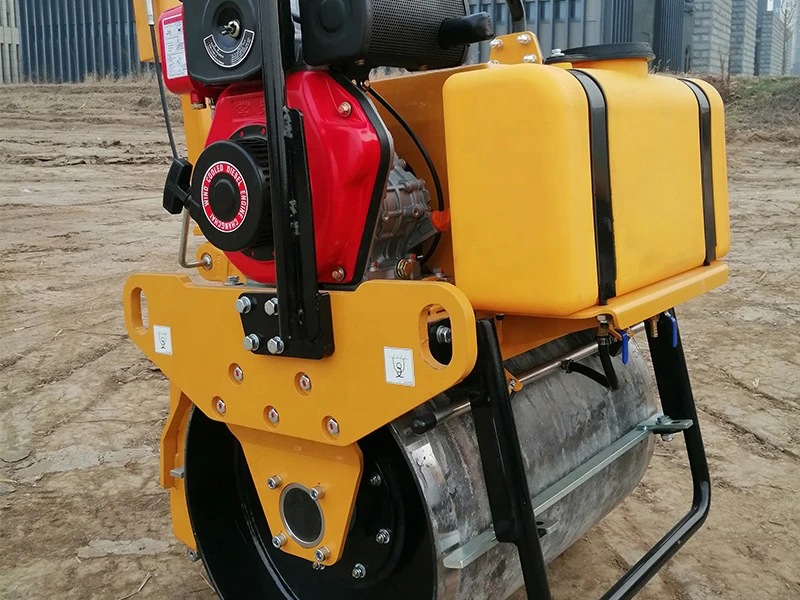

Details Images
